AIERIT19-150VHF-FM PROTABLE TRANSCEIVER

ii TYPE OF EXHIBIT:SPX-400 USERS MANUAL FCC PART:2.1033 (c)(3) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-400 FCC ID:AIERIT19-450 DATE:December 28, 2004 IC STANDARDS:RSP-100, Issue 8, Section 7.2(b) INDUSTRY CANADA:1084A-RIT19450 MODELS:SPX-400-CANADA Included in this exhibit is a draft of the Users Manual for the Ritron Models SPX-400 UHF-FM Portable Transceiver. A copy of this manual will be included with every radio. This manual provides the end user with operating instructions. Signed:_______________________________ Kevin G. Matson - Project Engineer Preliminary Owner’s Manual Models:SPX-200 SPX-400 Note: Please read this manual carefully to ensure you know how to properly operate the radio before use. Package Contents Carefully unpack and check that all items have been enclosed.  Radio & Antenna  Ni-MH battery pack (1350mAh) & belt clip  Desktop rapid charger (1350mAh) with adaptor  Hand strap  User’s manual  For product-related questions and comments, please contact: RITRON, INC. 505 W. Carmel Drive Carmel, IN 46032 P.O. Box 1998 Carmel, IN 46032 Ph: (317)846-1201 Fax: (317)846-4978 Email: [email protected] Website: www.ritron.com Contents FCC Licensing Information Safety and General Information Getting Started Radio Controls and Functions Installing the Battery Charging Battery Meter Swivel Belt Holster Turning On/Off Your Radio Operating Radio Talk Range Signal Strength Indicator/Channel Busy Monitor User Programmable Features 1. TX/RX Frequency (from frequency table) 2. Select RX/TX Tone 3. 2-Tone Encode Use and Care Trouble shooting RITRON, Inc Limited warranty FCC Licensing Information RITRON SPX Series professional two-way radios operate on radio frequencies that are regulated by the Federal Communications Commission (FCC). In order to transmit on these frequencies, you are required to have a license issued by the FCC. Application is made on FCC Forms 600 and 159. Question regarding FCC license; contact the FCC at: 1-888-CALL-FCC 1-888-225-5322 Or: http://www.fcc.gov Changes or modifications not expressly approved by Ritron, Inc. may void the user’s authority granted by the FCC to operate this radio and should not be made. To comply with FCC requirements, transmitter adjustments should be made only by or under the supervision of a person certified as technically qualified to perform transmitter maintenance and repairs in the private land mobile and fixed services as certified by an organization representative of the user of those services. Replacement of any transmitter component (crystal, semiconductor, etc.) not authorized by the FCC equipment authorization for this radio could violate FCC rules. NOTE: Use of this radio outside the country for distribution is subject to government regulations and may be prohibited. Safety and General Information RF Operational Characteristics Your radio contains a transmitter and a receiver. When it is ON, it receives and transmits radio frequency (RF) energy. The SPX-200 VHF radios operate in the frequency range of 136-174 MHz, the SPX-400 UHF radios operate in the frequency range of 400-470 MHz. When you communicate with the SPX-200, the output power level is 1-5 watts, and with the SPX-400, the output power level is 1-4 watts EXPOSURE TO RADIO FREQUENCY ENERGY The SPX Series handheld radios generate RF electromagnetic energy during transmit mode. The transmit mode is active when the PTT switch is depressed. This radio is designed for, and classified as, “Occupational Use Only”, meaning that it must be used only during the course of employment by individuals who are aware of the hazards and the ways to minimize such hazards. This series of radios is NOT intended for use by the “General Population” in an uncontrolled environment. When used as directed, this series of radios is designed to comply with the FCC’s RF exposure limits for “Occupational Use Only”. In addition, they are designed to comply with the following Standards and Guidelines: • FCC OET Bulletin 65, Edition 97-01, Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. • American National Standards Institute (C95.1-1992), IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. • American National Standards Institute (C95.3-1992), IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. To ensure that exposure to RF electromagnetic energy is within the FCC allowable limits for occupational use, always adhere to the following guidelines: • Use only the antenna(s) available from RITRON for these models. DO NOT attempt to substitute any other antenna. DO NOT operate the radio without an antenna. • Keep talk times as short and infrequent as possible. DO NOT depress the PTT button when not actually wishing to transmit. These radios are equipped with an internal timer to limit continuous transmit times. DO NOT exceed a 50% transmit duty cycle. • When transmitting, hold the radio in front of the mouth at a distance of at least 4 inches. DO NOT hold the radio in such a manner that the antenna is next to, or touching, exposed parts of the body, especially the face or eyes while transmitting. • In belt mounted applications, when transmitting, remove the radio from the belt and hold away from the body at least 4 inches. • When using external headset accessories, hold the unit away from the body at least 4 inches while transmitting. • DO NOT allow children to operate the radio. Label (on the radio) This radio complies with the FCC RF exposure limits for Occupational Use Only. Antenna Care Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. Do not hold the antenna when the radio is “IN USE.” Holding the antenna affects the effective range. Two-way Radio Op…

Text truncated - open the document above for the full version.

2 TYPE OF EXHIBIT:REQUEST FOR CONFIDENTIALITY FCC PART:0.457 (d)(1)(ii) and 0.459 MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:January 12, 2005 Ritron, Inc. hereby requests confidential treatment for the following information contained in this application: - Schematics - Component Location Diagrams - Semiconductor Parts List - Block Diagram These materials contain trade secrets and proprietary information normally not made available to the public. Public disclosure of these materials may be harmful to Ritron, Inc. and provide unjustified benefits to its competitors. Ritron, Inc. understands that pursuant to Rule 0.457 (d)(1)(ii), disclosure of the Application and all accompanying documentation will not be made before the date of Grant for this Application. Signed: _______________________________________ Kevin G. Matson - Project Engineer

RITRON, Inc. 505 West Carmel Dr. Carmel, IN 46032-7564 April 25, 2003 Re: AIERIT16-146 To Whom It May Concern: This product is a ten-channel radio transceiver. It is programmed in one of two ways; by pulling frequencies from a table listed in the Users Manual, and by programming via a RITRON PC-based programmer available only to authorized RITRON radio dealers. Allowing the user to pull frequencies from a table that has been pre-loaded into the radio by the manufacturer is a common and FCC approved way of operating this product. Because the frequencies available for use by the end user are loaded into the radio table by the manufacturer or into a specific channel by an approved radio dealer with a restricted access programmer, the product is compliant with 90.203(e). The user has the option of choosing frequencies for either Part 90 or Part 95J (MURS) services from the table, but is instructed not to mix frequencies from these two services in the same radio. This prevents the radio from being capable of operating on frequencies other than the MURS when MURS frequencies are chosen and thus complies with 95.655(d). The MURS frequencies are prominently marked in the frequency table in the Users Manual. In addition, those MURS frequencies which are restricted to an authorized bandwidth of 11.25 kHz are prevented in radio firmware from operating at a higher occupied bandwidth. Sam L. Dulaney Chief Engineer RITRON, Inc.

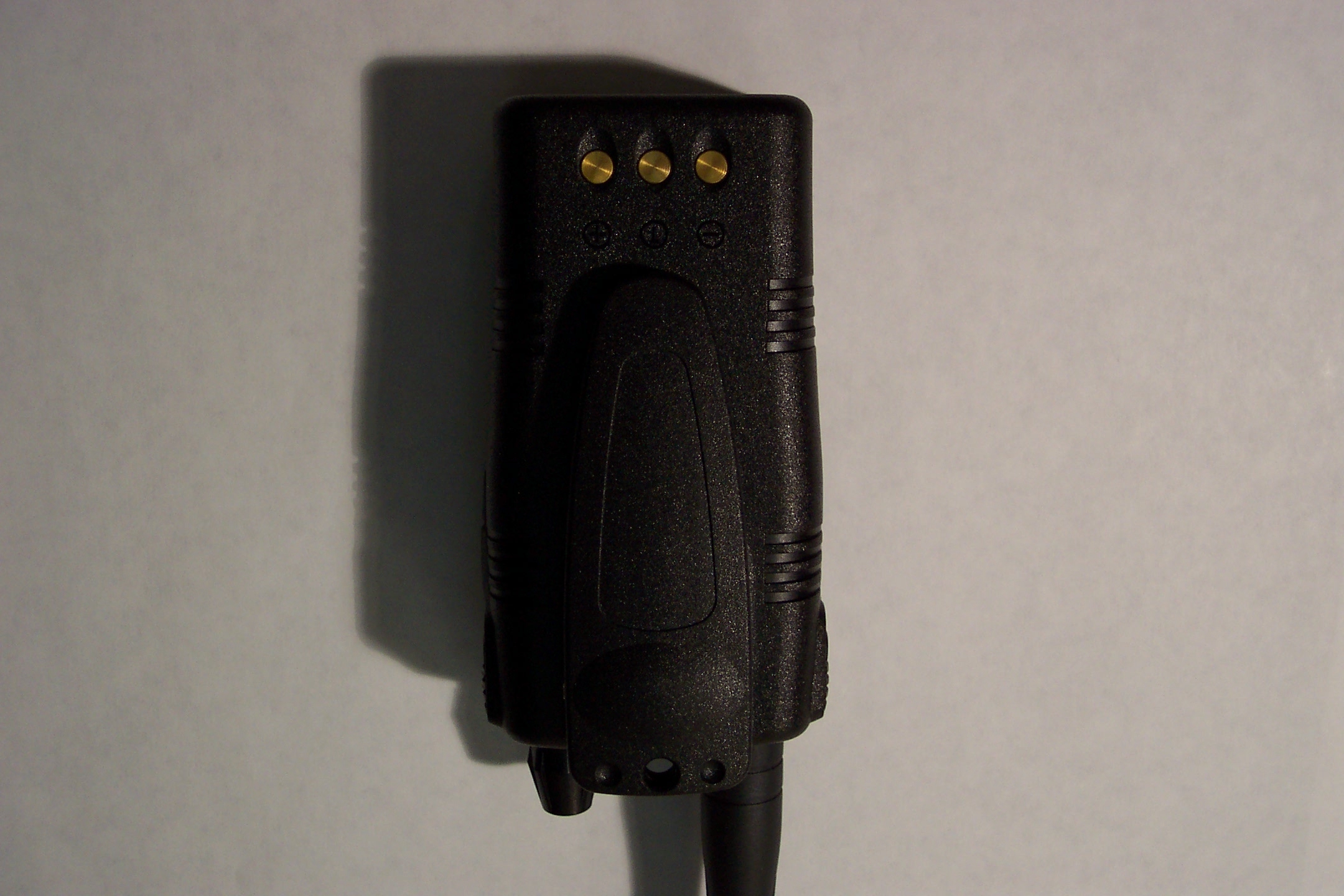

6 TYPE OF EXHIBIT:EXTERNAL PHOTOGRAPHS FCC PART:2.1033 (c)(12) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 20, 2004 IC STANDARDS:RSP-100, Issue 8, Section 5.1(e) RSP-100, Issue 8, Section 7.2(d) INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA Included in this exhibit are photographs of the RITRON Model SPX-200 VHF-FM Portable Transceiver case assemblies. Additional photographs of the equipment of sufficient clarity to reveal internal construction and define component placement are included with this Certification request as a separate exhibit. Signed:_______________________________ Kevin G. Matson - Project Engineer 7 EXHIBIT:SPX-200 front view FCC ID:AIERIT19-150 IC: 1084A-RIT19150 EXHIBIT:SPX-200 rear view FCC ID:AIERIT19-150 IC: 1084A-RIT19150

3 TYPE OF EXHIBIT:FCC DATA LABEL FCC PART:2.1033 (c)(11) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:January 13, 2005 IC STANDARDS:RSP-100, Issue 8, Section 4 RSP-100, Issue 8, Section 5.1(g) RSS-119, Issue 6, Section 5.1 INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA The following drawing specifies the FCC Label for the SPX-200. Photographs are included to indicate the position of the label on each model’s case. Each serial number is recorded along with the date of manufacture and is kept on file at RITRON, Inc. Serialization will begin with the serial number 12345. The size of the serial label is 1.305” x 0.995”. Signed: ___________________________________ Kevin G. Matson - Project Engineer 4 EXHIBIT:SPX-200 case assembly showing location of FCC ID Label (photo is for location only, actual label is per attached drawing) FCC ID:AIERIT19-150 IC:1084A-RIT19150 RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 REVISIONS TOLERANCES (EXCEPT AS NOTED) DECIMAL–FRACTIONAL–ANGULAR– DRAWN BY NO. 12345 DATE BY CHECKEDTRACED SCALEDATE MATERIALDRAWING NUMBER APPROVED MAP SPX-200 FCC/MODEL LABEL 14200149 2 : 1 01/12/05 TYPE SPECIFICATIONS:1. All characters black, Helvetica, 6 point, 90% width except where noted below 2. "Telephone: " , "FCC ID:" , "IC:", "Model:", and "SN:" Black characters, Helvetica Bold, 6 point, 90% width. 3. "Assembled in Korea" Black characters, Helvetica, 5 point, 90% width 4. "FCC ID: AIERIT19-150" will be enclosed in a box border (bold/black) centered around the text. 5. All lines of text centered horizontally on the label. MATERIAL SPECIFICATIONS:1. MATERIAL - Topcoated metallized silver polyester. (FLEXmark MM 200 Silver TC-249 L-23 spec 50K/Q-8) 2. ADHESIVE - A permanent Acrylic adhesive appx. 0.8-0.9 mils thick with a Kraft Release Liner 3.1 mils thk. 3. GRAPHICS - Indoor/Outdoor Smudge and Abrasion resistant images. 4. DURABILITY - Service temperature of -40 F to 200 F 5. OVERLAMINATION - Clear Matte film with acrylic adhesive. NOTES:1. Number Serialization to start with 12345 with number incrementedby one on each label. 1. The FCC/Model label for the SPX-200 will use the above materials/specifications or a RITRON approved equivalent. 2. Vendor will suppy photoproofs for RITRON Engineering approval prio to manufacturing production labels. 3. No changes to label without RITRON engineering approval. * FLEXmark is a registered trademark of FLEXcon Company, Inc. RITRON, INC. (www.ritron.com) 505 W. Carmel Dr. Carmel, IN 46032 Telephone: 800-872-1872 FCC ID: AIERIT19-150 IC: 1084A-RIT19150 MODEL: SPX-200 SN: 12345 Assembled in Korea 0.995" 0.107" 45 ο 1.305" R 0.125" TYP. 3 SPX-200 FCC/MODEL LABEL PN: 14200149 SCALE: 2:1 SCALE: 1:1 RITRON, INC. (www.ritron.com) 505 W. Carmel Dr. Carmel, IN 46032 Telephone: 800-872-1872 FCC ID: AIERIT19-150 IC: 1084A-RIT19150 MODEL: SPX-200 SN: 12345 Assembled in Korea

8 TYPE OF EXHIBIT:INTERNAL PHOTOGRAPHS FCC PART:2.1033 (c)(12) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 20, 2004 IC STANDARDS:RSP-100, Issue 8, Section 5.1(e) RSP-100, Issue 8, Section 7.2(d) INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA Included in this exhibit are photographs of the RITRON Model SPX-200 VHF-FM Portable Transceiver printed circuit board assembly and installation. Additional photographs of the equipment of sufficient clarity to reveal equipment construction and layout, labels for controls and meters, and chassis assembly are included with this Certification request as separate exhibits. Signed:______________________________ Kevin G. Matson - Project Engineer 9 EXHIBIT:SPX-200 complete topside/bottomside RF PCB with shields removed FCC ID:AIERIT19-150 IC:1084A-RIT19150 10 EXHIBIT:SPX-200 complete topside/bottomside RF PCB with shields installed FCC ID:AIERIT19-150 IC:1084A-RIT19150 11 EXHIBIT:SPX-200 complete bottomside/topside Control PCB FCC ID:AIERIT19-150 IC:1084A-RIT19150

12 EXHIBIT:SPX-200 RF PCB installed in aluminum chassis FCC ID:AIERIT19-150 IC:1084A-RIT19150 13 EXHIBIT:SPX-200 Control PCB connected to front case EXHIBIT:SPX-200 RF and Control PCB connected together FCC ID:AIERIT19-150 IC:1084A-RIT19150 14 EXHIBIT:SPX-200 RF and Control PCB assembly installed in front case, battery removed FCC ID:AIERIT19-150 IC:1084A-RIT19150

57 TYPE OF EXHIBIT:OPERATIONAL DESCRIPTION FCC PART:2.1033 (c)(6) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 28, 2004 IC STANDARDS:RSP-100, Issue 8, Section 7.2(b) INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA Included in this exhibit is a draft of the Maintenance and Operating Manual for the Ritron Model SPX-200 VHF-FM Portable Transceiver. Specifically, the manual includes a technical description of the SPX-200 sufficient to establish compliance with the technical standards of the applicable rule part(s). This includes, but is not limited to, the following items required under FCC Part 2.1033(c): (1)FCC Identifier. (2)A copy of the installation and operating instructions. (3)Type of emission. (4)Frequency range. (5)Range of operating power, and means to provide variation in operating power. (6)Maximum power rating. (7)Tune-up procedure. (8)A description of all frequency determining and stabilization circuits. A description of the circuits used to suppress spurious radiation, limiting modulation, and limiting power. (9)Drawing with labels for controls and complete circuit diagrams. Signed:________________________________ Kevin G. Matson - Project Engineer 58 SPX-200 (Preliminary) MAINTENANCE / REPAIR / OPERATING MANUAL 59 TABLE OF CONTENTS CONTENTS ............................................................................................................................................................................... 1 1. INTRODUCTION............................................................................................................................................................... 60 2. OPRATION FEATURES ................................................................................................................................................. 3 3. TECHNICAL SPECIFICATIONS .................................................................................................................................. 61 1) GENERAL .......................................................................................................................................................................... 4 2) TRANSMITTER................................................................................................................................................................. 4 3) RECEIVER ......................................................................................................................................................................... 4 4. CIRCUIT DESCRIPTION .................................................................................................................................................. 5 1) PHASE-LOCK LOOP (PLL) CIRCUIT.......................................................................................................................... 5 2) TRANSMITTER ................................................................................................................................................................ 5 3) RECEIVER .......................................................................................................................................................................62 5. ALIGNMENT PROCEDURE ............................................................................................................................................ 6 1) MEASUREMENT CONDITION ..................................................................................................................................... 6 2) DISASSEMBLING THE UNIT ......................................................................................................................................63 3) TRANSMITTER CIRCUIT ADJUSTMENT .................................................................................................................. 7 4) RECEIVER CIRCUIT ADJUSTMENT.........................................................................................................................64 60 1. INTRODUCTION This manual is intended for use by experienced technicians familiar with similar types of commercial grade communications equipment. SPX-200 is a micro size FM transceiver operating between 136 ~ 174 MHz. With the output power of 5 W(1 ~ 5 W). In addition to its small size, the SPX Series offers many advanced features that could only be found in the most expensive Land Mobile Radios. 2. OPERATION FEATURES 2-1) Physical Layout 2-2) Panel controls  Power switch / Volume Control Turn clockwise to switch ON the transceiver. Rotate to adjust the volume. To switch OFF the transceiver, turn counterclockwise fully.  Emergency button Pressing this key to enter the emergency mode  Antenna connector Connect the supplied antenna here (SMA connector)  TX / RX / Battery Indicator (LED 3 colors) OnTransmitting Red BlinkingLow battery OnReceiving, monitoring Green BlinkingDifferent sub-tone when receiving OrangeOnInitializing, programming and cloning              61  Function button (Menu / Esc.)  Universal connector Connect the external accessories (speaker / microphone, cloning cable & wall charger) (optional)  Belt clip  MIC.  PTT(Push To Talk) Button Hold down to transmit, release to receive.  Channel Select Button (Up & Down buttons) Select the desired channel with pressing Up and Down button, pressing and holding down more than 1 second  Monitor Button Press to monitor. Holding down over 2 seconds keeps monitoring function on, and press shortly again or PTT Button to stop.  Lamp This key illuminates the LCD and keys on the front panel.  Programmable keys 3. TECHNICAL SPECIFICATIONS 1) GENERAL 1) Frequency Range : 136 ~ 156 MHz / 146 ~ 174 MHz 2) Modulation Type : 11K0F3E / 16K0F3E (FM) 3) Channel capacity : 128 channels 4) Channel spacing : 12.5 kHz / 25kHz 5) Power Supply: DC 7.5V, Ni-Mh Rechargeable Pack 6) Current Drain: High Transmitter (5W) ----- 2000…

Text truncated - open the document above for the full version.

64 TYPE OF EXHIBIT :TUNE-UP PROCEDURE FCC PART :2.1033 (c)(9) MANUFACTURER :RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT19-150 MODELS :SPX-200 DATE: January 19, 2005 The tune-up procedure included in this exhibit is an excerpt of the Maintenance and Operating Manual for RITRON Model SPX-200 VHF-FM Portable Transceiver. The complete Maintenance and Operating Manual is included with this application for Certification as a separate exhibit. Signed: ________________________________ Kevin G. Matson - Project Engineer 5. ALIGNMENT PROCEDURE 65 1) MEASUREMENT CONDITION The following sections describes the alignment procedure for SPX-200 transceiver under the following reference environment conditions: Temperature:25“ C (77“ F) Relative Humidity :65% Power Supply Voltage:7.5VDC +/- 5% TEST EQUIPMENT / TOOLS REQUIRED The following list of equipment is recommended for use in setting up the radio properly. Please ensure the test equipment are calibrated according to the manufacturer’s instructions: - Frequency counter more than 1GHz +/-100Hz tolerance, high input impedance and high sensitivity - FM Signal generator, 1GHz with adjustable frequency, FM deviation, and RF output attenuators. 50Ω Output impedance. - Oscilloscope, high input impedance. - 16Ω 1 Watt resistor as loudspeaker load - Audio Signal Generator, 10Hz to 20KHz, 600Ω impedance with attenuators. - RF Watt meter, with 50Ω 10 Watt termination resistor (Or RF Voltmeter with 50Ω termination and external 50Ω attenuators) - Regulated Power Supply 7.5VDC 3A output - Digital A-V-O Multi-meter - SINAD Meter - External Speaker Mic. plug (or special audio test jig) - Interconnection test cable for RF and Control PCB - Circuit Diagram for SPX-200 - PCB layout diagram for SPX-200 - Tuning tools for RF/IF transformer and the VR potentiometers 2) DISASSEMBLING THE UNIT The antenna Disconnect the antenna. The Cover 1- Remove the battery. 2- Remove the Volume Knob. 3- Remove the 2 screws on the back panel. 4- The case could then be opened for servicing. 5- Be careful NOT to disconnect the pin connector between RF board and Control board. The PCBs - The radio consists of two PCBs, the RF (rear side) and control board (front side).. - On the RF Board, connect ANT1 to a signal generator or RF power meter. - On the RF Board, connect Power Supply to the battery terminal contacts. - Connect External Speaker Mic Plug (or Audio Test Jig) to J3. 3) TRANSMITTER CIRCUIT ADJUSTMENT - Crystal frequency On receiving mode, check Crystal output is at 12.8MHz - Transmitter Frequency Connect RF Power meter to ANT1, Activate PTT to transmit on 154.570MHz. 66 - Transmitter Output Power Activate PTT to transmit on 154.570MHz, Output power is adjustable by software - Transmitter Sub-Audible Tone Deviation Set radio to transmit on 154.570Hz, with CTCSS code 01 (67Hz) and no audio modulation. It is adjustable by software for 0.35KHz deviation. - Transmitter Deviation Limit Set radio to transmit on 154.570MHz, with CTCSS code 01 (67Hz) and audio modulation. At the external microphone input, inject 1KHz tone at –20dBm. It is adjustable by software for 2.3KHz deviation. 4) RECEIVER CIRCUIT ADJUSTMENT - FM Demodulator Adjustment Set radio to receive on 154.570MHz, No CTCSS or DCS. Connect RF Signal Generator to ANT1, Set generator to 154.570MHz at –60dBm (50Ω) output with 1KHz tone modulation at 1.5KHz deviation. - Receiver Squelch Adjustment After checking the receiver sensitivity, further lower the RF Signal Generator output to 8-10dB SINAD and observe the squelch circuit operates.

22 TYPE OF EXHIBIT:TEST REPORT FCC PART:2.1033 (c)(14) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 Following is a list of attached exhibits required by the Federal Communications Commission for the application to and grant of FCC Certification. Statement of Certifying Engineer ........................................................................ 2.947 List of Test Equipment Used ............................................................................... 2.947 (d) Description of Measurement Facility .................................................................. 2.948 Required Measurements.................................................................................... 2.1033 (c)(14) Radio Frequency Power Output........................................................ 2.1046 Modulator Response......................................................................... 2.1047 (a) Speech Amplifier Low-Pass Filter Response ..................................... 2.1047 (a) Percent of Modulation vs. Modulation Input Voltage......................... 2.1047 (b) Occupied Bandwidth........................................................................ 2.1049 (c)(1) Spurious Emissions at Antenna Terminals ........................................ 2.1051 Field Strength of Spurious Emissions............................................... 2.1053 Frequency Stability vs. Temperature................................................ 2.1055 (a)(1) Frequency Stability vs. Battery Voltage............................................ 2.1055 (d) Transient Frequency Behavior.......................................................... 90.214 23 TYPE OF EXHIBIT:STATEMENT OF CERTIFYING ENGINEER FCC PART:2.947 MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 I, Kevin G. Matson, have been employed by RITRON, Inc. since May 1980, working in the Engineering Department since November 1980 as a radio frequency Project Engineer. I received an Associates Degree in Electrical Engineering Technology from Purdue University at Indianapolis in 1980. I received a Bachelor of Science Degree in Electrical Engineering Technology from Purdue University at Indianapolis in 1982. I hereby certify that all measurements and date herein were taken by me, that they were obtained using sound and accepted engineering principles, and that they accurately reflect the performance and characteristics of the units tested. Signed: ________________________________ Kevin G. Matson - Project Engineer TYPE OF EXHIBIT: TEST EQUIPMENT LIST 24 FCC PART:2.947 (d) MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 IC STANDARDS:RSS-119, Issue 6, Section 4 INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA The measured data in this report was obtained using one or more of the following pieces of equipment. The particular equipment used in any one test is detailed in the procedure for that test. ITEMMANUFACTURER MODEL NO.SERIAL NO. Communications Test SetIFRCOM-120B485002391 RF Signal GeneratorMarconi Instruments2022119019/120 Spectrum AnalyzerHewlett-Packard8560E3720A02980 Audio Sweep GeneratorB & K Precision4010275-00893 Power SupplyVIZWP 706A3429D3 Digital OscilloscopePhilipsPM-3335DM648004 Dual Display MultimeterFluke456723040 Digital VOMFluke2704A234-008459 RF WattmeterBird61548652 Dipole AntennaElectro-MetricsEM-6924241 Dipole AntennaElectro-MetricsBDA-258-101 Log Periodic AntennaElectro-MetricsLP-258-102 Microwave Test AntennaPolaradCA-B11-3 Temperature ChamberAssociated Laboratories ELH-0.5-LCN/A ThermocoupleOmega 7035-J-2258504 30dB Power Attenuator Bird8306-300-NN/A 10dB AttenuatorELCOMAT-51-10N/A RF DetectorMicrolabs/FXRXA-1040N/A 25 TYPE OF EXHIBIT:DESCRIPTION OF MEASUREMENT FACILITY FCC PART:2.948 MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODEL:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 The Field Strength measurements filed with this application were made on a site certified by RITRON, Inc. Data pertaining to this site is on file with the FCC and is current. This site is used exclusively by RITRON, Inc. and is utilized only for the RF Field Strength Measurements of equipment designed and manufactured by RITRON, Inc. It is NOT used for measurements by or for any other party on a contract basis or otherwise. Signed:______________________________ Kevin G. Matson - Project Engineer 26 TYPE OF TEST:RADIO FREQUENCY POWER OUTPUT FCC PART:2.1046 MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 IC STANDARDS:RSS-119, Issue 6, Section 6.2 INDUSTRY CANADA:1084A-RIT19150 MODELS:SPX-200-BC, SPX-200-CANADA PROCEDURE: 1. The SPX-200 was aligned for transmitter operation on 150.050, 154.570 and 173.050 MHz (Fo) at full rated power per the tune-up procedure outlined in the Preliminary Maintenance Manual. This represents frequencies at the low, middle and high end of the SPX-200 operating frequency band. 2. Power was supplied to the SPX-200 via battery input connector J301 by a VIZ Model WP 706A power supply. The power supply was set for +7.2VDC. The SPX-200 was connected at antenna terminal ANT201 to the input of a Bird 6154 Thermaline Wattmeter, used to measure RF power of the carrier. 3. A BK Model 2704A Digital Multimeter was connected in series with pin 3 of Q101 to measure the current of Q101, the RF amplifier device. A Micronta Model 22-191 Digital Multimeter was used to measure Q101 supply voltage at pin 3. 4. Measurements were taken with the SPX-200 set for low and high power operation at each frequency. 27 TYPE OF TEST:RADIO FREQUENCY POWER OUTPUT FCC PART:2.1046 MANUFACTURER:RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS:SPX-200 FCC ID:AIERIT19-150 DATE:December 21, 2004 IC STANDARDS:RSS-119, Issue 6…
