AIERIT27-450UHF-FM RECEIVER

TYPE OF EXHIBIT: INSTALLATION AND OPERATING INSTRUCTION MANUAL FCC PART: 2.1033 (b)(3) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 18, 2007 IC STANDARDS: RSP-100, Issue 9, Section 7.2(b) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA Included in this exhibit is a draft of the User Manuals for RITRON Models LM-U450 and LPA-U450 Receivers. A manual will be included with every radio. These manuals provides the end user with installation and operating instructions. Signed: Michael A. Pickard - Project Engineer LM-U450_UserMan.pdf Ritron Pub. 14500060 Rev. A 12/06 © 2006 Ritron, Inc. All rights reserved. Ritron, Patriot, Jobcom, OutPost, GateGuard, Quiet Call and Quick Assist are registered trademarks of Ritron, Inc. Loudmouth, Quick Talk, Liberty and RadioNexus are trademarks of Ritron, Inc. Call 800-USA-1-USA For the right Wireless Solutions for your communication needs. P.O. Box 1998 · Carmel, Indiana 46082-1998 · 317-846-1201 · Fax: 317-846-4978 Email: [email protected] · www.ritron.com Owner’s Manual Table of Contents 1 Getting Started 1.1 Loudmouth ™ receiver and PA speaker equipment............................................................................... 1 1.2 Loudmouth ™ receiver assembly ........................................................................................................... 2 1.3 Paging the Loudmouth ™ receiver and PA speaker ............................................................................... 3 1.4 Compatibility with other RITRON model radios .................................................................................... 4 1.5 Determine the volume setting ............................................................................................................... 5 2 Installation 2.1 Selecting the PA speaker location ........................................................................................................ 6 2.2 PA speaker installation ......................................................................................................................... 8 2.3 Loudmouth ™ radio receiver installation................................................................................................. 9 2.4 Installing two PA speakers with a single Loudmouth ™ receiver ..........................................................10 2.5 Installing multiple Loudmouth ™ receivers and PA speakers ............................................................... 11 2.6 Vehicular installation........................................................................................................................... 12 2.7 Temporary outdoor installation ........................................................................................................... 12 3 Programming 3.1 Loudmouth ™ Field Programming Overview ........................................................................................ 13 3.2 Readout Current Frequency, Tone and Selective Signaling Codes.................................................... 14 3.3 Program Frequency & Tone Codes .................................................................................................... 15 Table 1: Programmable Frequency Codes .................................................................................16 Table 2: Interference Eliminator Programmable QC Tone Codes ...............................................16 Table 3: Digital Interference Eliminator Programmable DQC Tone Codes................................. 16 3.4 Program Paging Codes ...................................................................................................................... 17 Table 4: 2-Tone Paging Codes................................................................................................... 17 3.5 Program Loudmouth ™ Features .........................................................................................................18 Table 5: Loudmouth ™ Feature Codes ......................................................................................... 18 3.6 Program Loudmouth ™ Volume ........................................................................................................... 19 Checking the current volume setting ............................................................................................... 19 3.7 Program the NOAA Weather Frequency ............................................................................................20 Table 6: NOAA Weather Frequency Codes ................................................................................20 4 Operation 4.1 Basic Operation .................................................................................................................................. 21 4.2 Selcall Paging..................................................................................................................................... 21 4.3 2-Tone Paging .................................................................................................................................... 22 4.4 Record and Play ................................................................................................................................. 22 4.5 Weather Alert...................................................................................................................................... 23 4.6 Battery Powered Operation ................................................................................................................ 23 4.7 Loudmouth ™ Options .......................................................................................................................... 24 4.8 How to Minimize Feedback ................................................................................................................ 24 5 Specifications 5.1 Audio Output.......................................................…

Text truncated - open the document above for the full version.

Ritron, Inc. 505 West Carmel Dr. Carmel, IN 46032 Federal Communciations Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 September 26, 2007 Re: Request for Confidentiality for FCC ID: AIERIT27-450 Dear Sir/Madam: Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Ritron, Inc. hereby formally requests confidential treatment of some of the information accompanying this Application as listed below: Exhibit Type File Name Block Diagram LM-U450_BlkDIa.pdf Schematics LM-U450_Schem.pdf Operational Description LM-U450_OpDes.pdf Semiconductor List LM-U450_PartsLst.pdf These materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials might be harmful to Ritron, Inc. and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. We appreciate you attention to this matter. Regards, am L. Dulaney S Chief Engineer Ritron, Inc.

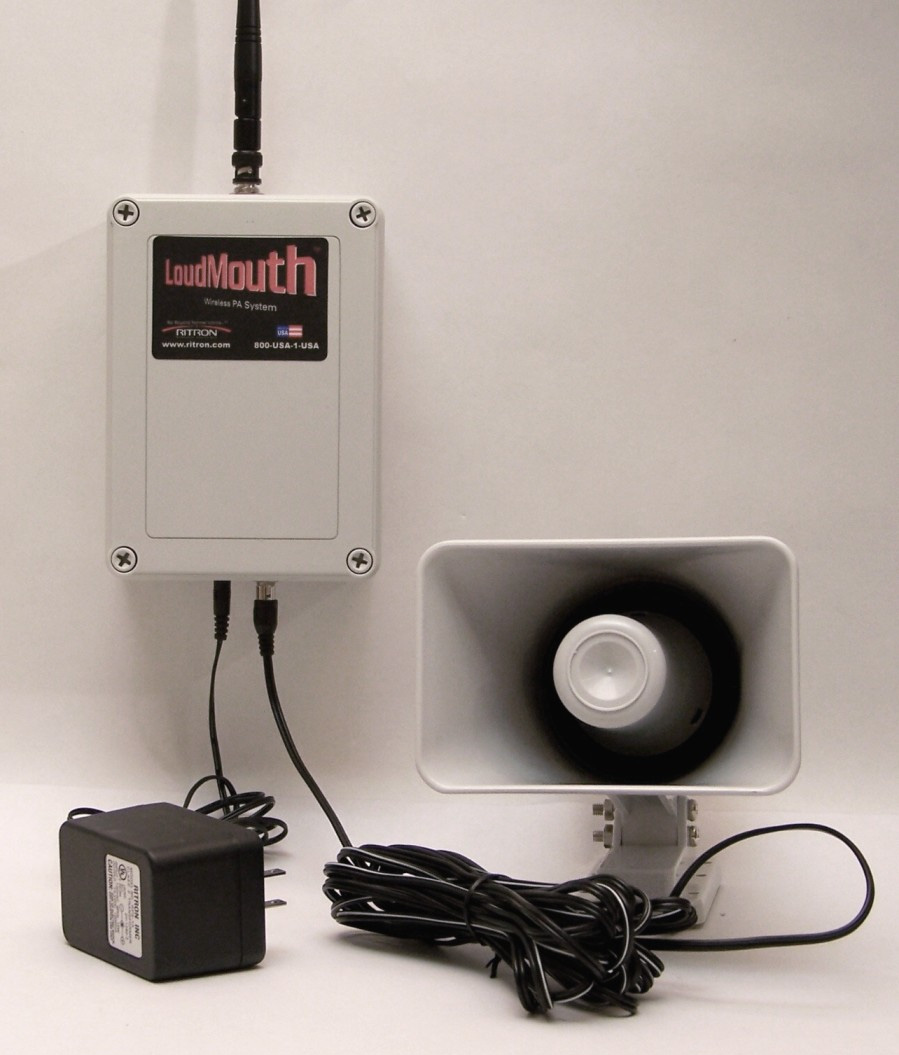

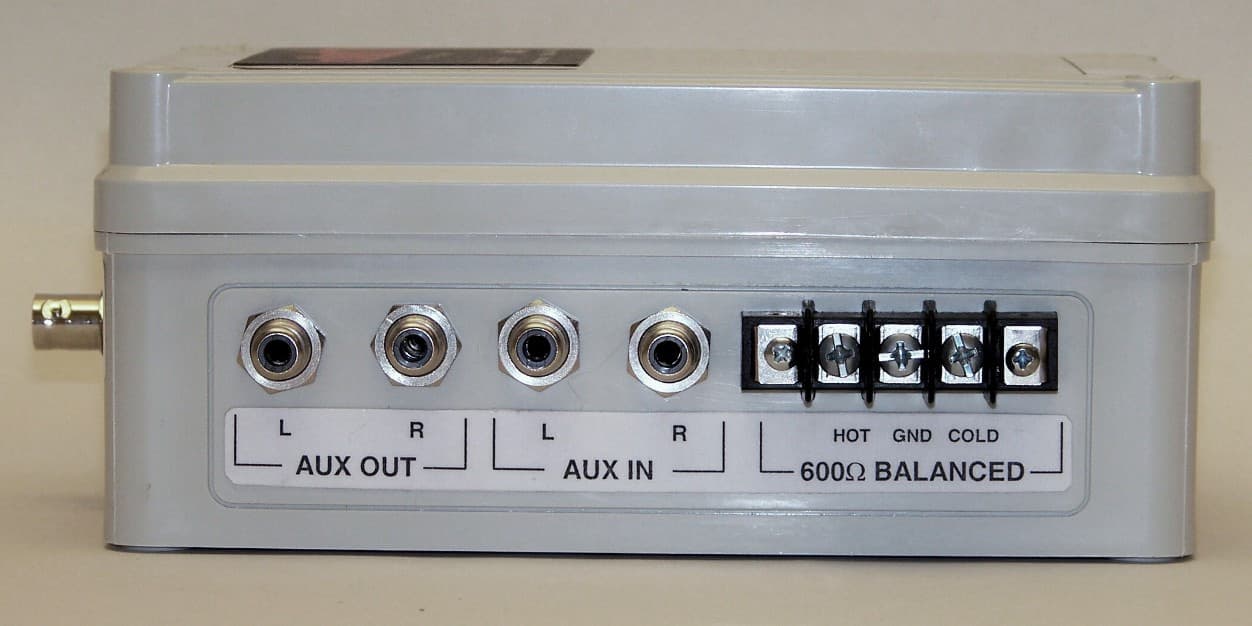

TYPE OF EXHIBIT: EXTERNAL PHOTOGRAPHS FCC PART: 2.1033 (b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARDS: RSP-100, Issue 9, Section 5.1(f) RSP-100, Issue 9, Section 7.2(d) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA Included in this exhibit are photographs of RITRON Models LM-U450 and LPA-U450 UHF-FM Receiver case assemblies. Additional photographs of the equipment of sufficient clarity to reveal internal construction and define component placement are included with this Certification request as a separate exhibit. Signed: Michael A. Pickard - Project Engineer LM-U450_ExtPho.pdf EXHIBIT: EXTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LPA-U450, LPA-U450-CANADA Bottom view showing DC power connector and location of FCC ID label Front view with RPS-1A DC power cube and AFB-1545 antenna connected Side view showing high impedance unbalanced and 600Ω balanced audio outputs LM-U450_ExtPho.pdf EXHIBIT: EXTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LM-U450, LM-U450-CANADA Front view with RPS-1A DC power cube, AFB-1545 antenna, and horn speaker connected Bottom view showing DC power connector, horn speaker connector, and location of FCC/IC identification label LM-U450_ExtPho.pdf

TYPE OF EXHIBIT: FCC/IC DATA LABEL FCC PART: 2.1033 (b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARDS: RSS-GEN, Issue 2, Section 5.2 RSP-100, Issue 9, Section 4 RSP-100, Issue 9, Section 5.1(h) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA The following photographs specify the location of the FCC/IC Label on the LM-U450 and LPA-U450. Each serial number is recorded along with the date of manufacture and is kept on file at RITRON, Inc. Serialization will begin with the serial number 12500. The size of the serial label is 1.500” x 0.625”. Signed: Michael A. Pickard - Project Engineer LM-U450_LabelLoc.pdf EXHIBIT: LM-U450 case bottom showing location of FCC/IC identification label (Photo is for location only, actual label is per LM-U450_LabelSmpl.pdf) FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 EXHIBIT: LPA-U450 case bottom showing location of FCC/IC identification label (Photo is for location only, actual label is per LM-U450_LabelSmpl.pdf) FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 LM-U450_LabelLoc.pdf

TYPE OF EXHIBIT: FCC PART 15 WARNING LABEL FCC PART: 15.19 (a)(1) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 26, 2007 The following drawing specifies the FCC Part 15 Warning label for the LM-U450 and LPA-U450. Photographs are included to indicate the position of the label on each model’s case. Signed: Michael A. Pickard - Project Engineer LM-U450_Pt15Label.pdf RITRON, INC. • 505 West Carmel Drive • Carmel, Indiana 46032 TEL: 317-846-1201 • FAX: 317-846-4978 • http://www.ritron.com Ritron Item: 14230554 Description: LABEL, FCC PART 15 WARNING Vendor Part Numbers: Identco# TTL308-700-10 Identco# TTRR-D3.54ZJ Revision Date: September 26, 2007 Description: The FCC Part 15 Warning label will be made in house by manufacturing. The ELP 310 thermal transfer printer will be used with glossy white poly label (RTN# 14290007). Identco# TTL308-700- 10, a 1.5” by 0.75” label, is the approved material. The approved ribbon is Identco# TTRR-D3.54ZJ. Drawing: This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Chief Eng. _______________ Project Eng. _____________________ Sales: ___________________ Manufacturing: ___________________ LM-U450_Pt15Label.pdf This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. EXHIBIT: LM-U450 case bottom showing location of FCC Part 15 Warning label (Photo is for location only, actual label is per attached drawing) FCC ID: AIERIT27-450 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. EXHIBIT: LPA-U450 case bottom showing location of FCC Part 15 Warning label (Photo is for location only, actual label is per attached drawing) FCC ID: AIERIT27-450 LM-U450_Pt15Label.pdf

TYPE OF EXHIBIT: INTERNAL PHOTOGRAPHS FCC PART: 2.1033 (b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARDS: RSP-100, Issue 9, Section 5.1(f) RSP-100, Issue 9, Section 7.2(d) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA Included in this exhibit are photographs of the RITRON Models LM-U450 and LPA-U450 UHF-FM Receiver printed circuit board assembly and installation. Additional photographs of the equipment of sufficient clarity to reveal equipment construction and layout, labels for controls and meters, and chassis assembly are included with this Certification request as separate exhibits. Signed: Michael A. Pickard - Project Engineer LM-U450_IntPho.pdf EXHIBIT: INTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LM-U450, LM-U450-CANADA PCB topside PCB topside with RF shield removed PCB bottom side LM-U450_IntPho.pdf EXHIBIT: INTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LM-U450, LM-U450-CANADA Case top removed showing back-up battery Case top removed and inlay pulled back to show pcb installation LM-U450_IntPho.pdf EXHIBIT: INTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LPA-U450, LPA-U450-CANADA PCB topside PCB topside with RF shield removed PCB bottom side LM-U450_IntPho.pdf EXHIBIT: INTERNAL PHOTOGRAPHS FCC ID: AIERIT27-450 CANADA: 1084A-RIT27450 MODELS: LPA-U450, LPA-U450-CANADA Case top removed and inlay pulled back to show pcb installation LM-U450_IntPho.pdf

TYPE OF EXHIBIT: TEST REPORT FCC PART: 2.1033 (b)(6)(9) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARDS: RSS-GEN, Issue 2, Section 3.2 (b)(j) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA Following is a list of attached exhibits required by the Federal Communications Commission for the application to and grant of FCC Certification. Exhibit FCC part IC Standard Statement of Certifying Engineer ............... 2.947 ..................... NA List of Test Equipment Used ...................... 2.947(d) ................. RSS-GEN, Issue 2, 3.2(b) Required Measurements ............................ 2.1033(b)(6) ......... RSS-GEN, Issue 2, 2.2.1 Receiver Spurious Emissions ........... 15.111(a) ............... RSS-GEN, Issue 2, Section 4.10 RSS-GEN, Issue 2, 6(b) LM-U450_TestRpt.pdf TYPE OF EXHIBIT: STATEMENT OF CERTIFYING ENGINEER FCC PART: 2.947 MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 I, Michael A. Pickard, have been employed by RITRON, Inc. since November 1979, working in the Engineering Department since June 1981 as a radio frequency Project Engineer. I hereby certify that all measurements and date herein were taken by me, that they were obtained using sound and accepted engineering principles, and that they accurately reflect the performance and characteristics of the units tested. Signed: Michael A. Pickard - Project Engineer LM-U450_TestRpt.pdf TYPE OF EXHIBIT: TEST EQUIPMENT LIST FCC PART: 2.947(d) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARDS: RSS-GEN, Issue 2, 3.2(b) INDUSTRY CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA The measured data in this report was obtained using one or more of the following pieces of equipment. The particular equipment used in any one test is detailed in the procedure for that test. ITEM MANUFACTURER MODEL NO. SERIAL NO. Spectrum Analyzer Hewlett-Packard 8560E 3720A02980 Power Supply BK/Precision 1630 146-03508 Digital VOM Micronta 22-191 N/A Dipole Antenna Electro-Metrics BDA-25 8-101 Log Periodic Antenna Electro-Metrics LP-25 8-102 LM-U450_TestRpt.pdf TYPE OF EXHIBIT: RECEIVER SPURIOUS EMISSIONS FCC PART: 15.111(a) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 IC STANDARD: RSS-GEN, Issue 2, Section 4.10 RSS-GEN, Issue 2, 6(b) CANADA: 1084A-RIT27450 MODELS: LM-U450-CANADA, LPA-U450-CANADA PROCEDURE: 1, The LM-U450 receiver was aligned for operation on 460.050 per the tune-up procedure outlined in the Preliminary Maintenance Manual. The radio’s 50Ω, BNC antenna was connected to the 50Ω input of the Hewlett-Packard Model 8560E Spectrum Analyzer used to measure receiver spurious emissions. Power was supplied to the LM-U450 through P504. The supply voltage was set at +12 VDC, the nominal input voltage. 2. The Hewlett-Packard Model 8560E Spectrum Analyzer was set for: • 100 kHz resolution bandwidth • 100 Hz video bandwidth • 10 MHz span 3. The spectrum was searched: from 14.4 MHz, the VCO reference oscillator to 1250 MHz, the 3 rd harmonic of the receiver 1 st local oscillator 4. Spurious emissions were recorded on the following table. 5. Steps 1, 2, 3 and 4 were repeated at 450.050 MHz and 470.050 MHz, the receiver band edges. Receive Emission Measured Measured IC Frequency Frequency Amplitude Amplitude Limit Description (MHz) (MHz) (dBm) (nW) (nW) 450.050 406.400 -67.7 0.171 2.000 1 st Local Oscillator 460.050 416.400 -66.0 0.251 2.000 1 st Local Oscillator 470.050 426.400 -61.7 0.680 2.000 1 st Local Oscillator Certifying Engineer: Michael A. Pickard - Project Engineer LM-U450_TestRpt.pdf TYPE OF TEST: FIELD STRENGTH OF RADIATED EMISSIONS FCC PART: 15.109(f) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 26, 2007 PROCEDURE: The following measurements were taken at the RITRON, Inc. 3 meter test site. Measurements were made in accordance with FCC Rules & Regulations Part 2.947, using the procedures of IEC Publication 106. 1. The LM-U450 was programmed to receive on 460.050 MHz, the middle of the operating band. 2. An AFB-1545 antenna that is included with each LM-U450 was installed at the antenna port. 3. All field strength measurements were made with the Hewlett-Packard Model 8560E Spectrum Analyzer and the appropriate antenna for the frequency being measured. Antennas used were: • Electro-Metrics BDA-25 Dipole Antenna at 0 to 200 MHz • Electro-Metrics LP-25 Log Periodic Antenna at 200 to 1000 MHz 4. For each emission, the height and polarization of the field strength measuring antenna and orientation of the LM-U450 were varied to provide maximum field strength. 5. The spectrum was searched from 30 MHz up to the 2nd harmonic of the receiver 1 st local oscillator per FCC Part 15.33(b)(3). 6. The LM-U450 was then programmed to receive at the band edges (450.050 MHz and 470.050 MHz) and test measurements were repeated as described above. RESULTS: For all 3 test frequencies, all emissions were better than the noise of the spectrum analyzer at -109 dBm. This translates to a field strength < 8 μV/m at 3 meters for the antennas used. Receive Emission Measured Field FCC Frequency Frequency Amplitude Strength Limit Description (MHz) (MHz) (dBm) (μV/m) (μV/m) 450.050 406.400 < -109 dBm < 8 200 1 st Local Oscillator 460.050 416.400 < -109 dBm < 8 200 1 st Local Oscillator 470.050 426.400 < -109 dBm < 8 200 1 st Local Oscillator Certifying Engineer: Michael A. Pickard - Project Engineer LM-U450_TestRpt.pdf

TYPE OF EXHIBIT: TEST SET-UP PHOTOGRAPHS FCC PART: 2.1033 (b)(6) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 DATE: September 17, 2007 Included in this exhibit is a photograph of the test set-up for testing RITRON Models LM-U450 and LPA-U450 UHF-FM Receiver per FCC Part 15.111(a) Receiver Spurious Emissions. Photographs of the Ritron, Inc. 3 meter test site used for testing per FCC Part 15.109(f) are on file with the FCC and are current. Signed: Michael A. Pickard - Project Engineer LM-U450_TSup.pdf EXHIBIT: TEST SET-UP PHOTOGRAPHS FCC PART: 2.1033 (b)(6) FCC ID: AIERIT27-450 MODELS: LM-U450, LPA-U450 Test set-up for testing LM-U450 and LPA-U450 per FCC Part 15.111(a) LM-U450_TSup.pdf
