_______________________________________________________________________________________________________________________________ _ For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 1 RQA-1B/4B Owner’s Manual Wireless Call Button System For use with the Ritron Quick Talk TM Wireless Voice Monitor & Alarm transmitter For use with the following Ritron Quick Talk™ models: RQT-151-PS RQT-151M-PS RQT-152-PS RQT-152M-PS RQT-451-PS RQT-452-PS RQT-151-RCVR RQT-151M-RCVR RQT-152-RCVR RQT-152M-RCVR RQT-451-RCVR RQT-452-RCVR PRELIMINARY! Call 800-USA-1-USA for the right Wireless Solutions to your communication needs. _______________________________________________________________________________________________________________________________ _ Ritron, Inc. Ritron Publication 14500086 Rev. A 10-13 P.O. Box 1998 • Carmel, Indiana 46082-1998 • USA © 2013 Ritron, Inc. All rights reserved. Ritron, Patriot, Jobcom, Phone: 317-846-1201; 800-USA-1-USA (800 -872-1872) OutPost, GateGuard, Quiet Call and Quick Assist are registered Fax: 317-846-4978 trademarks of Ritron, Inc. Quick Talk, Liberty and RadioNexus are Email: [email protected] trademarks of Ritron, Inc. CARRY OUT PRICE CHECK OFFICE SECURITY RQA-1B RQA-4B _______________________________________________________________________________________________________________________________ _ For assistance, call RITRON at 800-872-1872, or go to www.ritron.com 2 Table of C ontent ........................................................................ Compatible RQT Qui ck Talk™ Models ........................................................... 2 RQA-1B/4B FCC Part 15 Stat ement ............................................................... 2 RQA-1B/4B FCC Part 15 Instructions ............................................................. 2 General Info rmation ........................................................................................ 3 Operating the RQA-1B/4 B............................................................................... 4 RQA-1B/4B Battery Replacement................................................................... 4 Setting the RQ A-1B/4B .................................................................................. 5 Setting the CONFIG Switches for Standard Operation ............................ 5 Setting the CONFIG Switches for Keyfob O peration................................ 6 Setting the LOCATION switches for Standard Oper ation Only ................ 7 Setting the A ddress .................................................................................. 7 Compatible RQT Quick Talk ™ Models .................................... The RQA-1B/4B Wireless Call Button is designed to operate with the following Ritron RQT Quick Talk™ models. These Quick Talk™ transmitters have an RQT-433-RCVR receiver installed. Standard Operation: RQT-151-PS RQT-151M-PS RQT-152-PS RQT-152M-PS RQT-451-PS RQT-452-PS Keyfob Operation: RQT-151-RCVR RQT-151M-RCVR RQT-152-RCVR RQT-152M-RCVR RQT-451-RCVR RQT-452-RCVR Note: The RQT Quick Talk™ must have firmware revision 32.11 or greater. RQA-1B/4B FCC Part 15 Statement .......................................... This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not caus e harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed to provide reasonable protection against harmful interference in a re sidential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particu lar installation. You can test to see if this equipment does cause harmful interference to r adio or television reception by turning the equipment off and on. Caution: Changes or modifications not expressl y approved by the party responsible for compliance could void the user's authority to operate the equipment. RQA-1B/4B FCC Part 15 Instructions ...................................... This device complies with Part 15 of the FCC Rules. Operation of this device is subjec t to the following two conditions: (1) This device may not caus e harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed to provide reasonable protection against harmful interference in a re sidential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful in terference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to r adio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is connected. • Consult the dealer or an experien ced radio/TV technician for help. This equipment has been certified to comply with the limits for a Class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment …
Text truncated - open the document above for the full version.
RQA-1B_4B_Attest.pdf TYPE OF EXHIBIT: MANUFACTURER’S STATEMENT FCC PART: 2.1033 (b)(1-2) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 28, 2013 The RITRON models RQA-1B and RQA-4B are 433 MHz Call Button transmitters designed to operate under the provisions of FCC Part 15.231. The two models to be marketed, RQA-1B and RQA-4B, differ only in the number of push-button activation switches available on the front panel membrane keypad. The RQA-1B has one push-button switch and an associated LED, while the RQA-4B has four push-button switches and four associated LEDs. This product will be manufactured and marketed on a continuing basis in the United States of America by the applicant, RITRON, Inc. of Carmel, IN. Signed: Michael A. Pickard - Project Engineer RQA-1B_4B_Attest.pdf TYPE OF EXHIBIT: STATEMENT OF CERTIFYING ENGINEER FCC PART: 2.947 MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 28, 2013 I, Michael A. Pickard, have been employed by RITRON, Inc. since November 1979, working in the Engineering Department since June 1981 as a radio frequency Project Engineer. I hereby certify that all the measurements and data herein were taken by me, or under my direct supervision and that they were obtained using sound and accepted engineering principles and that they accurately reflect the performance and characteristics of the unit tested. Further, I attest that manufacturing controls exist such that this data are representative of units which will be manufactured by RITRON. Signed: Michael A. Pickard - Project Engineer RQA-1B_4B_Attest.pdf TYPE OF EXHIBIT: ANTI-DRUG ABUSE CERTIFICATION MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 28, 2013 I, Michael A. Pickard, certify that RITRON is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 because of a conviction for possession or distribution of a controlled substance . Signed: Michael A. Pickard - Project Engineer
Ritron, Inc. 505 W. Carmel Drive • Carmel, IN 46032-7564 P.O. Box 1998 • Carmel, IN 46082-1998 Ph: 317-846-1201 Fax: 317-846-4978 Email: [email protected] Web Site: www.ritron.com RQA-1B_4B_ConfidReq.pdf October 22, 2013 Ritron Inc. 505 West Carmel Dr. Carmel, IN 46032 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: AIERIT35-433 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Semiconductor List Tune-up Procedure RQA-1B_4B_BlkDia.pdf RQA-1B_4B_Schem.pdf RQA-1B_4B_OpDes.pdf RQA-1B_4B_PartsLst.pdf RQA-1B_4B_TunPro.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sam L. Dulaney Chief Engineer Ritron, Inc.

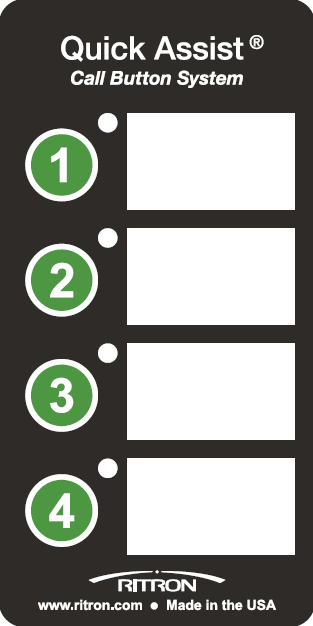

RQT-1B_4B_ExtPho.pdf TYPE OF EXHIBIT: External Photographs FCC PART: 2.1033 (b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 Included in this exhibit are photographs of the RITRON Models RQA-1B and RQA-4B case assembly. Additional photographs of the radio printed circuit board construction and installation are included with this certification request as separate exhibits. Signed: Michael A. Pickard - Project Engineer RQT-1B_4B_ExtPho.pdf EXHIBIT: RQA-1B and RQA-4B front view without membrane keypad FCC ID: AIERIT35-433 RQA-1B EXHIBIT: RQA-1B and RQA-4B back view FCC ID: AIERIT35-433 RQA-4B EXHIBIT: RQA-1B and RQA-4B front panel instruction graphics FCC ID: AIERIT35-433
RQA-1B_4B_LabelLoc.pdf TYPE OF EXHIBIT: FCC ID Label Location FCC PART: 2.1033(b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 In accordance with CFR 47 Part 2.1033(b)(7), an FCC ID label will be placed on the RQA-1B and RQA-4B as shown. This label will also contain the Part 15 statement specified in CFR 47 Part 15.19(a)(3). This FCC label is located on the inside of the case front and is readily visible when the battery is initially installed, and any time the battery is replaced. The photograph below indicates the position of the FCC label on each model’s case. A label drawing is included with this certification request as a separate exhibit. Signed: Michael A. Pickard - Project Engineer Photo showing location of FCC ID label
RQA-1B_4B_LabelSmpl.pdf TYPE OF EXHIBIT: FCC ID Label FCC PART: 2.1033(b)(7), 15.19(a)(3) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 In accordance with CFR 47 Part 2.1033(b)(7), an FCC ID label will be placed on the RQA-1B and RQA- 4B per the following drawing. This white poly label is 3.0” x 1.0” with graphics indelibly printed. Per CFR 47 Part 15.19(a)(3), the following statement is included on the FCC ID Label: “All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Photographs indicating label locations are submitted as a separate exhibit. Signed: Michael A. Pickard - Project Engineer RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 DRAWN BYCHK’DTRACED SCALEDATEA PP’D MATERIALDRAWIN G N O . REV. REVISIONS NO. DATE BY 12345 TOLERANCES ( EXCEPT AS NOTED ) DECIMAL ±FRACTIONAL ±ANGULAR ± SERIAL LABEL / FCC ID: AIERIT35-433 MAP 2:1 08/21/13 14200200 A NOTES: 1. The FCC serial label will be made in house per this specif ication drawing for all models listed in the table at right. 2. A Brady IP300 thermal transfer printer will be used with glossy white polyester labels (RTN# 14290003). Identco TTL309-700-5, a 3 inch by 1 inch label, is the approved material. The approved thermal transfer ribbon is Brady 4300 Series. 3. Labels will be numbered sequentially, with an initial 5-digi t number of A1234. Records are maintained to track the next available serial number. All models listed share t he same serial sequence, and are identical except for model identification. Bar code information reflects SN. 4. Each label will contain an updated Manufacturing Da te using the Ritron 4-digit Date Code (YEAR/MONTH). Models:RQA-1B RQA-4B 1.00” 3.00” 505 W. Carmel Drive Carmel, IN 46032 USA Phone: 317-846-1201 www.ritron.com Designed and Manufactured in Carmel, Indiana USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model: RQA-1B SN: A 1 2 3 4 FCC ID: AIERIT35-433 Mfg. Date:1308 A CTUAL SIZE 505 W. Carmel Drive Carmel, IN 46032 USA Phone: 317-846-1201 www.ritron.com Designed and Manufactured in Carmel, Indiana USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SN: A1234 FCC ID: AIERIT35-433 Model: RQ A -1B Mfg. Date: 1308
RQA-1B_4B_PT15Label.pdf TYPE OF EXHIBIT: Part 15 Label FCC PART: 15.19(a)(3) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 Pursuant to CFR 47 Part 15.19(a)(3) a label with the following Part 15 warning statement will be placed on the RQA-1B/4B enclosure. The Part 15 warning statement is included on the FCC ID label. The FCC label is located on the inside of the case front and is readily visible when the battery is initially installed, and any time the battery is replaced. This statement will also be included in the product instruction manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Signed: Michael A. Pickard - Project Engineer Photo showing location of FCC ID label with Part 15 Warning Part 15 Warning
RQT-1B_4B_IntPho.pdf TYPE OF EXHIBIT: Internal Photographs FCC PART: 2.1033 (b)(7) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 Included in this exhibit are photographs of the RITRON Models RQA-1B and RQA-4B printed circuit board assembly and installation. Additional photographs of the radio construction and layout, labels, and chassis assembly are included with this certification request as separate exhibits. Signed: Michael A. Pickard - Project Engineer RQT-1B_4B_IntPho.pdf EXHIBIT: PCB topside FCC ID: AIERIT35-433 EXHIBIT: PCB bottom side FCC ID: AIERIT35-433 EXHIBIT: PCB installed in case back with battery installed FCC ID: AIERIT35-433
RQA-1B_4B_TestRpt.pdf Page 1 TYPE OF EXHIBIT: TEST REPORT FCC PART: 15.231 per 2.1033 (b)(6) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 The following is a list of attached exhibits required by the Federal Communications Commission for the application to and grant of FCC Part 15 Certification. All tests are per ANSI C63.4-2003 where applicable. Table of Content 1. General Information............................................................................................................................. 2 1.1 Purpose 1.2 Product Description 1.3 Test Methodology 1.4 Test Summary 2. Description of Test Facility - FCC:CFR 47 Part 2.948(a)(2) ............................................................... 3 3. Test Equipment List - FCC: CFR 47 Part 2.947(d) .............................................................................4 4. Tests Results 4.1 Overview ................................................................................................................................ 5 4.2 Antenna Requirement – FCC:CFR 47 Part 15.203 ............................................................... 5 4.3 External radio frequency power amplifiers and antenna modifications – FCC: CFR 47 Part 15.204 .................................................................................................................................... 5 4.4 Power Line Conducted Emissions - FCC:CFR 47 Part 15.207 ............................................. 5 4.5 Periodic Operation - FCC:CFR 47 Part 15.231(a) ................................................................. 6 Deactivation Time - Test Requirement(s): CFR 47 Part 15.231(a)(1) Table 1 – Analyzer settings for Deactivation Time Test Table 2 - Deactivation Time Test Results Plot 1 - Deactivation Time 4.6 Occupied Bandwidth - FCC:CFR 47 Part 15.231(c)(1).......................................................... 7 • Table 3 – Occupied Bandwidth Test Results • Plot 2 – Occupied Bandwidth with limit line 4.7 Duty Cycle for Calculating Average Correction Factor .......................................................... 8 • Plot 3 - Duty Cycle 4.8 Radiated Emissions - FCC:CFR 47 Part 15.231(b) ............................................................... 9 • Table 4 – Radiated Emissions Test Results • RQA-1B, RQA-4B Radiated Spurious Emissions Test Setup Photos RQA-1B_4B_TestRpt.pdf Page 2 EXHIBIT: GENERAL INFORMATION FCC PART: 15 Subpart C MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 1.1 Purpose The purpose of this test report is to confirm compliance with Chapter 47 Part 15 Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description The Ritron models RQA-1B and RQA-4B are wireless call buttons to be used in conjunction with Ritron Part 15 model receiver RQT-433-RCVR (FCC ID: AIERIT32-433-RCVR). Frequency: 433.920 MHz Operating Channels: 1 Modulation: ASK (OOK) Operating Voltage: Single CR123A 3V Lithium primary battery 1.3 Test Methodology The RQA-1B/4B was tested for radiated emissions in both a vertical and horizontal orientation per FCC requirements, but the product is intended for operation in a vertical orientation only. 1.4 Testing Summary All tests were conducted on the RQA-1B/4B for the purpose of demonstrating compliance with Part 15.231. All tests were conducted using measurement procedure from ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz as appropriate. Test Name Test Method/Standard Result Comments Unintentional Radiated Emissions 15.109 N/A Antenna requirement 15.203 Pass RQA-1B/4B antenna is a Helix Monopole, attached permanently to the PCB. External radio frequency power amplifiers and antenna modifications 15.204 N/A External power amp, alternative antenna and antenna modification are not available. A/C Power Line Conducted Emissions 15.207(a) N/A RQA-1B/4B uses a single CR123A 3V Lithium primary battery only. Occupied Bandwidth 15.231(c) Pass Deactivation Time 15.231(a)(1) Pass Duty Cycle 15.231 Pass Radiated & Spurious Emissions 15.231(b),15.209(a), 15.205,15.35(C) Pass RQA-1B_4B_TestRpt.pdf Page 3 TYPE OF EXHIBIT: DESCRIPTION OF TEST FACILITY FCC PART: 2.948(a)(2) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 2.1 The emission measurements filed with this application were made on a site certified by RITRON, Inc. Data pertaining to this site is on file with the FCC and Industry Canada. Firm Registration Number: 536261 Firm FRN: 0004-3348-76 FCC Reference: ANSI STD C63.4-2003 Industry Canada Radio Standard: Procedure 212 This site is used on a continuing basis exclusively by RITRON, Inc. and is utilized only for RF field strength measurements of equipment designed and manufactured by RITRON, Inc. It is not used for measurements by, or for, any other party on a contract basis or otherwise. All other measurements are taken at RITRON’s engineering laboratory in Carmel, IN. Signed: Michael A. Pickard - Project Engineer Ritron Test Site RQA-1B_4B_TestRpt.pdf Page 4 TYPE OF EXHIBIT: TEST EQUIPMENT LIST FCC PART: 2.947(d) MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODELS: RQA-1B, RQA-4B TYPE OF UNIT: 433.92 MHz Call Button Transmitter FCC ID: AIERIT35-433 DATE: October 22, 2013 3.1 The measured data in this report was obtained using one or more of the following pieces of equipment. The particular equipment used in any one test is detailed in the procedure for that test. ITEM MANUFACTURER MODEL NO. SERIAL NO. Last Cal EXP Cal Spectrum Analyzer Advantest R3265…
