AIERIT41-117VHF-FM Callbox 2-Way Radio

Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 0 TABLE OF CONTENTS ............................................................................ Basic Operation XD-SERIES CALLBOX MODELS ................................................. 1 ABOUT THE XD-SERIES CALLBOX ............................................. 2 EXPOSURE TO RADIO FREQUENCY ENERGY ............................... 3 OPERATING THE XD-SERIES CALLBOX WITH FACTORY DEFAULT SETTINGS .................................................. 3 Installation Instructions APPLYING POWER TO THE XD-SERIES CALLBOX ........................ 4 Using Internal Batteries ......................................................... 4 External Antenna Connector and Antenna Jumper Settings ....... 4 Using External 8 to 12 VDC Power with Battery Back-up ............. 5 Using External 8 to 12 VDC Power without Battery Back-up ........ 5 POWER MANAGEMENT OPTIONS ............................................... 6 FIG-1: Sensor Turn-On Jumper Shown in Turn-On Position .............. 6 CALLBOX CONTROLS AND CONNECTORS ................................... 7 FIG-2: Callbox Assembly, Controls and Connectors .................. 8 XD-SERIES CALLBOX INSTALLATION INSTRUCTIONS .................... 9 OPTIONAL XD-SERIES CALLBOX PEDESTAL MOUNTING BRACKET INSTALLATION INSTRUCTIONS .................................................... 9 Field Programming RQX FIELD PROGRAMMING OVERVIEW ................................... 10 HOW TO FIELD PROGRAM FREQUENCY & TONE CODES ............. 11 TABLE 1: PROGRAMMABLE FREQUENCY CODES ....................... 12 CANADIAN FREQUENCY CODES ........................................... 12 TABLE 2: PROGRAMMABLE QC TONE CODES ........................... 13 TABLE 3: PROGRAMMABLE DQC TONE CODES ........................ 13 HOW TO FIELD PROGRAM 2-TONE, DTMF OR SELCALL DECODE (RECEIVE) OPERATION .......................................................... 14 TABLE 4: PAGING, GATEGUARD ® AND LISTEN IN DECODE CODES ................................................................................. 16 HOW TO FIELD PROGRAM DTMF OR SELCALL ENCODE ANI (TRANSMIT) CODES ............................................................... 19 HOW TO FIELD PROGRAM FEATURE CODES ............................. 20 TABLE 5: ADVANCED FEATURE CODES .................................... 21 Programmable Features PC PROGRAMMABLE XD-SERIES CALLBOX FEATURES ............. 23 Glossary of Terms .............................................................. 23 TABLE 6: PC PROGRAMMABLE FEATURES ............................... 21 INTERCOM (ALWAYS-ON) PROGRAMMING ................................ 23 FEATURES TO USE WITH INTERCOM (ALWAYS-ON) PROGRAMMING ..................................................................... 24 SWITCH OUTPUT OPTIONS (ALLOWS CONTROL OF AN EXTERNAL DEVICE) ............................................................................... 26 2-TONE, DTMF OR SELCALL DECODE (RECEIVE) SETTINGS ............................................................................................ 27 Voice Messages AUTOMATIC VOICE MESSAGES ................................................ 28 AUTOMATIC ID RE-SEND ........................................................ 29 HOW TO RECORD A VOICE MESSAGE) ..................................... 30 HOW TO PLAY A VOICE MESSAGE ........................................... 31 HOW TO ERASE A VOICE MESSAGE ......................................... 31 GateGuard ® Application Configuration for the Remote Control of a Gate Controller CONFIGURING THE CALLBOX FOR A GATEGUARD ® APPLICATION 32 TABLE 7: CALLBOX 6-CONDUCTOR INTERFACE CABLE ............... 32 HOW TO FIELD PROGRAM THE XD-SERIES CALLBOX FOR GATEGUARD ® OPERATION ..................................................... 33 OPTIONAL GATEGUARD ® SETTING/FEATURES ............................................................................................ 33 NXDN Setup HOW TO FIELD PROGRAM NXDN FEATURES ............................ 33 NXDN PROGRAMMING CODES ................................................ 34 HOW TO SET NXDN CALLBOX SUID AND OTHER IDS ................ 35 Licensing FCC Licensing ....................................................................... 36 How to Obtain an FCC Radio License ....................................... 36 INDUSTRY CANADA Regulations............................................ 36 Safety Standards ................................................................... 36 Service ................................................................................. 36 Warranty RITRON, INC. LIMITED WARRANTY ....................................... 37 THANK YOU FOR CHOOSING RITRON Congratulations on your purchase of the RQX XD-Series Callbox Your new radio is the culmination of RITRON’s 35 years of designing, manufacturing, and supplying reliable, professional wireless communication products. Ritron wireless products will improve the operation, safety, and profitability of any organization by providing instant voice communications between employees throughout the workplace. RQX XD-Series Wireless Callbox Basic Operation Have questions? Call 800-USA-1-USA (800-872-1872) or visit our website at www.ritron.com 1 XD-SERIES CALLBOX MODELS ............................................................. XD-Series Models VHF: RQX-117NX RQX-117NX-CANADA UHF: RQX-417NX RQX-417NX-CANADA The XD-Series callbox is programmable to operate as an analog FM two way radio or as an NXDN digital voice two way radio. This allows user to transition to digital voice as needed. The NXDN capability is contained in a piggy back board that connects perpendicular to the main board. The XD-Series callbox is available in both the standard model high visibility green enclosure, and in the -BLK model black enclosure. The model number appears on the serial label located on the back of the XD-Series Callbox enclosure. VHF radios are designed to operate within the 15 MHz band betwe…

Text truncated - open the document above for the full version.

Page 1 RQX-156_ConfidReq.pdf Ritron, Incorporated 505 W. Carmel Drive · Carmel, IN 46032 P. O. Box 1998 · Carmel, IN 46082 Ph: 317-846-1201 Email: [email protected] Web Site: www.ritron.com October 27, 2015 Ritron Inc. 505 West Carmel Dr. Carmel, IN 46032 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: AIERIT41-117 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request long term confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Semiconductor List Tune-up Procedure RQX-117_BlkDia.pdf RQX-117_Schem.pdf RQX-117_OpDes.pdf RQX-117_PartsLst.pdf RQX-117_TunPro.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sam L. Dulaney Chief Engineer Ritron, Inc. Email: [email protected]

Page 1 RQX-117NX_FreqJust.pdf Ritron, Incorporated 505 W. Carmel Drive · Carmel, IN 46032 P. O. Box 1998 · Carmel, IN 46082 Ph: 317-846-1201 Email: [email protected] Web Site: www.ritron.com October 27, 2015 Office of Engineering and Technology Laboratory Division Equipment Authorization Branch FCC Laboratory7435 Oakland Mills Rd. Columbia, MD 21046 Re: Extended Frequency Justification on FCC ID: AIERIT41-117 To whom it may concern: The RQX-117NX two-way callbox radio is designed to operate in the frequency band 150-174 MHz. To aid equipment authorization in other countries within ITU regions 1, 2 or 3 which accept the United States FCC Grant for certification, Ritron is requesting that the FCC lists the frequencies 150-174 MHz under FCC Rule Parts 90 on the FCC Grant. This product is also intended for Federal end users. For the FCC’s Rule Part 90 applications, this radio is used in systems by OEM systems integrators as indicated in the table below. Equipment programming is the responsibility of Authorized Service Personnel. Also, the radio complies with 47 CFR Part 90.203(e) in that the operator cannot directly program the transmit frequencies using the normally accessible external controls. Per the FCC’s KDB634817 guidance, “as an alternative to listing the exact frequencies, we acknowledge that it’s a violation of the FCC Rules if this device operates on unauthorized frequencies.” Frequency Range (MHz) Part 90 Federal Customers/ Not Part 90 150.0000 - 150.8000 x 150.8000 - 156.2475 x 156.2475 - 157.1875 x 157.1875 - 161.5750 x 161.5750 - 161.7750 x 161.7750 - 161.9625 x 161.9625 - 162.0375 x 162.0375 - 173.4000 x 173.4000 - 174.0000 x Sincerely, Sam L. Dulaney Chief Engineer Ritron, Inc. Email: [email protected]

TYPE OF EXHIBIT: Manufacturer’s Statement FCC PART: 1.1310 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: Dec 4, 2015 The RITRON model RQX-117NX is a VHF Transceiver Module designed for operation either as a 12.5 kHz channel bandwidth analog FM transceiver or as a digital transceiver supporting 4800 bps per 6.25 kHz channel bandwidth. Its output power varies from .5 watts to 2.5 watts. This product will be manufactured and marketed on a continuing basis in the United States of America by the applicant, RITRON, Inc. of Carmel, IN. TYPE OF EXHIBIT: STATEMENT OF CERTIFYING ENGINEER MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODEL: DTX-160 TYPE OF UNIT: VHF-FM Two Way Radio Transceiver Module FCC ID: AIERIT33-1600 DATE: 16 Aug 2012 I, Dennis Zimmerman, am now, and have been for the past fourteen years employed as a project engineer with RITRON, Inc. I have been employed in the two-way radio industry for the past 26 years. I received a BSEE degree from the University of Cincinnati in 1977. I hereby certify that all the measurements and data herein were taken by me, or under my direct supervision and that they were obtained using sound and accepted engineering principles and that they accurately reflect the performance and characteristics of the unit tested. Further, I attest that manufacturing controls exist such that this data are representative of units which will be manufactured by RITRON. Dennis Zimmerman Project Engineer RITRON, Inc. TYPE OF EXHIBIT: ANTI-DRUG ABUSE CERTIFICATION MANUFACTURER: RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 MODEL: DTX-160__6 TYPE OF UNIT: VHF-FM Two Way Radio Transceiver Module FCC ID: AIERIT33-160 DATE: 16 Aug 2012 I, Dennis Zimmerman, certify that RITRON is not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862 because of a conviction for possession or distribution of a controlled substance. Dennis Zimmerman Project Engineer RITRON, Inc.

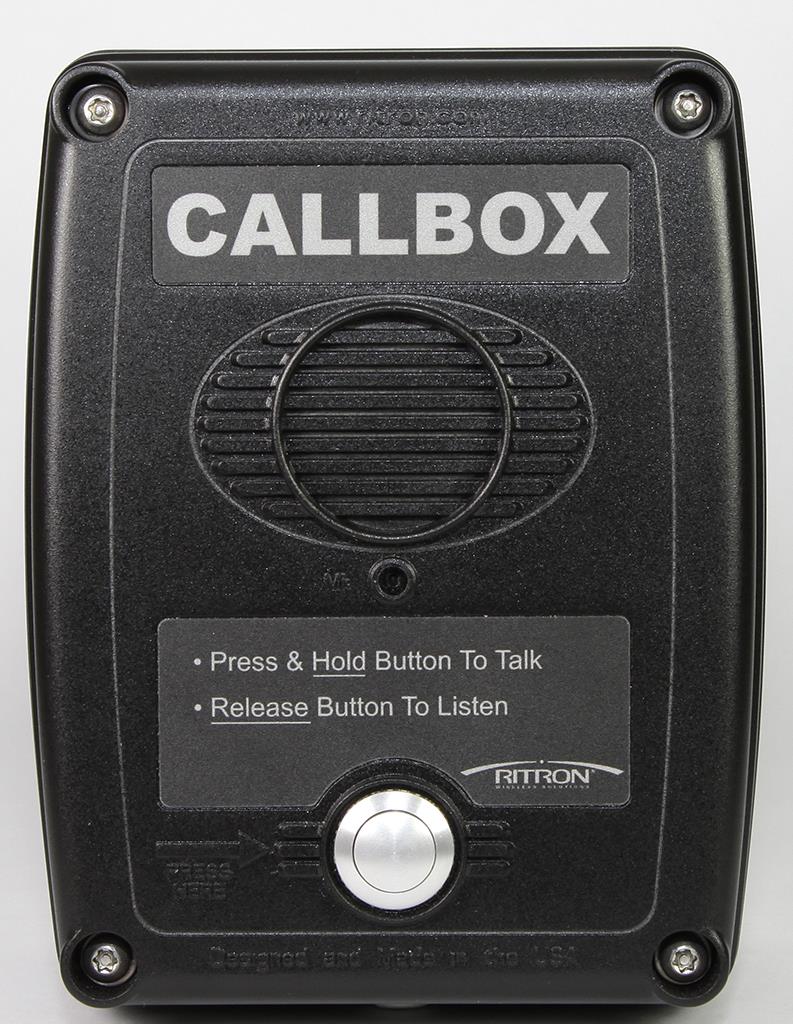

Page 1 RQX-156_ExtPho.pdf TYPE OF EXHIBIT: EXTERNAL PHOTOGRAPHS FCC PART: 2.1033(c)(12) MANUFACTURER: RITRON, INC. MODELS: RQX-117NX TYPE OF UNIT: VHF-FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: August 7, 2015 Included in this exhibit are photographs of the RITRON Model RQX-117NX case assembly. Additional photographs of the radio printed circuit board construction and installation are included with this certification request as separate exhibits. Page 2 RQX-156_ExtPho.pdf EXHIBIT: RQX-117NX front view showing controls FCC ID: AIERIT41-117 Page 3 RQX-156_ExtPho.pdf EXHIBIT: RQX-117NX back view FCC ID: AIERIT41-117

Page 1 RQX-117NX_LabelLoc.pdf TYPE OF EXHIBIT: FCC ID LABEL LOCATION FCC PART: 2.1033 MANUFACTURER: RITRON, INC. MODELS: RQX-117NX, RQX-117NX-XT TYPE OF UNIT: VHF-FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: April 23, 2015 Photographs indicate the location of the FCC label on the case and do not represent the actual FCC label. A label drawing is included with this certification request as a separate exhibit. EXHIBIT: RQX-117NX back view showing FCC Identification label location FCC ID: AIERIT41-117 LOCATION OF FCC SERIAL LABEL

Page 1 RQX-156_LabelSmpl.pdf TYPE OF EXHIBIT: FCC ID LABEL SAMPLE FCC PART: 2.1033 MANUFACTURER: RITRON, INC. MODELS: RQX-117NX, RQX-117NX-XT TYPE OF UNIT: VHF-FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: April 23, 2015 Ritron drawing 14200208A specifies the FCC label for model RQX-117NX. Photographs to indicate the position of the label on the case are included with this certification request as a separate exhibit. Each serial number is recorded, along with the date of manufacture, and is kept on file at RITRON, Inc. Serialization will begin with serial number E1234. The size of the serial label is 2.00” by 1.00”. Page 2 RQX-156_LabelSmpl.pdf RITRON, INC. 505 West Carmel Drive Carmel, IN 46032 DRAWN BY CHK’D TRACED SCALE DATE APP’D MATERIAL DRAWING NO. REVISIONS NO. DATE BY 1 2 3 4 5 TOLERANCES (EXCEPT AS NOTED) DECIMAL ± FRACTIONAL ± ANGULAR ± NOTES: 1. MATERIAL IS IDENTCO IDENTIFICATION TTL302-740-6 (RITRON PN 14290016) 2. SILVER BACKGROUND LABEL WITH BLACK GRAPHICS. 3. ALL CHARACTERS ARE ARIAL TYPE STYLE, 4 POINT TYPE SIZE. 4. SERIALIZATION INCLUDES 4-DIGIT RITRON DATE CODE FOLLOWED BY SERIAL NUMBER. 5. MODELS INCLUDED PER THIS DRAWING LISTED AT RIGHT. 1.00” 2.00” SERIAL LABEL / FCC ID: AIERIT41-117 MODEL: RQX-117NX, RQX-117NX-XT DLZ 2:1 4/23/15 14200208A Designed and Manufactured in Carmel, Indiana USA www.ritron.com · 317-846-1201 800-872-1872 Model: CFG: SN: RQX-117NX 1422E1234 FCC ID: AIERIT41-117 Product satisfies General Population requirements for RF exposure. See User Manual for operating instructions. MODELS: RQX-117NX RQX-117NX-XT

Page 1 RQX-156_IntPho.pdf TYPE OF EXHIBIT: INTERNAL PHOTOGRAPHS FCC PART: 2.1033(c)(12) MANUFACTURER: RITRON, INC. MODELS: RQX-1117NX TYPE OF UNIT: VHF-FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: August 7,2015 Included in this exhibit are photographs of the RITRON Model RQX-1117NX printed circuit board assembly and installation. Additional photographs of the radio construction and layout, labels, and chassis assembly are included with this certification request as separate exhibits. Page 2 RQX-156_IntPho.pdf EXHIBIT: RQX-117NX complete top side PCB assembly with shields and internal antenna FCC ID: AIERIT41-117 Page 3 RQX-156_IntPho.pdf EXHIBIT: RQX-156 complete top side PCB assembly with no shields and internal antenna FCC ID: AIERIT41-117 Page 4 RQX-156_IntPho.pdf EXHIBIT: RQX-117NX bottom side PCB FCC ID: AIERIT41-117 Page 5 RQX-156_IntPho.pdf EXHIBIT: RQX-117NX with 3 D-cell batteries. Case open to show printed circuit board installation FCC ID: AIERIT41-117

TYPE OF EXHIBIT: RF EXPOSURE EVALUATION FCC PART: 1.1310 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: Nov 25, 2015 PROCEDURE: Because this product is used as a mobile device, an RF evaluation was done. The RF evaluation entailed testing the unit on RITRON’S 3-meter range to determine EIRP and then calculating the minimum safe distance from the antenna necessary to ensure compliance with the appropriate RF exposure limits. 1. The measurement for effective radiated power was taken at the RITRON, Inc. 3-meter test site, details of which are on file with the FCC and Industry Canada. 2. The DUT was aligned for transmitter operation on lower, middle and upper band edge frequencies at the 2.5 Watt output power rating of the RQX- 117NX. The unit’s internal antenna radiation will be measured. 3. The RQX-117NX was placed on a turntable and rotated to the maximum radiation point as picked up by the log periodic antenna. The height of the measurement log periodic antenna’s height was varied to find maximum field strength. 4. In performing the substitution method of measurement an adjustable dipole, was substituted for the DUT at the RQX-117NX previous location. An RF signal generator was set for the frequency of the DUT with the level at the substitution antenna noted. The height of the receiving antenna was adjusted for maximum signal strength. All field strength measurements were made with the Advantest R3265A Spectrum Analyzer and log periodic antenna. TYPE OF EXHIBIT: RF EXPOSURE EVALUATION FCC PART: 1.1310 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: Nov 25, 2015 EQUATIONS FOR EIRP: The effective radiated power (ERP) is: ERP(dBm) = Prad(dBm) + Pgen(dBm) – Psub(dBm) + Ga(dBd) Where: Prad is the power level of the radio’s emission at the receiving antenna output. Pgen is the RF signal generator level at the substitution antenna input. Psub is the power level of the substitution antenna emission at the receiving antenna output. Ga(dBd) is the gain of the substitution antenna over a dipole (0 dB). The ERP is converted to watts from dBm by: ERP(watts) = antilog 10 ((ERP(dBm) – 30)/10) And finally, ERP is converted to EIRP (isotropic radiator) by: EIRP = 1.64 ERP TYPE OF EXHIBIT: RF EXPOSURE EVALUATION FCC PART: 1.1310 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: Nov 25, 2015 RESULTS FOR EIRP: DETERMINING MPE DISTANCE: EIRP = 1.64 (ERP/2) Power density is related to EIRP: S(W/m 2 ) = EIRP(W)/4r 2 where r is the distance from the source in meters. Rearranging for distance: _________ r = (EIRP/4S) The MPE (maximum permissible exposure) for a device operating in a general/uncontrolled exposure environment is 0.2 mW/cm 2 . Converting to W/m 2 , the limit becomes 2 W/m 2 . The MPE limit is substituted for S and EIRP is entered in the above equation. A 50% transmitter duty cycle is used for the two way radio. Frequency Substitution Sub Vert Max Vert Max vert Max vert Duty Distance Distance Pgen Psub Prad Prad Prad cycle (MHz) power(dBm) ref(dBm) (dBm) ERP(dBm) EIRP(W) (%) (m) (in) 150.815 -0.84 -21.16 7.75 28.1 1.05 50 0.14 5.7 161.565 -1 -20.64 10.34 30.0 1.63 50 0.18 7.1 173.900 -1 -23.06 5.44 27.5 0.92 50 0.14 5.3 TYPE OF EXHIBIT: RF EXPOSURE EVALUATION FCC PART: 1.1310 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM Callbox 2-Way Radio FCC ID: AIERIT41-117 DATE: Nov 25, 2015 WARNING STATEMENT: The following statement appears in the Users Manual: PLEASE NOTE THE FOLLOWING WITH REGARD TO RF EXPOSURE FOR THIS PRODUCT, EXPOSURE TO RADIO FREQUENCY ENERGY: This product generates radio frequency (RF) energy when the PTT button on the front of the unit is depressed. This product has been evaluated for compliance with the maximum permissible exposure limits for RF energy at the maximum power rating of the unit. At the 20 cm (8 inches) minimum expected separation distance and greater, the maximum RF exposure is at or below the General Population/Uncontrolled limits. Operator should stay at least 20 cm (8 inches) from call box. External antennas have not been tested for compliance and may or may not meet the exposure limits at the distances given. Higher gain antennas are capable of generating higher fields in the strongest part of their field and would, therefore, require a greater separation from the antenna. They can be mounted higher than the call box which will increase the operator’s separation from the antenna. This product is not to be used by the general public in an uncontrolled environment unless compliance with the Uncontrolled/General Population limits for RF exposure can be assured. To limit exposure to RF energy to levels below the limit, please observe the following: • DO NOT activate the transmitter when not actually wishing to transmit. • When transmitting, make certain that the distance limits for the particular model in use are observed. • DO NOT allow children to operate the radio. When used as directed, this series of radios is designed to comply with the FCC’s RF exposure limits for “Uncontrolled/General Population”. In addition, they are designed to comply with the following Standards and Guidelines: • United States Federal Communications Commission, Code of Federal Regulations; 47 CFR §§ 2 sub-part J. • American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992. • Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition. Copyright Telecommunications Industry Association

1 TYPE OF EXHIBIT: TABLE OF CONTENTS FCC PART: 2.1033(c)(14) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 23, 2015 Description Page List of Test Equipment Used 2 Measurement Methods 3 Description of Measurement Facility 4 Radio Frequency Output Power 5 Modulator Response 7 Modulation Limiting Curves 9 Occupied Bandwidth 12 Bandwidth Calculations/Modulation Types 15 Conducted Spurious Emissions 17 Field Strength of Spurious Emissions 19 Frequency Stability vs Temperature 22 Frequency Stability vs Supply Voltage 25 Transient Frequency Behavior 28 2 TYPE OF EXHIBIT: LIST OF TEST EQUIPMENT USED FCC PART: 2.947(d) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 23, 2015 ITEM MAKE/MODEL SERIAL NO. CAL. NEXT CAL. Agilent N5181A MY47070348 31 Oct 2014 31 Oct 2017 RF Test Set HP 8920A 3352A03633 12 Oct 2015 12 Oct 2017 Spectrum Analyzer Advantest R3265A 75060189 12 Oct 2015 12 Oct 2016 Spectrum Analyzer HP 8560E 3720A02980 12 Oct 2015 12 Oct 2016 Log periodic Electro-Metrics LPA-25 8-101 30 Apr 2014 30 Apr 2017 Gain Horn EMCO 3105 2034 22 Oct 2013 22 Oct 2015 Digital Oscilloscope Link Instruments DSO-28 225100009800 N/A N/A Temp. Chamber Delta Design 3900 0-52-R N/A N/A DC Power Supply HQ PS3010U N/A N/A Multimeter HP 3466A N/A N/A 3 TYPE OF EXHIBIT: MEASUREMENT METHODS FCC PART: 2.947 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 23, 2015 Unless noted otherwise, all of the measurements made on this device and included in this report were made per ANSI/TIA-603-C-2004. Dennis Zimmerman Project Engineer RITRON, Inc. 4 TYPE OF EXHIBIT: DESCRIPTION OF MEASUREMENT FACILITY FCC PART: 2.948 MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: April 21, 2015 DESCRIPTION: The emission measurements filed with this application were made on a site certified by RITRON, Inc. Data pertaining to this site is on file with the FCC and Industry Canada. Firm Registration Number: 536261 Firm FRN: 0004-3348-76 FCC Reference: ANSI STD C63.4-2003 Industry Canada Radio Standard: Procedure 212 This site is used on a continuing basis exclusively by RITRON, Inc. and is utilized only for RF field strength measurements of equipment designed and manufactured by RITRON, Inc. It is not used for measurements by, or for, any other party on a contract basis or otherwise. All other measurements are taken at RITRON’s engineering laboratory in Carmel, IN. PHOTO OF RITRON TEST SITE: SIGNED: Dennis Zimmerman Project Engineer RITRON, Inc. 5 TYPE OF EXHIBIT: RADIO FREQUENCY OUTPUT POWER FCC PART: 2.1046(a) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 13, 2015 PROCEDURE: 1. The RQX-117NX was aligned for transmitter operation at three frequencies across the operating band. RF power output using an external 12 VDC was measured. The unit is capable of being powered by 3 D cells or an external 8 to 12 volt battery. The controller senses the battery voltage and adjusts to either low power (nominal 800 mW) or high power (nominal 2.5 W). Battery voltage ranges are as follows: 3 D cells: 4.5 to 3.3 v 12 v external battery: 12 v to 8 v 2. Power was supplied to the RQX-117NX by a PS3010U Power Supply. The RQX- 117NX was connected to a HP8920A Test Set through an SMB test port connector used to measure the RF carrier power. The input to the Test Set provides a resistive 50-ohm termination at the frequencies and power levels used for this test. 3. The voltage (V tx) and current (I tx) into the power supply lead of the RF Power Module was measured by an HP3466A Digital Multimeter for the various supply voltages. 4. As can be seen in the table the 3 D cells yields a nominal 800 mW output while the external 12 VDC can yield up to 2.5 Watts output power. 6 TYPE OF EXHIBIT: RADIO FREQUENCY OUTPUT POWER FCC PART: 2.1046(a) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 13, 2015 RESULTS: 3 D cell internal battery 12v external input Frequency Vin int I tx Power Vin ext I tx Power Vtx (MHz) (VDC) (A) (W) (VDC) (A) (W) (VDC) 150.815 3.3 0.43 0.685 3.15 4.5 0.47 1.1 4.35 8 0.75 2.48 6.9 12 0.75 2.48 7.14 161.565 3.3 0.43 0.75 3.15 4.5 0.47 1.1 4.37 8 0.75 2.48 6.9 12 0.75 2.5 7.14 173.9 3.3 0.43 0.74 3.15 4.5 0.47 1.15 4.35 8 0.75 2.49 6.9 12 0.75 2.5 7.14 7 TYPE OF EXHIBIT: MODULATOR RESPONSE-FM 12.5 kHz CHANNELS FCC PART: 2.1047(a) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 13, 2015 PROCEDURE: 1. The RQX-117NX was aligned for transmitter operation at 161.565 MHz at 2.5 Watts. 2. The audio output of the HP8920 was swept in frequency from 200 Hz to 6 kHz and was injected in the AUX_IN input. 3. The modulated signal was demodulated by an HP8920A and the audio output signal was sent to an HP8560E spectrum analyzer to obtain a larger dynamic range of measurement. 4. The overall FM deviation is plotted relative to deviation at 1 kHz. The TIA-603-C limits are plotted above and below the response curve. The frequency response is independent of carrier frequency. 8 TYPE OF EXHIBIT: MODULATOR RESPONSE-FM 12.5 kHz CHANNELS FCC PART: 2.1047(a) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 13, 2015 RESULTS: Pre-emphasized Transmitter 9 TYPE OF EXHIBIT: MODULATION LIMITING CURVES FCC PART: 2.1047(b) MANUFACTURER: RITRON, Inc. MODEL: RQX-117NX TYPE OF UNIT: VHF FM/NXDN 2-way callbox FCC ID: AIERIT41-117 DATE: October 13, 2015 PROCEDURE: 1. The RQX-117NX was aligned for transmitter operation on 161.565 MHz. 2. The RF output was connected to the RF input of a radio Test Set configured to measure FM deviation. The aud…
