< 1 > < 2 > © 2020-2021 PIONEER CORPORATION. < KNZZ21B > < 10.0105.0678 > English WIRELESS CHARGING PAD SDA-CP300 Thank you for buying this Pioneer product. Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference. Always read and follow the “Safety Precautions” described in this manual when in - stalling this product in a vehicle. There is a risk of accident and injury if this product is installed using methods other than those described in this manual, or if parts are used other than those described in this manual. Pioneer accepts no responsibility whatsoever in these cases. Owner’s Manual Certain country and state laws may prohibit or restrict the placement and use of this product in your vehicle. Please comply with all applicable laws and regulations regarding the use, installation and operation of this product. It is the user’s responsibility to comply with all applicable laws, rules, regulations and ordinances. • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • FCC Radiation Exposure Statement: This equipment complies with FCC radiation expo- sure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. • Information to User - Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. • NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FEDERAL COMMUNICATIONS COMMISSION SUPPLIER'S DECLARATION OF CONFORMITY Product Name: Wireless Charging Pad Model Number: SDA-CP300 Responsible Party Name: PIONEER ELECTRONICS (USA) INC. SERVICE SUPPORT DIVISION Address: 2050 W. 190TH STREET, SUITE 100, TORRANCE, CA 90504, U.S.A. Phone: 1-800-421-1404 URL: https://www.pioneerelectronics.com CAUTION • The graphical symbol placed on the product means direct current. After-sales service for Pioneer products Please contact the authorized Pioneer dealer in the U.S. From which you purchased this unit or an authorized Pioneer service company for after-sales service or ques- tions you may have about the product. You may contact Pioneer directly as follows: Do not ship your unit in for repair without con- tacting Pioneer first. Units sent without a return authorization number will be refused. Pioneer Electronics (USA) Inc. CUSTOMER SUPPORT DIVISION P.O. Box 1760 Long Beach, CA 90801-1760 800-421-1404 For warranty information, please see the Limited War- ranty sheet included with this unit. Visit our website U.S.: https://www.pioneerelectronics.com If you experience problems Should this product fail to operate properly, please con- tact your dealer or nearest authorized Pioneer Service Company. Safety Precautions Always observe the precautions described here to pre- vent harm to yourself and others and to prevent damage to property before it happens. Important safeguards WARNING • Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the performance of any of the vehicle’s operating systems or safety features, including air- bags, indicators (lights) and hazard lamp buttons, or (iii) impair the driver’s ability to safely operate the vehicle. It is also the driver’s responsibility to know and comply with the laws, rules, and regulations of the driving location and not to use the device in any location where its installation or use is prohibited. • Any obstruction of or other interference with the airbag, either deployed or non-deployed, or with the clear view of the road must be avoided. Precaution https://www.pioneerelectronics.com PIONEER CORPORATION 28-8, 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, JAPAN PIONEER ELECTRONICS (USA) INC. P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404 < 3 > < 4 > Important safety information WARNING • If liquid or foreign matter should get inside this prod- uct, park your vehicle in a safe place, turn the ignition switch off (ACC OFF) and unplug the cigarette lighter plug immediately, and consult your dealer or the near - est authorized Pioneer Service Company. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure. • If you notice smoke, a strange noise or odor from this product, turn off the power immediately and consult your dealer or the nearest authorized Pioneer Service Company. Using this product in this condition may result in permanent damage. • Do not disassemble or modify this product, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your deal- er or the nearest authorized Pioneer Service Compa- ny for…

Text truncated - open the document above for the full version.

Pioneer Corporation 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan Tel: 81-49-228-6220 Fax: 81-49-228-6496 E-mail: [email protected] FCC Confidential Authorization Date: 2021-01-25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: AJD-CP300 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Pioneer Corporation hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Printed Name: Takashi Tsuzura Title: Manager

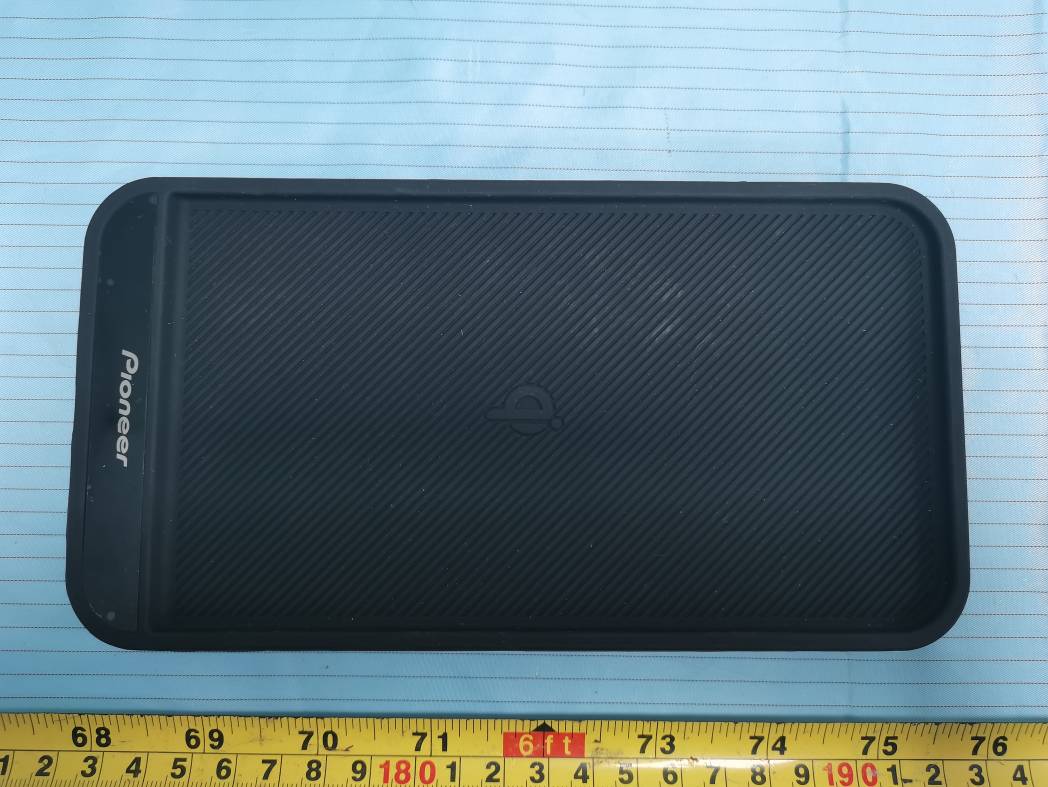

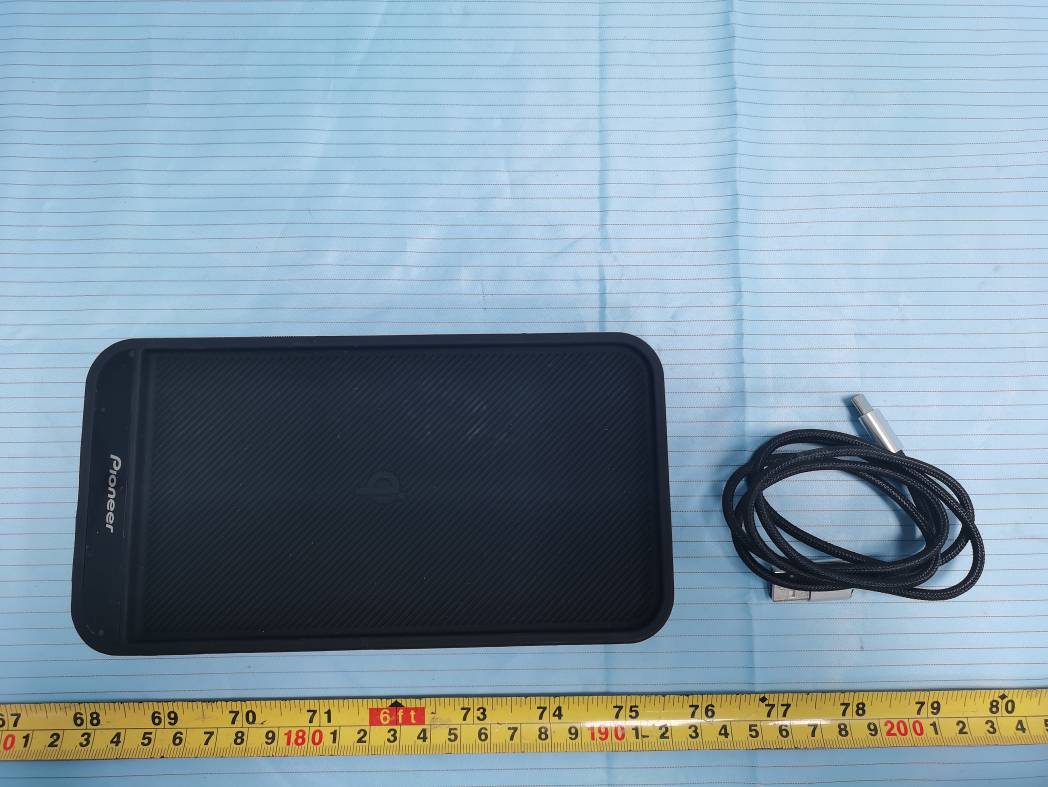

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 1 of 4 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 4 of 4

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 1 of 4 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ200807005-RF Page 4 of 4 Chip

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200807005-00B FCC Part 15C Page 9 of 21 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 clause 3 c) According to KDB 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200807005-00B FCC Part 15C Page 10 of 21 Block Diagram of Test Setup Note: 20 cm for Top test. Test Data Environmental Conditions Temperature:25C Relative Humidity: 65 % ATM Pressure: 101.0 kPa The testing was performed by Andy Yu on 2021-01-22. Test mode: Wireless Charging (Full Load) 15cm Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200807005-00B FCC Part 15C Page 11 of 21 H-Field Strength Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Test (A/m) 110-205 0.147 0.144 0.143 0.145 0.152 0.815 1.63 E-Field Strength Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Test (V/m) 110-205 1.254 1.248 1.249 1.252 1.253 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top test. Result: Pass Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03r01 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 110-205 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of primary coil is 10 Watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. The transfer system includes three coil to detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. Yes, the test result for H and E-field strength less than 50% of the MPE limit.

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. FCC PART 15C TEST REPORT For Pioneer Corporation 28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan FCC ID: AJD-CP300 Report Type: Original Report Product Type: Wireless Charging pad Re port Number: RSZ200807005-00B Re port Date: 2021-01-25 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200807005-00B FCC Part 15C Page 2 of 21 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 3 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 EXTERNAL I/O CABLE .................................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP .............................................................................................................................. 10 TEST DATA ................................................................................................................................................................ 10 FCC§15.203 – ANTENNA REQUIREMENT ........................................................................................................... 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 12 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST PROCEDURE ...................................................................................................................................................... 13 CORRECTED FACTOR & MARGIN CALCULATION ....................................................................................................... 14 TEST DATA ................................................................................................................................................................ 14 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 EUT…

Text truncated - open the document above for the full version.

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 1 of 7 EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 2 of 7 Radiated Emissions View (9 kHz ~ 30 MHz) Radiated Emissions View (30 MHz ~ 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 3 of 7 H-Field Strength View Position A (Distance 15cm) Position B (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 4 of 7 Position C (Distance 15cm) Position D (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 5 of 7 Position E (Distance 20cm) E-Field Strength View Position A (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 6 of 7 Position B (Distance 15cm) Position C (Distance 15cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: Pioneer RSZ200807005-RF Page 7 of 7 Position D (Distance 15cm) Position E (Distance 20cm)
