AJD865AVBTCar TFT DVD receiver

DVH-865AVBT English DVD AV RECEIVER Operation Manual 2 En Thank you for purchasing this PIONEER product. To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference. Contents Precautions ...................................................3 IMPORTANT SAFEGUARDS ......................3 To ensure safe driving ...................................3 To avoid battery exhaustion ..........................4 Information to User ........................................5 Before you start ............................................6 Operating this unit .......................................7 Basic operations .......................................10 Removing the front panel to protect your unit from theft ......................................10 Re-attaching the front panel ........................10 Turning the unit on ......................................10 Turning the unit off ......................................10 Selecting a source .......................................10 Adjusting the volume ...................................10 Use and care of the remote control .........11 Using the remote control .............................11 Replacing the battery ..................................11 Basic menu operations .............................11 Source (selecting a source) ........................11 List (operating a list menu) ..........................11 Audio/Video (setting an audio menu) ..........11 System (setting a system menu) .................11 Radio ..........................................................12 Radio menu .................................................12 Band selecting .............................................12 Manual tuning (step by step) .......................12 Seeking .......................................................12 Storing and recalling stations ......................12 LOC/DX (local / distant seek tuning) ...........12 USB playback ...........................................13 Playing files on a USB storage device ........13 Stopping playback of files on a USB storage device .............................................13 List menu .....................................................13 Selecting file category .................................13 Selecting a folder ........................................13 Selecting a file (chapter) .............................13 Playing audio files .......................................13 Playing photo files .......................................14 Playing video files .......................................14 Playing DivX® VOD content ........................14 Disc playback ............................................15 Insert a disc .................................................15 Eject the disc ...............................................15 Disc playback ..............................................15 Stop playback temporarily ...........................15 Stop playback entirely .................................15 Select desired track .....................................15 Fast forward/backward during playback ......15 Random track playback (for CD/VCD/MP3/WMA Only) ....................15 Repeat .........................................................15 Repeat A - B ................................................16 GOTO ..........................................................16 PBC - Playback control ( for VCD 2.0 or up)... 16 DVD audio select ........................................16 VCD audio select ........................................16 DVD subtitle select ......................................16 DVD title select ...........................................16 DVD angle select ........................................16 Zoom ...........................................................16 Bluetooth Operation ................................17 Pairing .........................................................17 Main menu ..................................................17 Making a call ...............................................17 Answering a call ..........................................17 Transfer the call ..........................................17 Call from Phonebook ...................................18 Audio Streaming Operations .......................18 What is audio streaming? ............................18 Play / Pause a track ....................................18 Selecting a track ..........................................18 APP Operation ..........................................19 iPod/iPhone Playback ...............................19 Main Menu ..................................................19 Stop playback temporarily ...........................20 Select desired track/chapter ........................20 Fast forward/backward ................................20 Control an iPod/iPhone from its unit (Control iPod mode) .............................20 System setup .............................................20 Audio setting .............................................22 Video setting ..............................................22 Other Function ..........................................23 Installation ..................................................24 Connecting the unit ..................................24 Wiring diagram ............................................26 Installation .................................................27 Before installing this unit .............................27 Mounting sleeve installation ........................27 Kit installation ..............................................28 ISO installation ............................................28 Fuse ............................................................29 Reconnect battery .......................................29 Remove the Unit ........................................29 Additional information .......…

Text truncated - open the document above for the full version.

PIONEER CORPORATION FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name PIONEER CORPORATION Addresss 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi City Kanagawa-ken Country Japan request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: AJD 865AVBT of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Kanagawa-ken, Japan 2013-06-19 James Ha Vice President

PIONEER CORPORATION FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name PIONEER CORPORATION Addresss 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi City Kanagawa-ken Country Japan declare that the following representative (agent): Name (person) Sam Lv Company name DONGGUAN EMTEK CO., LTD. Addresss No.281, Guantai Road, Nancheng District, City Dongguan Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Car TFT DVD receiver Type or Model(s) DVH-8680AVBT, DVH-865AVBT Tradename or Brand(s) PIONEER We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Kanagawa-ken, Japan 2013-06-19 James Ha Vice President

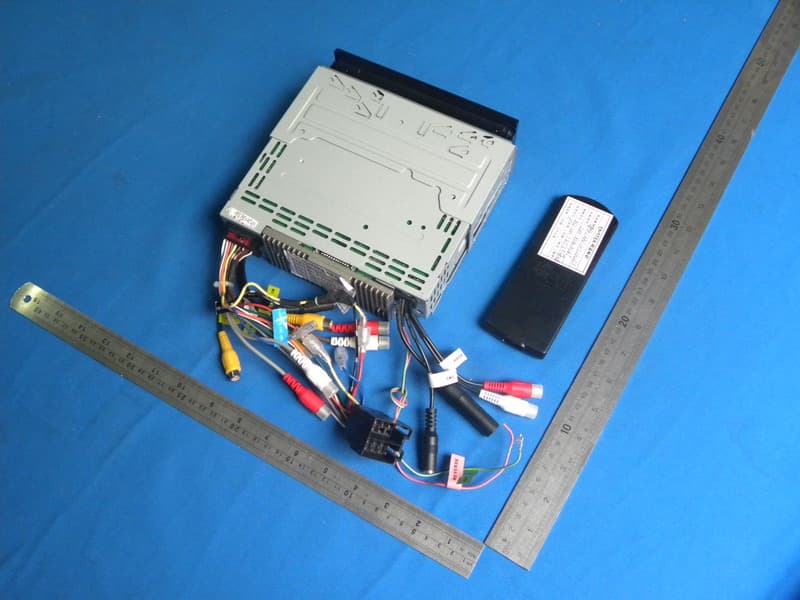

General Appearance of the EUT

Label Location on EUT

AJD865AVBT 10.0A 10,0A

Antenna

MPE Calculation FCC ID: AJD865AVBT Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range:2402-2480MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =1.69dBm =1.48mW Antenna Gain: G = 0dBi =1on the linear scale Calculation: P radiated = P conducted + G linear =1.69dBm +0dBi =1.69dBm =1.48mW Power density S = (P radiated ) / (4π x d 2 ) =1.48/5026 =0.0003mW/cm 2 <1=> below limit

TRF No. FCC 15.247/A Page 1 of 54 Report No.: KAD130523083E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Car TFT DVD receiver MODEL No.: DVH-8680AVBT, DVH-865AVBT BRAND NAME: PIONEER FCC ID: AJD865AVBT REPORT NO: KAD130523083E ISSUE DATE: June 19, 2013 Prepared for PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa-ken, 212-0031, Japan Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC 15.247/A Page 2 of 54 Report No.: KAD130523083E VERIFICATION OF COMPLIANCE Applicant: PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa-ken, 212-0031, Japan Manufacturer: HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Building 2, A Zone, Foryou Industrial Park, 1# North Shangxia Road, Dongjiang Hi-tech Industry Park, Huizhou, Guangdong, China Product Description: Car TFT DVD receiver Brand Name: PIONEER Model Number: DVH-8680AVBT, DVH-865AVBT (Note: The samples are the same except appearance and model number. So we prepare DVH-865AVBT for the EMC test.) Serial Number: N/A Kind of Device: Bluetooth Ver. 2.0+EDR File Number: KAD130523083E Date of Test: May 23, 2013 to June 19, 2013 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 54 Report No.: KAD130523083E Table of Contents 1. GENERAL INFORMATION ....................................................................................... 5 1.1 PRODUCT DESCRIPTION............................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 5 1.3 TEST METHODOLOGY.................................................................................................................. 5 1.4 SPECIAL ACCESSORIES................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 5 1.6 TEST FACILITY............................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ........................................................................... 7 2.1 EUT CONFIGURATION.................................................................................................................. 7 2.2 EUT EXERCISE............................................................................................................................ 7 2.3 TEST PROCEDURE....................................................................................................................... 7 2.4 LIMITATION.................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 11 3. SUMMARY OF TEST RESULTS ............................................................................. 12 4. DESCRIPTION OF TEST MODES........................................................................... 12 5. RADIATED EMISSION TEST .................................................................................. 13 5.1 MEASUREMENT PROCEDURE..................................................................................................... 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 14 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 15 5.4 MEASUREMENT RESULT............................................................................................................. 15 5.5 RADIATED MEASUREMENT PHOTOS:........................................................................................... 21 6. CHANNEL SEPARATION TEST ............................................................................. 22 6.1 MEASUREMENT PROCEDURE..................................................................................................... 22 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 22 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 22 6.4 MEASUREMENT RESULTS:.......................................................................................................... 22 7. 20DB BANDWIDTH TEST ....................................................................................... 28 7.1 MEASUREMENT PROCEDURE..................................................................................................... 28 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 28 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 28 7.4 MEASUREMENT RESULTS:.......................................................................................................... 28 8. QUANTITY OF HOPPING CHANNEL TEST ........................................................... 34 8.1 MEASUREMENT PROCEDUR…

Text truncated - open the document above for the full version.

Radiated Emission Setup Photos
