AJDK011Bluetooth Transmitter

1 ENG/MASTER COVER 98 PIONEER CORPORATION 4-1, MEGURO 1-CHOME, MEGURO-KU, TOKYO 153-8654, JAPAN PIONEER ELECTRONICS (USA) INC. P.O. Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: (800) 421-1404 PIONEER EUROPE NV Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: (0) 3/570.05.11 PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia TEL: (03) 9586-6300 PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: 1-877-283-5901 PIONEER ELECTRONICS DE MEXICO, S.A. de C.V. Blvd. Manuel Avila Camacho 138 10 piso Col. Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270 Published by Pioneer Corporation. Copyright © 2006 by Pioneer Corporation. All rights reserved. Publication de Pioneer Corporation. Copyright © 2006 Pioneer Corporation. Tous droits de reproduction et de traduction réservés. Printed in Japan Imprimé au Japon <CRD4118-A> E< KKYHF > < 06B00000 > BLUETOOTH UNIT APPAREIL BLUETOOTH Owner’s Manual Mode d’emploi ND-BT1 CRD4118A_BT_owners.QX3e 2/14/06 2:00 PM Page 1 2 CRD4118A_BT_owners.QX3e 2/14/06 2:00 PM Page 2 3 Information to User WARNING Handling the cord on this product or cords asso- ciated with accessories sold with the product may expose you to chemicals listed on proposi- tion 65 known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling. Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For countries not mentioned above, please con- tact your local authorities for the correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. If you want to dispose this prod- uct, do not mix it with general household waste. There is a sepa- rate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC/IC radio fre- quency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) exposure rules. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This class B digital apparatus complies with Canadian ICES-003. FCC ID: AJDK011 MODEL NO. : ND-BT1 IC: 775E-K011 This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including inter- ference that may cause undesired operation of this device. MADE IN JAPAN Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the follow- ing measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equip- ment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. English CRD4118A_BT_owners.QX3e 2/15/06 1:26 PM Page 3 4 About this unit This unit is used to connect a Bluetooth enabled cellular phone to a Pioneer HDD Navigation System. About Bluetooth Bluetooth is a short-range wireless radio connectivity technology that is developed as a cable replacement for cellular phones, handheld PCs and other devices. Bluetooth operates in 2.4 GHz frequency range and transmits voice and data at speeds up to 1 megabit per second. Bluetooth was launched by a special interest group (SIG) that comprises of Ericsson Inc., Intel Corp., Nokia Corp., Toshiba and IBM in 1998, and it is currently developed by nearly 2 000 companies worldwide. • The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Pioneer Corporation is under license. Other trade- marks and trade names are those of their respective owners. Operating environment This unit should be used within the temperature ranges shown below. Operating temperature range: -10 to +60 °C (14 to 140 °F) EN300328 ETC test temperature : -20 and +55 °C (-4 and 131 °F) • The line-of-sight distance between this unit and your cellular phone must be 10 meters or less in sending and receiving voice and data via Bluetooth technol- ogy. However, the transmission distance may become shorter than the estimated distance, depending on the environment in use. • There are some Bluetooth enabled cellular phones that can be incompatible with this unit due to their Bluetooth version. • The performance test of this unit w…

Text truncated - open the document above for the full version.

FCC General Office of Engineering Technology FCC Equipment Authorization Branch 7435 Oakland Mills Rd Columbia MD 21046-1609 Attention: Diane Poole Subject: Response to FCC Correspondence Reference Number: 31089(731 Confirmation Number:TC846188) for Pioneer Corporation AJDK011 Dear Ms. Poole: This correspondence is in response to your inquiries regarding the subject submittal. The confidentiality request was originally submitted as part of the “FCC Declarations.pdf” cover letter exhibit. We have provided the confidentiality request letter in its own document which was sent as an exhibit from the FCC correspondence response web page. The letter does provide justification as to why the exhibits are to be held confidential. Please let us know if we can be of further assistance. Sincerely, Bill Barry Staff Engineer EMC, NEBS, and Telecom Direct Phone: 1 (408) 754-6548 Email: [email protected] UL San Jose Office

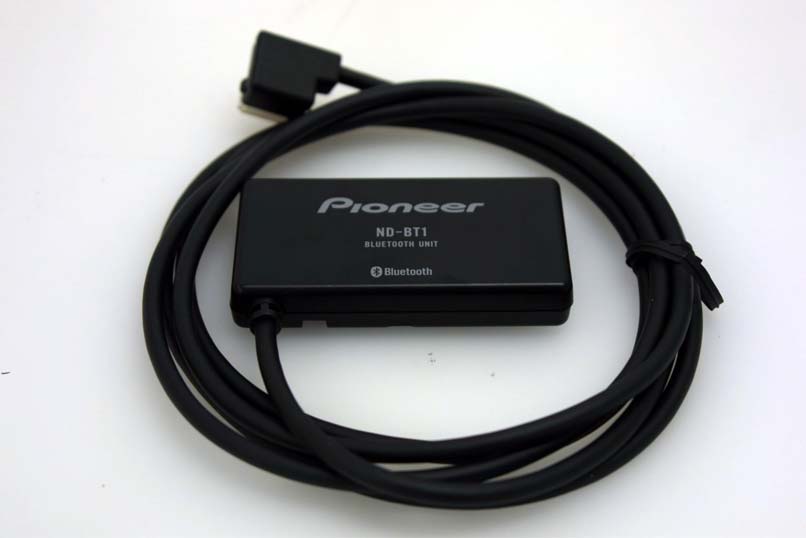

Pioneer Corporation Model No.: ND-BT1 Product: Bluetooth unit External Photo Front Side Back Side

Pioneer Corporation Model No.: ND-BT1 Product: Bluetooth unit Internal Photo Front Side with shielding Front Side without shielding Pioneer Corporation Model No.: ND-BT1 Product: Bluetooth unit Back Side with shielding Back Side without shielding

Applicant: PIONEER CORPORATION Type of Equipment : Bluetooth Unit Model No. : ND-BT1 FCC ID: AJDK011 PIONEER CORPORATION declares that Model : Bluetooth Unit complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “ND-BT1“ has 0.85 mW of conducted Peak Output power and 1.34 mW of EIRP. The Following calculation is the reference data for 20cm distance for mobile use. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “ND-BT1“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4 * π * r 2 ) Where P = 0.85mW (Maximum peak output power) G = 1.58Numerical Antenna gain; equal 2.00dBi r =20.0 cm For: ND-BT1S = 0.00027 mW/cm 2 RF Exposure for Mobile use No. : 26DE0153-YK-1

FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 1 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) EMI TEST REPORT Test Report No. : 26DE0153-YK-1 Applicant : Pioneer Corporation Type of Equipment : Bluetooth unit Model No. : ND-BT1 FCC ID : AJDK011 Test Standard : FCC Part15 Subpart C, Section 15.209, Section 15.247: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: December 22, 2005 and January 11, 2006 Tested by: Makoto Hosaka & Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 2 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Table of Contents Page 1 Applicant Information 3 2 Product Description 4 3 Test Specification, Procedures and Results 5 4 System Test Configuration 7 5 Carrier Frequency Separation 9 6 20dB Bandwidth 9 7 Number of Hopping Frequency 9 8 Dwell time 9 9 Maximum Peak Output Power 9 10 Out of Band Emissions (Antenna Port Conducted) 9 11 Out of Band Emissions (Radiated) 10 Contents of Appendixes 11 APPENDIX 1: Photographs of test setup 12 APPENDIX 2: Test Data 14 APPENDIX 3: Test instruments 44 FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 3 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 1 Applicant Information Company Name : Pioneer Corporation. Brand Name : Pioneer Address : 25-1 Nishi-machi, Yamada-aza, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6343 Facsimile Number : +81-49-228-6494 Contact Person : Kazuyoshi Sakai FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 4 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 2 Product Description Type of Equipment : Bluetooth unit Model No. : ND-BT1 Serial No. : Out of Band emission (Radiated): TPS No.1 Antenna port conducted test: TPS No.2 Rating : DC5V, 0.5A Country of Manufacture : Japan Receipt Date of Sample : December 20, 2005 Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Clock frequency Bluetooth module: 26MHz (CPU clock: 26MHz to 120MHz) Feature of EUT Hands free system by linking with the mobile phone installed with Bluetooth Equipment Type Transceiver Frequency band Lower limit 2402MHz Upper limit 2480MHz Channel spacing 1MHz/CH Type of Modulation FHSS Antenna Type Ceramic patch Antenna (made by Mitsubishi Material) : ACD1403-244ST13 Antenna Connector Type U.FL-R-SMT Antenna Gain +2 dBi max Mode of Operation Duplex ITU code F7D Power Supply (Inner) VCC_IO: DC 3.3V, VCC_RF: DC 2.8V Operating Temperature Range -10 to +60 deg.C. FCC Part15.31 (e) Bluetooth unit, ND-BT1 provides the Bluetooth module with stable power supply (DC 2.8 V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 5 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviation Worst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - N/A *1 - N/A Carrier Frequency Separation ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied Number of Hopping Frequency ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Dwell time ANSI C63.4:2003 13.Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (b)(1) ConductedN/A *See data. Complied Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section15.209 Section15.247(d) Conducted / Radiated N/A 2.7dB (17087.00MHz, Horizontal) Complied The measurements also referred to FCC Public Notice DA 00-705 "Guidance on Measurement for Frequency Hopping Spread Spectrum Systems". *1) The test is not applicable since the EUT has no AC mains. * No addition, exclusion nor deviation has been made from the standard. FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 6 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAM…

Text truncated - open the document above for the full version.

FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 12 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Radiated emission FCC ID : AJDK011 Test report No. : 26DE0153-YK-1 Page : 13 of 44 Issued date : January 20, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Pre check of worse-case position X-axis Y-axis Z-axis
