AJDK013Bluetooth Transmitter

Black plate (1,1) Owner’s Manual Mode d’emploi Bluetooth adapter Adaptateur Bluetooth CD-BTB100 English Português (B) Français <CRD4105-A/N>1 Black plate (2,1) Thank youfor buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly.After you have finished reading the instructions, keep this man- ual in a safe place for future reference. Before You Start Information to User4 For Canadian model4 About this unit5 Operating environment5 About this manual5 In case of trouble5 About Bluetooth6 Resetting this unit6 –Resetting this unit without erasing the data about phone6 –Resetting this unit with clearing all memory6 Bluetooth Telephone Hands-free phoning with cellular phones featuring Bluetooth wireless technology8 About the telephone source9 –Standby mode9 Setting up for hands-free phoning9 Basic operation of hands-free phoning10 –Making a phone call10 –Taking a phone call10 Introduction of advanced hands-free phoning operation11 Connecting a cellular phone12 –Searching for available cellular phones12 –Using a cellular phone to initiate a connection12 Disconnecting a cellular phone13 Registering connected cellular phone13 Deleting a registered phone13 Connecting to a registered cellular phone14 –Connecting to a registered phone manually14 –Connecting to a registered phone automatically14 Using the Phone Book14 –Transferring entries to the Phone Book15 –Changing the Phone Book display order15 –Calling a number in the Phone Book15 –Searching a number in the Phone Book16 –Editing the name of a Phone Book entry16 –Editing phone numbers17 –Clearing a Phone Book entry17 Clearing memory17 Using the Call History18 –Displaying the Call History18 –Calling a number from the Call History18 Using preset numbers18 –Assigning preset numbers18 –Recalling preset numbers19 Making a call by entering phone number19 Echo canceling and noise reduction19 Switching the ring tone19 Setting the automatic rejecting20 Setting the automatic answering20 Displaying BD (Bluetooth Device) address20 Bluetooth Audio Listening to songs on BT Audio (Bluetooth audio player)21 Connecting a Bluetooth audio player22 Playing songs on Bluetooth audio player22 Disconnecting a Bluetooth audio player23 Displaying BD (Bluetooth Device) address23 <CRD4105-A/N>2 Contents En 2 Black plate (3,1) Initial Settings Entering PIN code for Bluetooth wireless connection24 Operating with different head units Using as an external unit25 Function compatibility charts26 –Head unit group 126 –Head unit group 228 –Head unit group 329 –Head unit group 430 Connecting a cellular phone31 –Using a cellular phone to initiate a connection32 Registering connected cellular phone32 Disconnecting a cellular phone32 Voice recognition33 Setting the automatic answering33 Connecting to a registered phone automatically33 Setting the ring tone33 Displaying the device information of this unit34 Connecting a Bluetooth audio player34 Disconnecting a Bluetooth audio player34 Connections Connecting the units36 Installation Installing this unit37 –Mounting with Velcro fasteners37 Installing the microphone37 –When installing the microphone on the sun visor38 –When installing the microphone on the steering column38 Adjusting the microphone angle39 Additional Information Error messages40 Specifications40 <CRD4105-A/N>3 En 3 English Contents Black plate (4,1) Information to User FCC ID: AJDK013 MODEL NO.: CD-BTB100 IC: 775E-K013 This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including inter- ference that may cause undesired operation of this device. MADE IN THAILAND This equipment has been tested and found to comply with the limits for a class B digital de- vice, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason- able protection against harmful interference in a residential installation. This equipment generates, uses and can radi- ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio com- munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interfer- ence to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor- rect the interference by one or more of the fol- lowing measures: !Reorient or relocate the receiving antenna. !Increase the separation between the equip- ment and receiver. !Connect the equipment into an outlet on a circuit different from that to which the re- ceiver is connected. !Consult the dealer or an experienced radio/ TV technician for help. Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. This transmitter must not be co-located or op- erated in conjunction with any other antenna or transmitter. This equipment complies with FCC/IC radiation exposure limits set forth for uncontrolled equipment and meets the FCC/IC radio fre- quency (RF) Exposure Guidelines in Supple- ment C to OET65 and RSS-102 of the IC radio frequency (RF) exposure rules. This equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR). For Canadian model Operation is subject to the following two condi- tions: (1) This device may not cause harmful interfer- ence, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. <CRD4105-A/N>4 Before You Start En 4 Section 01 Black plate (5,1) About this unit This unit is the adapter for a Pioneer head unit to connect cellular phone featuring Bluetooth wireless technology for…

Text truncated - open the document above for the full version.

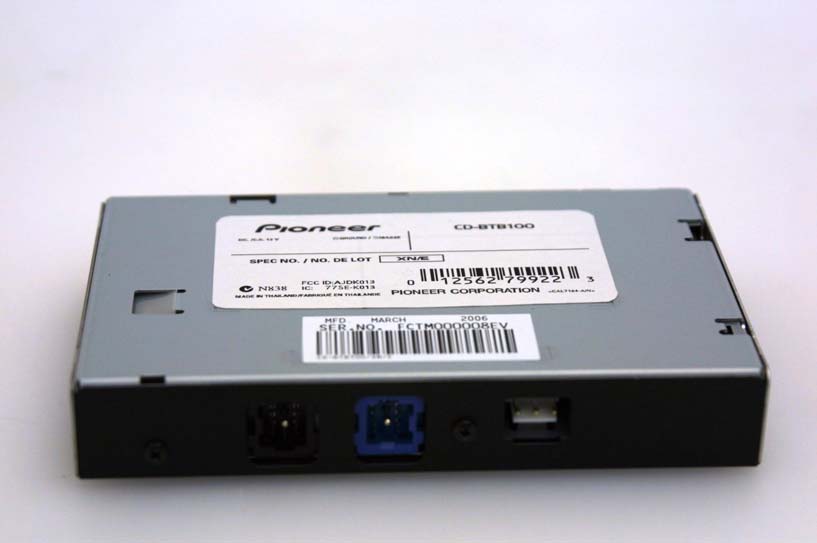

Pioneer Corporation Model No.: CD-BTB100 Product: Bluetooth adapter External Photo Front Side Back Side

Label Design and Location

Pioneer Corporation Model No.: CD-BTB100 Product: Bluetooth adapter Internal Photo Cover opened Front Side with shielding Pioneer Corporation Model No.: CD-BTB100 Product: Bluetooth adapter Front Side without shielding Back Side without shielding

Applicant: PIONEER CORPORATION T ype of Equipment: Bluetooth adapter Model No. : CD-BTB100 FCC ID: AJDK013 PIONEER CORPORATION declares that Model : Bluetooth adapter complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “CD-BTB100“ has 0.77 mW of conducted Peak Output power and 1.22 mW of EIRP. The Following calculation is the reference data for 20cm distance for mobile use. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CD-BTB100“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4 * π * r 2 ) Where P = 0.77mW (Maximum peak output power) G = 1.58Numerical Antenna gain; equal 2.00dBi r =20.0 c m For: CD-BTB100S = 0.00024 mW/cm 2 RF Exposure for Mobile use No. : 26FE0203-YK-F1

FCC ID : AJDK013 Test report No. : 26FE0203-YK-F1 Page : 12 of 46 Issued date : March 14, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(12.02.06) Radiated emission FCC ID : AJDK013 Test report No. : 26FE0203-YK-F1 Page : 13 of 46 Issued date : March 14, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(12.02.06) Pre check of worse-case position X-axis Y-axis Z-axis
