AJDK038CD Receiver

6.2.User’s Manual Requirement of FCC rules FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; 『" DEH-8318 " and “ DEH-8418 ”is installed in motor vehicle, " DEH-8318 " and “ DEH-8418 ” has no manual for user. So, following FCC user’s manual statement will be stated in user’s manual of the motor vehicle.』 FCC Regulations This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION : Radio Frequency Radiation Exposure This equipment complies with FCC radiation exposure limits set forth for uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles). Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

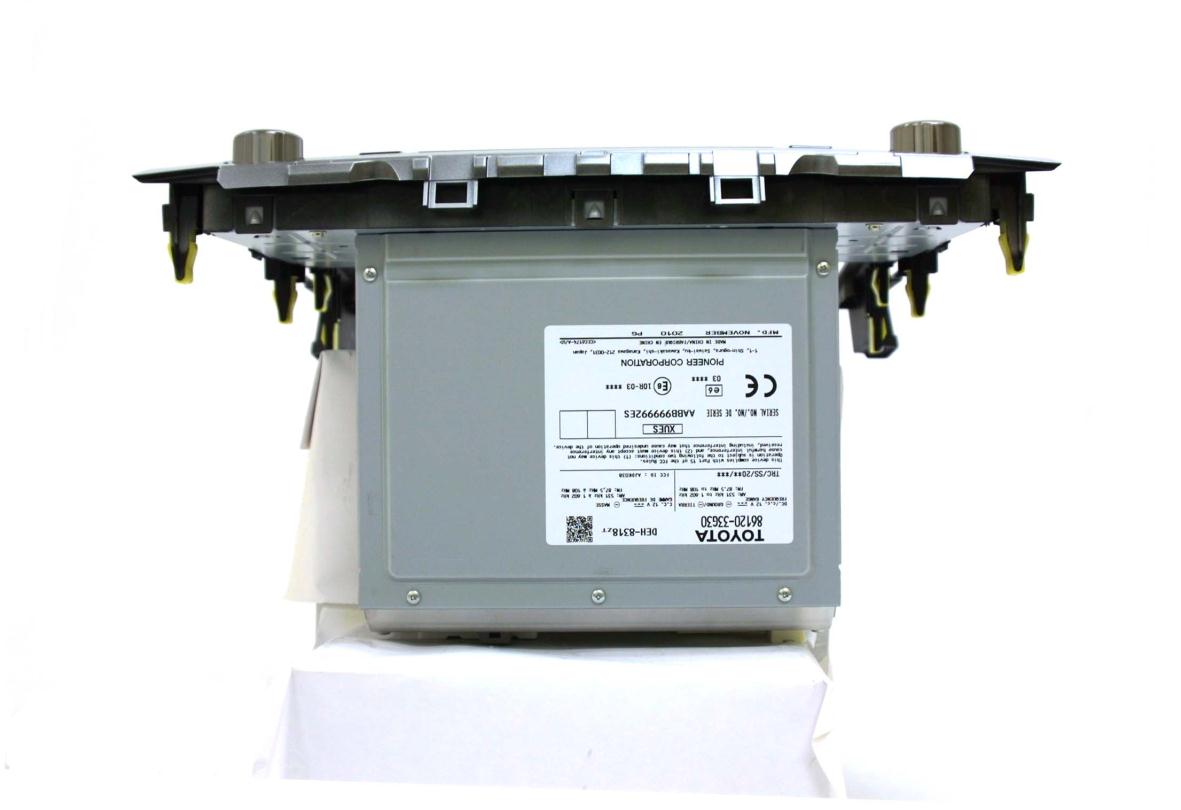

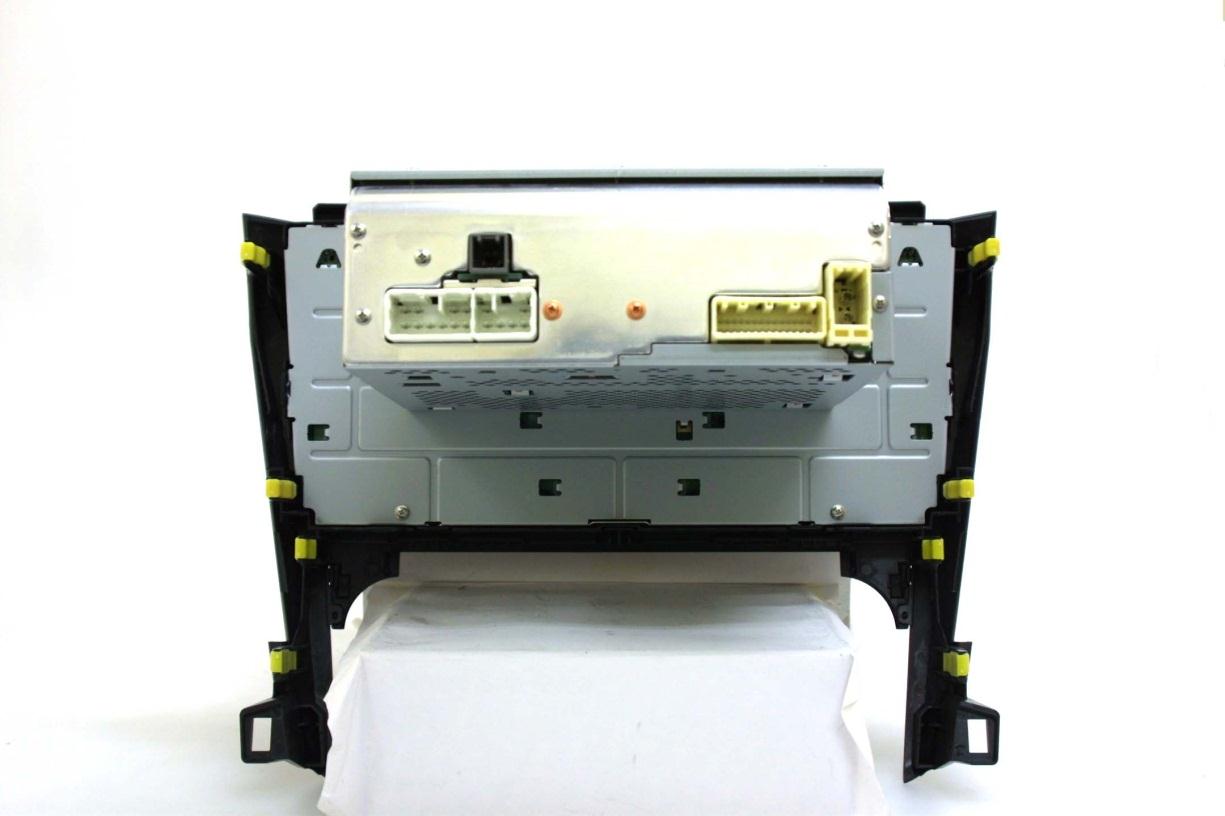

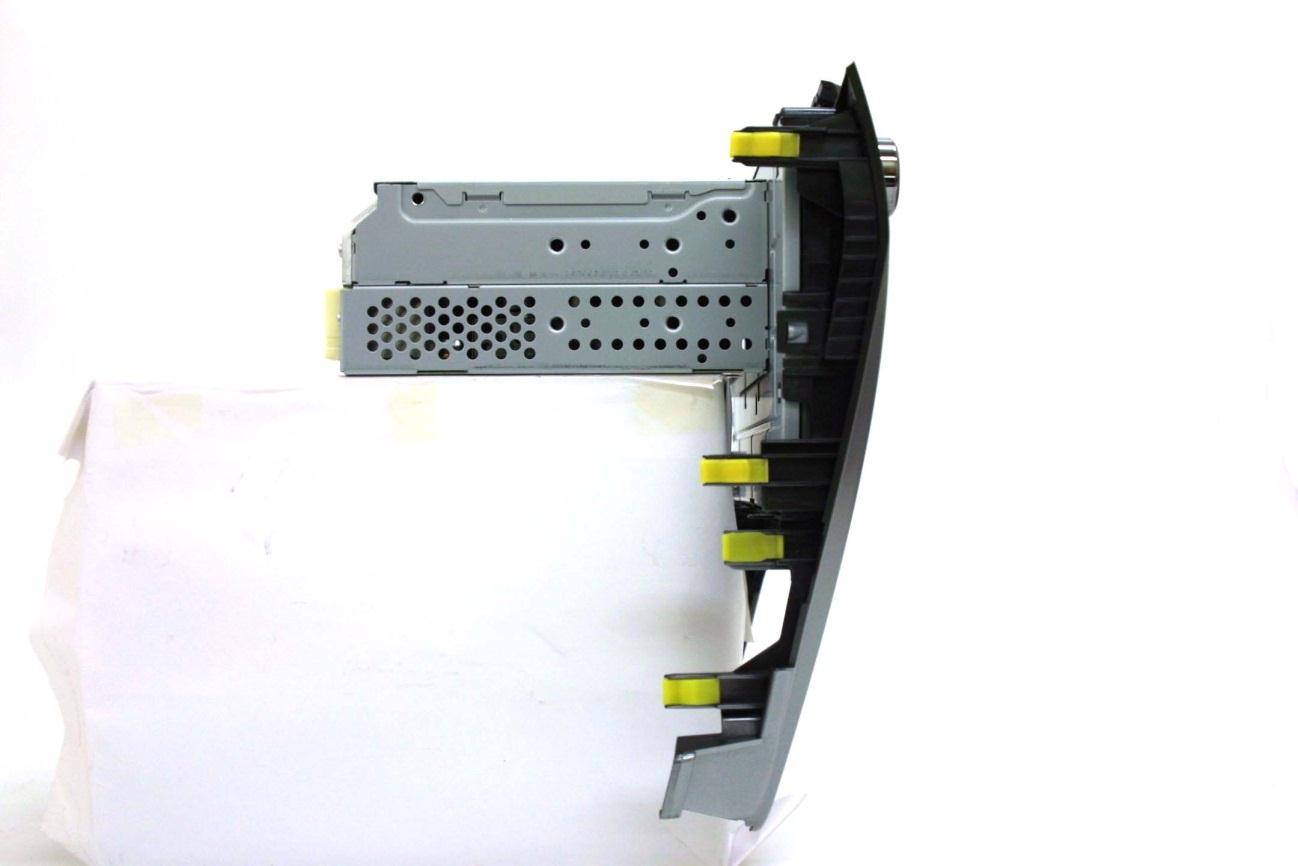

Pioneer Corporation CD Receiver [Model: DEH-8318] FCC ID: AJDK038 External Photo Front Rear Pioneer Corporation CD Receiver [Model: DEH-8318] FCC ID: AJDK038 External Photo Top Bottom Pioneer Corporation CD Receiver [Model: DEH-8318] FCC ID: AJDK038 External Photo Right Left

Pioneer Corporation CD Receiver [Model: DEH-8418] FCC ID: AJDK038 External Photo Front Rear Pioneer Corporation CD Receiver [Model: DEH-8418] FCC ID: AJDK038 External Photo Top Bottom Pioneer Corporation CD Receiver [Model: DEH-8418] FCC ID: AJDK038 External Photo Right Left

DEH-8318 DEH-8418 Label Position

Internal Photo Pioneer Corporation CD Receiver [Model: DEH-8318/DEH-8418] FCC ID: AJDK038 Top with shield Top without shield Internal Photo Pioneer Corporation CD Receiver [Model: DEH-8318/DEH-8418] FCC ID: AJDK038 Bottom Pioneer Corporation CD Receiver [Model: DEH-8318/DEH-8418] FCC ID: AJDK038 Internal photo Bluetooth Board Position Antenna Position

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPOR ATION Type of Equipme nt: CD R e ce ive r M odel N o. : DEH-8318 FCC ID: AJDK038 PIO N EER CO RPO RATIO N declares that M odel : CD Receiver complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “DEH-8318“ has 1.28 mW of conducted Peak O utput power and 1.44 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. R F Expos ure Calculations : The following information provides the minimum separation distance for the highest gain antenna provided with the “DEH-8318“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P =1.28 mW (M aximum pe ak output powe r) G =1.13 Numerical Antenna gain; equal to0.52 dBi r =20.0 cm For: DEH-8318S = 0.00029 mW/cm 2 No. : 31CE0198-SH-01 RF Exposure / SAR Statement

Test report No. : 31CE0198-SH-01 Page : 2 of 51 Issued date : November 25, 2010 FCC ID : AJDK038 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 3 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 3 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: Radiated emission ............................................................................................. 12 SECTION 6: Out of band emissions (Antenna port conducted) ......................................... 14 SECTION 7: Carrier frequency separation .......................................................................... 14 SECTION 8: 20dB bandwidth & Occupied bandwidth (99%) ............................................ 14 SECTION 9: Number of hopping frequency ......................................................................... 14 SECTION 10: Dwell time ........................................................................................................ 14 SECTION 11: Maximum peak output power ........................................................................ 14 Contents of appendixes ............................................................................................................. 15 APPENDIX 1: Photographs of test setup ............................................................................... 16 APPENDIX 2: Test data .......................................................................................................... 17 APPENDIX 3: Test instruments ............................................................................................. 51 Test report No. : 31CE0198-SH-01 Page : 3 of 51 Issued date : November 25, 2010 FCC ID : AJDK038 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Address : 25-1 Aza-Nishimachi, Yamada, Kawagoe-Shi, Saitama-ken, 350-8555 JAPAN Telephone Number : +81 49 228 6415 Facsimile Number : +81 49 228 6493 Contact Person : Makoto Kaieda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : CD Receiver Model Number : DEH-8318 Serial Number : Refer to 4.2. Rating : DC 10.5-16V Country of Mass-production : China Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Receipt Date of Sample : November 11, 2010 Modification of EUT : No modification by the test lab. Test report No. : 31CE0198-SH-01 Page : 4 of 51 Issued date : November 25, 2010 FCC ID : AJDK038 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 2.2 Product description Model: DEH-8318 (referred to as the EUT in this report) is a CD Receiver. Clock frequency(ies) in the system : <Main Unit> 18.75MHz, 37.05MHz, 169.344MHz <Bluetooth> 25.8048MHz, 26MHz <CD DRIVE> 176.4kHz, 16.93MHz <Panel> 219kHz, 4MHz <Radio part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth / Channel spacing : 79MHz & 1MHz Type of modulation : FHSS Antenna type : Inverted F type Antenna connector type : U.FL Antenna gain : 0.52dBi ITU code : F1D, G1D Operation temperature range : -30 to +85 deg.C. Similar models of the EUT: DEH-8418 Model DEH-8318 DEH-8418 Sell General South & Central America Frequency Range/1Step/Seek Step FM: 87.5-108MHz/50k/100kHz AM: 531-1602kHz/9k/9kHz FM: 87.9-108MHz/100k/100kHz AM: 530-1620kHz/5k/10kHz FCC Part15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC 3.3 V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 31CE0198-SH-01 Page : 5 of 51 Issued date : November 25, 2010 FCC ID : AJDK038 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2010, final revised on October 13, 2010 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements FCC Section 15.207 - N/A *1) N/A N/A Carrier frequency separation FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) ConductedN/A *See data. Complied 20dB bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1) ConductedN/A Complied Number of hopping frequency FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) ConductedN/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Section15.247 (a)(1)(iii) ConductedN/A Complied Maximum peak output power FCC Public Notice DA 00-705 & ANSI C63.4:2003 13. Measurement of intentional radiators FCC Secti…

Text truncated - open the document above for the full version.

FCC ID :AJDK038 Test Re port No.: 31CE0198-SH-01 Pa ge :17/ 51 Issued date : November 25, 2010 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date2010/11/17 Temperature / Humidity24deg.C., 35% Enginee rShinichi Takano ModeTx ModeFreq.20dBCarrierLimit for BandwidthFrequenc yCarrier SeparationFrequenc y Separation [MHz][MHz][MHz][MHz] DH52402.00.9351.005>= 0.623 DH52441.00.9401.005>= 0.627 DH52480.00.9381.003>= 0.625 3DH52402.01.2801.005>= 0.853 3DH52441.01.2851.003>= 0.857 3DH52480.01.2881.003>= 0.858 Inquir y2441.00.8102.004>= 0.540 Limit: Two-thirds of 20dB Bandwidth or 25kHz (whichever is greater). No limit applies to 20dB Bandwidth. 20dB Bandwidth and Carrier Frequency Separation UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :18/ 51 Issued date :November 25, 2010 Tx, 2480MHzTx, 2480MHz Tx, 2441MHzTx, 2441MHz 20dB Bandwidth and Carrier Frequency Separation Tx, 2402MHzTx, 2402MHz 20dB BandwidthCarrier Fre quency Separation DH5 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :19/ 51 Issued date :November 25, 2010 Tx, 2480MHzTx, 2480MHz Tx, 2441MHzTx, 2441MHz 20dB Bandwidth and Carrier Frequency Separation Tx, 2402MHzTx, 2402MHz 20dB BandwidthCarrier Frequency Separation 3-DH5 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :20/ 51 Issued date :November 25, 2010 20dB Bandwidth and Carrier Frequency Separation 20dB BandwidthCarrier Frequency Separation Inquiry UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID : AJDK038 Test Report No.: 31CE0198-SH-01 Page :21/ 51 Issued date : November 25, 2010 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date Temperature / Humidity24deg.C. ,30% EngineerWataru Kojima ModeTx, ModeNumber of Channel [times]Limit [times] DH579>=15 3-DH579>=15 Inquiry32>=15 Number of Hopping Frequency (Conducted) 2010/11/18 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :22/ 51 Issued date :November 25, 2010 DH5 (3/3)3-DH5 (3/3) DH5 (2/3)3-DH5 (2/3) 3-DH5 (1/3) Number of Hopping Frequency DH5 (1/3) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :23/ 51 Issued date :November 25, 2010 Number of Hopping Frequency Inquiry (1/3) Inquiry (3/3) Inquiry (2/3) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID : AJDK038 Test Report No.: 31CE0198-SH-01 Page :24/ 51 Issued date : November 25, 2010 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date2010/11/18 Temperature / Humidity24deg.C.,30% EngineerWataru Kojima ModeTx, ModeLength ofResultLimit transmission time [msec][msec] [msec] DH148.6 times /5 sec. x31.6 sec. = 308 times 0.455140400 DH325.0 times /5 sec. x31.6 sec. = 158 times 1.710270400 DH517.0 times /5 sec. x31.6 sec. = 108 times 2.963320400 3DH149.0 times /5 sec. x31.6 sec. = 310 times 0.450139400 3DH324.0 times /5 sec. x31.6 sec. = 152 times 1.703259400 3DH518.2 times /5 sec. x31.6 sec. = 116 times 2.952342400 Inquiry100.0 times /1 sec. x12.8 sec. = 1280 times 0.144184400 Sample Calculation Result = Number of transmission x Length of transmition time *Average data of 5 tests.(except Inquiry) ModeAverage 12345[times] DH1504948484848.6 DH3272225222925 DH5161520171717 3DH1504949494849 3DH3282321252324 3DH5201717211618.2 Sample Calculation Average= Summation(Sampling 1 to 5) / 5 Sampling [times] Dwell Time (Conducted) Number of transmission in a 31.6(79 Hopping x 0.4) / 12.8(32 Hopping x 0.4)second period UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :25/ 51 Issued date :November 25, 2010 Dwell time DH1(On time) DH1 (5 Seconds (4/5)) 48timesDH1 (5 Seconds (5/5)) 48times DH1 (5 Seconds (2/5)) 49timesDH1 (5 Seconds (3/5)) 48times DH1 (5 Seconds (1/5)) 50times UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :26/ 51 Issued date :November 25, 2010 DH3 (5 Seconds (4/5)) 22timesDH3 (5 Seconds (5/5)) 29times DH3 (5 Seconds (2/5)) 22timesDH3 (5 Seconds (3/5)) 25times DH3 (5 Seconds (1/5)) 27times Dwell time DH3(On time) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :27/ 51 Issued date :November 25, 2010 Dwell time DH5(On time) DH5 (5 Seconds (4/5)) 17timesDH5 (5 Seconds (5/5)) 17times DH5 (5 Seconds 2/5)) 15timesDH5 (5 Seconds (3/5)) 20times DH5 (5 Seconds (1/5)) 16times UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC ID :AJDK038 Test Report No.:31CE0198-SH-01 Page :28/ 51 Issued date :November 25, 2010 Dwell time 3DH1(On time) 3DH1 (5 Seconds (4/5))49times3DH1 (5 Seconds (5/5)) 48times 3DH1 (5 Seconds (2/5)) 49times3DH1 (5 Seconds (3/5)) 49times 3DH1 (5 Seconds (1/5)) 50times UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPA…

Text truncated - open the document above for the full version.

Test report No. : 31CE0198-SH-01 Page : 16 of 51 Issued date : November 25, 2010 FCC ID : AJDK038 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 1: Photographs of test setup Radiated emission
