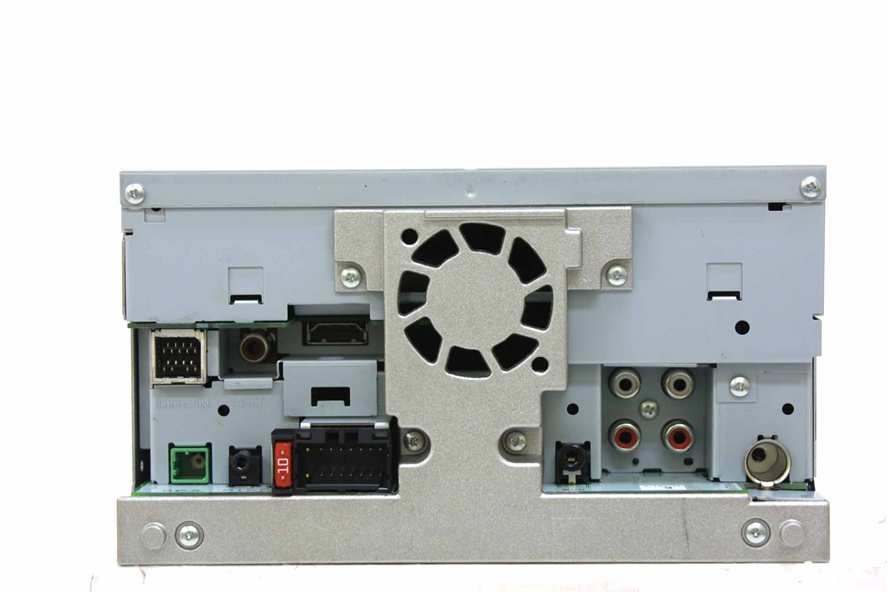

Pioneer Corporation FCC ID: AJDK049 IC Number: 775E-K049 Enternal Photo Front Rear Pioneer Corporation FCC ID: AJDK049 IC Number: 775E-K049 Enternal Photo Top Bottom Pioneer Corporation FCC ID: AJDK049 IC Number: 775E-K049 Enternal Photo Rear Left

Label Position Label Pioneer will remove the “CANADA310” indication from next model.

Pioneer Corporation FCC ID: AJDK049 IC Number: 775E-K049 Internal Photo Bluetooth Board Side A with shield Bluetooth Board Side A without shield Pioneer Corporation FCC ID: AJDK049 IC Number: 775E-K049 Internal Photo Bluetooth Board Side B Bluetooth Board Position

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION T ype of Equipment : Smartphone Receiver M odel No. : SPH-DA100 FCC ID: AJDK049 PIONEER C ORPORATION declares that M odel : Smartphone Receiver complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “SPH-DA100“ has 1.64 mW of conducted Peak Output power and 0.97 mW of EIRP. T his equipment is considered as a mobile device so that SAR testing is excluded. T he Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “SPH-DA100“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / U ncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) W here P = 1.64 mW (M aximum peak output power) G = 0.59 Numerical Antenna gain; equal -2.30 dBi r =20.0 cm For: SPH-DA100S = 0.00019mW/cm 2 N o. : 32E E0123-SH -01-A RF Ex posure / SAR Statement

Test report No. : 32EE0123-SH-01-A Page : 2 of 55 Issued date : February 7, 2012 Revised date : February 14, 2012 FCC ID : AJDK049 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32EE0123-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 32EE0123-SH-01-A February 7, 2012 - - 1 32EE0123-SH-01-A February 14, 2012 P1-2, 13, 50-51 Addition: - Comment about AV detection - Comment about pre-check for worst-case - Comment about emission in restricted bands Test report No. : 32EE0123-SH-01-A Page : 3 of 55 Issued date : February 7, 2012 FCC ID : AJDK049 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Carrier frequency separation ........................................................................ 12 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 12 SECTION 7: Number of hopping frequency ...................................................................... 12 SECTION 8: Dwell time ...................................................................................................... 12 SECTION 9: Maximum peak output power ...................................................................... 12 SECTION 10: Spurious emissions (Antenna port conducted) ........................................... 12 SECTION 11: Radiated emission........................................................................................ 13 Contents of APPENDIXES ................................................................................................... 15 APPENDIX 1: Data of radio tests ....................................................................................... 16 APPENDIX 2: Test instruments ......................................................................................... 54 APPENDIX 3: Photographs of test setup ........................................................................... 55 Test report No. : 32EE0123-SH-01-A Page : 4 of 55 Issued date : February 7, 2012 FCC ID : AJDK049 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Makoto Kaieda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smartphone Receiver Model No. : SPH-DA100 Serial No. : See Section 4. Rating : DC 14.4V Country of Mass-production : China/Thailand Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : January 10, 2012 Test report No. : 32EE0123-SH-01-A Page : 5 of 55 Issued date : February 7, 2012 FCC ID : AJDK049 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 2.2 Product description Model: SPH-DA100 (referred to as the EUT in this report) is a Smartphone Receiver. Clock Frequency: System microcomputer: 3.93216MHz DC/DC converter (5V8V): 365.78kHz/413.91kHz FM/AM tuner: 36.48MHz GPS clock: 26MHz Bluetooth module Clock: 26MHz CPU: 500MHz, 166.7MHz, 41.7MHz, 27MHz, 22.5792MHz, 48MHz, 33.333MHz DC/DC converter (1.8V): 365.78kHz/413.91kHz DC/DC converter (USB): 365.78kHz/413.91kHz VIDEO DECORDER: 27MHz, 33.231MHz, 33.333MHz, 32MHz HDMI Receiver: 27MHz DC/DC converter (LCD): 723kHz/1000kHz LCD BACK LIGHT DRIVER: 476.57kHz/ 514.81kHz Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 1MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : Pattern Antenna gain with cable loss : -2.3dBi (max) Antenna connector type : None Operation temperature range : -10 to +60 deg.C. FCC 15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC1.8V and DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 32EE0123-SH-01-A Page : 6 of 55 Issued date : February 7, 2012 FCC ID : AJDK049 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz The revision on February 1, 2012 does not affect the test specification applied to the EUT. The EUT complies with FCC Part 15 Subpart B. The test is performed by the customer. 3.2 Procedures & Results Item Test Procedure Specification Remarks Deviation Worst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline …

Text truncated - open the document above for the full version.

Test report No. : 32EE0123-SH-01-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 55/55 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz)
