AJDK051Receiver Ass'y

Pioneer Corporation
Receiver Ass'y - FCC ID AJDK051 - Pioneer Corporation
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Mar 20, 2012
Application Purpose
Original Equipment
Date of Application
Mar 20, 2012
Equipment Note
Receiver Ass'y
Frequency Range
2402.00000000 - 2480.00000000
Company
Pioneer Corporation
Country
Japan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

6.2.User’s Manual Requirement of FCC rules FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; 『" PVH-2528 " is installed in motor vehicle, " PVH-2528 " has no manual for user. So, following FCC user’s manual statement will be stated in user’s manual of the motor vehicle.』 ■FCC IDFCC ID:AJDK051 ■OET65 caution This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC

External Photos

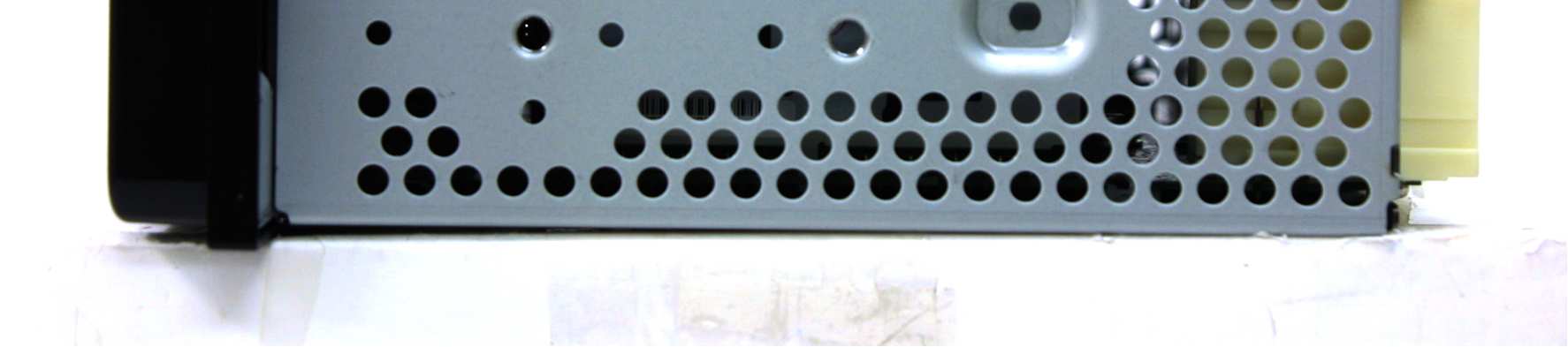

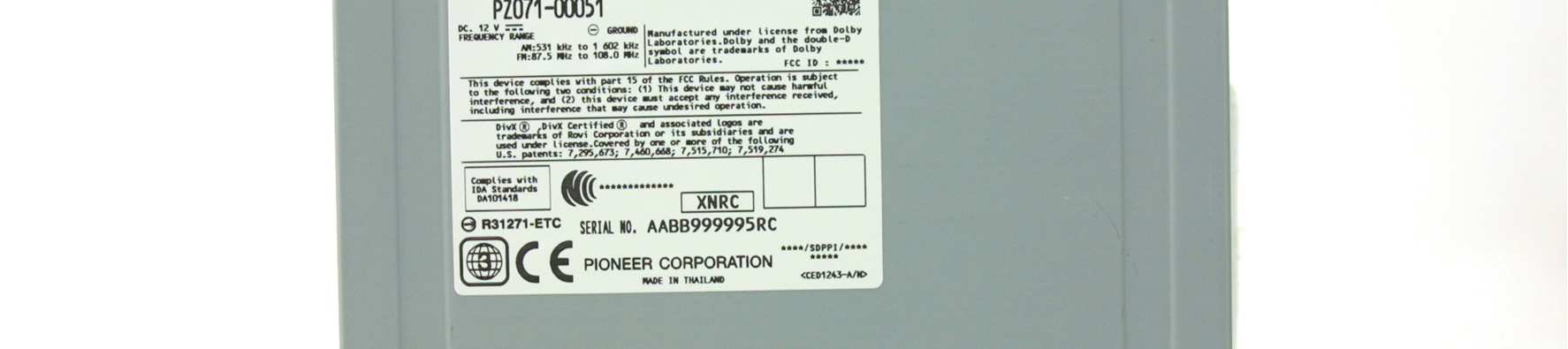

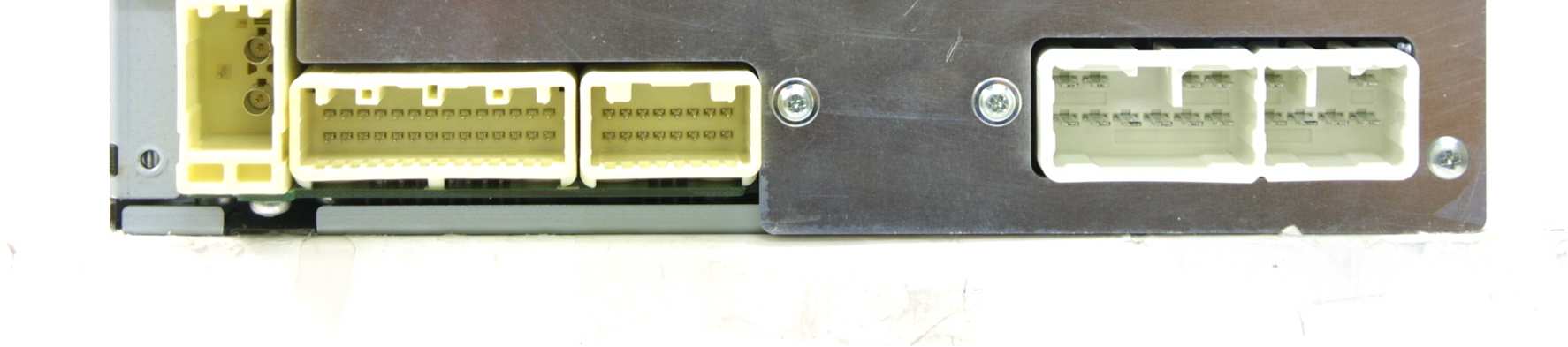

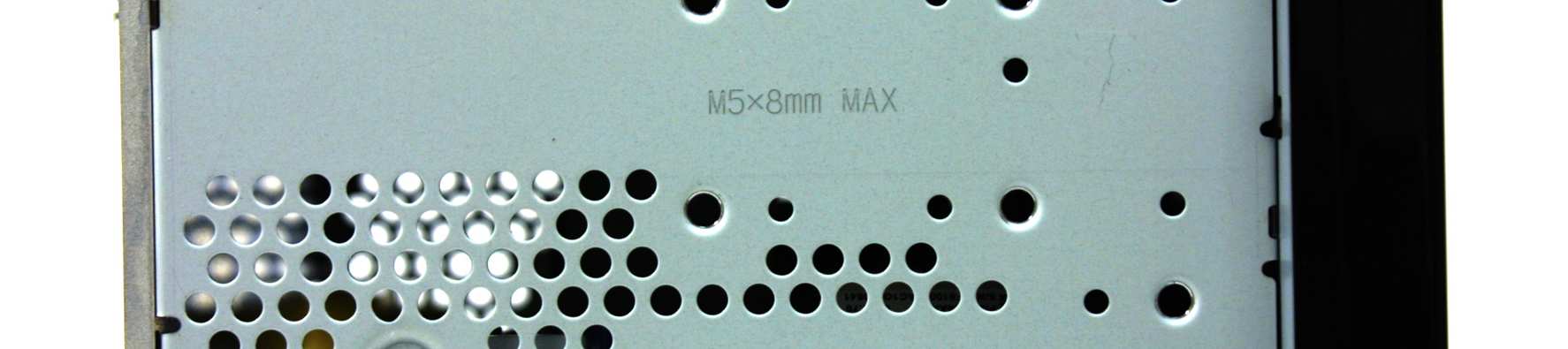

Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 External Photo Front Rear Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 External Photo Top Bottom Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 External Photo Right Left

ID Label/Location Info

Label Position

Internal Photos

Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 Internal Photo Bluetooth Board Side A with shield Bluetooth Board Side A without shield Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 Internal Photo Bluetooth Board Side B Bluetooth Board Position Pioneer Corporation Receiver Ass’y FCC ID: AJDK051 Internal Photo Antenna Position

RF Exposure Info

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION T ype of Equipment : Receiver Ass'y M odel No. : PVH-2528 FCC ID: AJDK051 PIO N EER C OR PO R AT ION declares that M odel : R eceiver Ass'y complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “PVH-2528“ has 2.57 mW of conducted Peak O utput power and 1.2 mW of EIR P. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “PVH-2528“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 2.57 mW (M aximum peak output power) G = 0.47 Numerical Antenna gain; equal -3.30 dBi r =20.0 cm For: PVH-2528S = 0.00024 mW/cm 2 No. : 32FE0186-SH-01 RF Ex posure / SAR Statement
