AJDK054CD RDS RECEIVER

Owner ’ s Manual Mode d ’ emploi Manual de instrucciones CD RDS RECEIVERAUTORADIO CD RDSREPRODUCTOR DE CD CON RECEPTOR RDSDEH-X6500BTDEH-X65BTDEH-4500BT <QRD3123-A/N>1 EnglishEspañolFrançais Thank you for purchasing this PIONEER productTo ensure proper use, please read through thismanual before using this product. It is especiallyimportant that you read and observe WARN- ING s and CAUTION s in this manual. Please keep the manual in a safe and accessible place forfuture reference. FCC ID: AJDK054MODEL NO.: DEH-X6500BT/DEH-X65BT/DEH-4500BTIC: 775E-K054This device complies with Part 15 of FCCRules and Industry Canada licence-exemptRSS standard(s). Operation is subject to thefollowing two conditions: (1) this device maynot cause interference, and (2) this devicemust accept any interference, including inter-ference that may cause undesired operationof this device.This transmitter must not be co-located or op-erated in conjunction with any other antennaor transmitter.The antenna for Bluetooth cannot be removed(or replaced) by user.This equipment complies with FCC/IC radia-tion exposure limits set forth for an uncon-trolled environment and meets the FCC radiofrequency (RF) Exposure Guidelines in Sup-plement C to OET65 and RSS-102 of the ICradio frequency (RF) Exposure rules. Thisequipment has very low levels of RF energythat it deemed to comply without maximumpermissive exposure evaluation (MPE). But itis desirable that it should be installed and op-erated keeping the radiator at least 20 cm ormore away from person ’ s body (excluding ex- tremities: hands, wrists, feet and ankles). Information to User Alteration or modifications carried out with-out appropriate authorization may invalidatethe user ’ s right to operate the equipment. NoteThis equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reason-able protection against harmful interferencein a residential installation. This equipmentgenerates, uses and can radiate radio fre-quency energy and, if not installed and usedin accordance with the instructions, maycause harmful interference to radio commu-nications. However, there is no guaranteethat interference will not occur in a particu-lar installation. If this equipment does causeharmful interference to radio or television re-ception, which can be determined by turningthe equipment off and on, the user is encour-aged to try to correct the interference by oneor more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equip-ment and receiver.- Connect the equipment into an outlet on acircuit different from that to which the re-ceiver is connected.- Consult the dealer or an experienced radio/TV technician for help. The Safety of Your Ears is inYour HandsGet the most out of your equipment by playing itat a safe level — a level that lets the sound come through clearly without annoying blaring or dis-tortion and, most importantly, without affectingyour sensitive hearing. Sound can be deceiving.Over time, your hearing “ comfort level ” adapts to higher volumes of sound, so what sounds “ nor- mal ” can actually be loud and harmful to your hearing. Guard against this by setting yourequipment at a safe level BEFORE your hearingadapts. ESTABLISH A SAFE LEVEL:! Set your volume control at a low setting. ! Slowly increase the sound until you can hearit comfortably and clearly, without distortion. ! Once you have established a comfortablesound level, set the dial and leave it there. BE SURE TO OBSERVE THEFOLLOWING GUIDELINES:! Do not turn up the volume so high that youcan ’ t hear what ’ s around you. ! Use caution or temporarily discontinue usein potentially hazardous situations. ! Do not use headphones while operating amotorized vehicle; the use of headphonesmay create a traffic hazard and is illegal inmany areas. About this unitThe tuner frequencies on this unit are allocatedfor use in North America. Use in other areasmay result in poor reception. WARNING Handling the cord on this product or cords asso-ciated with accessories sold with the productmay expose you to chemicals listed on proposi-tion 65 known to the State of California andother governmental entities to cause cancer andbirth defect or other reproductive harm. Wash hands after handling. CAUTION:USE OF CONTROL OR ADJUSTMENT ORPERFORMANCE OF PROCEDURESOTHER THAN THOSE SPECIFIED HEREINMAY RESULT IN HAZARDOUS RADIATIONEXPOSURE.CAUTION:THE USE OF OPTICAL INSTRUMENTSWITH THIS PRODUCT WILL INCREASEEYE HAZARD. CAUTION ! Do not allow this unit to come into contactwith liquids. Electrical shock could result.Also, damage to this unit, smoke, and over-heating could result from contact withliquids. ! Always keep the volume low enough to hearoutside sounds. ! Avoid exposure to moisture. ! If the battery is disconnected or discharged,any preset memory will be erased. Important (Serial number) The serial number is located on the bottom ofthis unit. For your own security and conven-ience, be sure to record this number on the en-closed warranty card. Before you start 2 Section Before you start En 01 <QRD3123-A/N>2 NoteFunction setting operations are completed evenif the menu is canceled before the operationsare confirmed.About this manual! In the following instructions, USB memoriesand USB audio players are collectively re-ferred to as “ USB storage device ” . ! In this manual, iPod and iPhone will be re-ferred to as “ iPod ” . After-sales service forPioneer productsPlease contact the dealer or distributor fromwhere you purchased this unit for after-salesservice (including warranty conditions) or anyother information. In case the necessary infor-mation is not available, please contact the com-panies listed below:Please do not ship your unit to the companies atthe addresses listed below for repair without ad-vance contact. U.S.A.Pioneer Electronics (USA) Inc.CUSTOMER SUPPORT DIVISIONP.O. Box 1760…

Text truncated - open the document above for the full version.

Owner ’ s Manual Mode d ’ emploi Manual de instrucciones CD RDS RECEIVERAUTORADIO CD RDSREPRODUCTOR DE CD CON RECEPTOR RDSFH-X700BT <QRD3136-A/N>1 EnglishEspañolFrançais Thank you for purchasing this PIONEER productTo ensure proper use, please read through thismanual before using this product. It is especiallyimportant that you read and observe WARN- ING s and CAUTION s in this manual. Please keep the manual in a safe and accessible place forfuture reference. FCC ID: AJDK054MODEL NO.: FH-X700BTIC: 775E-K054This device complies with Part 15 of FCCRules and Industry Canada licence-exemptRSS standard(s). Operation is subject to thefollowing two conditions: (1) this device maynot cause interference, and (2) this devicemust accept any interference, including inter-ference that may cause undesired operationof this device.This transmitter must not be co-located or op-erated in conjunction with any other antennaor transmitter.The antenna for Bluetooth cannot be removed(or replaced) by user.This equipment complies with FCC/IC radia-tion exposure limits set forth for an uncon-trolled environment and meets the FCC radiofrequency (RF) Exposure Guidelines in Sup-plement C to OET65 and RSS-102 of the ICradio frequency (RF) Exposure rules. Thisequipment has very low levels of RF energythat it deemed to comply without maximumpermissive exposure evaluation (MPE). But itis desirable that it should be installed and op-erated keeping the radiator at least 20 cm ormore away from person ’ s body (excluding ex- tremities: hands, wrists, feet and ankles). Information to User Alteration or modifications carried out with-out appropriate authorization may invalidatethe user ’ s right to operate the equipment. NoteThis equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reason-able protection against harmful interferencein a residential installation. This equipmentgenerates, uses and can radiate radio fre-quency energy and, if not installed and usedin accordance with the instructions, maycause harmful interference to radio commu-nications. However, there is no guaranteethat interference will not occur in a particu-lar installation. If this equipment does causeharmful interference to radio or television re-ception, which can be determined by turningthe equipment off and on, the user is encour-aged to try to correct the interference by oneor more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equip-ment and receiver.- Connect the equipment into an outlet on acircuit different from that to which the re-ceiver is connected.- Consult the dealer or an experienced radio/TV technician for help. The Safety of Your Ears is inYour HandsGet the most out of your equipment by playing itat a safe level — a level that lets the sound come through clearly without annoying blaring or dis-tortion and, most importantly, without affectingyour sensitive hearing. Sound can be deceiving.Over time, your hearing “ comfort level ” adapts to higher volumes of sound, so what sounds “ nor- mal ” can actually be loud and harmful to your hearing. Guard against this by setting yourequipment at a safe level BEFORE your hearingadapts. ESTABLISH A SAFE LEVEL:! Set your volume control at a low setting. ! Slowly increase the sound until you can hearit comfortably and clearly, without distortion. ! Once you have established a comfortablesound level, set the dial and leave it there. BE SURE TO OBSERVE THEFOLLOWING GUIDELINES:! Do not turn up the volume so high that youcan ’ t hear what ’ s around you. ! Use caution or temporarily discontinue usein potentially hazardous situations. ! Do not use headphones while operating amotorized vehicle; the use of headphonesmay create a traffic hazard and is illegal inmany areas. About this unitThe tuner frequencies on this unit are allocatedfor use in North America. Use in other areasmay result in poor reception. WARNING Handling the cord on this product or cords asso-ciated with accessories sold with the productmay expose you to chemicals listed on proposi-tion 65 known to the State of California andother governmental entities to cause cancer andbirth defect or other reproductive harm. Wash hands after handling. CAUTION:USE OF CONTROL OR ADJUSTMENT ORPERFORMANCE OF PROCEDURESOTHER THAN THOSE SPECIFIED HEREINMAY RESULT IN HAZARDOUS RADIATIONEXPOSURE.CAUTION:THE USE OF OPTICAL INSTRUMENTSWITH THIS PRODUCT WILL INCREASEEYE HAZARD. CAUTION ! Do not allow this unit to come into contactwith liquids. Electrical shock could result.Also, damage to this unit, smoke, and over-heating could result from contact withliquids. ! Always keep the volume low enough to hearoutside sounds. ! Avoid exposure to moisture. ! If the battery is disconnected or discharged,any preset memory will be erased. Important (Serial number) The serial number is located on the bottom ofthis unit. For your own security and conven-ience, be sure to record this number on the en-closed warranty card. Before you start 2 Section Before you start En 01 <QRD3136-A/N>2 NoteFunction setting operations are completed evenif the menu is canceled before the operationsare confirmed.About this manual! In the following instructions, USB memoriesand USB audio players are collectively re-ferred to as “ USB storage device ” . ! In this manual, iPod and iPhone will be re-ferred to as “ iPod ” . After-sales service forPioneer productsPlease contact the dealer or distributor fromwhere you purchased this unit for after-salesservice (including warranty conditions) or anyother information. In case the necessary infor-mation is not available, please contact the com-panies listed below:Please do not ship your unit to the companies atthe addresses listed below for repair without ad-vance contact. U.S.A.Pioneer Electronics (USA) Inc.CUSTOMER SUPPORT DIVISIONP.O. Box 1760Long Beach, CA 90801-1760800-421-1404CANADAP…

Text truncated - open the document above for the full version.

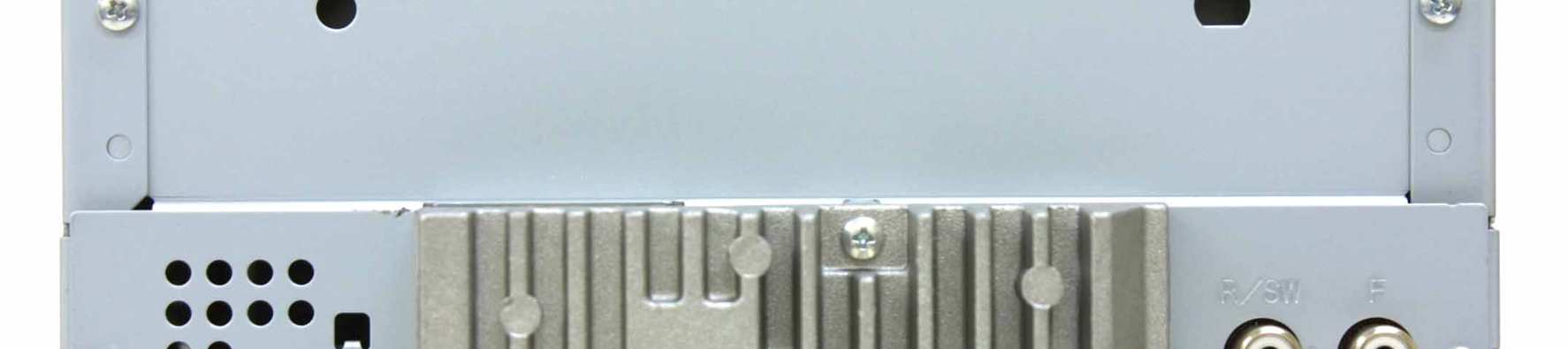

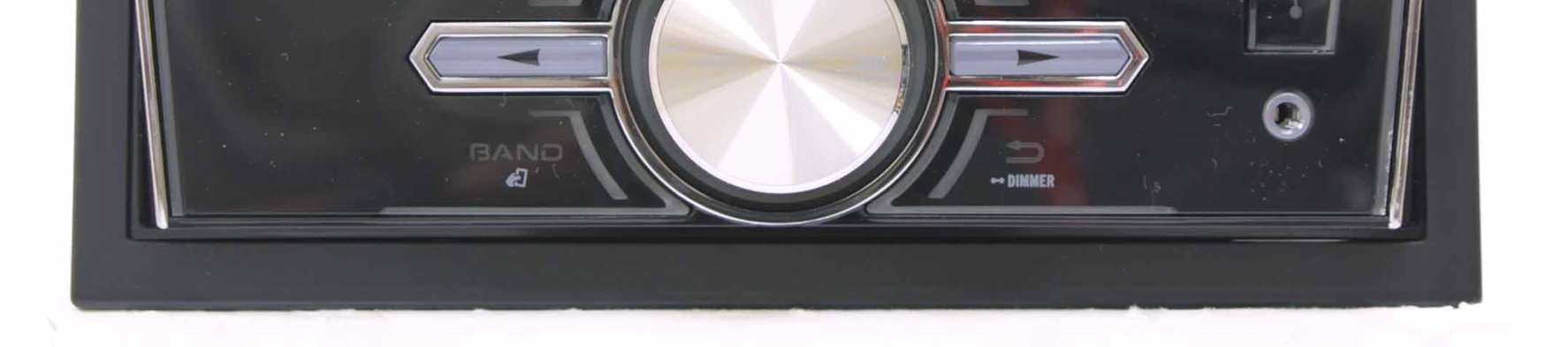

Pioneer Corporation CD RDS RECEIVER Model: DEH-4500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Front Rear Pioneer Corporation CD RDS RECEIVER Model: DEH-4500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Top Bottom Pioneer Corporation CD RDS RECEIVER Model: DEH-4500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Right Left

Pioneer Corporation CD RDS RECEIVER Model: DEH-X65BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Front Rear Pioneer Corporation CD RDS RECEIVER Model: DEH-X65BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Top Bottom Pioneer Corporation CD RDS RECEIVER Model: DEH-X65BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Right Left

Pioneer Corporation CD RDS RECEIVER Model: DEH-X6500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Front Rear Pioneer Corporation CD RDS RECEIVER Model: DEH-X6500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Top Bottom Pioneer Corporation CD RDS RECEIVER Model: DEH-X6500BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Right Left

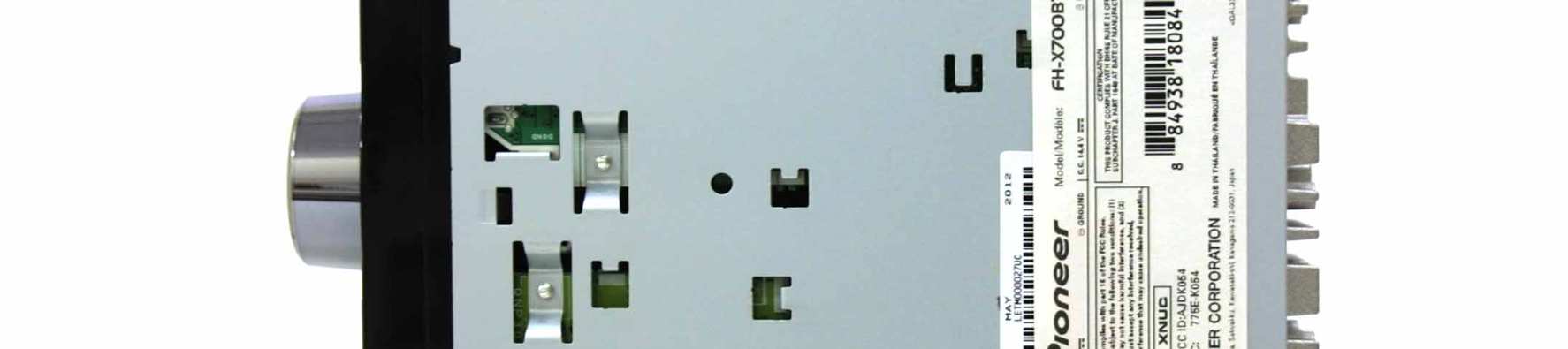

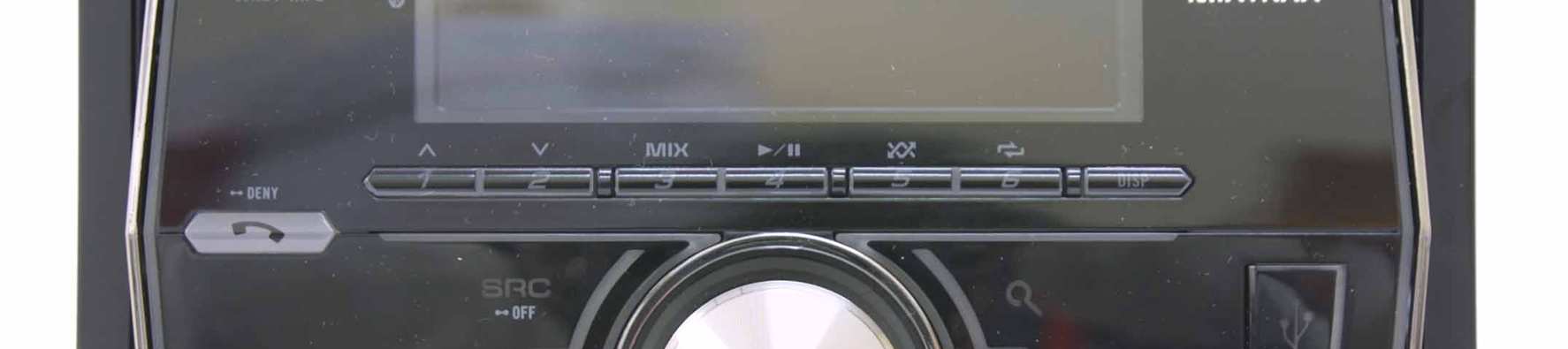

Pioneer Corporation CD RDS RECEIVER Model: FH-X700BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Front Rear Pioneer Corporation CD RDS RECEIVER Model: FH-X700BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Top Bottom Pioneer Corporation CD RDS RECEIVER Model: FH-X700BT FCC ID: AJDK054 IC Number: 775E-K054 External Photo Right Left

Label Position DEH-X6500BT DEH-X65BT FH-X700BT, DEH-4500BT

Pioneer Corporation CD RDS RECEIVER FCC ID: AJDK054 IC Number: 775E-K054 Internal Photo Bluetooth Board side A with shield Bluetooth Board side A without shield Pioneer Corporation CD RDS RECEIVER FCC ID: AJDK054 IC Number: 775E-K054 Internal Photo Bluetooth Board side B Bluetooth Board Location

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION T ype of Equipment : CD RDS RECEIVER Model No. : DEH-X6500BT FCC ID: AJDK054 PIONEER CORPORATION declares that Model : CD RDS RECEIVER complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “DEH-X6500BT“ has 1.09 mW of conducted Peak Output power and 0.66 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DEH-X6500BT“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.09 mW (M aximum peak output power) G = 0.60 Numerical Antenna gain; equal -2.20 dBi r =20.0 cm For: DEH-X6500BTS = 0.00013mW/cm 2 N o. : 32H E 0348-SH -02-A RF Ex posure / SAR Statement

Test report No. : 32HE0348-SH-02-A Page : 2 of 55 Issued date : June 25, 2012 Revised date : July 9, 2012 FCC ID : AJDK054 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 32HE0348-SH-02-A Revision Test report No. Date Page revised Contents - (Original) 32HE0348-SH-02-A June 25, 2012 - - 1 32HE0348-SH-02-A July 2, 2012 1-2, 20, 21, 23, 27 Addition of comments about AFH mode 2 32HE0348-SH-02-A July 9, 2012 1-2, 5 Addition of row of “Size” Test report No. : 32HE0348-SH-02-A Page : 3 of 55 Issued date : June 25, 2012 FCC ID : AJDK054 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ....................................................................... 4 SECTION 3: Test specification, procedures & results ......................................................... 6 SECTION 4: Operation of E.U.T. during testing ................................................................. 9 SECTION 5: Carrier frequency separation ........................................................................ 12 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 12 SECTION 7: Number of hopping frequency ...................................................................... 12 SECTION 8: Dwell time ...................................................................................................... 12 SECTION 9: Maximum peak output power ...................................................................... 12 SECTION 10: Spurious emissions (Radiated) .................................................................... 13 SECTION 11: Spurious emissions (Antenna port conducted) ........................................... 14 Contents of appendixes ......................................................................................................... 15 APPENDIX 1: Test data ...................................................................................................... 16 APPENDIX 2: Test instruments ......................................................................................... 54 APPENDIX 3: Photographs of test setup ........................................................................... 55 Test report No. : 32HE0348-SH-02-A Page : 4 of 55 Issued date : June 25, 2012 FCC ID : AJDK054 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand Name : Pioneer Address : 25-1 Aza-Nishimachi, Yamada, Kawagoe-shi, Saitama 350-8555, Japan Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Makoto Kaieda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : CD RDS RECEIVER Model No. : DEH-X6500BT Serial No. : Refer to 4.2 of this report. Rating : DC14.4V Country of Mass-production : Thailand Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : June 4, 2012 2.2 Product description Model: DEH-X6500BT (referred to as the EUT in this report) is a CD RDS RECEIVER. Clock frequency(ies) in the system : SYSTEM MICRO: 16.93MHz, 12MHz GRILL MICRO: 4.97MHz CD mechanism: 16.93MHz Tuner: 36.48MHz (VCO: 2.5~3.3GHz) Bluetooth module: 26MHz DC-DC CONVERTER: 367.347/439.024kHz Bluetooth specification: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : FHSS Antenna type : Pattern Antenna connector type : None Antenna gain : -2.2dBi ITU code : F1D, G1D Operation temperature range : -10 to +60 deg.C. FCC 15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC 3.3V and 1.8V), therefore, the equipment complies with power supply regulation. FCC 15.203 The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 32HE0348-SH-02-A Page : 5 of 55 Issued date : June 25, 2012 Revised date : July 9, 2012 FCC ID : AJDK054 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 The EUT and its derived models: The electrical characteristics among those models are identical to each other. Model DEH-X6500BT DEH-X65BT DEH-4500BT FH-X700BT Illumination Multi-Color Multi-Color BLUE Multi-Color Face type *1 A A B C Sensormatic TAG - X X - FM Frequency range & Step 87.9 to 107.9 MHz 200 kHz step 87.9 to 107.9 MHz 200 kHz step 87.9 to 107.9 MHz 200 kHz step 87.9 to 107.9 MHz 200 kHz step AM Frequency range & Step 530 to 1710 kHz (10kHz) 10 kHz step 530 to 1710 kHz (10kHz) 10 kHz step 530 to 1710 kHz (10kHz) 10 kHz step 530 to 1710 kHz (10kHz) 10 kHz step Size (W x H x D) 178 x 50 x 165 178 x 50 x 165 178 x 50 x 165 178 x 100 x 157 X: Application *1 FACE Type A: 1DIN Multi-Color Illumination type B: 1DIN Single Illumination type C: 2DIN Multi-Color Illumination type Test report No. : 32HE0348-SH-02-A Page : 6 of 55 Issued date : June 25, 2012 FCC ID : AJDK054 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2012, final revised on May 17, 2012 and effective June 18, 2012 Title : FCC 47CFR Part15 Radio Fre…

Text truncated - open the document above for the full version.

Test report No.: 32HE0348-SH-02-A UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front (below 1GHz) Front (above 1GHz) Rear
