AJDK066Car Audio with Bluetooth

6.2.User’s Manual Requirement of FCC/IC rules FCC/IC User's manual requirements that are required by FCC/IC rules are described on user's manual of the vehicle as followings; 『" CVX-2628 and CVH-2438 " are installed in motor vehicle. Therefore, we will not supply the user's manual. So, following FCC/IC user’s manual statement will be stated in user’s manual of the motor vehicle.』 ■FCC ID FCC ID：AJDK066 ■OET65 caution This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ■IC IDIC：775E-K066 ■RSS-102 caution This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles d’exposition aux fréquences radio électriques (RF) CNR-102 de l’IC. Cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). ■Antenna caution Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioé lectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. ■Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC IC

Pioneer Corporation Car Audio with Bluetooth IC Number: 775E-K066 Model: CVH-2438 External Photo Front Rear Pioneer Corporation Car Audio with Bluetooth IC Number: 775E-K066 Model: CVH-2438 External Photo To p Bottom Pioneer Corporation Car Audio with Bluetooth IC Number: 775E-K066 Model: CVH-2438 External Photo Right Left

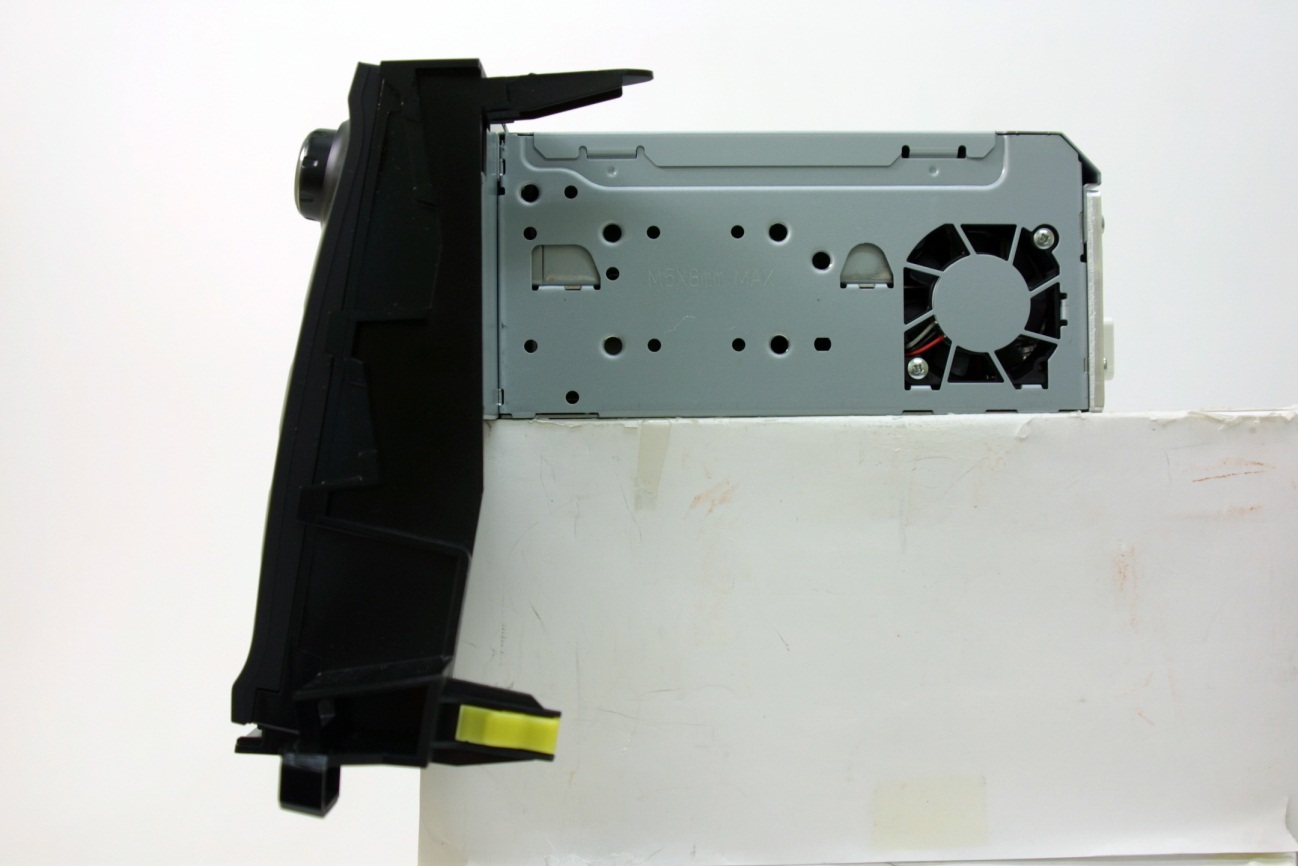

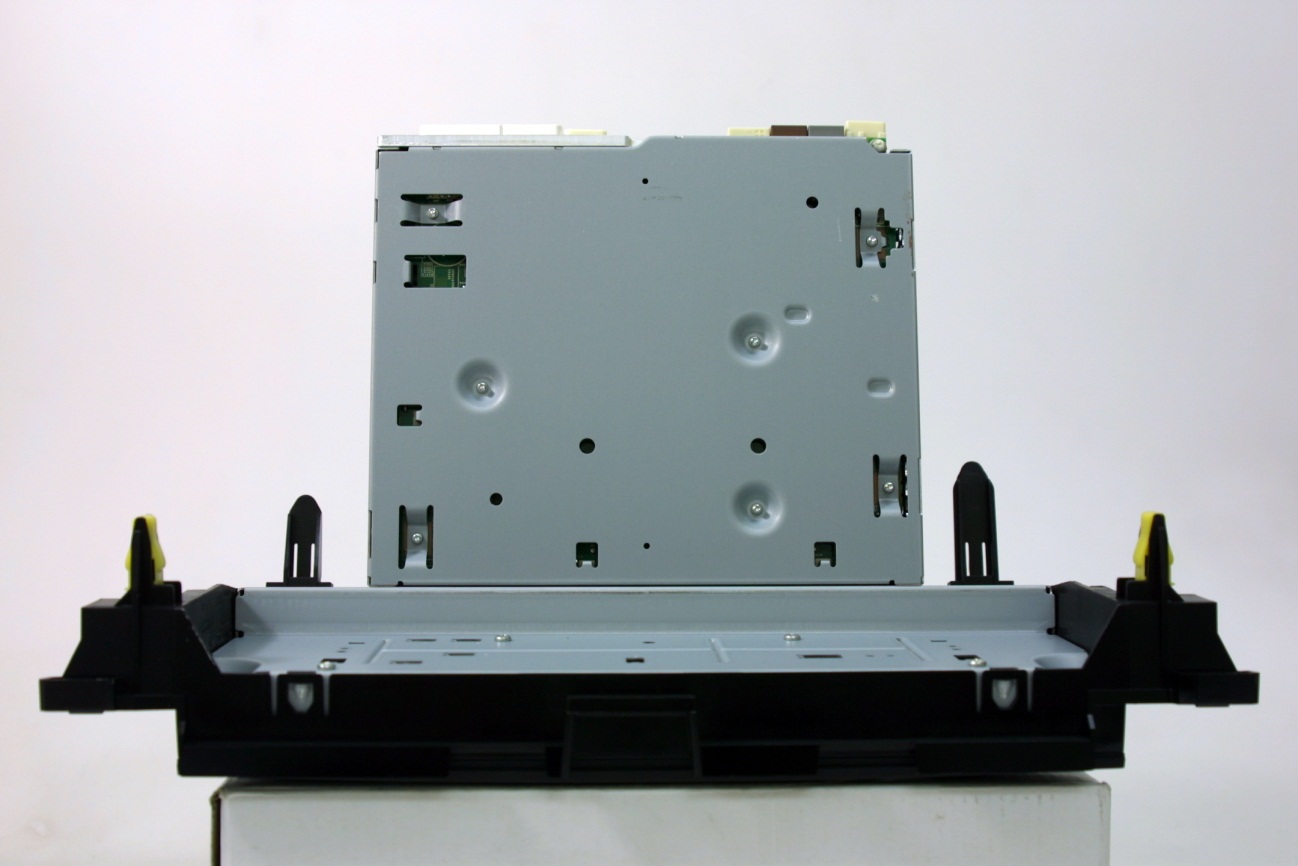

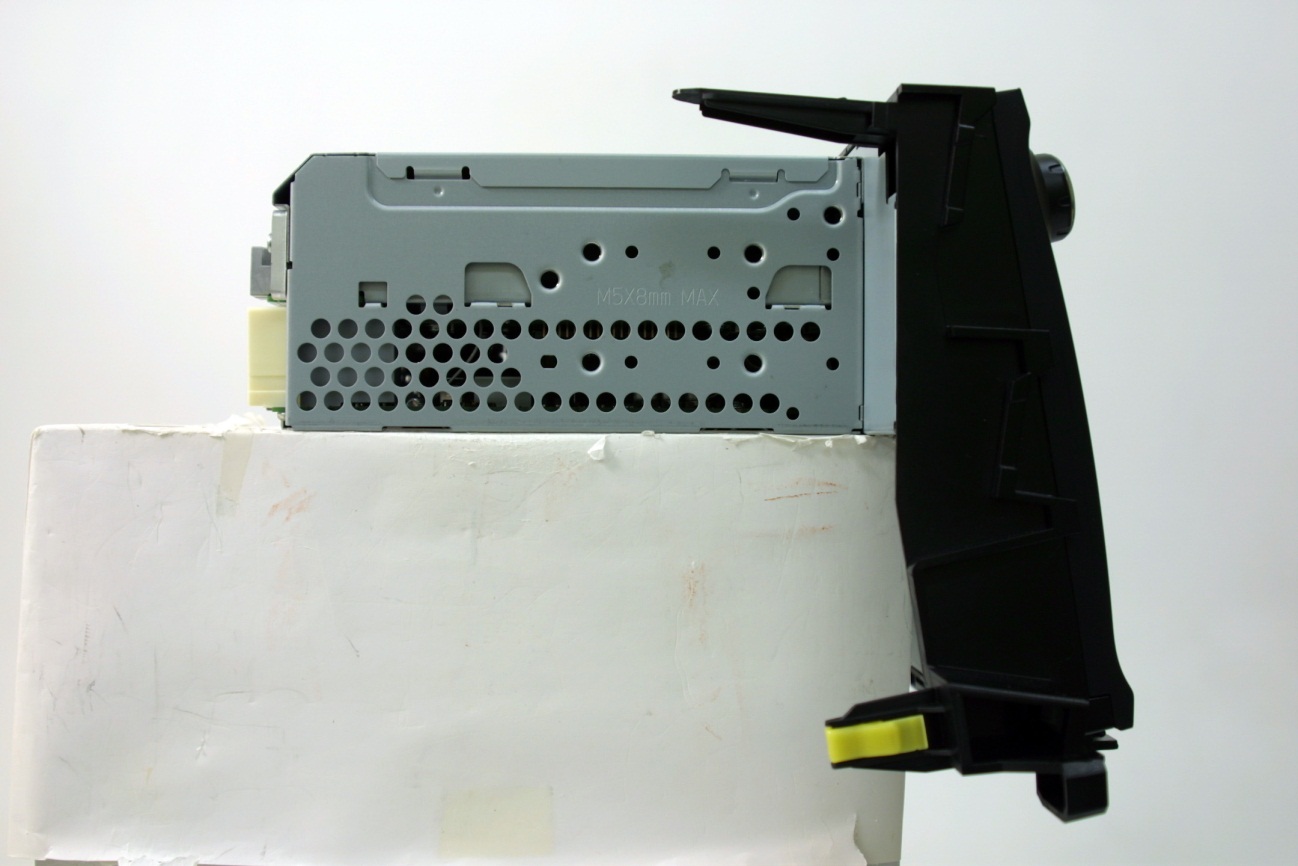

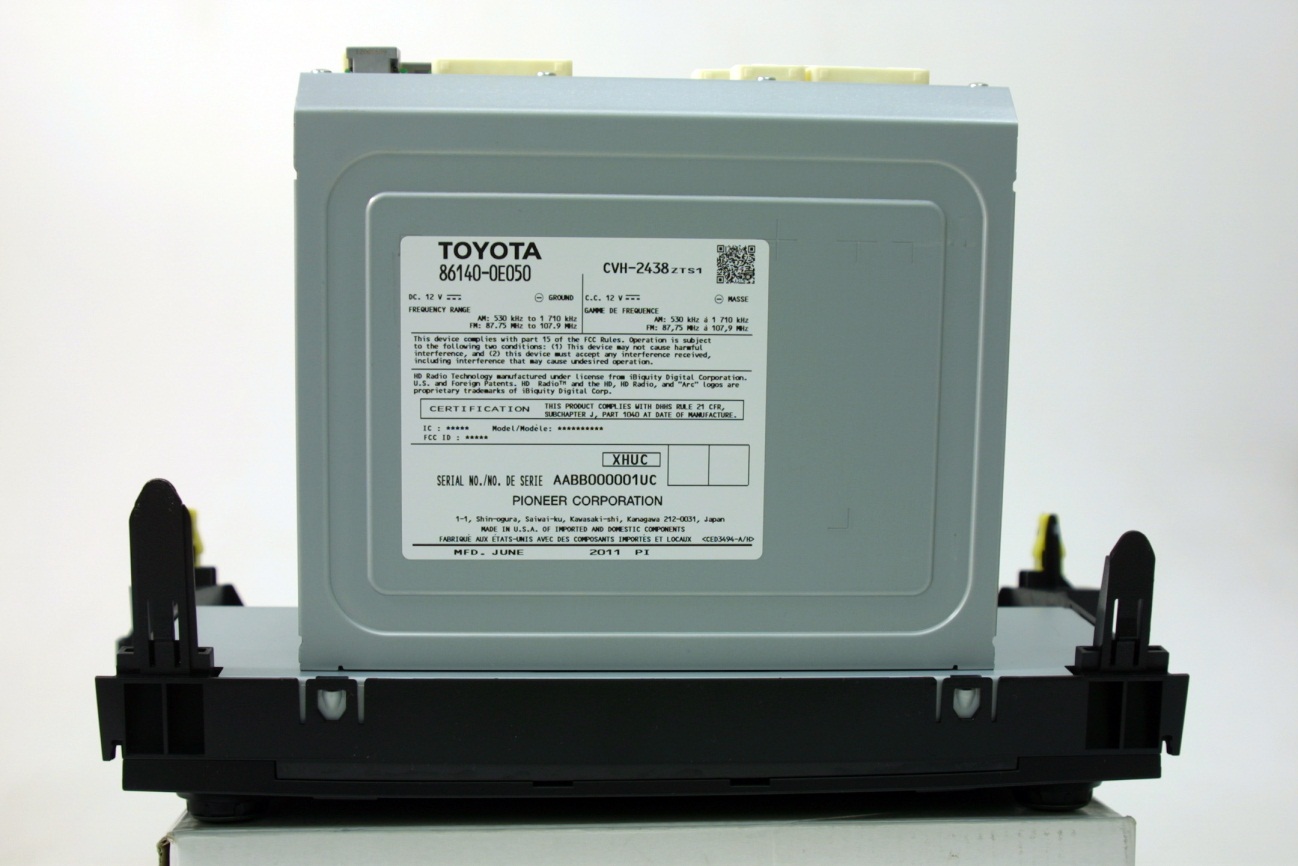

Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 Model: CVX-2628 External Photo Front Rear Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 Model: CVX-2628 External Photo To p Bottom Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 Model: CVX-2628 External Photo Right Left

Label Position CVX-2628 CVH-2438

Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 IC Number: 775E-K066 Internal Photo Side A with Shield Side A without Shield Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 IC Number: 775E-K066 Internal Photo Side B Bluetooth Board Position Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK066 IC Number: 775E-K066 Internal Photo Antenna Position WLAN Antenna BT Antenna

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION T ype of Equipment : Car Audio with Bluetooth Model No. : CVX-2628 FCC ID: AJDK066 PIO N EER C OR PO RATION declares that M odel : C ar Audio with Bluetooth complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “CVX-2628“ has 1.91 mW of conducted Peak O utput power and 0.81 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CVX-2628“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 1.91 mW (M aximum peak output power) G = 0.42 Numerical Antenna gain; equal -3.74 dBi r =20.0 cm For: CVX-2628S = 0.00016mW/cm 2 No. : 4786001498S-A RF Ex posure / SAR Statement

Test report No. : 4786001498S-A Page : 2 of 50 Issued date : January 15, 2013 FCC ID : AJDK066 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 4786001498S-A Revision Test report No. Date Page revised Contents - (Original) 4786001498S-A January 15, 2013 - - Test report No. : 4786001498S-A Page : 3 of 50 Issued date : January 15, 2013 FCC ID : AJDK066 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................ 6 SECTION 4: Operation of E.U.T. during testing .................................................................... 9 SECTION 5: Carrier frequency separation ........................................................................... 12 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ............................................ 12 SECTION 7: Number of hopping frequency ......................................................................... 12 SECTION 8: Dwell time ......................................................................................................... 12 SECTION 9: Maximum peak output power ......................................................................... 12 SECTION 10: Spurious emissions (Antenna port conducted) .............................................. 12 SECTION 11: Radiated emission........................................................................................... 13 Contents of APPENDIXES ...................................................................................................... 15 APPENDIX 1: Data of radio tests .......................................................................................... 16 APPENDIX 2: Test instruments ............................................................................................ 49 APPENDIX 3: Photographs of test setup .............................................................................. 50 Test report No. : 4786001498S-A Page : 4 of 50 Issued date : January 15, 2013 FCC ID : AJDK066 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Makoto Kaieda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio with Bluetooth Model No. : CVX-2628 Serial No. : See Section 4. Rating : DC 12V Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : November 27, 2012 2.2 Product description Model: CVX-2628 (referred to as the EUT in this report) is a Car Audio with Bluetooth. The derived model and differences: Pioneer Number CVH-2438ZTS1/XHUC CVX-2628ZT/US Sell U.S.A/Canada U.S.A Country of Mass-production U.S.A. Japan Audio Amplifier Supplier internal Amplifier external Pioneer’s Amplifier Display 6.1InchWVGA external other's 7 Inch Front side Design Back side Design Radio specification: Wireless LAN: Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : BPSK, QPSK, CCK, 16QAM, 64QAM Antenna type : Pattern Antenna gain with cable loss : -2.52dBi (max) Antenna connector type : U.FL-LP-066 Operation temperature range : -20 to +65 deg.C. Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : Pattern Antenna gain with cable loss : -3.74dBi (max) Antenna connector type : U.FL-LP-066 Operation temperature range : -20 to +65 deg.C. Refer to the test report: 4786001498S-B for Wireless LAN part. Test report No. : 4786001498S-A Page : 5 of 50 Issued date : January 15, 2013 FCC ID : AJDK066 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 FCC 15.31 (e) The equipment provides the wireless transmitter with stable power supply (DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Clock Frequency: Reason For Use Frequency SYSTEM MICROCOMPUTER 16MHz CAN MICROCOMPUTER 8MHz Dirana 41.6MHz VDEC 32MHz GVIF TX 24MHz GPS RX 26MHz SoC int CLK (33M_PLL) 1066.667MHz SoC int CLK (48M_PLL) 864.0MHz SoC MASTER CLK 33.33MHz SoC DOTCLK 37MHz SoC USBCLK 48.0MHz VCXO (SoC) 27.0MHz Audio PLL IC (SoC) 24.576MHz Audio PLL IC (SoC) 16.934MHz Audio PLL IC(ADC for MIC) 6.144MHz DSP MCLK (HD) 24.0MHz SYS CLK (XM) 24.265MHz I2C communication SYS uCom E2PROM 100k~400kHz I2C communication SYS uCom VDEC 0.4MHz I2C communication SYS uCom LVDS 400kbps I2C communication SYS uCom GVIF 100kHz or 400kHz I2C communication SYS uCom Dirana 0.3MHz I2C communication DiranaL-Dice 0.4MHz I2C communication DiranaHero 0.4MHz I2C communication SoCiPod 100~400kHz SPI communication SYS uComKeyScan IC 0.4MHz SPI communication SYS uComCAN uCom 0.6MHz SPI communication SYS uComGVIF 0.4MHz SPI communication SoCHD Module 0.8MHz…

Text truncated - open the document above for the full version.

Test report No. : 4786001498S-A Page : 50 of 50 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT
