6.2.User’s Manual Requirement of FCC/IC rules FCC/IC User's manual requirements that are required by FCC/IC rules are described on user's manual of the vehicle as followings; 『" CVH-2338 " is installed in motor vehicle. Therefore, we will not supply the user's manual. So, following FCC/IC user’s manual statement will be stated in user’s manual of the motor vehicle.』 ■FCC ID FCC ID：AJDK068 ■OET65 caution This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. ■IC IDIC：775E-K068 ■RSS-102 caution This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le Supplément C à OET65 et d’exposition aux fr équences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autoris ée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles). ■Antenna caution Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioé lectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. ■Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. FCC IC

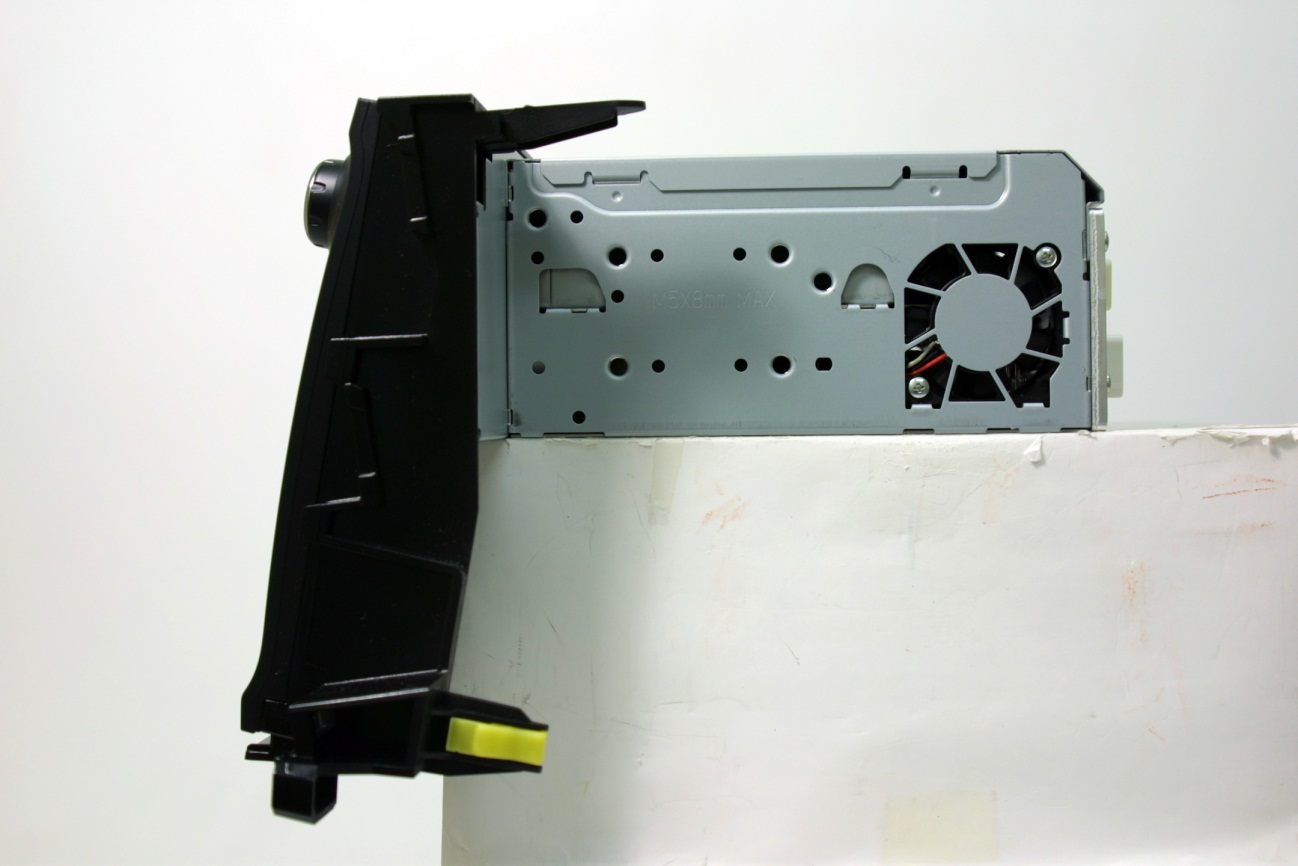

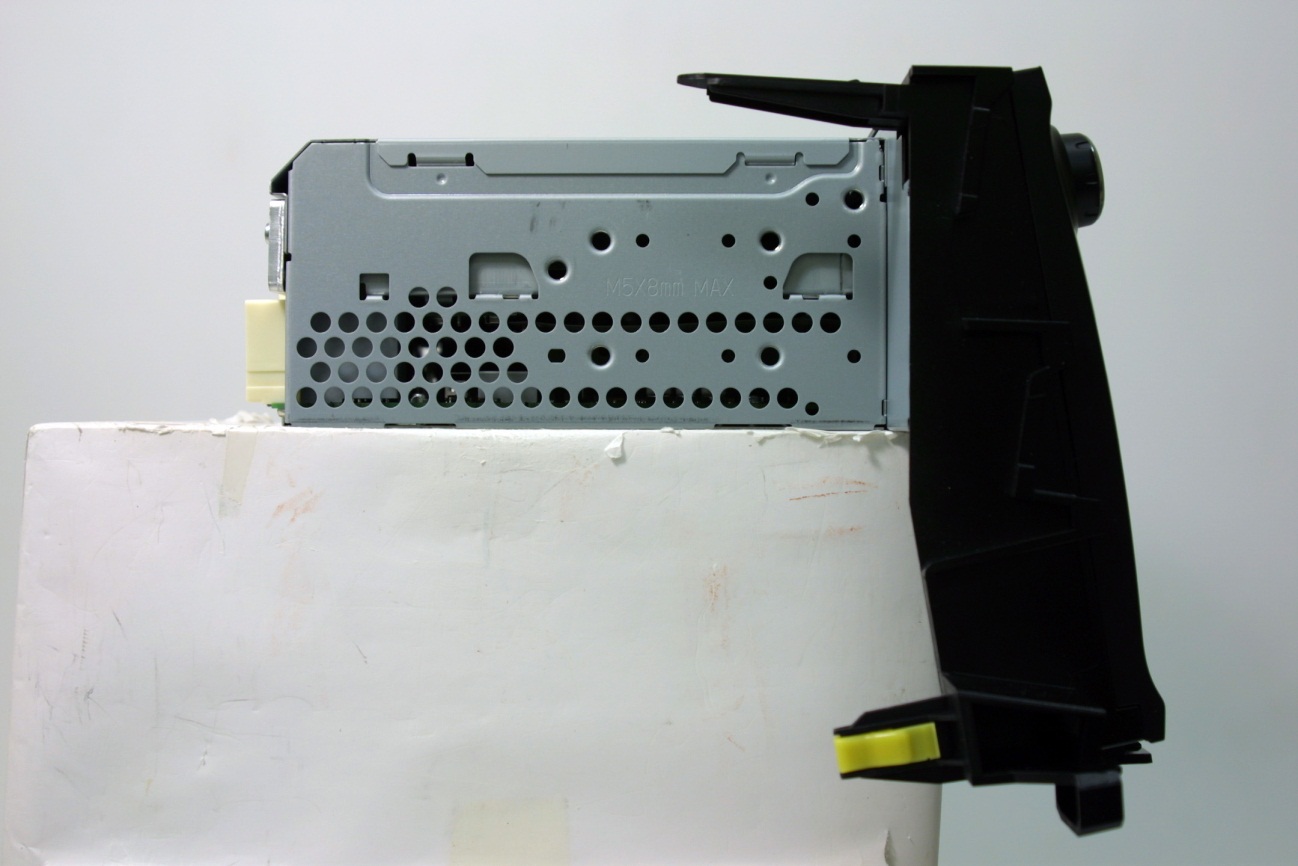

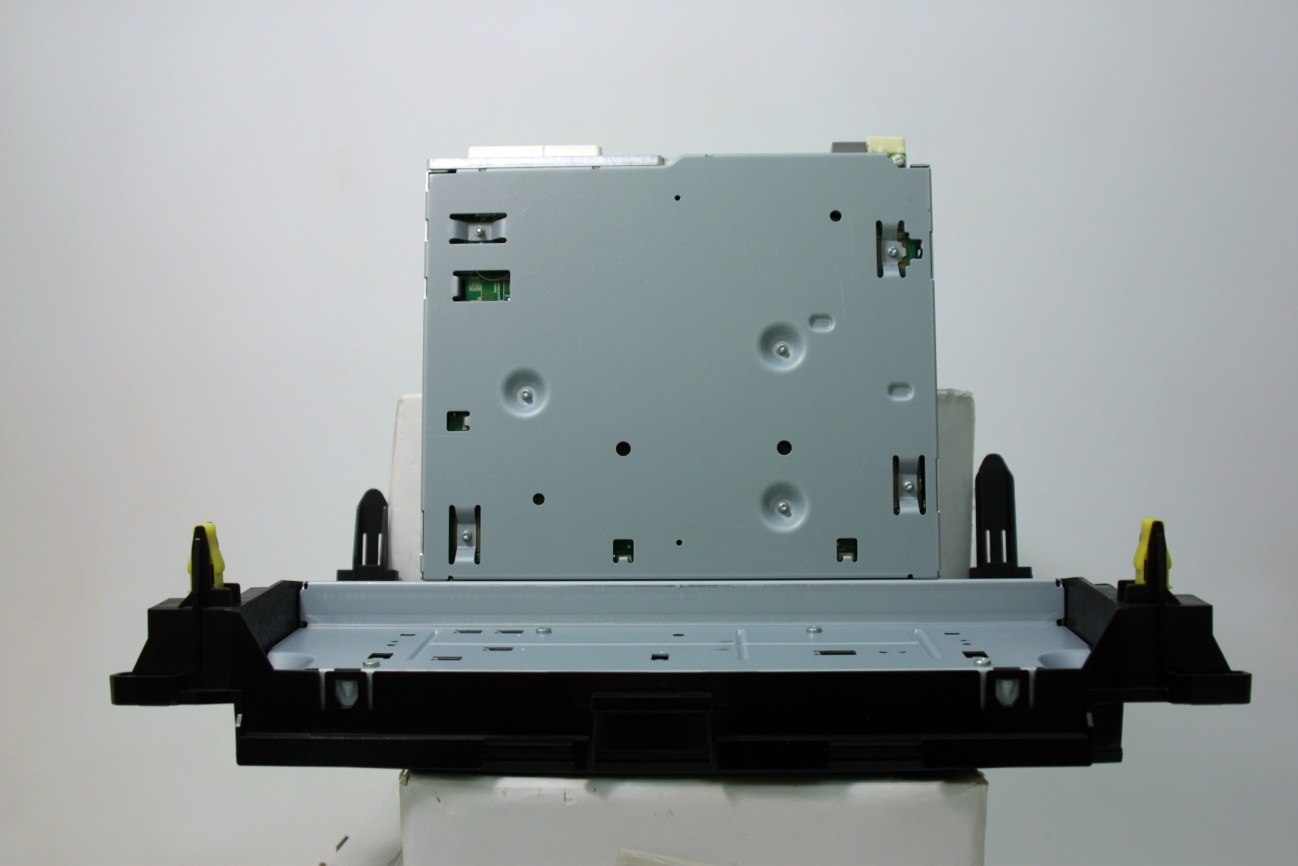

Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 External Photo Front Rear Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 External Photo To p Bottom Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 External Photo Right Left

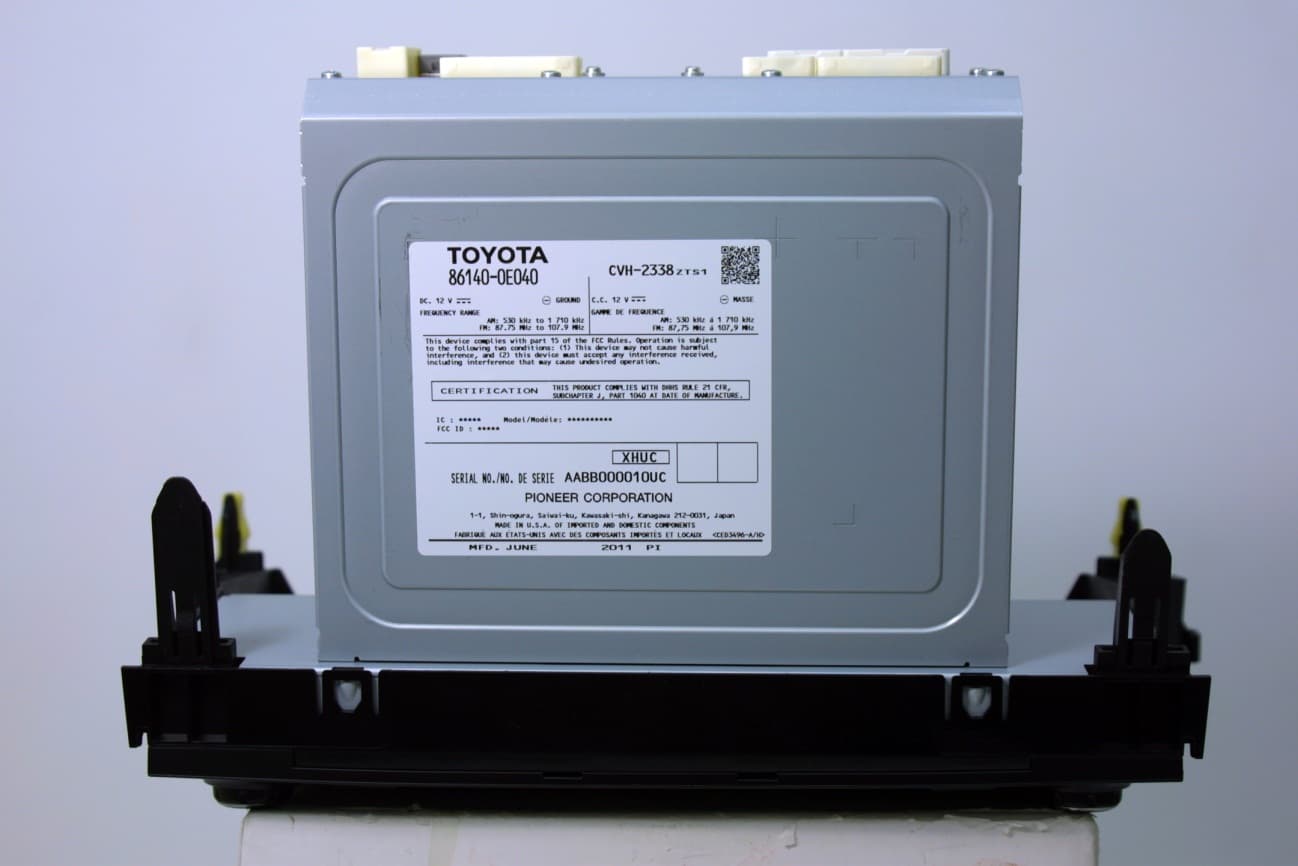

Label Position CVH-2338

Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 Internal Photo Side A with Shield Side A without Shield Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 Internal Photo Side B Bluetooth Board Position Pioneer Corporation Car Audio with Bluetooth FCC ID: AJDK068 IC Number: 775E-K068 Model: CVH-2338 Internal Photo Antenna Position Antenna

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION Type of Equipment : Car Audio with Bluetooth Model No. : CVH-2338 FCC ID: AJDK068 PIONEER CORPORATION declares that Model : Car Audio with Bluetooth complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “CVH-2338“ has 1.88 mW of conducted Peak Output power and 1.89 mW of EIRP. This equipment is considered as a mobile device so that SAR testing is excluded. The Following calculation is the reference data for 20cm distance. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CVH-2338“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G ) / (4* π * r 2 ) Where P = 1.88 mW (M aximum peak output power) G = 1.00 Numerical Antenna gain; equal 0.02 dBi r =20.0 cm For: CVH-2338S = 0.00038 mW/cm 2 No. : 33CE0386-SH-01-A RF Exposure / SAR Statement

Test report No. : 33CE0386-SH-01-A Page : 2 of 51 Issued date : December 7, 2012 FCC ID : AJDK068 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 33CE0386-SH-01-A Revision Test report No. Date Page revised Contents - (Original) 33CE0386-SH-01-A December 7, 2012 - - Test report No. : 33CE0386-SH-01-A Page : 3 of 51 Issued date : December 7, 2012 FCC ID : AJDK068 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 6 SECTION 4: Operation of E.U.T. during testing .................................................................... 9 SECTION 5: Carrier frequency separation .......................................................................... 13 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ............................................ 13 SECTION 7: Number of hopping frequency ......................................................................... 13 SECTION 8: Dwell time .......................................................................................................... 13 SECTION 9: Maximum peak output power .......................................................................... 13 SECTION 10: Spurious emissions (Antenna port conducted) ............................................. 13 SECTION 11: Radiated emission ........................................................................................... 14 Contents of APPENDIXES ....................................................................................................... 16 APPENDIX 1: Data of radio tests ........................................................................................... 17 APPENDIX 2: Test instruments ............................................................................................. 50 APPENDIX 3: Photographs of test setup ............................................................................... 51 Test report No. : 33CE0386-SH-01-A Page : 4 of 51 Issued date : December 7, 2012 FCC ID : AJDK068 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Makoto Kaieda SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio with Bluetooth Model No. : CVH-2338 Serial No. : See Section 4. Rating : DC 13.2V Country of Mass-production : Japan Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : November 2, 2012 2.2 Product description Model: CVH-2338 (referred to as the EUT in this report) is a Car Audio with Bluetooth. Radio specification: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Clock Frequency : 26MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : inverted F type Antenna gain with cable loss : +0.02dBi (max) Antenna connector type : U.FL-LP-066 Operation temperature range : -20 to +65 deg.C. FCC 15.31 (e) The equipment provides the Bluetooth transmitter with stable power supply (DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 33CE0386-SH-01-A Page : 5 of 51 Issued date : December 7, 2012 FCC ID : AJDK068 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Clock Frequency: Item Reason For Use Frequency [Hz] Main SYS uCo m 16M CAN uCom 8M Dirana 41.6M VDEC 32M Display Controller32M USB HUB 24M Sub HERO for HD DATA62.4M CORE E1 int CL K 533M E1 MASTER CLK33.333M E1 DOTCLK 33.23M E1 USBCLK 48M USB2.0 High speed240M DDRE1 533.33M LBSC E1 NOR FLASH66.66M LBSC E1 Secure IC66.66M E1WiFi 24M Strage 48M Main Dirana⇔L-Dice 0.4M SYSCOM⇔Dirana0.375M SYSCOM⇔EEPROM(⇔GVIF)0.1M SYSCOM⇔Display Controller0.1M Main/Sub SYSCOM⇔HERO0.18M CORE E1⇔iPod IC 0.1M CORE/Main E1⇔WWR 0.8M Main SYSCOM⇔CAN uCo m0.667M CORE/Main XM⇒E1 0.75M E1⇔SYSCOM 0.75M "E1⇔BT 3Mbps 1.5M Main SYSCOM⇔Mecha0.096M Main/Sub SYSCOM⇔WWR0.058M Main/Sub SYSCOM⇔XM 0.058M Main/Sub SYSCOM⇔XM 0.019M Sub XM, , AVC LAN IC 6M Main Local CAN 0.25M - SYSCOM⇔WWR(HD Data)0.4M - SYSCOM⇔Timer IC0.5M Main SYSCOM⇔KEY SCAN IC0.126M Main/Sub AVC LAN IC⇔SYSCOM0.009M Main VDEC⇒E1／E1⇒LCD Display output9.597M Main Display Controller ⇒E127M CORE ADC⇒E1 1.024M CORE ADC MCL K 6.144M CORE PLL CL K 27M CORE 48kFor sounds SSI cloc k24.576M CORE 44.1kFor sounds SSI cloc k16.934M Main E1⇒Dirana 3.072M Main E1⇒Dirana Interruption soun d3.072M Main/Sub WWR⇒Dirana Blen d3.072M Main Mecha⇒Dirana (CD play)2.82M Main DD8 0.444M Main DD9 2M CORE CORE15 2.110M CORE CORE11 2.110M TDA panel LCD CLK (TDA_BASE)9.597M TDA panel LCD backlight 2M LDA panel Panel uCo m⇔ KEY SCAN IC0.1M LDA panel Panel uCo m 9.83M Test report No. : 33CE0386-SH-01-A Page : 6 of 51 Issued date : December 7, 2012 FCC ID : AJDK068 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259…

Text truncated - open the document above for the full version.

APPENDIX 1: Data of Radio tests Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date November 5, 2012 Temperature / Humidit y25deg.C, 43%RH Enginee rTatsuya Arai Mode Tx, Bluetooth, BDR, PRBS9 ModeFreq.20dBCarrierLimit for BandwidthFrequencyCarrier SeparationFrequency Separation [MHz][MHz][MHz][MHz] DH52402.00.9471.000>= 0.631 DH52441.00.9461.000>= 0.631 DH52480.00.9501.000>= 0.633 Inquiry2441.02.000 Limit: Two-thirds of 20dB Bandwidth or 25kHz (whichever is greater). No limit applies to 20dB Bandwidth. Tx2_Inquiry20OBWTx2_InquirySeparation Tx, 2441MHz 20dB Bandwidth and Carrier Frequency Separation Inquiry 20dB BandwidthCarrier Frequency Separation Tx, 2441MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 17 Tx1_20OBWTx2_HoppingSeparation1 Tx2_20OBWTx2_HoppingSeparation2 Tx3_20OBWTx2_HoppingSeparation3 Tx, 2441MHzTx, 2441MHz Tx, 2480MHzTx, 2480MHz 20dB Bandwidth and Carrier Frequency Separation Tx, Bluetooth, BDR, PRBS9 20dB BandwidthCarrier Frequency Separation Tx, 2402MHzTx, 2402MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 18 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room Date November 5, 2012 Temperature / Humidit y25deg.C, 43%RH Enginee rTatsuya Arai Mode Tx, Bluetooth, EDR, PRBS9 ModeFreq.20dBCarrierLimit for BandwidthFrequencyCarrier SeparationFrequency Separation [MHz][MHz][MHz][MHz] 3-DH52402.01.2691.000>= 0.846 3-DH52441.01.2601.000>= 0.840 3-DH52480.01.2611.000>= 0.841 Inquiry2441.02.000 Limit: Two-thirds of 20dB Bandwidth or 25kHz (whichever is greater). No limit applies to 20dB Bandwidth. Tx2_Inquiry20OBWTx2_InquirySeparation Tx, 2441MHz 20dB Bandwidth and Carrier Frequency Separation Inquiry 20dB BandwidthCarrier Frequency Separation Tx, 2441MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 19 Tx1_20OBWTx2_HoppingSeparation1 Tx2_20OBWTx2_HoppingSeparation2 Tx3_20OBWTx2_HoppingSeparation3 Tx, 2441MHzTx, 2441MHz Tx, 2480MHzTx, 2480MHz 20dB Bandwidth and Carrier Frequency Separation Tx, Bluetooth, EDR, PRBS9 20dB BandwidthCarrier Frequency Separation Tx, 2402MHzTx, 2402MHz UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 20 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room DateNovember 5, 2012 Temperature / Humidit y25deg.C, 43%RH Enginee rTatsuya Arai ModeTx, Bluetooth, BDR, PRBS9 * Test was not performed at AFH mode whose number of hopping channel is 20 channels because this Bluetooth radio is in compliance of Bluetooth Specification. Tx2_HoppingNumber1Tx2_HoppingNumber2 Tx2_HoppingNumber3 DH5 (3/3) Number of Hopping Frequency Limit [times] >= 15 Mode DH5 DH5 (1/3)DH5 (2/3) Number of Channel [times] 79 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 21 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room DateNovember 5, 2012 Temperature / Humidit y25deg.C, 43%RH Enginee rTatsuya Arai ModeTx, Bluetooth, EDR, PRBS9 * Test was not performed at AFH mode whose number of hopping channel is 20 channels because this Bluetooth radio is in compliance of Bluetooth Specification. Tx2_HoppingNumber1Tx2_HoppingNumber2 Tx2_HoppingNumber3 3-DH5 (3/3) Number of Hopping Frequency Limit [times] >= 15 Mode 3-DH5 3-DH5 (1/3)3-DH5 (2/3) Number of Channel [times] 79 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 22 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room DateNovember 5, 2012 Temperature / Humidit y25deg.C, 43%RH EngineerTatsuya Arai Mode Tx, Bluetooth, BDR, PRBS9 ResultLimit Mode [msec] [msec] DH151.0/ 5.0 sec. x 31.6 sec. = 323 times 130400 DH326.0/ 5.0 sec. x 31.6 sec. = 165 times 273400 DH517.0/ 5.0 sec. x 31.6 sec. = 108 times 314400 Inquiry100.0/ 1.0 sec. x 12.8 sec. = 1280 times 125400 Sample Calculation Result = Number of transmission x Length of transmition time *Average data of 5 tests.(except Inquiry) ModeAverage 1234[times] DH12023262223.2 DH32024222022.0 DH51823191619.8 Inquir y100100100100100.0 Sample Calculatio n Average= Summation(Sampling 1 to 5) / 5 * This device complies with the Bluetooth protocol for FHSS operation, employing a pseudo random channel selection and hopping rate to ensure that the occupancy time in N x 0.4s, where N is the number of channels being used in the hopping sequence (20 ≤ N ≤ 79), is always less than 0.4s regardless of packet size (DH1, DH3 or DH5). This is confirmed in the test report for N=79. Tx2_DwellInquiry1Tx2_DwellInquiry2 25 Inquiry (1/2)Inquiry (2/2) Inquiry Dwell Time Sampling [times] Number of transmission in a 31.6 (79 Hopping x 0.4) 5 24 23 100 transmission time [msec] Length of 0.401 1.658 2.904 0.098 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 23 Tx2_Dwell11Tx2_Dwell12 Tx2_Dwell21Tx2_Dwell22 Tx2_Dwell31Tx2_Dwell32 DH3 (2/2)DH3 (1/2) DH5 (1/2)DH5 (2/2) Dwell time Tx, Bluetooth, BDR, PRBS9 DH1 (1/2)DH1 (2/2) UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Report No.: 33CE0386-SH-01-A 24 Test placeUL Japan, Inc. Shonan EMC Lab. No.5 Shielded Room DateNovember 5, 2012 Temperature / Humidit y25deg.C, 43%RH EngineerTatsuya Arai Mode Tx, Bluetooth, EDR, PRBS9 ResultLimit Mode [msec] [msec] 3-DH151.0/ 5.…

Text truncated - open the document above for the full version.

Test report No. : 33CE0386-SH-01-A Page : 51 of 51 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT
