X-8075 Bluetooth Module Manual Version 1.0 1. Product Introduction X-8075 is a fully integrated Bluetooth Module used as Car kit or in the Car Audio System or any systems requiring complete embedded Bluetooth connectivity solution. It’s a high quality solution with low cost. It will work as a master or slave Bluetooth device, accepting the role switch request of remote device automatically. X-8075 Shape X-8075 Support Features: Embedded Bluetooth 3.0 via EDR Pairing and connection with multiple Bluetooth devices Make calls, Terminate calls, Private mode, 3-way calling Phone book and Call history synchronization Audio Streaming New message notification 2. Common Specification Radio Chip: CSR BC5MM Power Supply Voltage: The operating voltage range is D.C. 3.1V-3.6V. Rated voltage is D.C.3.3V. Ambient temperature: The operating temperature range is －40～＋85ﾟC. Rated temperature is ＋25ﾟC. Humidity: The maximum relative humidity is 95 % (Ta=45ﾟC). Rated relative humidity is 65%. Antenna: Built-in Antenna gain: The antenna gain value is -1dBi. 3. Hardware Integration X-8075 Pin-out diagram No. symbol explain Description 1 UART_RX UART DATA OUTPUT 2 UART_TX UART DATA INPUT 3 SPI_MISO SPI data output 4 SPI_MOSI SPI data input 5 3V3 power Vcc 3.3V 6 RST_BT# Reset if low.Input debounced so must be low for >5ms to cause a reset 7 1V8 power 1.8V 8 1V8 power 1.8V 9 1V8_EN 1V8 power supply enable signal --active high 10 GND GND 11 LINEOUT_L analog audio output 12 LINEOUT_R analog audio output 13 MIC2_N Microphone2 minus input 14 MIC2_P Microphone2 plus input 15 MIC_BIAS Microphone bias 16 MIC1_P Microphone1 plus input 17 MIC1_N Microphone1 minus input 18 GND GND 19 SPI_CBS Chip select for serial peripheral interface(SPI),active low 20 SPI_CLK SPI clock 21 PCM_SYNC synchronous data sync 22 PCM_CLK synchronous data clock 23 PCM_IN synchronous data input 24 PCM_OUT synchronous data output X-8075 Pin-out Description 4. Software Interface Reference The default device name is X-8075_B203 after module start. User can change it to any other friendly name by using the relative interface command. X-8075 can send or receive data from remote Bluetooth device. Software Configuration: Setting Value Baud Rate 115200bps(pre-configurable) Data bit 8 data bits, list significant bit transmit first Parity Even Parity Stop bit 1 stop bit HW Flow Control Optional Interface Example: Name: BT_GEN_FID_SET_SCANMODE_REQ functionality: Set Bluetooth inquiry scan and page scan parameter param 1: type: u8 name: discover_mode meaning: discoverable mode range: 0x00~0x03 0x00: no scan enable(default) 0x01: Enable inquiry scan Page scan disabled 0x02: Enable page scan inquiry scan disabled 0x03: page and inquiry enable The interface command name is BT_GEN_FID_SET_SCANMODE_REQ. There is one paramer named discover_mode with four valid values and below is the description of all values.User can configure ScanMode of X-8075 by sending this interface. When Host Controller initiates a REQ, BT Module should always send a corresponding CFM to specify operation result and optional additional information. Example: BT_GEN_FID_SET_SCANMODE_REQ<discover_mode=0x03> BT_GEN_FID_SET_SCANMODE_CFM<status=0x00> Set discover_mode as 0x03, then other Bluetooth device can find X-8075 and initiate to pairing with X-8075. Interface Listing No. Interface 1 BT_GEN_FID_RESET_REQ 2 BT_GEN_FID_INQUIRY_REQ 3 BT_GEN_FID_SET_SCANMODE_REQ 4 BT_GEN_FID_SET_SEC_MODE_REQ 5 BT_GEN_FID_GET_REMOTE_NAME_REQ 6 BT_GEN_FID_SET_LOCAL_NAME_REQ 7 BT_GEN_FID_READ_LOCAL_NAME_REQ 8 BT_GEN_FID_PAIRING_DEVICE_REQ 9 BT_GEN_FID_DEL_PAIR_DEV_REQ 10 BT_GEN_FID_GET_PAIR_DEV_LIST_REQ 11 BT_GEN_FID_SERVICE_CON_REQ 12 BT_GEN_FID_SERVICE_DISCON_REQ 13 BT_GEN_FID_GET_LINK_QUALITY_REQ 14 BT_GEN_FID_SEARCH_ATTRIBUTE_REQ 15 BT_GEN_FID_TEST_MODE_REQ 16 BT_GEN_FID_ENTER_DFU_REQ 17 BT_HFP_FID_AUDIO_TRANSFER_REQ 18 BT_HFP_FID_DIAL_REQ 19 BT_HFP_FID_LAST_DIAL_REQ 20 BT_HFP_FID_MEM_DIAL_REQ 21 BT_HFP_FID_CALL_PROCESS_REQ 22 BT_HFP_FID_TERMINATE_CALL_REQ 23 BT_HFP_FID_GET_CURRENT_CALL_LIST_REQ 24 BT_HFP_FID_VOICE_RECOGNIZE_REQ 25 BT_HFP_FID_DTMF_CODE_REQ 26 BT_HFP_FID_CALL_HOLD_REQ 27 BT_HFP_FID_SUBSCRIBER_NUM_REQ 28 BT_HFP_FID_NETWORK_OPERATOR_REQ 29 BT_AVP_FID_MEDIA_START_REQ 30 BT_AVP_FID_MEDIA_PAUSE_REQ 31 BT_AVP_FID_GET_PLAY_STATUS_REQ 32 BT_AVP_FID_GET_ELEMENT_ATTRIBUTES_REQ 33 BT_PBDL_FID_CONFIGURE_REQ 34 BT_PBDL_FID_SYNC_PB_REQ 35 BT_PBDL_FID_SYNC_ABORT_REQ 36 BT_PBDL_FID_GET_PB_BY_INDEX_REQ 37 BT_PBDL_FID_SEARCH_PB_BY_NUMBER_REQ 38 BT_PBDL_FID_SEARCH_PB_BY_KEY_REQ System Error Status Value Error Status 0x00 APP_EVTRES_SUCCESS 0x01 APP_EVTRES_FAIL 0x02 APP_EVTRES_UNKNOWN_OPCODE 0x03 APP_EVTRES_ILLEGAL_PARAM 0x04 APP_EVTRES_OPERATION_FAIL 0x05 APP_EVTRES_SYSTEM_BUSY 0x06 APP_EVTRES_ILLEGAL_OPERATION 0x07 APP_EVTRES_ILLEGAL_STATE 0x08 APP_EVTRES_ILLEGAL_FORMAT 0x09 APP_EVTRES_PAGE_TIMEOUT 0x0A APP_EVTRES_ABNORMAL 0x0B APP_EVTRES_ABORTED 0x0C APP_EVTRES_SDP_ERROR 0x0D APP_EVTRES_AUTHENTICATION_FAIL 0x0E APP_EVTRES_OPERATION_TIMEOUT 0x0F APP_EVTRES_NO_CORRESPONDING_IND 1. Reset Software Name: BT_GEN_FID_RESET_REQ functionality: Software reset of the Bluetooth Module. 2, Inquiry Remote Device Name: BT_GEN_FID_INQUIRY_REQ functionality: Inquiry Bluetooth device(s) nearby. The detail device information should be report to host application by the indication of BT_GEN_FID_INQ_RESULT_IND. param 1: type: u8 name: mode meaning: The mode of inquiry Bluetooth device(s) range: 0x00~0x01 0x00: General inquiry 0x01: Limited inquiry param 2: type: u24 name: filter meaning: Bitwise class of device to be filtered range: 0x000000~0xFFFFFF . param 3: type: u8 name: duration meaning: The maximum amount of time used for inquiring in 1.28 second range: 0x02~0x30 param 4: type: u8 name: num meaning: The maximum number of response from the inquiry range: 0x01~0x20 3. San Mode configure Name: BT_GEN_FID_SET_SCANMODE_REQ functionality: Set Bluetooth inquiry scan and page scan parameter param 1: type: u8 meaning: discoverable mo…

Text truncated - open the document above for the full version.

Part Number: YWX5044 FCC ID: AJDK071 Request for Modular Approval 17.3.2013 In accordance with FCC part 15, we, Pioneer Corporation, hereby request a modular level approval as outlined in FCC document DA001407, for the device listed above. In support of the Limited Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module does have a permanently attached antenna. 4) The module can be tested as a stand-alone device. 5) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations.

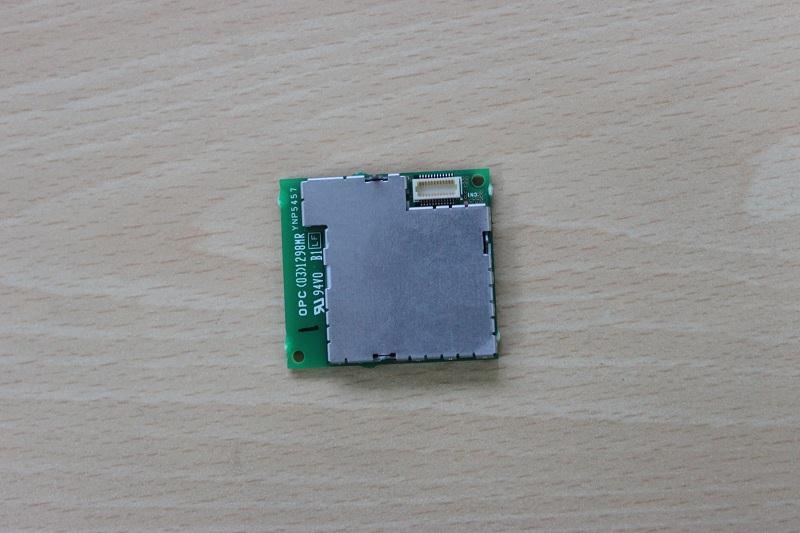

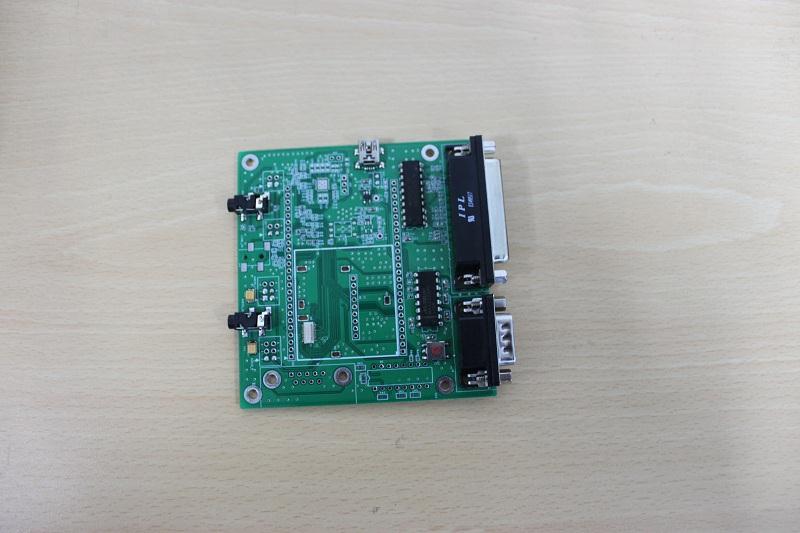

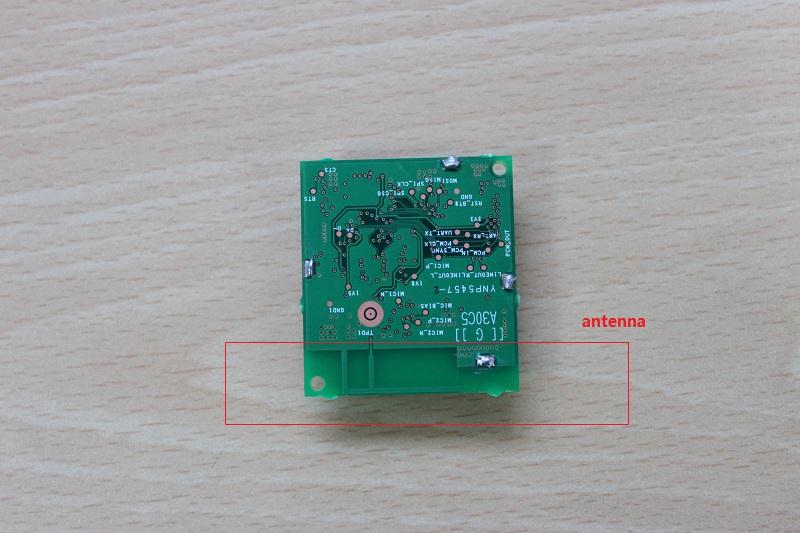

Prüfbericht - Nr.: Test Report No.: 15060225 001 1. Photographs of EUT Photograph 1: Module Frontside Module Back side Prüfbericht - Nr.: Test Report No.: 15060225 001 PCB Kit Frontside PCB Kit Backside

Prüfbericht - Nr.: Test Report No.: 15060225 001 1. Photographs of EUT Photograph 1: Without Shield cover Prüfbericht - Nr.: Test Report No.: 15060225 001 Host Photograph 2 : Host with the module installed

Produkte Products RF Exposure Statement: Page 1 of 1 Client: Pioneer Corporation 25-1 Nishimachi Yamada Kawagoe 350-8555 Japan Test item: Bluetooth Module Identification: Mode name ： YWX5044 FCC ID ： AJDK071 / IC :775E-K071 FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 IC Requirement According to RSS-102 (Issue 4), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter power (e.i.r.p.) is below the following threshold: Frequency Range SAR Limitation [W] Above 1.5GHz 5 Measurement Result The maximum measured transmitter power is the following: Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] P out EIRP [mW] Power Density at 20cm [mW/cm 2 ] 2.51 -1 2 0.0003 Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P S = power density in mW/cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: -1dBi=10log(G)) D = distance between observation point and radiating structure in cm (here: 20cm) out · G) / (4π · D 2 ), where Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. power is below the IC RF exposure evaluation exemption threshold. Refer to test report 15060225 001 for more details. TÜV Rheinland (Shanghai) Co., Ltd. 10-15/F, Huatsing Building, No.88, Lane 777, Guangzhong Road West, Shanghai 200072, P.R. China

TÜV Rheinland LGA Products  Tillystrasse 2  D-90431 Nürnberg  Tel.: +49 911 655 5225  Fax +49 911 655 5226 Mail: [email protected]  Web: www.tuv.com QMA TRLP 6.1-350 Version: 1 01.08.2011 Produkte Products Prüfbericht - Nr.: 15060225 001 Test Report No.: Seite 1 von 42 Page 1 of 42 Auftraggeber: Client: Pioneer Corporation 25-1 Nishimachi Yamada Kawagoe 350-8555 Japan Gegenstand der Prüfung: Test item: Bluetooth Module Bezeichnung: Identification: YWX5044 FCC ID :AJDK071 IC:775E-K071 Serien-Nr.: Serial No.: N/A Wareneingangs-Nr.: Receipt No.: 154020724 Eingangsdatum: Date of receipt: 2013-3-1 Zustand des Prüfgegenstandes bei Anlieferung: Condition of test item at delivery: Test sample(s) is/are not damaged and suitable for testing. Prüfort: Testing location:  TÜV Rheinland (Shanghai) Co., Ltd.  QuieTek Technology(Suzhou)Co., Ltd. (Detailed address refer to clause 2.1) Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart C, §15.247 ANSI C63.4-2003 Public Notice DA 00-705：Filing and Measurement Guidelines for Frequency Hopping Spread Spectrum Systems (March 30, 2000) RSS-210 (Issue 8): 2010 RSS-Gen (Issue 3): 2010 Prüfergebnis: Test Result: Der Prüfgegenstand entspricht oben genannter Prüfgrundlage(n). The test item passed the test specification(s). Prüflaboratorium: Testing Laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Building 2, No. 777 Guangzhong Road West, Shanghai 200072, P.R. China geprüft/ tested by: 2013-04-23 Shili / Inspector kontrolliert/ reviewed by: 2013-04-23 Jesse Huang / Reviewer Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges/ Other Aspects: Abkürzungen: P(ass) = entspricht Prüfgrundlage F(ail) = entspricht nicht Prüfgrundlage N/A = nicht anwendbar N/T = nicht getestet Abbreviations: P(ass) = passed F(ail) = failed N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report relates to the a. m. test item. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any safety mark on this or similar products. Produkte Products Prüfbericht - Nr.: Test Report No.: 15060225 001 Seite 2 von 42 Page 2 of 42 TEST SUMMARY 3.2.1 VOLTAGE REQUIREMENTS, FCC 15.31(E) RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS, FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.4 RESULT: PASS 5.1.1 CONDUCTED OUTPUT POWER, FCC 15.247(B)(1)& (3) AND RSS-210 A8.4(2) RESULT: PASS 5.1.2 CARRIER FREQUENCY SEPARATION, FCC 15.247(A)(1) AND RSS-210 A8.1(B) RESULT: PASS 5.1.3 20DB BANDWIDTH AND 99% BANDWIDTH, FCC 15.247(A)(1)& (2) AND RSS-210 A8.2(A) 5.1.4 NUMBER OF HOPPING FREQUENCIES, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.5 AVERAGE TIME OF OCCUPANCY, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.6 CONDUCTED SPURIOUS EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 5.1.7 BAND EDGE COMPLIANCE OF RF CONDUCTED EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: Pass 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PASS 6.2.1 RADIATED SPURIOUS EMISSION OF RECEIVER, FCC 15.109, RSS-210 2.2, RSS- 210 2.6, RSS-210 A8.5, RSS-GEN 7.2.3.2 RESULT: PASS Produkte Products Prüfbericht - Nr.: Test Report No.: 15060225 001 Seite 3 von 42 Page 3 of 42 CONTENTS 1. GENERAL REMARKS ............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS ................................................................................. 5 2. TEST SITES ............................................................................................................ 5 2.1 TEST FACILITIES ..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ...................................................... 6 2.3 MEASUREMENT UNCERTAINTY ................................................................................. 6 3. GENERAL PRODUCT INFORMATION ........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE .................................................................. 7 3.2 SYSTEM DETAILS .................................................................................................... 7 3.2.1 Voltage Requirements, FCC 15.31(e).......................................................................................... 7 3.2.2 Antenna Requirements, FCC 15.203, FCC 15.204 and RSS-Gen 7.1.4 ..................................... 7 3.3 INDEPENDENT OPERATION MODES ........................................................................... 8 3.4 NOISE SUPPRESSING PARTS .................................................................................... 8 4. TEST SET-UP AND OPERATION MODES ..................................................................... 9 4.1 TEST METHODOLOGY .............................................................................................. 9 4.2 PHYSICAL CONFIGURATION FOR TESTING ................................................................. 9 4.3 TEST OPERATION AND TEST SOFTWARE ................................................................... 9 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................. 9 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................ 9 5. TEST RESULTS OF CONDUCTED MEASUREMENTS AT ANTENNA PORT ....................... 10 5.1 TRANSMITTER PARAMETERS .............................................…
