AJDK077Pedaling Monitor Sensor

EN DE FR NE IT ES EN DE FR NL IT ES Please read the Important Information for the User in the product box for product warnings and other important safety information. User's Manual Pedaling Monitor Sensor SGY-PM910H 2 EN Introduction Table of Contents Introduction Features ...................................................................................................................3 Manuals ...................................................................................................................................3 Compatibility ............................................................................................................4 Getting Started Product Configuration ..............................................................................................5 Accessories.............................................................................................................................5 Installing and Removing the Batteries/Switching Modes ........................................7 Pairing /Calibration Pairing with the Cyclocomputer ..............................................................................10 Calibrating the Sensors ..........................................................................................12 Getting Ready .......................................................................................................................12 Calibrating the Zero Point .....................................................................................................12 Checking the Zero Point .......................................................................................................13 Calibrating in Power Meter Mode .........................................................................................13 Specifications and support Troubleshooting ......................................................................................................14 Care, Maintenance, and Storage ...........................................................................16 Specifications .........................................................................................................17 This product is ANT+™ certified. Visit http://www.thisisant.com/directory/ for a list of compatible products and apps. Introduction 3 EN Introduction Features This product is a sensor system that analyzes the pedaling of a bicycle in real time. It calculates the direction and intensity of the force acting on the pedals and calculates pedaling efficiency. Description of components Strain gauge unit: • Detects the strain on the crank and calculates the direction and intensity of the force on the crank. Magnet: • Used to detect the angle of rotation. Transmitters: • Send information from the strain gauge unit and the magnet to the Cyclocomputer. Switching modes The switch in the right transmitter changes the system to the following modes. Pedaling mode• : Used in combination with the Cyclocomputer SGX-CA500/ CA900. This mode calculates pedaling efficiency and maximizes the functionality of the product. Power meter mode• : Used with a Cyclocomputer that supports ANT+™. Manuals The product’s manuals consist of this User’s Manual, an Installation Manual, and Important Information for the User. User’s Manual:• Explains how to pair the product with the Cyclocomputer and calibrate the sensors. Installation Manual:• [For American Users] http://www.pioneerelectronics.com [For Canadian Users] http://www.pioneerelectronics.ca [For European Users] http://www.pioneer.eu Explains details about handling methods. The product installation methods (for dealers) are also described as references. Important Information for the User:• Important Information for the User provides detailed information related to safety. 4 EN Introduction Compatibility Crank sets The product is compatible with the following crank sets. Crank setsRemarks SHIMANO FC-9000Crank lengths of 165, 167.5, 170, 172.5, 175 mm, crank set • of 50-34T, 52-36T, 52-38T, 53-39T, 54-42T, 55-42T are compatible. * FC-6800Crank lengths of 165, 170, 172.5, 175 mm, crank set of 50-• 34T, 52-36T, 53-39T are compatible. * * Descriptions in this manual are for a 170 mm crank set. This product is designed to be used for recreational cycling and cycle training applications only and is not designed to withstand racing conditions. Additionally, this product is designed to be used while cycling on paved roads only. Any damage or malfunction arising from use in racing or riding on dirt roads, cobblestone or any other unpaved roads will not be covered by the manufacturer’s limited warranty. Installing and calibrating the product requires specialized techniques and tools. Ask the shop where you bought the product to install and calibrate it. Getting Started 5 EN Getting Started Product Configuration Accessories This product contains the following parts. Pedaling monitor sensor (right side) Right transmitter Junction cable Strain gauge unit Junction box Pedaling monitor sensor part (right side) x 1 For FC-9000 For FC-6800 Chain ring adapter x 1 Strain gauge unit cover (right side) x 2 Getting Started 6 EN Getting Started Product Configuration Pedaling monitor sensor (left side) Left transmitter Strain gauge unit Pedaling monitor sensor part (left side) x 1 Magnet Magnet x 2 Accessories Phillips-head screws x 10 User's Manual (this document) Warranty Card Important Information for the User Batteries (CR2032) x 2 7 EN Getting Started Installing and Removing the Batteries/ Switching Modes You must install the batteries before using the product. The product can be used as the ANT+ Power meter with the cyclocomputers of other • companies (power meter mode). To use the product in power meter mode, insert the battery in the left-side part first, and then the right-side part. 1. Loosen the screws on the transmitter and remove its cover. Use a hex wrench (2 mm) to loosen the screw and remove the cover. Be careful not to lose the removed • scr…

Text truncated - open the document above for the full version.

English Deutsch Français Nederlands Italiano Español Important Information for the User Information importante pour l'utilisateur Pedaling Monitor Sensor SGY-PM910H 2 Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Manufacturer: PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, JAPAN EU Representative’s: Pioneer Europe NV Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique http://www.pioneer.eu English: Hereby, Pioneer, declares that this [*] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Suomi: Pioneer vakuuttaa täten että [*] tyyppinen laite on direktiivin 1999/5/ EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Nederlands: Hierbij verklaart Pioneer dat het toestel [*] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG Français: Par la présente Pioneer déclare que l’appareil [*] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE Svenska: Härmed intygar Pioneer att denna [*] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Dansk: Undertegnede Pioneer erklærer herved, at følgende udstyr [*] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/ EF [*] SGY-PM910H, SGY-PM910H L 3 Deutsch: Hiermit erklärt Pioneer, dass sich dieses [*] in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi) Ελληνικά: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Pioneer ΔΗΛΩΝΕΙ ΟΤΙ [*] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Italiano: Con la presente Pioneer dichiara che questo [*] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Español: Por medio de la presente Pioneer declara que el [*] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE Português: Pioneer declara que este [*] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Čeština: Pioneer tímto prohlašuje, že tento [*] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES Eesti: Käesolevaga kinnitab Pioneer seadme [*] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Magyar: Alulírott, Pioneer nyilatkozom, hogy a [*] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Latviešu valoda: Ar šo Pioneer deklarē, ka [*] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. 4 Lietuvių kalba: Šiuo Pioneer deklaruoja, kad šis [*] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Malti: Hawnhekk, Pioneer jiddikjara li dan [*] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC Slovenčina: Pioneer týmto vyhlasuje, že [*] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Slovenščina: Pioneer izjavlja, da je ta [*] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ ES. Română: Prin prezenta, Pioneer declara ca acest [*] este in conformitate cu cerintele esentiale si alte prevederi ale Directivei 1999/5/EU. български: С настоящето, Pioneer декларира, че този [*] отговаря на основните изисквания и други съответни постановления на Директива 1999/5/EC. Polski: Niniejszym Pioneer oświadcza, że [*] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC Norsk: Pioneer erklærer herved at utstyret [*] er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF. Íslenska: Hér með lýsir Pioneer yfir því að [*] er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC Hrvatski: Ovime tvrtka Pioneer izjavljuje da je [*] u skladu osnovnim zahtjevima i ostalim odredbama Direktive 1999/5/ EC. English 5 Important Safety Information Pioneer Pedaling Monitor Sensor is not a medical device. THE SGY-PM910H PEDALING MONITOR SENSOR MUST BE INSTALLED BY AN AUTHORIZED DEALER FOR THIS PRODUCT. PLEASE CONTACT PIONEER BY CALLING THE NUMBER FOR YOUR REGION ON THE BACK OF THIS MANUAL OR BY VISITING OUR WEBSITE TO FIND THE NEAREST AUTHORIZED DEALER. FAILURE TO HAVE THIS PRODUCT INSTALLED BY A QUALIFIED PROFESSIONAL COULD RESULT IN SERIOUS INJURY, INCLUDING DEATH. Important Information About This Device This device helps provide feedback about cycling. It is intended solely for recreational purposes. THE LIMITED WARRANTY PROVIDED WITH THE DEVICE CONSTITUTES THE EXCLUSIVE WARRANTIES FOR THE PRODUCT AND THE USER’S EXCLUSIVE REMEDIES. TO THE MAXIMUM EXTENT ALLOWED BY APPLICABLE LAW, ALL OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED, OR STATUTORY, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED. IN NO EVENT WILL PIONEER, ITS AFFILIATES, OR THEIR RESPECTIVE EMPLOYEES, DIRECTORS, OR OFFICERS, BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, PUNITIVE OR EXEMPLARY DAMAGES IN CONNECTION WITH THIS DEVICE, REGARDLESS OF THE THEORY OF LIABILITY AND EVEN IF SUCH DAMAGES ARE FORESEEABLE. BECAUSE SOME STATES OR JURISDICTIONS MAY NOT ALLOW LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, OR LIMITATIONS ON OR EXCLUSIONS OF CONSEQUENTIAL OR INCIDENTAL DAMAGES, SOME OF THE ABOVE LIMITATIONS MAY NOT APPLY TO A USER DEPENDING ON HER, HIS, OR ITS STATE OF RESIDENCE. 6 English Important Safety Information This product is designed to be used for recreational cycling and cycle training applications only and is not designed to withstand racing conditions. Additionally, this product is designed to be used while c…

Text truncated - open the document above for the full version.

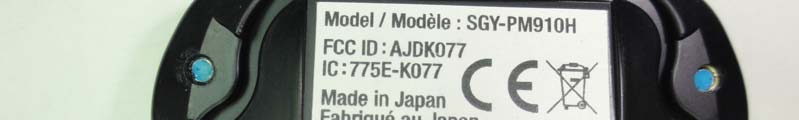

Photo [Model: SGY-PM910H] Top Bottom Photo [Model: SGY-PM910H] Top close up without Cover Bottom close up

GC029 RIGHT SENSOR DEBOSS DATA DEC17-FIX2 FINAL DEBOSS: 0.2mm MIRROR POLISHED

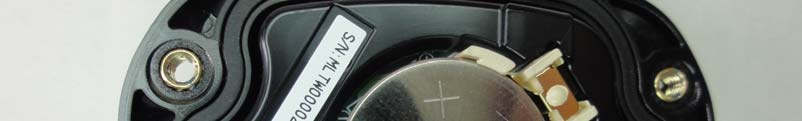

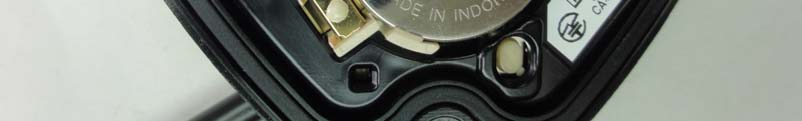

Photo [Model: SGY-PM910H] Top Top without battery Photo [Model: SGY-PM910H] Bottom

Test report No. : 10126453S-A Page : 2 of 17 Issued date : January 24, 2014 Revised date : January 30, 2014 FCC ID : AJDK077 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10126453S-A Revision Test report No. Date Page revised Contents - (Original) 10126453S-A January 24, 2014 - - 1 10126453S-A January 28, 2014 P4 Correction of Product description 2 10126453S-A January 30, 2014 P7 P12-13 P15 Correction of Configuration and peripherals Correction of Duty factor Correction of test equipment list Test report No. : 10126453S-A Page : 3 of 17 Issued date : January 24, 2014 FCC ID : AJDK077 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 5 SECTION 4: Operation of E.U.T. during testing ................................................................... 7 SECTION 5: Radiated emission ............................................................................................... 8 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ............................................. 9 Contents of APPENDIXES ...................................................................................................... 10 APPENDIX 1: Test data .......................................................................................................... 11 APPENDIX 2: Test instruments ............................................................................................. 15 APPENDIX 3: Photographs of test setup .............................................................................. 16 Test report No. : 10126453S-A Page : 4 of 17 Issued date : January 24, 2014 Revised date : January 28, 2014 FCC ID : AJDK077 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Yoshihisa Kobayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Pedaling Monitor Sensor Model No. : SGY-PM910H Serial No. : Refer to 4.2 of this report. Rating : DC3.0V Receipt Date of Sample : December 24, 2013 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product description Model: SGY-PM910H (referred to as the EUT in this report) is a Pedaling Monitor Sensor. Clock frequency(ies) in the system : 32.768kHz, 16MHz Radio specification Equipment type : Transceiver Frequency of operation : 2457MHz Type of modulation : GFSK Antenna type : Chip Antenna connector type : None Operation temperature range : -10 to +50 deg.C. ITU code : F1D FCC 15.31 (e) This EUT provides stable voltage (DC1.8V) constantly to RF transmitter regardless of input voltage. Therefore, this EUT complies with the requirement. FCC 15.203 It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement. Test report No. : 10126453S-A Page : 5 of 17 Issued date : January 24, 2014 FCC ID : AJDK077 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz, and 24.0-24.25GHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) N/A N/A 20dB bandwidth ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.215 ConductedN/A - Complied Electric field strength of fundamental emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.249 (a)(e), 15.209 RadiatedN/A 24.1dB Detector: Peak Polarization: Horizontal Complied Electric field strength of spurious emission ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.205 (a)(b), 15.209, 15.249 (a)(d)(e) RadiatedN/A 7.0dB (for Average Limit) *3) Freq.: 2390.000 MHz, 2483.5MHz Detector: Peak Polarization: Vertical Complied Frequency tolerance ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.249 (b) - N/A *2) N/A N/A Note: UL Japan’s EMI Work Procedures No.13-EM-W0420 and 13-EM-W0422 *1) The test is not applicable since the EUT has no AC mains. (The EUT does not perform the radio function during recharging.) *2) The test is not required since this EUT does not operate in the restricted bands and the prohibited TV bands. *3) The limit for Average detector is applied to the measurement value with Peak detector. 3.3 Addition to standard Item Test Procedure Specification RemarksWorst Margin Results Occupied bandwidth (99%) ANSI C63.4:2009 13. Measurement of intentional radiators, RSS…
