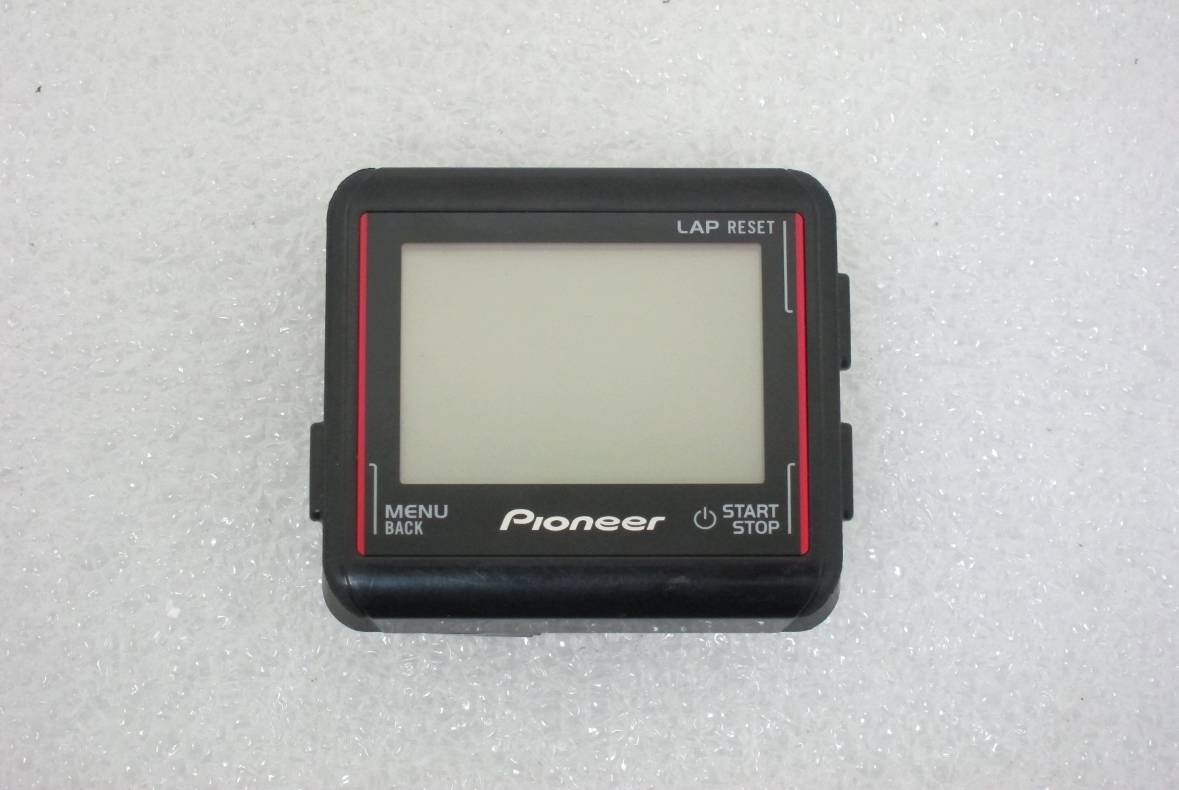

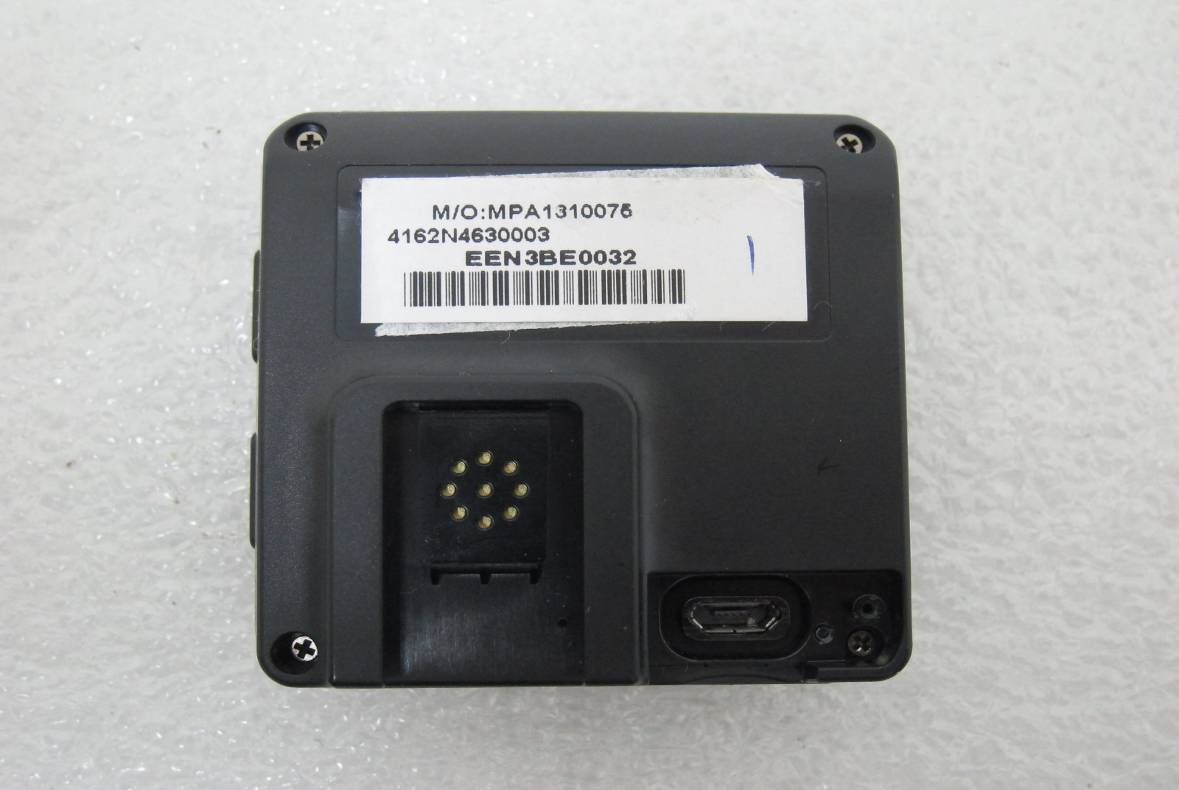

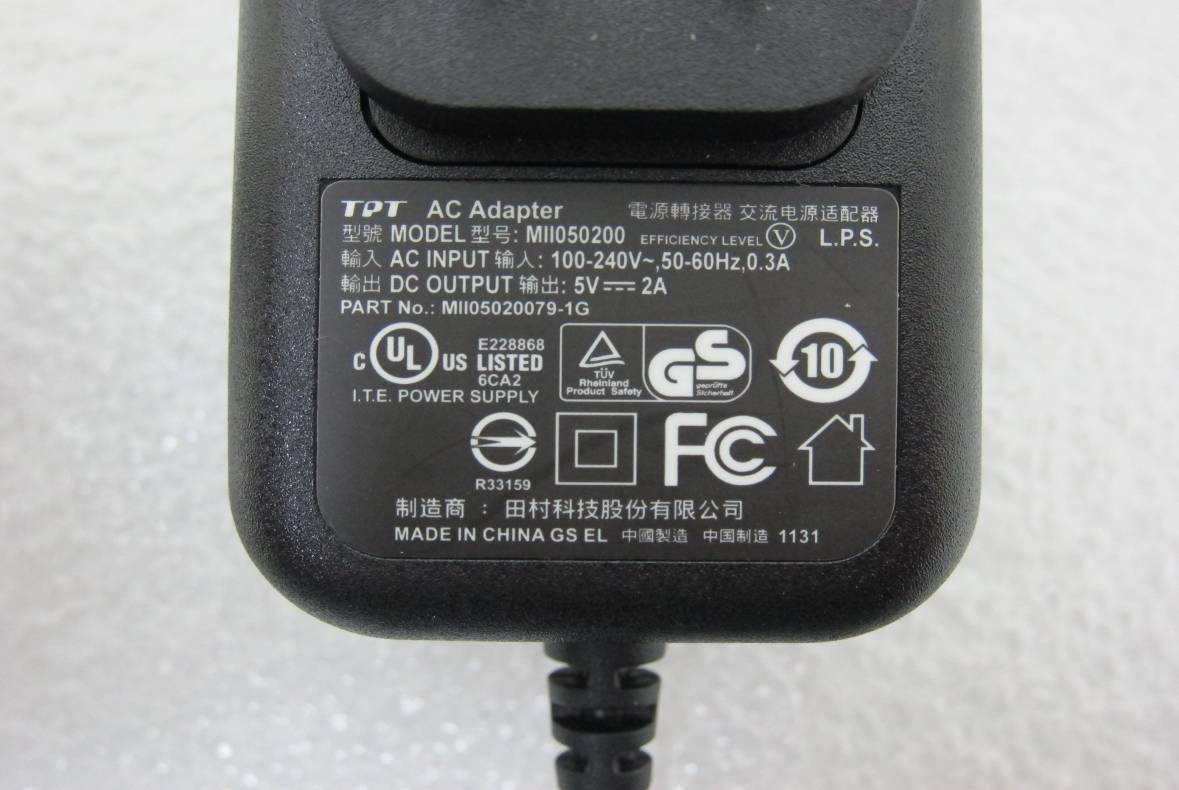

FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EXTERNAL PHOTOGRPHS OF EUT FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 1 EUT 2 FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 3 EUT 4 FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 5 EUT 6 FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 7

FCC ID & IC LABEL FORMAT AND LOCATION Applicant: Pioneer Corporation FCC ID: AJDK079 IC: 775E-K079

FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB INTERNAL PHOTOGRPHS OF EUT FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 1 EUT 2 BT/WiFi Antenna FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 3 EUT 4 FCC ID: AJDK079 IC: 775E-K079 International Standards Laboratory Report Number: ISL-13LR243FCB EUT 5 GPS Antenna

Page: 1 of 39 TEST REPORT of FCC/IC SAR New Application; Class I PC; Class II PC Product: Cyclocomputer Brand: Pioneer Mode: SGX-CA500 Model Difference: N/A FCC ID: IC: AJDK079 775E- K079 Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528: 2013 FCC OET 65 Supplement C(Edition 01-10) RSS-102 issue 4: 2010 Applicant: Pioneer Corporation Address: 25-1 Aza-Nishimachi Yamada Kawagoe-Shi, Saitamaken Japan Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-13LR243FSAR Issue Date : 2014/01/03 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 36- FCC ID: AJDK079 IC: 775E- K079 International Standards Laboratory Report Number: ISL-13LR243FSAR VERIFICATION OF COMPLIANCE Applicant: Pioneer Corporation Product Description: Cyclocomputer Brand Name: Pioneer Model No.: SGX-CA500 Model Difference: N/A FCC ID: IC: AJDK079 775E- K079 Date of Receipt: 2013/11/19 Date of Test: 2013/12/05 ~ 2013/12/05 Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528: 2013 FCC OET 65 Supplement C(Edition 01-10) RSS-102 issue 4: 2010 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2014/01/03 Dino Chen / Engineer Prepared By: Date: 2014/01/03 Arno Hsieh / Supervisor Approved By: Date: 2014/01/03 Vincent Su / Technical Manager -3 of 36- FCC ID: AJDK079 IC: 775E- K079 International Standards Laboratory Report Number: ISL-13LR243FSAR Version Version No. Date Description 00 2014/01/03 Initial creation of document -4 of 36- FCC ID: AJDK079 IC: 775E- K079 International Standards Laboratory Report Number: ISL-13LR243FSAR Table of Contents 1 STATEMENT OF COMPLIANCE ........................................................................... 5 2 GENERAL INFORMATION ..................................................................................... 7 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) .......................................................................... 7 2.2 DUT PHOTOS ............................................................................................................................. 9 2.3 APPLIED STANDARDS ................................................................................................................ 9 2.4 DEVICE CATEGORY AND SAR LIMITS ....................................................................................... 9 2.5 TEST ENVIRONMENT .................................................................................................................. 9 2.6 TEST CONFIGURATION ............................................................................................................... 9 3 SPECIFIC ABSORPTION RATE (SAR) ............................................................... 10 3.1 INTRODUCTION ........................................................................................................................ 10 3.2 SAR DEFINITION ..................................................................................................................... 10 4 SAR MEASUREMENT SYSTEM ........................................................................... 11 4.1 ALSAS-10U SYSTEM DESCRIPTION ....................................................................................... 11 4.2 E-FIELD PROBE ALS-E-020S .................................................................................................. 12 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ............................................................................................................... 14 4.4 AXIS ARTICULATED ROBOT ALS-F3 ...................................................................................... 16 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ..................................................................... 16 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ................................................................ 17 4.7 UNIVERSAL DEVICE POSITIONER ............................................................................................ 19 4.8 TEST EQUIPMENT LIST ............................................................................................................ 20 5 TISSUE SIMULATING LIQUIDS .......................................................................... 21 6 SAR MEASUREMENT EVALUATION ................................................................ 23 7 DUT TESTING POSITION ..................................................................................... 25 8 SAR MEASUREMENT PROCEDURES ................................................................ 28 9 SAR TEST RESULTS ............................................................................................... 30 9.1 CONDUCTED POWER TABLE: .................................................................................................... 30 9.2 TEST RECORDS FOR BODY SAR TEST ...........................................................................…

Text truncated - open the document above for the full version.

-1 of 2- International Standards Laboratory Report Number: ISL-13LR243ESAR Appendix C: System Performance Check Report Date : 05-Dec-2013 By Operator : Dino Chen DUT : Dipole Frequency : 2450.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 2450.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 500-00283 Last Calib. Date : 13-Oct-2013 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.6 °C Ambient Temp. : 20.6 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm DUT Position : Touch Separation : 10mm -2 of 2- International Standards Laboratory Report Number: ISL-13LR243ESAR 1 gram SAR value : 54.131 W/kg 10 gram SAR value : 26.208 W/kg Area Scan Peak SAR : 65.371 W/kg Zoom Scan Peak SAR : 104.388 W/kg

-1 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Appendix D: SAR Measurement Data WLAN Data No. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 1 2.4G 802.11b Bottom 0 1 0.007 2 2.4G 802.11b Bottom 0 6 0.008 3 2.4G 802.11b Bottom 0 11 0.001 4 2.4G 802.11n20 Bottom 0 1 0.001 5 2.4G 802.11n20 Bottom 0 6 0.001 6 2.4G 802.11n20 Bottom 0 11 0.001 7 2.4G BT LE Bottom 0 39 0.001 -2 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Data No. 1: Report Date : 05-Dec-2013 By Operator : 123 Measurement Date : 05-Dec-2013 Starting Time : 05-Dec-2013 08:24:53 AM End Time : 05-Dec-2013 08:45:04 AM Scanning Time : 1211 secs Product Data Device Name : 13LR243 Serial No. : NA Type : Other Model : SGX-CA500 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 1 min(s) Length : 55 mm Width : 55 mm Depth : 2.5 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-3.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450B Frequency : 2450.00 MHz Last Calib. Date : 05-Dec-2013 Temperature : 20.30 °C Ambient Temp. : 20.30 °C Humidity : 61.00 RH% Epsilon (Dielectric Constant): 53.57 Sigma : 1.96 S/m Density : 1000.00 kg/cu. m -3 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Probe Data Name : E-field Model : E-020 Type : E-Field Triangle Serial No. : 500-00283 Last Calib. Date : 08-Oct-2013 Frequency : 2450.00 MHz Duty Cycle Factor (CreF): 1 Conversion Factor : 4.3 Probe Sensitivity : 1.20 1.20 1.20 μV/(V/m) 2 Compression Point : 9.50 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.30 °C Ambient Temp. : 20.30 °C Set-up Date : 05-Dec-2013 Set-up Time : 8:10:24 AM Area Scan : 8x8x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Low -4 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR The system detected 1 maxima. Selected highest maxima # = 1. Maxima #1 coordinates: X = 10.090, Y = -7.000 1 gram SAR value : 0.007 W/kg 10 gram SAR value : 0.002 W/kg Area Scan Peak SAR : 0.010 W/kg Zoom Scan Peak SAR : 0.020 W/kg Maxima Summary: Maxima #1 Maxima coordinates: X = 10.090, Y = -7.000 1 gram SAR value : 0.007 W/kg 10 gram SAR value : 0.002 W/kg Area Scan Peak SAR : 0.010 W/kg Zoom Scan Peak SAR : 0.020 W/kg -5 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Data No. 2: Report Date : 05-Dec-2013 By Operator : 123 Measurement Date : 05-Dec-2013 Starting Time : 05-Dec-2013 10:12:18 AM End Time : 05-Dec-2013 10:32:33 AM Scanning Time : 1215 secs Product Data Device Name : 13LR243 Serial No. : NA Type : Other Model : SGX-CA500 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 1 min(s) Length : 55 mm Width : 55 mm Depth : 2.5 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-3.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450B Frequency : 2450.00 MHz Last Calib. Date : 05-Dec-2013 Temperature : 20.30 °C Ambient Temp. : 20.30 °C Humidity : 61.00 RH% Epsilon (Dielectric Constant): 53.57 Sigma : 1.96 S/m Density : 1000.00 kg/cu. m -6 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Probe Data Name : E-field Model : E-020 Type : E-Field Triangle Serial No. : 500-00283 Last Calib. Date : 08-Oct-2013 Frequency : 2450.00 MHz Duty Cycle Factor (CreF): 1 Conversion Factor : 4.3 Probe Sensitivity : 1.20 1.20 1.20 μV/(V/m) 2 Compression Point : 9.50 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 20.30 °C Ambient Temp. : 20.30 °C Set-up Date : 05-Dec-2013 Set-up Time : 8:10:24 AM Area Scan : 8x8x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Other Data DUT Position : Touch Separation : 0 Channel : Mid -7 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR The system detected 1 maxima. Selected highest maxima # = 1. Maxima #1 coordinates: X = 10.120, Y = -7.000 1 gram SAR value : 0.008 W/kg 10 gram SAR value : 0.003 W/kg Area Scan Peak SAR : 0.014 W/kg Zoom Scan Peak SAR : 0.030 W/kg Maxima Summary: Maxima #1 Maxima coordinates: X = 10.120, Y = -7.000 1 gram SAR value : 0.008 W/kg 10 gram SAR value : 0.003 W/kg Area Scan Peak SAR : 0.014 W/kg Zoom Scan Peak SAR : 0.030 W/kg -8 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Data No. 3: Report Date : 05-Dec-2013 By Operator : 123 Measurement Date : 05-Dec-2013 Starting Time : 05-Dec-2013 09:49:15 AM End Time : 05-Dec-2013 10:09:42 AM Scanning Time : 1227 secs Product Data Device Name : 13LR243 Serial No. : NA Type : Other Model : SGX-CA500 Frequency : 2450.00 MHz Max. Transmit Pwr : 0.25 W Drift Time : 1 min(s) Length : 55 mm Width : 55 mm Depth : 2.5 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-3.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Uni-Phantom Tissue Data Type : BODY Serial No. : 2450B Frequency : 2450.00 MHz Last Calib. Date : 05-Dec-2013 Temperature : 20.30 °C Ambient Temp. : 20.30 °C Humidity : 61.00 RH% Epsilon (Dielectric Constant): 53.57 Sigma : 1.96 S/m Density : 1000.00 kg/cu. m -9 of 23- International Standards Laboratory Report Number: ISL-13LR243FSAR Probe Data Name : E-field Model : E-020 Type : E-Fie…
