AJDK081Car Audio with Bluetooth

6.2.User’s Manual Requirement of FCC rules FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; 『"NXF-9738 " is installed in motor vehicle. Therefore, we will not supply the user's manual. So, following FCC user’s manual statement will be stated in user’s manual of the motor vehicle.』 ■FCC ID FCC ID：AJDK081 ■RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person's body. ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC

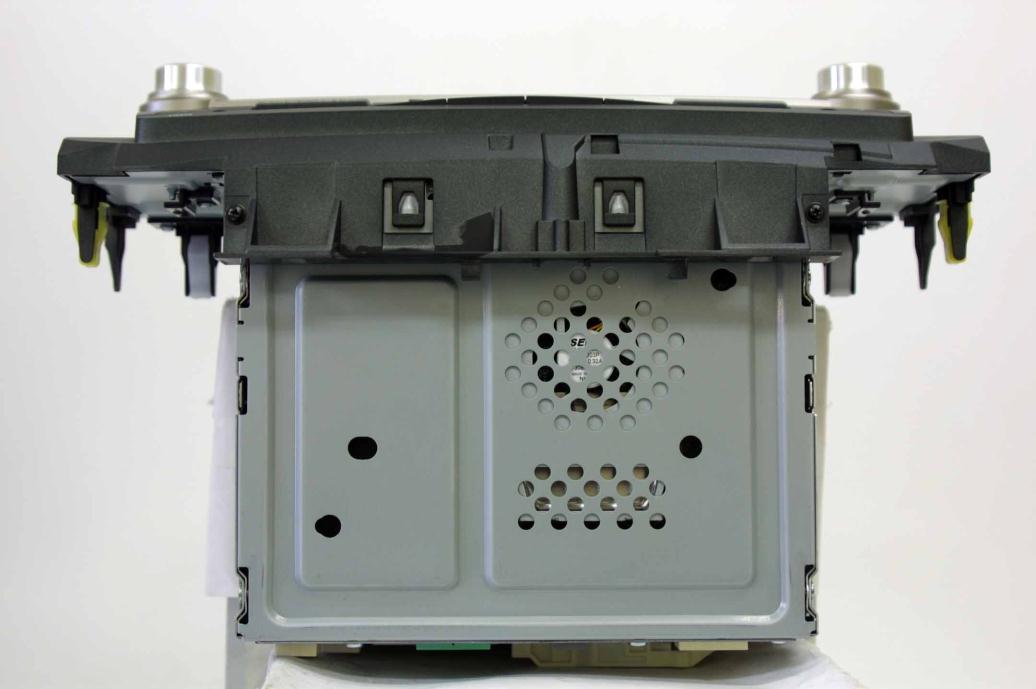

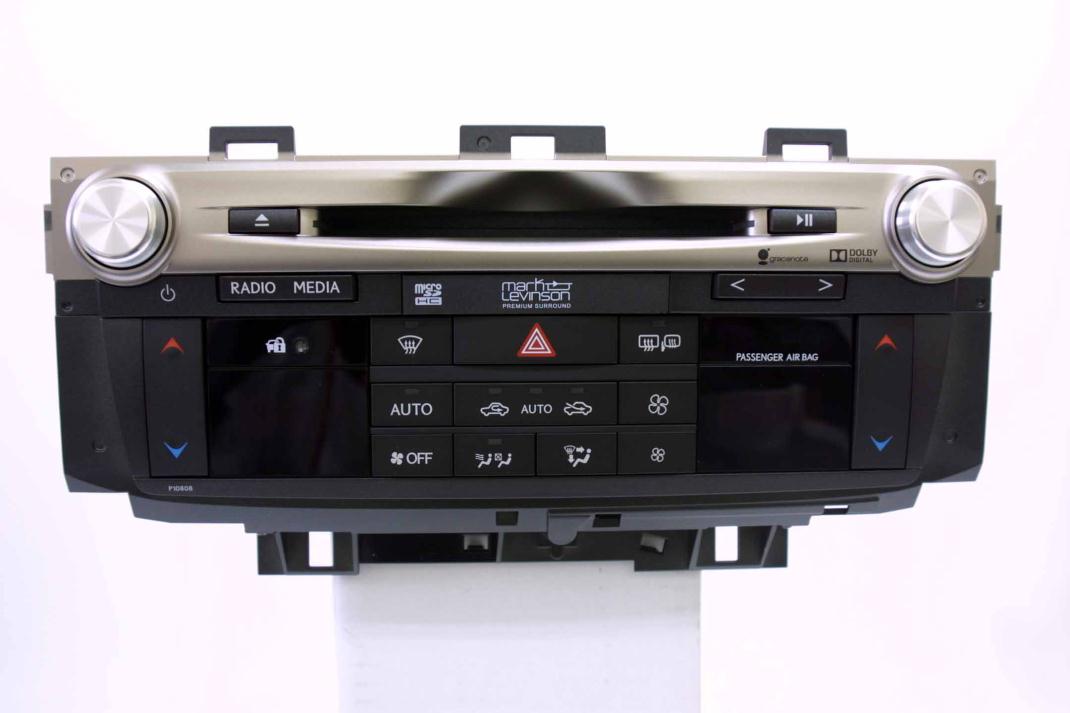

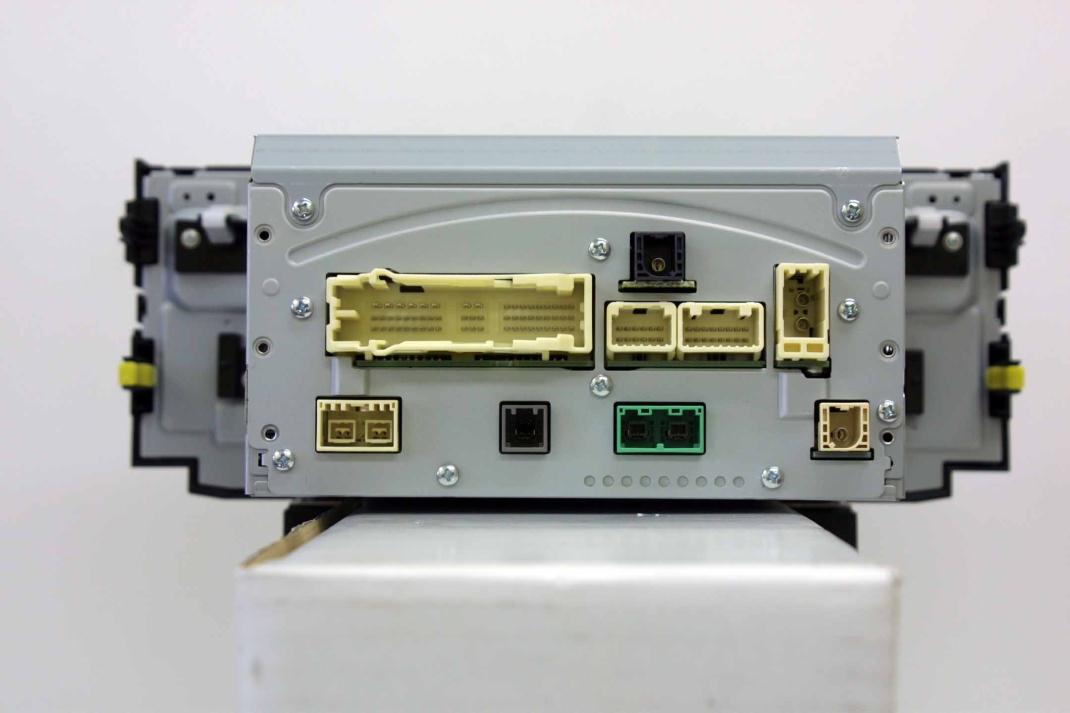

External Photo Pioneer Corporation NXF-9738 Front Left External Photo Pioneer Corporation NXF-9738 Right Back External Photo Pioneer Corporation NXF-9738 Top Bottom External Photo Pioneer Corporation NXF-9738 Antenna Location Bluetooth Antenna Bluetooth Antenna WLAN Antenna External Photo Pioneer Corporation NXF-9738 WLAN Antenna

Label and Location Pioneer Corporation Label Label Location

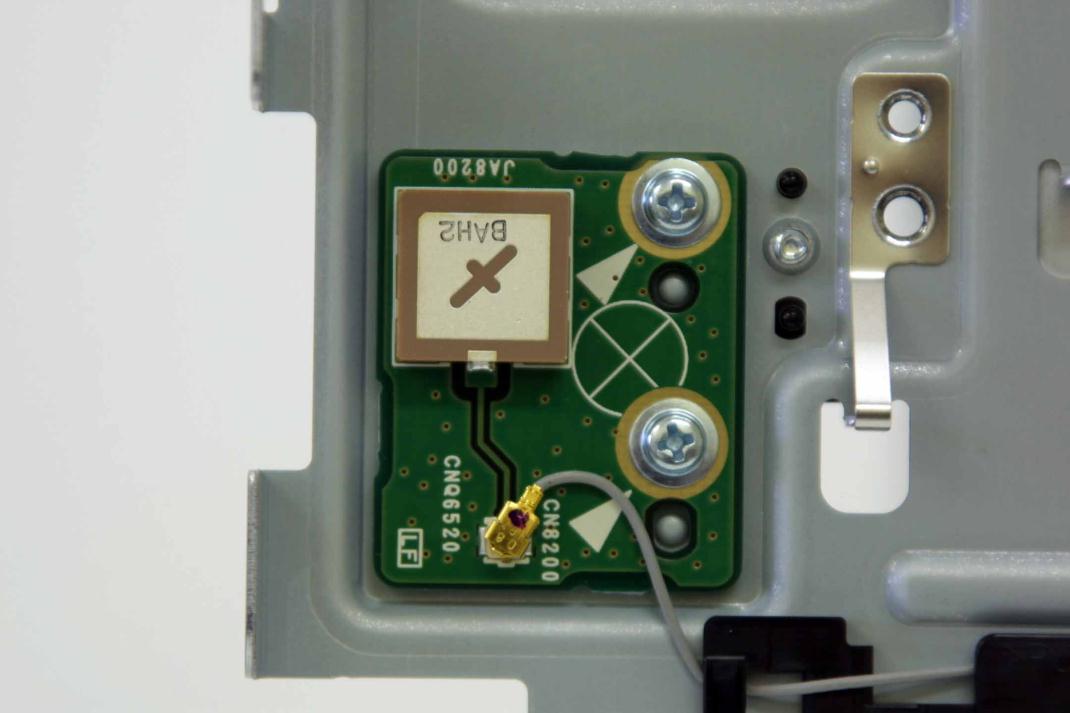

Internal Photo Pioneer Corporation Module-Front Module-Front BT/WLAN Module Internal Photo Pioneer Corporation Module-Back Internal Photo Pioneer Corporation The position of PCB board

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION T ype of Equipment : Car Audio with Bluetooth M odel No. : NXF-9738 FCC ID: AJDK081 PIONEER CORPORATION declares that M odel : NXF-9738 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: T h e followin g in form ation provides th e m in im um separation distan ce for th e h igh est gain antenna provided with the “NXF-9738“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering m aximum power and antenna gain, and considering a 1.0m W/cm ^2 uncontrolled exposure limit. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.45 mW (M aximum peak output power) G = 1.58 N umerical A ntenna gain; equal to2.00dBi r =20.0 cm For: NXF-9738S =0.00014 mW/cm 2 No. : 10158552S-A RF Exposure / SAR Statement

Test report No. : 10158552S-A Page : 2 of 46 Issued date : February 28, 2014 Revised date : March 18, 2014 FCC ID : AJDK081 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10158552S-A Revision Test report No. Date Page revised Contents - (Original) 10158552S-A February 28, 2014 - - 1 10158552S-A March 18, 2014 1,4,11 Correction of Model No. 5 Correction of clock frequency Test report No. : 10158552S-A Page : 3 of 46 Issued date : February 28, 2014 FCC ID : AJDK081 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information .................................................................................. 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................... 6 SECTION 4: Operation of E.U.T. during testing .............................................................. 9 SECTION 5: Carrier frequency separation ..................................................................... 12 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ....................................... 12 SECTION 7: Number of hopping frequency ................................................................... 12 SECTION 8: Dwell time.................................................................................................... 12 SECTION 9: Maximum peak output power .................................................................... 12 SECTION 10: Spurious emissions (Antenna port conducted) ........................................ 12 SECTION 11: Radiated emission ..................................................................................... 13 Contents of APPENDIXES .................................................................................................. 15 APPENDIX 1: Data of radio tests..................................................................................... 16 APPENDIX 2: Test instruments ....................................................................................... 45 APPENDIX 3: Photographs of test setup ......................................................................... 46 Test report No. : 10158552S-A Page : 4 of 46 Issued date : February 28, 2014 Revised date : March 18, 2014 FCC ID : AJDK081 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Tomoyuki Tanaka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio with Bluetooth Model No. : NXF-9738 Serial No. : Refer to 4.2 of this report. Rating : DC 13.2V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : January 10, 2014 2.2 Product description Model: NXF-9738 (referred to as the EUT in this report) is a Car Audio with Bluetooth. Radio specification: Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : Ceramic patch antenna Antenna gain with cable loss : +2dBi (max) Antenna connector type : MHF series micro coaxial connector receptacle vertical Operation temperature range : -20 to +65 deg.C. Wireless LAN: Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 20MHz & 5MHz Type of modulation : BPSK, QPSK, CCK, 16QAM, 64QAM Antenna type : Ceramic patch antenna Antenna gain with cable loss : +2dBi (max) Antenna connector type : MHF series micro coaxial connector receptacle vertical Operation temperature range : -20 to +65 deg.C. Refer to the test report: 10158552S-B for Wireless LAN part. Test report No. : 10158552S-A Page : 5 of 46 Issued date : February 28, 2014 Revised date : March 18, 2014 FCC ID : AJDK081 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 FCC 15.31 (e) The equipment provides the wireless transmitter with stable power supply (DC3.3V). Therefore, the equipment complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Clock Frequency: 48MHz, 24MHz, 32.768kHz, 4MHz, 24.576MHz Test report No. : 10158552S-A Page : 6 of 46 Issued date : February 28, 2014 FCC ID : AJDK081 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification Remarks DeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) - - Carrier frequency separation FCC Public Notice DA 00-705 & A…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) END OF REPORT Test Report No 10158552S-A 46 of 46
