AJDK087Car Audio with Bluetooth

『" NXF-1858 " is installed in motor vehicle. Therefore, we will not supply the user's manual. So, following FCC user’s manual statement will be stated in user’s manual of the motor vehicle.』 User’s Manual Requirement of FCC rules FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; ■FCC IDFCC ID： AJDK087 ■RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body. ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC

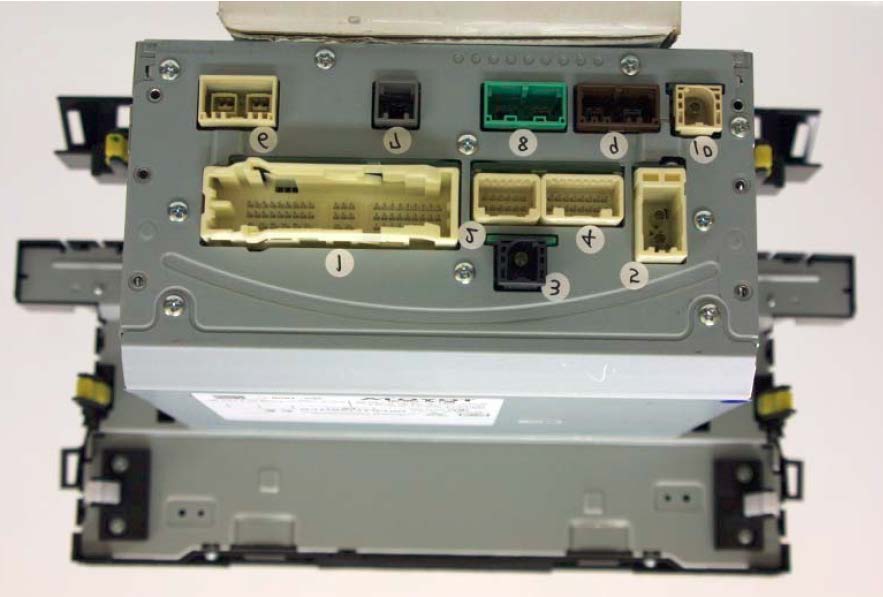

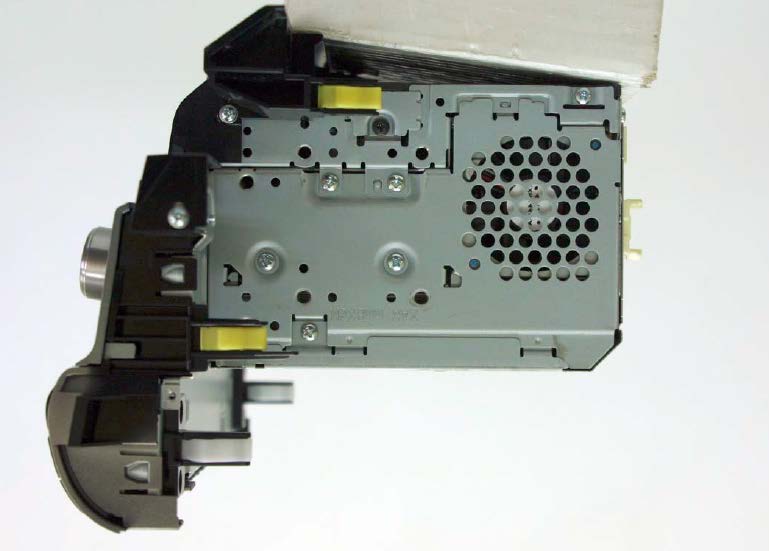

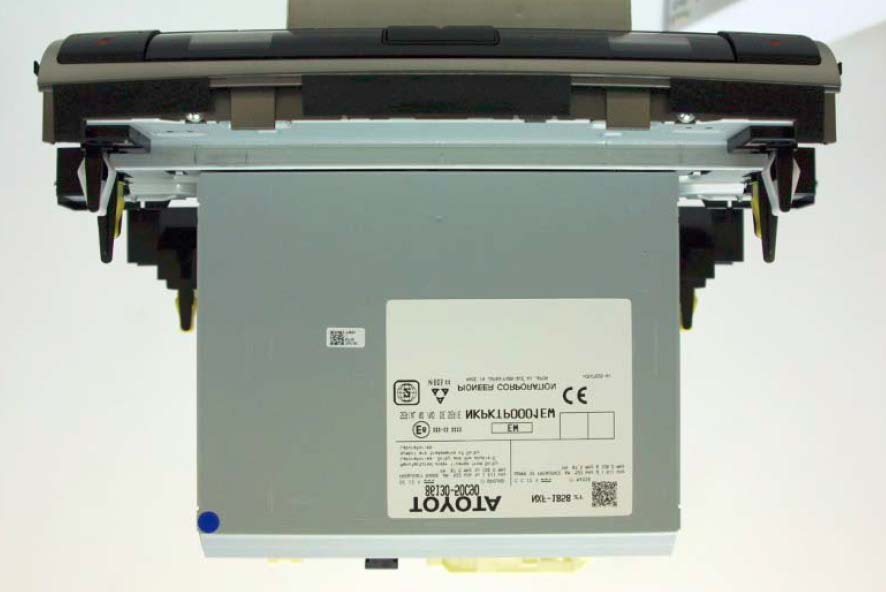

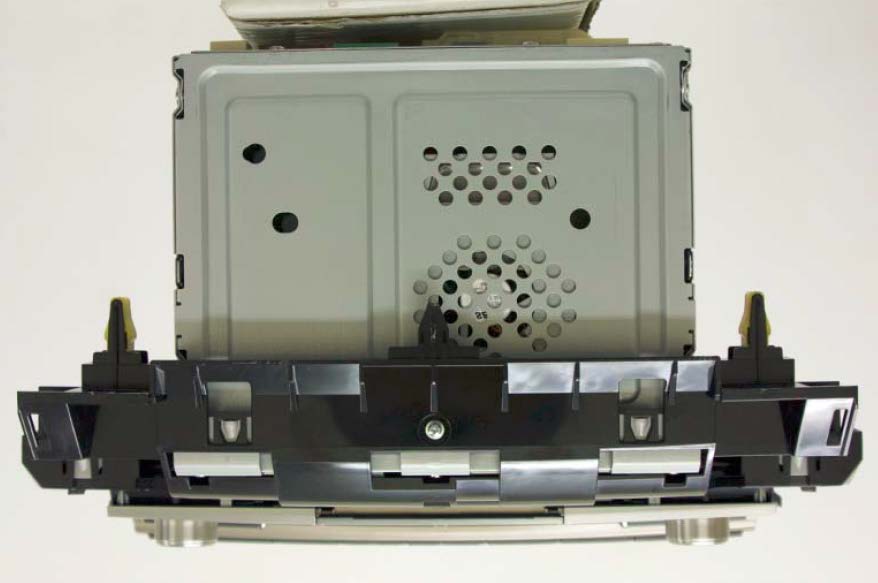

External Photo PIONEER CORPORATION [Model: NXF-1858] Front Back External Photo PIONEER CORPORATION [Model: NXF-1858] Side (Right) Side (Left) External Photo PIONEER CORPORATION [Model: NXF-1858] Top Bottom

Internal Photo Pioneer Corporation [Model: NXF-1858 ] Front Internal Photo Pioneer Corporation [Model: NXF-1858 ] Back Internal Photo Pioneer Corporation [Model: NXF-1858 ] Internal Photo Pioneer Corporation [Model: NXF-1858 ]

Internal Photo-antenna connection Pioneer Corporation [Model: NXF-1858 ] Internal Photo-antenna connection Pioneer Corporation [Model: NXF-1858 ]

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION Type of Equipment: Car Audio with Bluetooth Model No. : NXF-1858 FCC ID: AJDK087 PIONEER CORPORATION declares that Model : NXF-1858 com plies w ith F C C ra dia tion exposure requirem ent specified in the F C C R ules 2.1091. RF Exposure Calculations: T he following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “NXF-1858“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. T his calculation is based on the highest E IRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G ) / (4* π * r 2 ) Where P = 0.34 mW (M aximum average output power) G = 0.91 N um erical A ntenna gain; equal to -0.42 dBi r =20.0 cm For: NXF-1858S = 0.00006 mW/cm 2 E ven taking into account the tolerance, this device can be satisfied with the lim its. No. : 10604534S RF Exposure / SAR Statement

Test report No. : 10604534S Page : 2 of 47 Issued date : February 5, 2015 Revised date : April 3, 2015 FCC ID : AJDK087 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10604534S Revision Test report No. Date Page revised Contents - (Original) 10604534S February 5, 2015 - - 1 10604534S March 19, 2015 4 Correction of voltage description 2 10604534S April 3, 2015 9,10 Deletion of erroneous description Test report No. : 10604534S Page : 3 of 47 Issued date : February 5, 2015 FCC ID : AJDK087 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information ..................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................ 4 SECTION 3: Test specification, procedures & results ........................................................ 5 SECTION 4: Operation of E.U.T. during testing ................................................................. 8 SECTION 5: Carrier frequency separation ........................................................................ 11 SECTION 6: 20dB bandwidth & Occupied bandwidth (99%) ......................................... 11 SECTION 7: Number of hopping frequency ...................................................................... 11 SECTION 8: Dwell time ....................................................................................................... 11 SECTION 9: Maximum peak output power ....................................................................... 11 SECTION 10: Spurious emissions (Antenna port conducted) .......................................... 11 SECTION 11: Radiated emission ......................................................................................... 12 Contents of APPENDIXES ...................................................................................................... 14 APPENDIX 1: Data of radio tests ........................................................................................ 15 APPENDIX 2: Test instruments .......................................................................................... 46 APPENDIX 3: Photographs of test setup ............................................................................ 47 Test report No. : 10604534S Page : 4 of 47 Issued date : February 5, 2015 Revised date : March 19, 2015 FCC ID : AJDK087 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6416 Facsimile Number : +81-49-228-6493 Contact Person : Yoshihisa Kobayashi SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio with Bluetooth Model No. : NXF-1858 Serial No. : Refer to 4.2 in this report. Rating : DC 12V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : December 16, 2014 2.2 Product description Model: NXF-1858 (referred to as the EUT in this report) is a Car Audio with Bluetooth. Radio specification: Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : Pattern inverted F Antenna gain : -0.42dBi (max) Antenna connector type : 20279-001E-01 Operation temperature range : -20 to +65 deg.C. FCC 15.31 (e) The EUT provides stable voltage (DC3.3 and 1.8V) constantly to the wireless transmitter regardless of input voltage. Instead of a new battery, DC power supply was used for the test. That does not affect the test result, therefore the EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Clock frequency: 26MHz (crystal and oscillator) Test report No. : 10604534S Page : 5 of 47 Issued date : February 5, 2015 FCC ID : AJDK087 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part 15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on January 21, 2015 does not affect the test specification applied to the EUT. 3.2 Procedures & Results Item Test Procedure SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.4:2009 7. AC powerline conducted emission measurements FCC 15.207 - N/A *1) - - Carrier frequency separation FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1) ConductedN/A *See data. Complied 20dB bandwidth FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1) ConductedN/A - Number of hopping frequency FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1)(iii) ConductedN/A Complied Dwell time FCC Public Notice DA 00-705 & ANSI C63.4:2009 13. Measurement of intentional radiators FCC 15.247 (a)(1)(iii) Cond…
