AJDK088Car Audio with Bluetooth

User’s Manual Requirement of FCC rules " DVZ-1258 " are installed in motor vehicle. Therefore, we will not supply the user's manual. So, following FCC user’s manual statement will be stated in user’s manual of the motor vehicle. FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; ■FCC ID FCC ID：AJDK088 ■RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ■FCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC

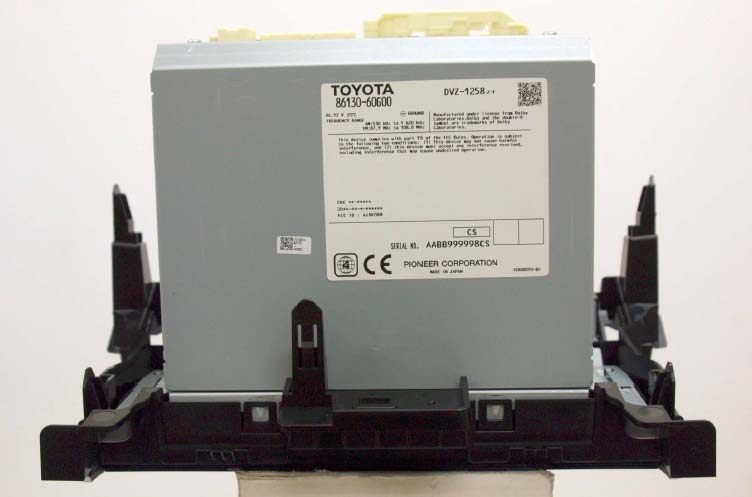

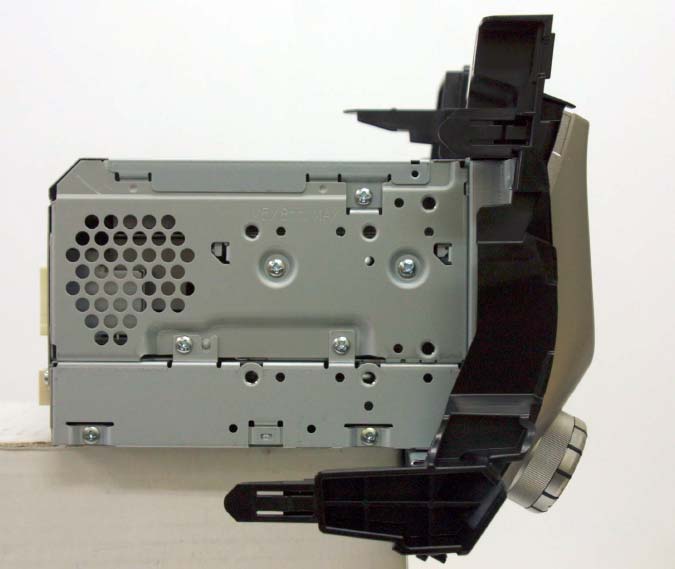

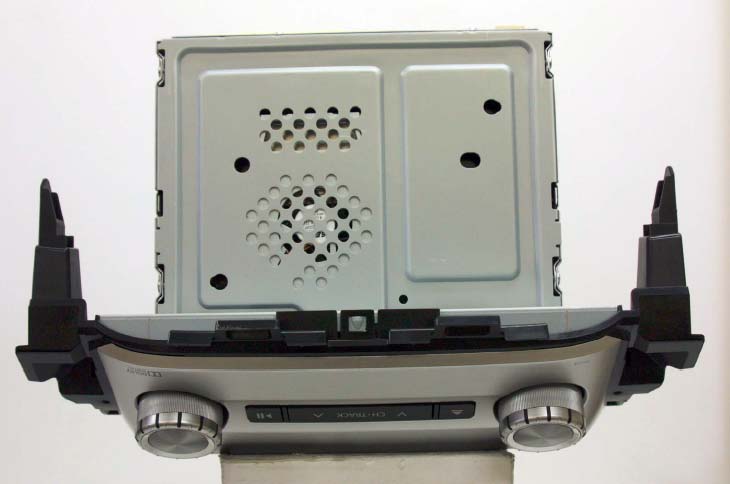

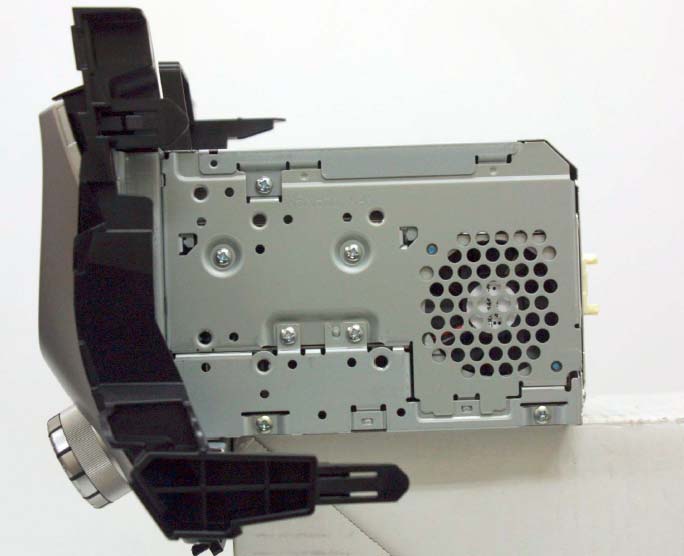

External Photo DVZ-1258 Front Back External Photo DVZ-1258 Side (Right) Side (Left) External Photo DVZ-1258 Top Bottom

Label & Location

Internal Photo DVZ-1258 Opposite side RF Module Antenna Connector Internal Photo DVZ-1258 RF Module Internal Photo DVZ-1258 RF Module without Shield Internal Photo DVZ-1258 Antenna Connector *WiFi Antenna is not connected. Internal Photo DVZ-1258 Antenna Position Antenna

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION Type of Equipment: Car Audio with Bluetooth Model No. : DVZ-1258 FCC ID: AJDK088 PIONEER CORPORATION declares that Model : DVZ-1258 complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “DVZ-1258“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering m axim um power and antenna gain, and considering a 1.0m W /cm ^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 0.34 mW (M aximum average output power) G = 0.89 Numerical Antenna gain; equal to -0.53 dBi r =20.0 cm For: DVZ-1258S = 0.00006 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the lim its. No. : 10854045S RF Exposure / SAR Statement

Test report No. : 10854045S Page : 1 of 44 Issued date : July 15, 2015 Revised date : July 28, 2015 FCC ID : AJDK088 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 13-EM-F0429 RADIO TEST REPORT Test Report No. : 10854045S Applicant : PIONEER CORPORATION Type of Equipment : Car Audio with Bluetooth Model No. : DVZ-1258 FCC ID : AJDK088 Test regulation: FCC Part 15 Subpart C: 2015 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the above regulation. 4. The test results in this report are traceable to the national or international standards. 5. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. 6. This test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requirements. (if applicable) Date of test: June 18 to July 3 , 2015 Representative test engineer: Yasumasa Owaki Engineer Consumer Technology Division Approved by: Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 10854045S Page : 2 of 44 Issued date : July 15, 2015 Revised date : July 28, 2015 FCC ID : AJDK088 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10854045S Revision Test report No. Date Page revised Contents - (Original) 10854045S July 15, 2015 - - 1 10854045S July 23, 2015 4 Correction of Antenna gain 2 10854045S July 28, 2015 4 Correction of Antenna gain Test report No. : 10854045S Page : 3 of 42 Issued date : July 15, 2015 FCC ID : AJDK088 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 CONTENTS PAGE SECTION 1: Customer information ....................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................................. 7 SECTION 5: Radiated Spurious Emission .......................................................................................... 10 SECTION 6: Antenna Terminal Conducted Tests .............................................................................. 11 APPENDIX 1: Test data ........................................................................................................................ 12 20dB Bandwidth and Carrier Frequency Separation ......................................................................... 12 Number of Hopping Frequency ........................................................................................................ 15 Dwell time ......................................................................................................................................... 17 Maximum Peak Output Power .......................................................................................................... 20 Average Output Power ...................................................................................................................... 21 Radiated Spurious Emission ............................................................................................................. 23 Conducted Spurious Emission .......................................................................................................... 30 Conducted Emission Band Edge compliance ................................................................................... 36 99%Occupied Bandwidth ................................................................................................................. 38 APPENDIX 2: Test instruments ........................................................................................................... 40 APPENDIX 3: Photographs of test setup ............................................................................................. 42 Radiated Spurious Emission ............................................................................................................. 42 Test report No. : 10854045S Page : 4 of 44 Issued date : July 15, 2015 Revised date : July 28, 2015 FCC ID : AJDK088 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Address : 25-1 Yamada, Kawagoe-shi, Saitama-ken 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Tomoyuki Tanaka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio with Bluetooth Model No. : DVZ-1258 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 12 V Receipt Date of Sample : June 18, 2015 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. 2.2 Product Description Model: DVZ-1258 (referred to as the EUT in this report) is a Car Audio with Bluetooth. General Specification Clock frequency(ies) in the system : 32.768 kHz, 26 MHz Radio Specif…

Text truncated - open the document above for the full version.

Test report No. : 10854045S Page : 42 of 42 Issued date : July 15, 2015 FCC ID : AJDK088 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Front Rear (Below 1 GHz) Rear (Above 1 GHz) End of Report
