AJDK090Car Audio

User’s Manual Requirement of FCC rules CVH-8538ZH are installed in motor vehicle. Therefore, we will not supply the user's manual. So, FCC user’s manual statement will be stated in user’s manual of the motor vehicle. FCC User's manual requirements that are required by FCC rules are described on user's manual of the vehicle as followings; ■FCC IDFCC ID：AJDK090 ■RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body. ■Co-Location caution This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. ■Statement Thi s device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ■FCC WARNING FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC

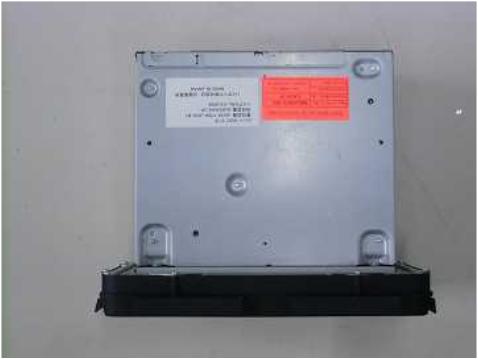

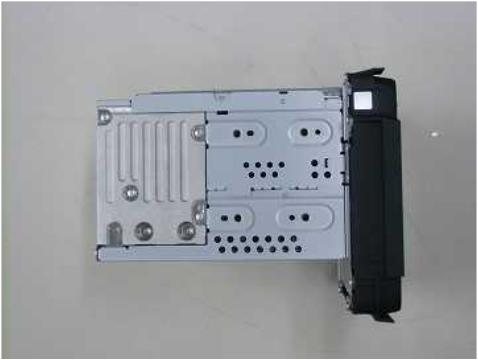

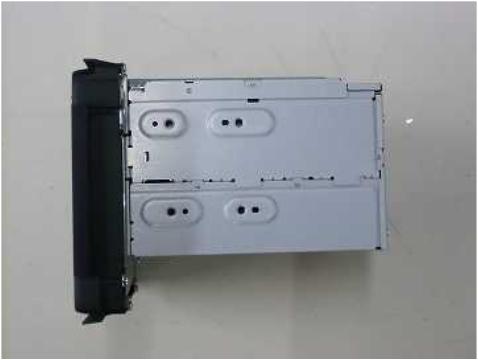

CVH ‐ 8538ZH The photograph of appearance Front View (Power OFF) Rear View W1 ： 235mm H1 ： 156mm Right Side View Left Side View Top View Bottom View D1 ： 179mm H2 ： 104mm W2 ： 180mm

Top View D : 179mm W : 180mm Label layout for CVH-8538ZH Label

XUCS MFD. JANUARY ２０１３ PK 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan CERTIFICATION THIS PRODUCT COMPLIES WITH DHHS RULE 21 CFR, SUBCHAPTER J. PART 1040 AT DATE OF MANUFACTURE. FREQUENCY RANGE AM : 530 kHz to 1 710 kHz FM : 87.75 MHz to 107.9 MHz GAMME DE FREQUENCE AM : 530 kHz à 1 710 kHz FM : 87,75 MHz à 107,9 MHz CVH-8538ZH AMPKXXXXXXCS 39100-T7W-K011-M1 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID:AJDK090 CVH-8538ZH DA

CVH ‐ 8538ZH Bluetooth/Wi ‐ Fi antenna location Front Grille (Power OFF) Opposite View Remove For Wi-Fiantenna For Bluetoothantenna For Bluetooth For Wifi

WiFi/Bluetoothコンボモジュール写真㻔㻯㼛㼙㼎㼛㻌㻹㼛㼐㼡㼘㼑㻌㻼㼔㼛㼠㼛㻕 外観写真㻔㻱㼤㼠㼑㼞㼚㼍㼘㻌㻼㼔㼛㼠㼛㻕 表面㻔㼀㼛㼜㻕裏面(Botttom) ＜半田付けを取り、シールド外した状態(without Shield)＞

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION Type of Equipment: Car Audio with Bluetooth Model No. : CVH-8538ZH FCC ID: AJDK090 PIONEER CORPORATION declares that Model : CVH-8538ZH com plies w ith F C C ra dia tion exposure requirem ent specified in the F C C R ules 2.1091. RF Exposure Calculations: T he following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “CVH-8538ZH“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. T his calculation is based on the highest E IRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G ) / (4* π * r 2 ) Where P = 28.12 mW (M aximum average output power) G = 0.73 N um erical A ntenna gain; equal to -1.39 dBi r =20.0 cm For: CVH-8538ZHS = 0.00406 mW/cm 2 E ven taking into account the tolerance, this device can be satisfied with the lim its. No. : 10712938S-B RF Exposure / SAR Statement

Test report No. : 10712938S-B Page : 2 of 50 Issued date : March 18, 2015 Revised date : March 31, 2015 FCC ID : AJDK090 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10712938S-B Revision Test report No. Date Page revised Contents - (Original) 10712938S-B March 18, 2015 - - 1 10712938S-B March 26, 2015 4, 5 Correction of radio specification 2 10712938S-B March 31, 2015 5 Correction of comments for FCC 15.31 (e) 3 10712938S-B March 31, 2015 4 Correction of Clock frequency description Test report No. : 10712938S-B Page : 3 of 50 Issued date : March 18, 2015 FCC ID : AJDK090 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Contents Page SECTION 1: Customer information ........................................................................................ 4 SECTION 2: Equipment under test (E.U.T.) .......................................................................... 4 SECTION 3: Test specification, procedures & results ........................................................... 6 SECTION 4: Operation of E.U.T. during testing .................................................................... 8 SECTION 5: 6dB bandwidth & Occupied bandwidth (99%) .............................................. 10 SECTION 6: Maximum peak conducted output power ....................................................... 10 SECTION 7: Out of band emissions (Antenna port conducted) ......................................... 10 SECTION 8: Peak power density ........................................................................................... 10 SECTION 9: Radiated emission ............................................................................................. 11 Contents of APPENDIXES ....................................................................................................... 13 APPENDIX 1: Data of Radio tests .......................................................................................... 14 APPENDIX 2: Test instruments ............................................................................................. 49 APPENDIX 3: Photographs of test setup ............................................................................... 50 Test report No. : 10712938S-B Page : 4 of 50 Issued date : March 18, 2015 Revised date : March 31, 2015 FCC ID : AJDK090 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 1: Customer information Company Name : PIONEER CORPORATION Brand name : Pioneer Address : 25-1 Aza-Nishi-machi, Yamada, Kawagoe-shi, Saitama, 350-8555, JAPAN Telephone Number : +81-49-228-6415 Facsimile Number : +81-49-228-6493 Contact Person : Tomoyuki Tanaka SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Car Audio Model No. : CVH-8538ZH Serial No. : Refer to 4.2 of this report. Rating : DC 13.2V Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : March 2, 2015 2.2 Product description Model: CVH-8538ZH (referred to as the EUT in this report) is a Car Audio. The clock frequencies used in the EUT: 26MHz (Crystal and oscillator) 533MHz (Max in others) Test report No. : 10712938S-B Page : 5 of 50 Issued date : March 18, 2015 Revised date : March 31, 2015 FCC ID : AJDK090 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radio specification: Bluetooth: Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth & channel spacing : 79MHz & 1MHz Type of modulation : GFSK, π/4DQPSK, 8DPSK Antenna type : Inverted-F Antenna Antenna gain with cable loss : -0.996dBi (max) Antenna connector type : U.FL Connector Operation temperature range : -20 to +70 deg.C. Wireless LAN: Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth & channel spacing : 5MHz Type of modulation : BPSK, QPSK, CCK, 16QAM, 64QAM Antenna type : Inverted-F Antenna Antenna gain with cable loss : -1.387dBi (max) Antenna connector type : U.FL Connector Operation temperature range : -20 to +70 deg.C. Refer to the test report: 10712938S-A for Bluetooth part. FCC 15.31 (e) The EUT provides stable voltage (DC3.3±0.1V) constantly to the wireless transmitter regardless of input voltage. Instead of a new battery, DC power supply was used for the test. That does not affect the test result, therefore the EUT complies with the requirement. FCC 15.203 The equipment and its antenna comply with the requirement since the antenna is built in the equipment and it cannot be replaced by end users. Test report No. : 10712938S-B Page : 6 of 50 Issued date : March 18, 2015 FCC ID : AJDK090 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 SECTION 3: Test specification, procedures & results 3.1 Test specification Test specification : FCC Part 15 Subpart C: 2015, final revised on January 21, 2015 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure *1) SpecificationRemarksDeviationWorst Margin Results Conducted emission ANSI C63.10:2009 FCC 15.207 - N/A *2) - - 6dB bandwidth ANSI C63.10:2009 FCC 15.247 (a)(2) ConductedN/A * See data Complied Maximum peak conducted output power ANSI C63.10:2009 FCC 15.247 (…

Text truncated - open the document above for the full version.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated emission Front view Rear view (below 1GHz) Rear view (above 1GHz) END OF REPORT Test report No.: 10712938S-B 50 of 50
