AJDK113MULTIMEDIA NAVIGATION RECEIVER

X:\print\Pioneer\Fy20AJ\Imortant\20_Navi_UC_CRD5194(A5_Horizon)\010COV_Navi-Imp_UC(EN).fm AVIC-W8600NEX/AVIC-W6600NEX 20_Navi_UC_CRD5194-A (A5_Horizon) EnglishFrançais AVIC-W8600NEXAVIC-W6600NEXMULTIMEDIA NAVIGATION RECEIVERRÉCEPTEUR DE NAVIGATION MULTIMÉDIA Be sure to read both this leaflet and Operation Manual stored on the website! Both documents include important information that you must understand before using this product.Assurez-vous de lire ce feuillet et le Mode d’emploi disponible sur le site Web! Les deux documents contiennent des informations importantes que vous devez comprendre avant d’utiliser ce produit.Notice to all users: / Avis à tous les utilisateurs:This software requires that the product is properly connected to your vehicle’s parking brake and depending on your vehicle, additional installation may be required. For more information, please contact your Authorized Pioneer Electronics retailer or call us at (800) 421-1404.Ce logiciel exige que le produit soit adéquatement connecté au frein de stationnement de votre véhicule, et, selon le véhicule, il se peut qu’une installation supplémentaire soit nécessaire. Pour de plus amples informations, veuillez contacter votre détaillant Pioneer Electronics agréé ou nous contacter au (800) 421-1404. Important Information for the User Importantes informations pour l’utilisateur B&5'BDUWZRUNERRN3DJH7XHVGD\1RYHPEHU $0 2 X:\print\Pioneer\Fy20AJ\Imortant\20_Navi_UC_CRD5194(A5_Horizon)\020Chapter_EN.fm AVIC-W8600NEX/AVIC-W6600NEX 20_Navi_UC_CRD5194(A5_Horizon) En ɷ Precaution.......................... 2 Information to user ..................................................... 2Conventions used in this manual........................... 3Terms used in this manual ........................................ 3Important safety information.................................. 4To ensure safe driving ................................................ 5When using a display connected to V OUT ........ 5To avoid battery exhaustion .................................... 5Rear view camera ......................................................... 5Handling the SD card slot ......................................... 5Handling the USB connector ................................... 6Protecting the LCD panel and screen ................... 6Cautions for the detachable faceplate ................. 6Traffic information ....................................................... 6Warning function for safety cameras.................... 6Speed limit indication ................................................ 6Vehicle equipment status ......................................... 6Functions related to iPhone® and smartphone- based apps .............................................................. 6 ɷ Introduction....................... 7 License, Warranty Disclaimer & Limitation of Liability ..................................................................... 7 About the data for the map database ................ 13ɷ Notes before using the system .............................. 14 Failure to operate ....................................................... 14Visit our website ......................................................... 14About this product .................................................... 14 Contents Thank you for buying this Pioneer product.Please read through these instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this document in a safe place for future reference. Precaution Information to user–This device contains licence-exempt transmitter(s)/receiver(s) that complies with Part 15 of FCC Rules and Innovation, Science, and Economic Development Canada licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. –The Bluetooth antenna cannot be removed (or replaced) by user.–This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the ISED
radio frequency (RF) Exposure rules. 5IJT
FRVJQNFOU should be ins talled and operated keeping the radiator at least 20 cm or more away from person’s body  –This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. –Alteration or modifications carried out without appropriate authorization may invalidate the user’s right to operate the equipment. –NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, usesand can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION:USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.CAUTION:THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. B&5'BDUWZRUNERRN3DJH7XHVGD\1RYHPEHU…

Text truncated - open the document above for the full version.

$9,& :1(;

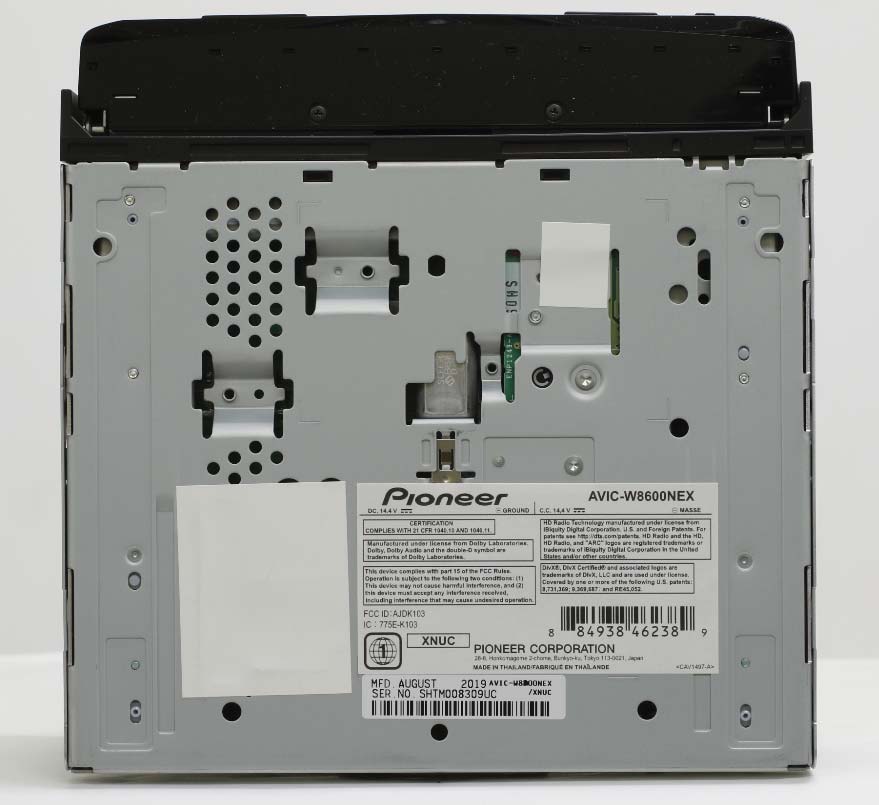

Model : AVIC-W8600NEX Bottom side FCC ID, IC ID and FCC statement

$9,& :  1(;

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 RF Exposure / MPE Calculation No. : 13218142S-A Applicant : PIONEER CORPORATION T ype of Equipment : MULTIMEDIA NAVIGATION RECEIVER Model No. : AVIC-W8600NEX FCC ID : AJDK113 PIONEER CORPORATION declares that Model: AVIC-W8600NEX complies with FCC radiation exposure requirement specified in the FCC Rule 2.1091 (for mobile). RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AVIC-W8600NEX“ as calculated from (B) Limits for General Population / Uncontrolled Exposure of TABLE 1- LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) of §1.1310 Radiofrequency radiation exposure limits. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1mW/cm^2 uncontrolled exposure limit. The Friis formula used was: Where P =25.47 mW (Maximum average output power) Time average was used for the above value in consideration of 6-minutes time-averaging Burst power average was used for the above value in consideration of worst condition. G =0.501 Numerical Antenna gain; equal to -3 dBi r =20 cm (Separation distance) 0.00254 mW/cm 2 Power Density Result S = 2 4r GP S     Even taking into account the tolerance, this device can be satisfied with the limits.

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: PIONEER CORPORATION Type of EUT: MULTIMEDIA NAVIGATION RECEIVER Model Noumber of E: AVIC-W8600NEX FCC ID: AJDK113 PIONEER CORPORATION declares that Model : AVIC-W8600NEX complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091(for mobile). AVIC-W8600NEX is intended to be used Bluetooth and Wireless LAN simultaneously within 20 cm. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “AVIC-W8600NEX“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = ( (P1 * G1) + (P2 * G2) ) / (4* π * r 2 ) Where P1 = 1.05 mW (Maximum average output power ) *1) P2 = 13.91 mW (Maximum average output power) *2) G1 = 0.16 Numerical Antenna gain; equal to-8.00dBi *1) G2 = 0.50 Numerical Antenna gain; equal to -3.00 dBi *2) r =20.0 cm For: AVIC-W8600NEX (Bluetooth and Wireless LAN) S = 0.00142 mW/cm 2 Even taking into account the tolerance, this device can be satisfied with the limits. *1) Bluetooth value *2) Wireless LAN (5 GHz band) value This calculation was made to show that the EUT complies with the limit in simultaneous transmitting of Bluetooth and Wireless LAN. No. : 13218142S RF Ex posure / SAR Statement

Test report No. : 13218142S-A-R1 P age: 1 of 124 Issued date : March 11, 2020 F CC ID : AJDK113 UL Japan, Inc. Shonan EM C Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401Report Cover Page - 13-EM-F0429 Issue # 16.0 CERTIFICATE 1266.03 RADIO TEST REPORT Test Report No. : 13218142S-A-R1 Applicant : PIONEER CORPORATION Type of EUT : MULTIMEDIA NAVIGATION RECEIVER Model Number of EUT : AVIC-W8600NEX FCC ID : AJDK113 Test regulation : FCC Part 15 Subpart E: 2019 Test result : Complied (Refer to SECTION 3.2) 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc . 2. The results in this report appl y only to the sample tested. 3. This sample tested is in compliance with the limits of the above re gulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by the A2LA accreditation bod y. 6. Th is test report covers Radio technical requirements. It does not cover administrative issues such as Manual or non-Radio test related Requiremen ts. (if applicable) 7 . The all test items in this test report are conducted b y UL Japan, Inc. Shonan EMC Lab. 8. The opinions and the interpretations to the result of the description in this report are outside scopes wher e UL Japan has been accred ited. 9. The information provided from the customer for this report is identified in SECTION 1. 10 . This report is a revised version of 13218142S-A. 13218142S-A is replaced with this report. Da te of test: January 15 to February 23, 2020 Representative test engineer: Takahiro Kawakami Engineer Consumer Technology Division A pproved by: Kazutaka Takeyama Engineer Consumer Technology Division The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". Test report No. : 13218142S-A-R1 Page : 2 of 124 Issued date : March 11, 2020 FCC ID : AJDK113 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 REVISION HISTORY Original Test Report No.: 13218142S-A Revision Test report No. Date Page revised Contents - (Original) 13218142S-A March 5, 2020 - - 1 13218142S-A-R1 March 11, 2020 P.5 Modification of Clock frequency(ies) in the system from: LPO clock for Bluetooth Wi-Fi module: 32.768 kHz to: LPO CLOCK GENERATOR for Bluetooth Wi-Fi module: 32.768 kHz P.7 Modification of Worst margin of Spurious Emission Restricted Band Edge from: 4.7 dB, 409.994 MHz, QP, Horizontal. Mode: Tx 11n-20(SISO) 5825 MHz with Tx 3DH5, Hopping to: 5.2 dB,11550.000 MHz, AV, Vertical. Mode: Tx 11ac-80 MIMO 5775 MHz P.63 Update of remarks: from: “¥Date” to: “Date” Test report No. : 13218142S-A-R1 Page : 3 of 124 Issued date : March 11, 2020 FCC ID : AJDK113 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Reference: Abbreviations (Including words undescribed in this report) A2LA The American Association for Laboratory Accreditation MCS Modulation and Coding Scheme AC Alternating Current MRA Mutual Recognition Arrangement AFH Adaptive Frequency Hopping N/A Not Applicable AM Amplitude Modulation NIST National Institute of Standards and Technology Amp, AMP Amplifier NS No signal detect. ANSI American National Standards Institute NSA Normalized Site Attenuation Ant, ANT Antenna NVLAP National Voluntary Laboratory Accreditation Program AP Access Point OBW Occupied Band Width ASK Amplitude Shift Keying OFDM Orthogonal Frequency Division Multiplexing Atten., ATT Attenuator P/M Power meter AV Average PCB Printed Circuit Board BPSK Binary Phase-Shift Keying PER Packet Error Rate BR Bluetooth Basic Rate PHY Physical Layer BT Bluetooth PK Peak BT LE Bluetooth Low Energy PN Pseudo random Noise BW BandWidth PRBS Pseudo-Random Bit Sequence Cal Int Calibration Interval PSD Power Spectral Density CCK Complementary Code Keying QAM Quadrature Amplitude Modulation Ch., CH Channel QP Quasi-Peak CISPR Comite International Special des Perturbations Radioelectriques QPSK Quadri-Phase Shift Keying CW Continuous Wave RBW Resolution Band Width DBPSK Differential BPSK RDS Radio Data System DC Direct Current RE Radio Equipment D-factor Distance factor RF Radio Frequency DFS Dynamic Frequency Selection RMS Root Mean Square DQPSK Differential QPSK RSS Radio Standards Specifications DSSS Direct Sequence Spread Spectrum Rx Receiving EDR Enhanced Data Rate SA, S/A Spectrum Analyzer EIRP, e.i.r.p. Equivalent Isotropically Radiated Power SG Signal Generator EMC ElectroMagnetic Compatibility SVSWR Site-Voltage Standing Wave Ratio EMI ElectroMagnetic Interference TR Test Receiver EN European Norm Tx Transmitting ERP, e.r.p. Effective Radiated Power VBW Video BandWidth EU European Union Vert. Vertical EUT Equipment Under Test WLAN Wireless LAN Fac. Factor FCC Federal Communications Commission FHSS Frequency Hopping Spread Spectrum FM Frequency Modulation Freq. Frequency FSK Frequency Shift Keying GFSK Gaussian Frequency-Shift Keying GNSS Global Navigation Satellite System GPS Global Positioning System Hori. Horizontal ICES Interference-Causing Equipment Standard IEC International Electrotechnical Commission IEEE Institute of Electrical and Electronics Engineers IF Intermediate Frequency ILAC International Laboratory Accreditation Conference ISED Innovation, Science and Economic Development Canada ISO International Organization for Standardization JAB Japan Accreditation Board LAN Local Area Network LIMS Laboratory Information Management System Test report No. : 13218142S-A-R1 Page : 4 of 124 Issued date : March 11, 2020 FCC ID : AJDK113 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259…

Text truncated - open the document above for the full version.

Test report No. : 13218142S-A-R1 Page : 124 of 124 Issued date : March 11, 2020 FCC ID : AJDK113 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Radiated Spurious Emission Front Rear (Below 1 GHz) Rear (Above 1 GHz) End of Report
