AJDT105Wireless Speaker Transmitter

Operating Instructions Mode d’emploi Digital Wireless Speaker System Systeme de hp sans fil a signal XW-HTP550 Register your product at www.pioneerelectronics.com • Protect your new investment The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft. • Improve product development Your input helps us continue to design products that meet your needs. • Receive a free Pioneer newsletter Registered customers can opt in to receive a monthly newsletter. • Receive free tips, updates and service bulletins on your new product En_XW-HTP550.book 1 ページ ２００４年１１月２９日 月曜日 午後５時４５分 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN D1-4-2-3_En WARNING: Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling. D36-P4_En Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. [For Canadian model] [Pour le modèle Canadien] CAUTION – TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD. RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. ATTENTION – POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT, OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT. D2-4-4-1_EF WARNING: This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. IMPORTANT NOTICE THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR. PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY. D1-4-2-6-1_En D3-4-2-1-3_A_En Nous vous remercions pour cet achat d’un produit Pioneer. Nous vous demandons de lire soigneusement ce mode d’emploi ; vous serez ainsi à même de faire fonctionner l’appareil correctement. Après avoir bien lu le mode d’emploi, le ranger dans un endroit sûr pour pouvoir s’y référer ultérieurement. Dans certains pays ou certaines régions, la forme de la fiche d’alimentation et de la prise d’alimentation peut différer de celle qui figure sur les schémas, mais les branchements et le fonctionnement de l’appareil restent les mêmes. Ce point d’exclamation, placé dans un triangle équilatéral, a pour but d’attirer l’attention de l’utilisateur sur la présence, dans les documents qui accompagnent l’appareil, d’explications importantes du point de vue de l’exploitation ou de l’entretien. Ce symbole de l’éclair, placé dans un triangle équilatéral, a pour but d’attirer l’attention de l’utilisateur sur la présence, à l’intérieur du coffret de l’appareil, de “tensions dangereuses” non isolées d’une grandeur suffisante pour représenter un risque d’électrocution pour les êtres humains. ATTENTION: POUR ÉVITER TOUT RISQUE D’ÉLECTROCUTION, NE PAS ENLEVER LE COUVERCLE (NI LE PANNEAU ARRIÈRE). AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR NE SE TROUVE À L’INTÉRIEUR. CONFIER TOUT ENTRETIEN À UN PERSONNEL QUALIFIÉ UNIQUEMENT. ATTENTION DANGER D ́ELECTROCUTION NE PAS OUVRIR D1-4-2-3_Fr AVERTISSEMENT: Cet appareil n’est pas étanche. Pour éviter les risques d’incendie et de décharge électrique, ne placez près de lui un récipient rempli d’eau, tel qu’un vase ou un pot de fleurs, et ne l’exposez pas à des gouttes d’eau, des éclaboussures, de la pluie ou de l’humidité. D3-4-2-1-3_A_Fr En_XW-HTP550.book 2 ページ ２００４年１１月２９日 月曜日 午後５時４５分 READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS — All operating and use instructions should be followed. CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet. ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards. WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven sur…

Text truncated - open the document above for the full version.

Letter Of Agency December 14, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 To Whom It May Concern: Please be advised that Pioneer Corporation authorizes UL Apex Co., Ltd. to act on our behalf, until otherwise notified, for applications submitted to Federal Communication Commission. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Tatsuo Ohnobu Senior Assistant Manager Safety & EMC Regulations AVC Engineering Administration Department Home Entertainment Business Company FCC Labeling Requirements and Information December 14, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: FCC Labeling Requirements FCC ID: AJDT105 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Tatsuo Ohnobu Senior Assistant Manager Safety & EMC Regulations AVC Engineering Administration Department Home Entertainment Business Company Request for Confidentiality December 14, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: AJDT105 Please be advised that the following information is to be held confidential and behalf of, Pioneer Corporation, referring to the FCC rules 0.457 and 0.459: Block Diagram Schematics Theory of Operation The application contains technical information which Pioneer Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Tatsuo Ohnobu Senior Assistant Manager Safety & EMC Regulations AVC Engineering Administration Department Home Entertainment Business Company Manufacturer’s Letter December 14, 2004 Federal Communication Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE: Certification Application FCC ID: AJDT105 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Sincerely, Tatsuo Ohnobu Senior Assistant Manager Safety & EMC Regulations AVC Engineering Administration Department Home Entertainment Business Company

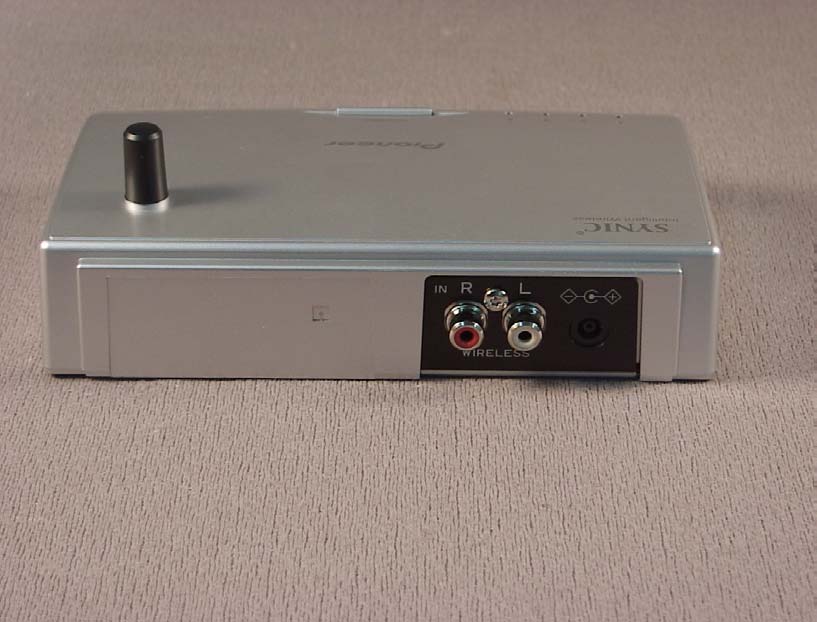

FCC ID: AJDT105 IC Number: 775D-T105 External Photo Pioneer Corporation Front Back FCC ID: AJDT105 IC Number: 775D-T105 External Photo Pioneer Corporation Top Bottom

XW-HTP550 Rating Label Label Material: Surface Material: Paper (LINTEC SK coat SP-3 / White) Bonding Material: Adhesive 4 - R2 117 47 Printing Color:Black Base & Letters Color:White AAL7389-A BC-BHT07302A FCC ID: AJDT105 Canada : IC 775D-T105 (Complies with CANADA RSS-210) TRANSMITTER MODEL XW-HTP550 ( T ) TRANSMETTEUR MODELE XW-HTP550 ( T ) 12V 300mA PIONEER CORPORATION MADE IN MALAYSIA FABRIQUE EN MALAISIE 4 -1, Meguro 1- chome, Meguro- ku, Tokyo 15 3 - 865 4, Japan THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA.

TRANSMITTER(TX)TRANSMITTER(TX) 166 ±0.5 112 +0.5 -2 56 (36.4) ±1 AAL7389-A BC-BHT07302A FCC ID: AJDT105 Canada : IC 775D-T105 (Complies with CANADA RSS-210) TRANSMITTER MODEL XW-HTP550 ( T ) TRANSMETTEUR MODELE XW-HTP550 ( T ) 12V 300mA PIONEER CORPORATION MADE IN MALAYSIA FABRIQUE EN MALAISIE 4 -1, Meguro 1- chome, Meguro- ku, Tokyo 15 3 - 865 4, Japan THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : ( 1 ) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND ( 2 ) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003. CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME NMB-003 DU CANADA.

FCC ID: AJDT105 IC Number: 775D-T105 Internal Photo Pioneer Corporation Internal View PWB Side A FCC ID: AJDT105 IC Number: 775D-T105 Internal Photo Pioneer Corporation PWB Side B PWB Side B without cover FCC ID: AJDT105 IC Number: 775D-T105 Internal Photo Pioneer Corporation Tx Module Side A Tx Module Side A without cover FCC ID: AJDT105 IC Number: 775D-T105 Internal Photo Pioneer Corporation Tx Module Side B

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Pioneer Corporation Type of Equipment : Digital W ireless Speaker System(Transmitter) Model No. : XW-HTP550(T) / XW-DV755(T) FCC ID: AJDT105 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “XW -HTP550(T) / XW -DV755(T)“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G) / (4* ƒÎ * r 2 ) W here P = 61.38 mW (M aximum peak output power) G = 1.48 Numerical Antenna gain; equal 1.70 dBi r =20.0 cm For: XW -H TP550(T) / XW -DV755(T)S = 0.01806mW/cm 2 No. : 25DE0040-HO-1 RF Exposure / SAR Statement

Test report No. : 25DE0040-HO-1 Page : 1of 33 Issued date : December 10, 2004 Revised date : December 28, 2004 FCC ID : AJDT105 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) EMI TEST REPORT Test Report No. : 25DE0040-HO-1 Applicant : Pioneer Corporation Type of Equipment : Digital Wireless Speaker System (Transmitter) Model No. : XW-HTP550(T) Test standard : FCC Part 15 Subpart C Section 15.207, Section 15.247 : 2004 FCC ID : AJDT105 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this report are traceable to the national or international standards. Date of test: _____________________________ Tested by: ______________________________ Yutaka Yoshida EMC Service Tested by: ______________________________ ______________________________ Norihisa Hashimoto EMC Service Hiroka Umeyama EMC Service Approved by : ______________________________ Naoki Sakamoto Group Leader of EMC Service November 16 to December 2, 2004 Test report No. : 25DE0040-HO-1 Page : 2of 33 Issued date : December 10, 2004 Revised date : December 28, 2004 FCC ID : AJDT105 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) CONTENTS PAGE SECTION 1: Client information...............................................................................................................3 SECTION 2: Equipment under test (E.U.T.)...........................................................................................3 SECTION 3: Test specification, procedures & results.............................................................................4 SECTION 4: Operation of E.U.T. during testing.....................................................................................6 SECTION 5: Spurious Emission...............................................................................................................8 SECTION 6: Bandwidth...........................................................................................................................8 SECTION 7: Maximum Peak Output Power...........................................................................................9 SECTION 8: Peak Power Density............................................................................................................9 APPENDIX 1: Photographs of test setup................................................................................................10 Conducted Emission........................................................................................................................................10 Spurious Emission (Radiated)..........................................................................................................................11 APPENDIX 2: Test instruments..............................................................................................................12 APPENDIX 3: Data of EMI test..............................................................................................................13 Conducted Emission........................................................................................................................................13 6dB Bandwidth................................................................................................................................................17 Maximum Peak OutPut Power.......................................................................................................................19 Radiated Spurious Emission...........................................................................................................................21 Conducted emission Band Edge compliance...................................................................................................30 Power Density..................................................................................................................................................31 99%Occupied Bandwidth...............................................................................................................................33 Test report No. : 25DE0040-HO-1 Page : 3of 33 Issued date : December 10, 2004 Revised date : December 28, 2004 FCC ID : AJDT105 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) SECTION 1: Client information Company name : Pioneer Corporation Brand name : PIONEER Address : 4-2610 Hanazono, Tokorozawa-shi, Saitama, 359-8522, JAPAN Telephone Number : +81-42-990-2438 Facsimile Number : +81-42-990-2077 Contact Person : Tatsuo Ohnobu SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Wireless Speaker System (Transmitter) Model No. : XW-HTP550(T) Serial No. : E3 (for Conducted Emission and Spurious Emission (Radiated) tests) E3-2 (for the other tests) Rating : AC Adapter: AC120V, 60Hz Country of Manufacture : Malaysia Receipt Date of Sample : November 16, 2004 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) 2.2 Product Description The model No. XW-HTP550(T) is Digital Wireless Speaker System. <Series model of EUT> XW-DV755(T) There is only difference in its color for XW-HTP550(T) XW-HT100(T) XW-HTP550(T) + Signal Converter (AXX7175-A) *The EUT has been evaluated with Signal Converter connected. Therefore, this test report can be applied to XW-DV755(T) and XW-HT100(T). <Feature of EUT> Equipment Type Transmitter Frequen…

Text truncated - open the document above for the full version.

Test report No. : 25DE0040-HO-1 Page : 10of 33 Issued date : December 10, 2004 FCC ID : AJDT105 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) APPENDIX 1: Photographs of test setup Conducted Emission Front Rear Test report No. : 25DE0040-HO-1 Page : 11of 33 Issued date : December 10, 2004 FCC ID : AJDT105 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(10.04.03) Spurious Emission (Radiated) Front Rear
