AJK8223132Information Management System

User Manual for Communication Certification of the Information Management System (IMS-6010) Document Number 946-03N1-001 Revision CAGE Code 0EFD0 Rockwell Collins NAME TITLE APPROVAL Prepared By: Tanner S. Shephard Preparer N/A Approved By: Antoine F. Perez‐Vernon Project Engineer On File Approved By: Pamela M. Cook DAC Engineer On File NOTICE: The contents of this document are proprietary to Rockwell Collins and shall not be disclosed, disseminated, copied, or used except for purposes expressly authorized in writing by Rockwell Collins. The technical data in this document (or file) is controlled for export under the Export Administration Regulations (EAR), 15 CFR Parts 730‐774. Violations of these export laws may be subject to fines and penalties under the Export Administration Act. © 2015 Roc kwell Collins. All rights reserved. 946-03N1-001 Rev - Rockwell Collins Proprietary InformationPage 1 STATE 1 - DEVELOPMENT RELEASE 2015-04-22 Information Management System IMS-6010 User Manual This manual includes coverage of the following equipment: Unit Model Collins Part Number Information Management System IMS-6010 822-3132-XXX 946-03N1-001 Rev - Rockwell Collins Proprietary InformationPage 3 STATE 1 - DEVELOPMENT RELEASE 2015-04-22 ROCKWELL COLLINS, INC. INSTALLATION MANUAL Export Control Classification Notice (ECCN) for this document is 7E994. PROPRIETARY NOTICE FREEDOM OF INFORMATION ACT (5 USC 552) AND DISCLOSURE OF CONFIDENTIAL INFORMATION GENERALLY (18 USC 1905) This document and the information disclosed herein are proprietary data of Rockwell Collins, Inc. Neither this document nor the information contained herein shall be used, reproduced, or disclosed to others without the written authorization of Rockwell Collins, Inc., except to the extent required for installation or maintenance of recipient’s equipment. This document is being furnished in confidence by Rockwell Collins, Inc. The information disclosed herein falls within the exemption (b) (4) of 5 USC 552 and the prohibitions of 18 USC 1905. S OFTWARE COPYRIGHT NOTICE © COPYRIGHT 2015 ROCKWELL COLLINS, INC. ALL RIGHTS RESERVED All software resident in this equipment is protected by copyright. We welcome your comments concerning this manual. Although every effort has been made to keep it free of errors, some may occur. When reporting a specific problem, please describe it briefly and include the manual part number, the paragraph or figure number, and the page number. Send your comments to: Rockwell Collins, Inc. 400 Collins Road NE, M/S 153-250 Cedar Rapids, IA 52498-0001 For product orders or inquiries, please contact: Rockwell Collins, Inc. Customer Response Center 400 Collins Road NE, M/S 133-100 Cedar Rapids, IA 52498-0001 946-03N1-001 Rev - Rockwell Collins Proprietary InformationPage 4 STATE 1 - DEVELOPMENT RELEASE 2015-04-22 946-03N1-001 i TABLE OF CONTENTS Chapter/Para Page LIST OF ILLUSTRATIONS ................................................................................... .iii LIST OF TABLES ............................................................................................ . iv SAFETY SUMMARY ......................................................................................... v 1 General Information .......................................................................................... 1-1 1.1 INTRODUCTION. .................................................................................. 1-1 1.1.1 Equipment Covered. ................................................................................. 1-1 1.1.2 Equipment Specifications.............................................................................. 1-1 1.1.3 Environmental Qualifications. ......................................................................... 1-2 1.2 PURPOSE OF EQUIPMENT. ......................................................................... 1-3 1.3 EQUIPMENT OVER VIEW. .......................................................................... 1-4 1.3.1 Single Board Computer. .............................................................................. 1-4 1.3.2 Solid State Drive. .................................................................................... 1-4 1.3.3 Wireless LAN Adapter. ............................................................................... 1-4 1.3.4 Power Supply CCA................................................................................... 1-4 1.3.5 PC Base CCA........................................................................................ 1-4 1.3.6 802 Comm CCA. .................................................................................... 1-4 1.3.7 Interconnect CCA. ................................................................................... 1-4 1.3.8 Sim Board CCA. .................................................................................... 1-4 1.4 RELATED PUBLICATIONS. ......................................................................... 1-5 1.5 STORAGE. ......................................................................................... 1-5 2 Install ation .................................................................................................. 2-1 2.1 GENERAL. .........................................................................................2-1 2.2 UNPACKING AND INSPECTING EQUIPMENT. ......................................................2-1 2.3 PRE-INSTALLATION CHECK........................................................................2-1 2.3.1 Cabling Precauti ons. .................................................................................2-1 2.4 PLANNING. ........................................................................................ 2-2 2.4.1 Installation Configurations.............................................................................2-2 2.4.2 Strapping Options. ................................................................................... 2-2 2.4.3 Input Power. ...................…

Text truncated - open the document above for the full version.

Laurie Sussman Government Relations Manager Washington Operations 1300 Wilson Boulevard, Suite 200 Arlington, Virgina 22209-2307 Te l 703.516.8227 Fax 703.516.8293 [email protected] April 15, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality Product Name: IMS-6010 Model Number: 822-3132-XXX FCC ID: AJK8223132 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Part List • Operational Description • Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • External Photos • Internal Photos Page 2 of 2 • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Laurie Sussman

Laurie Sussman Government Relations Manager Washington Operations 1300 Wilson Boulevard, Suite 200 Arlington, Virgina 22209-2307 Tel 703.516.8227 Fax 703.516.8293 [email protected] April 15, 2015 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the following equipment: Product Name: IMS-6010 Model Number: 822-3132-XXX FCC ID: AJK8223132 Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. This shall include the following: • Testing • Approval applications (includes complete product documentation package, including Confidential information) and procedures • Payment of approval fees We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Sincerely, Laurie Sussman

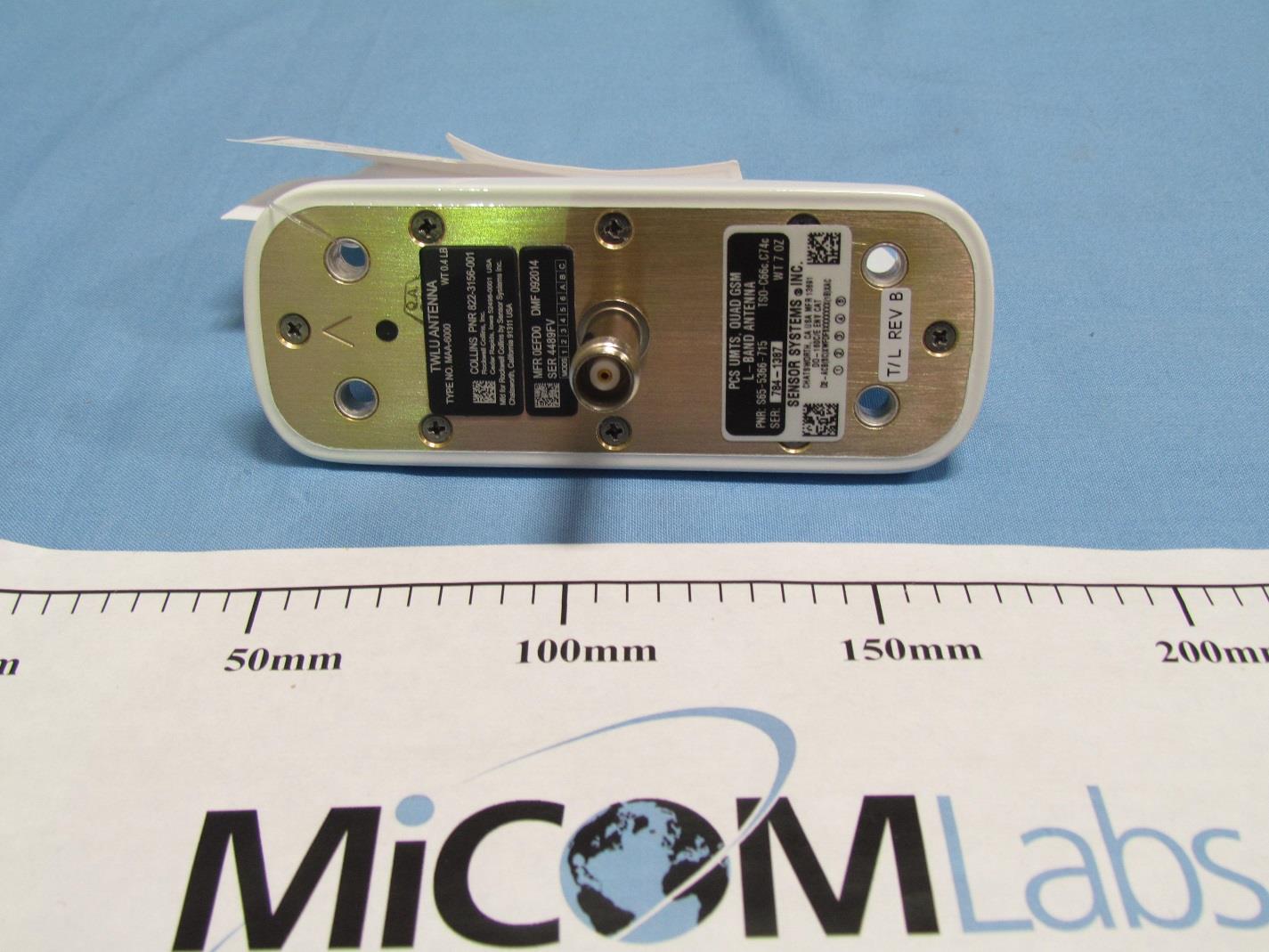

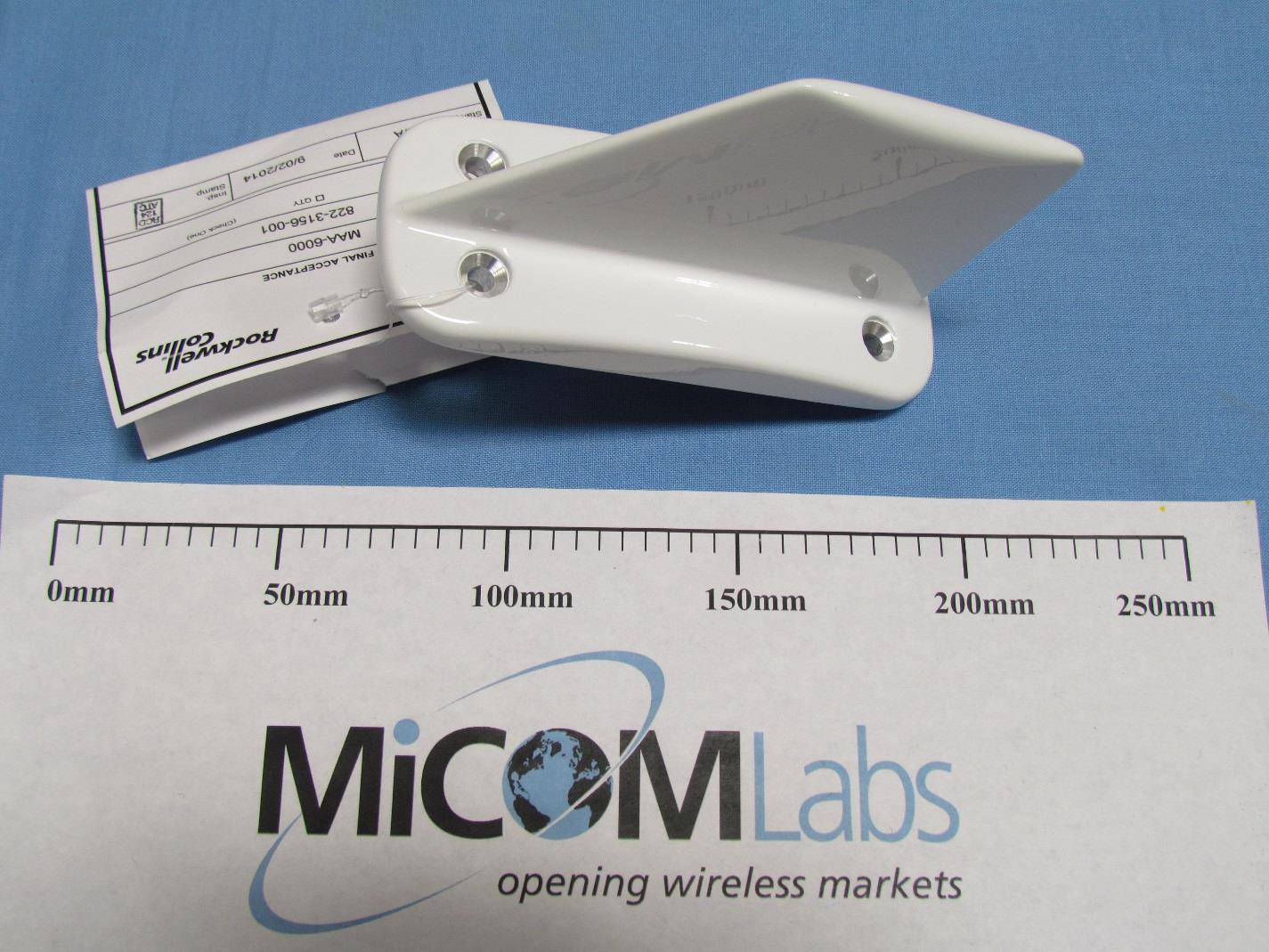

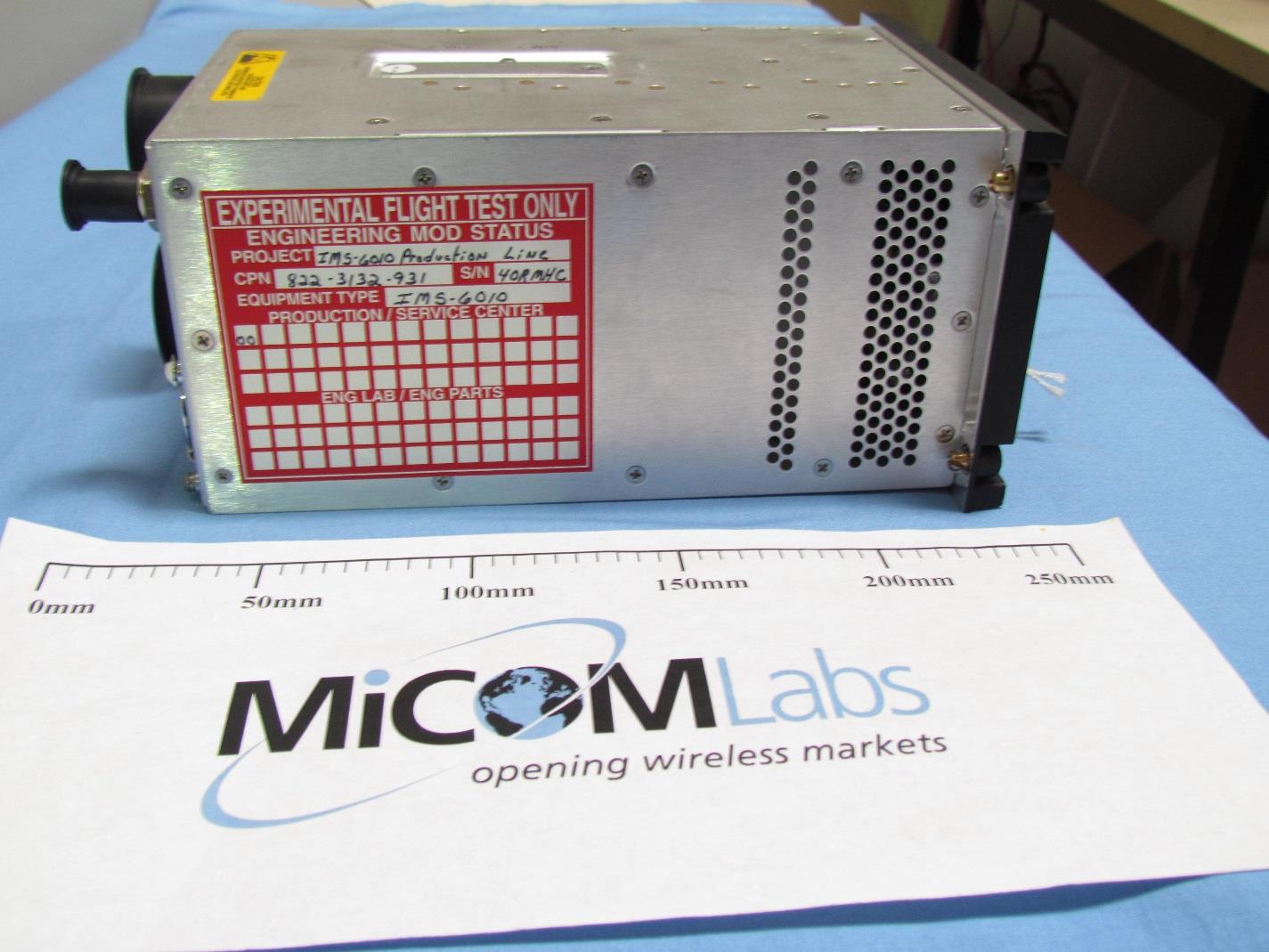

Rockwell IMS-6010 External Photographs IMS-6010 Side 1 View IMS-6010 Side 2 View Controller Back Side Controller Top Side IMS-6010 Bottom View IMS-6010 Side 3 View IMS-6010 Side 4 View IMS-6010 Top View MAA-2000 Bottom MAA-2000 Side 1 View MAA-2000 Side 2 View MAA-2000 Side 3 View MAA-2000 Top View MAA-6000 Bottom View MAA-6000 Side 1 View MAA-6000 Side 2 View MAA-6000 Side 3 View MAA-6000 Top View

Scale= 1:120150407.1659 [UGS NX8] File: 822-3132-911.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 ADD MOVE CHART AS NEEDED TO FIT ADDITION , 32, 34, 35 AND 36 CHG C ADD 3 SHEET MARKUP CHANGES SHEETS 1 AND 2 CECO-0 ADD Scale= 1:120150407.1659 [UGS NX8] File: 822-3132-911.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 134983-8095-911LABEL, FCC ID7 135983-8095-912LABEL, MIC ID7 ADD 34 35 ADD C ADD 136983-4168-001LABEL, FCC7 36 Scale= 1:120150407.1659 [UGS NX8] File: 822-3132-911.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 C ADD SHEET FOR REFERENCE ONLY

Scale= 1:120150407.1716 [UGS NX8] File: 822-3132-921.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 ADD , 32, 34, 35 AND 36 CHG C ADD 3 SHEET MARKUP CHANGES SHEETS 1 AND 2 CECO-0 ADD Scale= 1:120150407.1716 [UGS NX8] File: 822-3132-921.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 134983-8095-911LABEL, FCC ID7 135983-8095-912LABEL, MIC ID7 ADD 34 35 ADD C ADD 136983-4168-001LABEL, FCC7 36 Scale= 1:120150407.1716 [UGS NX8] File: 822-3132-921.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 SHEET FOR REFERENCE ONLY

Scale= 1:120150407.1738 [UGS NX8] File: 822-3132-931.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 ADD , 32, 34, 35 AND 36 CHG C ADD 3 SHEET MARKUP CHANGES SHEETS 1 AND 2 CECO-0 ADD Scale= 1:120150407.1738 [UGS NX8] File: 822-3132-931.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 134983-8095-911LABEL, FCC ID7 135983-8095-912LABEL, MIC ID7 ADD 34 35 ADD C ADD 136983-4168-001LABEL, FCC7 36 Scale= 1:120150407.1738 [UGS NX8] File: 822-3132-931.prtPDMNX STATE 3 - ENGINEERING RELEASE 2015-04-07 SHEET FOR REFERENCE ONLY

Scale= 1:120150514.1658 [UGS NX8] File: 983-8095-101.prtPDMNX UNRELEASED

Scale= 1:120150515.0830 [UGS NX8] File: 983-8095-210.prtPDMNX UNRELEASED

Scale= 1:120150515.0833 [UGS NX8] File: 983-8095-215.prtPDMNX UNRELEASED

Scale= 1:120150514.1705 [UGS NX8] File: 983-8095-911.prtPDMNX UNRELEASED

Scale= 1:120150514.1707 [UGS NX8] File: 983-8095-921.prtPDMNX UNRELEASED

Scale= 1:120150515.0840 [UGS NX8] File: 983-8095-931.prtPDMNX UNRELEASED

Maximum Permissible Exposure ROCK05; Rockwell Collins IMS-6010 FCC, Part 15 §1.1310 Industry Canada RSS-Gen §5.6 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 The calculations in the table below use highest gain antennas for the client EUT. Where the antenna gain exceeds 6dBi the transmitter power is reduced where necessary to meet the EIRP requirements. These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density @ 20cm Distance (cm) Calculated Safe Distance @ 1mW/cm 2 Limit Minimum 2.4 GHz 4.8 3.02 19.65 92.3 0.06 4.7 20.0 Note: for mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 RSS-Gen §3.2 In addition to RSS-Gen, the requirements in Radio Standards Specification RSS-102, Laboratory Measurement Uncertainty for Power Measurements Measurement uncertainty 1.33 dB

Company: Rockwell Collins MPE Evaluation of: IMS-6010 To: FCC CFR 47 Subpart §1.1310 Report No.: ROCK28 – MPE FCC Rev A MPE TEST REPORT MPE REPORT FROM MPE Evaluation of: Rockwell Collins IMS-6010 To: FCC CFR 47 Subpart §1.1310 Report Serial No.: ROCK28 – MPE FCC Rev A This report supersedes: NONE Applicant: Rockwell Collins 400 Collins Road NE Cedar Rapids, IA 52498 USA Product Function: Wireless connectivity for aircraft systems Issue Date: 20 th June 2018 This Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Rockwell Collins IMS-6010 To: FCC CFR 47 1.1310 MPE Serial #: ROCK25- MPE FCC Rev A Issue Date: 20 th June 2018 Page: 3 of 4 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. MAXIMUM PERMISSABLE EXPOSURE Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/ (4*π*d 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 These calculations represent worst case in terms of the exposure levels. Freq. Band (MHz) Total Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated Power Density @ 20cm Power Density Limit (mW/cm 2 ) Calculated Safe Distance @ 1mW/cm 2 Minimum Separation Distance (cm) 2400.0 - 2483.5 4.8 3.02 19.65 92.26 0.055 1 4.71 20.00 Note: For mobile or fixed location transmitters the minimum separation distance is 20cm, even if calculations indicate the MPE distance to be less. The Transmitter power used in the above calculations demonstrate the worst case power from the modes 802.11 b/g/n. In this case, 802.11b shows higher output power hence higher Power Density compared to 11g; HT20;and HT40 modes. Specification Maximum Permissible Exposure Limits FCC §1.1310 Limit = 1mW / cm 2 from 1.310 Table 1 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com

Company: Rockwell Collins Test of: IMS-6010 To: FCC CFR 47 Part 15.247 (DTS) & IC RSS 210 Report No.: ROCK05-U3 Rev A TEST REPORT TEST REPORT FROM Test of: Rockwell Collins IMS-6010 to To: FCC CFR 47 Part 15.247 (DTS) & IC RSS 210 Test Report Serial No.: ROCK05-U3 Rev A This report supersedes: None Applicant: Rockwell Collins 400 Collins Rd NE Cedar Rapids Iowa 52498, USA Product Function: Wireless connectivity for aircraft systems Issue Date: 12th March 2015 This Test Report is Issued Under the Authority of: MiCOM Labs, Inc. 575 Boulder Court Pleasanton California 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com MiCOM Labs is an ISO 17025 Accredited Testing Laboratory Title: Rockwell Collins IMS-6010 To: FCC CFR 47 Part 15.247 (DTS) & IC RSS-210 Serial #: ROCK05–U3 Rev A Issue Date: 12th March 2015 Page: 3 of 102 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents ACCREDITATION, LISTINGS & RECOGNITION .................................................................... 4 TESTING ACCREDITATION ............................................................................................... 4 RECOGNITION ................................................................................................................... 5 PRODUCT CERTIFICATION .............................................................................................. 6 DOCUMENT HISTORY ........................................................................................................... 7 TEST RESULT CERTIFICATE ................................................................................................ 8 1. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................... 9 1.1. Normative References .................................................................................................. 9 1.2. Test And Uncertainty Procedure ................................................................................. 10 2. PRODUCT DETAILS AND TEST CONFIGURATIONS ..................................................... 11 2.1. Technical Details ........................................................................................................ 11 2.2. Scope Of Test Program .............................................................................................. 12 2.3. Equipment Model(s) and Serial Number(s) ................................................................. 13 2.4. Antenna Details .......................................................................................................... 13 2.5. Cabling and I/O Ports ................................................................................................. 13 2.6. Test Configurations .................................................................................................... 14 2.7. Equipment Modifications ............................................................................................ 15 2.8. Deviations from the Test Standard ............................................................................. 15 3. TEST SUMMARY .............................................................................................................. 16 4. TEST EQUIPMENT CONFIGURATION(S) ........................................................................ 18 5. Measurement and Presentation of Test Data ................................................................. 20 5.1. Radiated Spurious Emission Test Set-up > 1 GHz ..................................................... 21 5.2. Digital Emissions Test Set-up (0.03 – 1 GHz) ............................................................. 22 5.3. AC Wireline Emission Test Set-up .............................................................................. 24 6. TEST RESULTS ................................................................................................................ 25 6.1. 6 dB & 99% Bandwidth ............................................................................................... 25 6.2. Conducted Output Power ........................................................................................... 29 6.3. Power Spectral Density .............................................................................................. 33 6.4. Conducted Emissions ................................................................................................. 37 6.5. Radiated Emission Testing ......................................................................................... 45 6.6. Digital Emissions (0.03-1 GHz) ................................................................................... 65 6.7. AC Wireline Conducted Emissions (150 kHz – 30 MHz) ............................................. 68 7. PHOTOGRAPHS ............................................................................................................... 70 7.1. Conducted Test Setup ................................................................................................ 70 1.1. Radiated Emissions Test Setup <1 GHz .................................................................. 71 8. APPENDIX- SUPPORTING INFORMATION ..................................................................... 73 8.1. 6 dB & 99% Bandwidth ............................................................................................... 73 8.2. Power Spectral Density .............................................................................................. 79 8.3. Conducted Emissions ................................................................................................. 91 8.3.1. Conducted Band-Edge Emissions .................................................................…

Text truncated - open the document above for the full version.

Company: Rockwell Collins Test of: IMS-6010 To: FCC 15.247 (DTS) & ISED RSS-247 Report No.: ROCK28 – U2 Rev A MiCOM Labs is an ISO 17025 Accredited Testing Laboratory TEST REPORT FROM Test of: Rockwell Collins IMS-6010 To: FCC 15.247 (DTS) & ISED RSS-247 Addendum Test Report Serial No.: ROCK28-U2 Rev A This report supersedes: None Manufacturer: Rockwell Collins 400 Collins Road NE Cedar Rapids, IA 52498 USA Product Function: Wireless connectivity for aircraft systems Copy No: pdf Issue Date: 20th June, 2018 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 575 Boulder Court, Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com TESTING CERT #2381.01 Title: Rockwell Collins IMS-6010 To: FCC 15.247 (DTS) & ISED RSS-247 Serial #: ROCK28–U2 Rev A Issue Date: 20 th June 2018 Page: 3 of 89 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Table of Contents 1. ACCREDITATION, LISTINGS & RECOGNITION................................................................................. 4 1.1. TESTING ACCREDITATION ......................................................................................................... 4 1.2. RECOGNITION ............................................................................................................................. 5 1.3. PRODUCT CERTIFICATION ........................................................................................................ 6 2. DOCUMENT HISTORY ......................................................................................................................... 7 3. TEST RESULT CERTIFICATE .............................................................................................................. 8 4. REFERENCES AND MEASUREMENT UNCERTAINTY ..................................................................... 9 4.1. Normative References ................................................................................................................... 9 4.2. Test and Uncertainty Procedure .................................................................................................. 10 5. PRODUCT DETAILS AND TEST CONFIGURATIONS ...................................................................... 11 5.1. Technical Details ......................................................................................................................... 11 5.2. Scope Of Test Program ............................................................................................................... 12 5.3. Equipment Model(s) and Serial Number(s) ................................................................................. 13 5.4. Antenna Details ........................................................................................................................... 13 5.5. Cabling and I/O Ports .................................................................................................................. 13 5.6. Test Configurations...................................................................................................................... 14 5.7. Equipment Modifications ............................................................................................................. 14 5.8. Deviations from the Test Standard .............................................................................................. 14 6. TEST SUMMARY ................................................................................................................................ 15 7. TEST EQUIPMENT CONFIGURATION(S) ......................................................................................... 16 7.1. Conducted ................................................................................................................................... 16 7.2. Radiated Emissions - 3m Chamber ............................................................................................. 18 8. MEASUREMENT AND PRESENTATION OF TEST DATA ............................................................... 21 9. TEST RESULTS .................................................................................................................................. 22 9.1. 6 dB & 99% Bandwidth ................................................................................................................ 22 9.2. Conducted Output Power ............................................................................................................ 25 9.3. Power Spectral Density ............................................................................................................... 29 9.4. Emissions .................................................................................................................................... 32 9.4.1. Conducted Emissions ........................................................................................................... 32 9.4.1.1. Conducted Spurious Emissions ..................................................................................... 32 9.4.1.2. Conducted Band-Edge Emissions ................................................................................. 35 9.4.2. Radiated Emissions .............................................................................................................. 40 9.4.2.3. TX Spurious & Restricted Band Emissions .................................................................... 40 9.4.2.4. Restricted Edge & Band-Edge Emissions ...................................................................... 40 A. APPENDIX - GRAPHICAL IMAGES .................................................................................................. 52 A.1. 6 dB & 99% Bandwidth ..................…

Text truncated - open the document above for the full version.

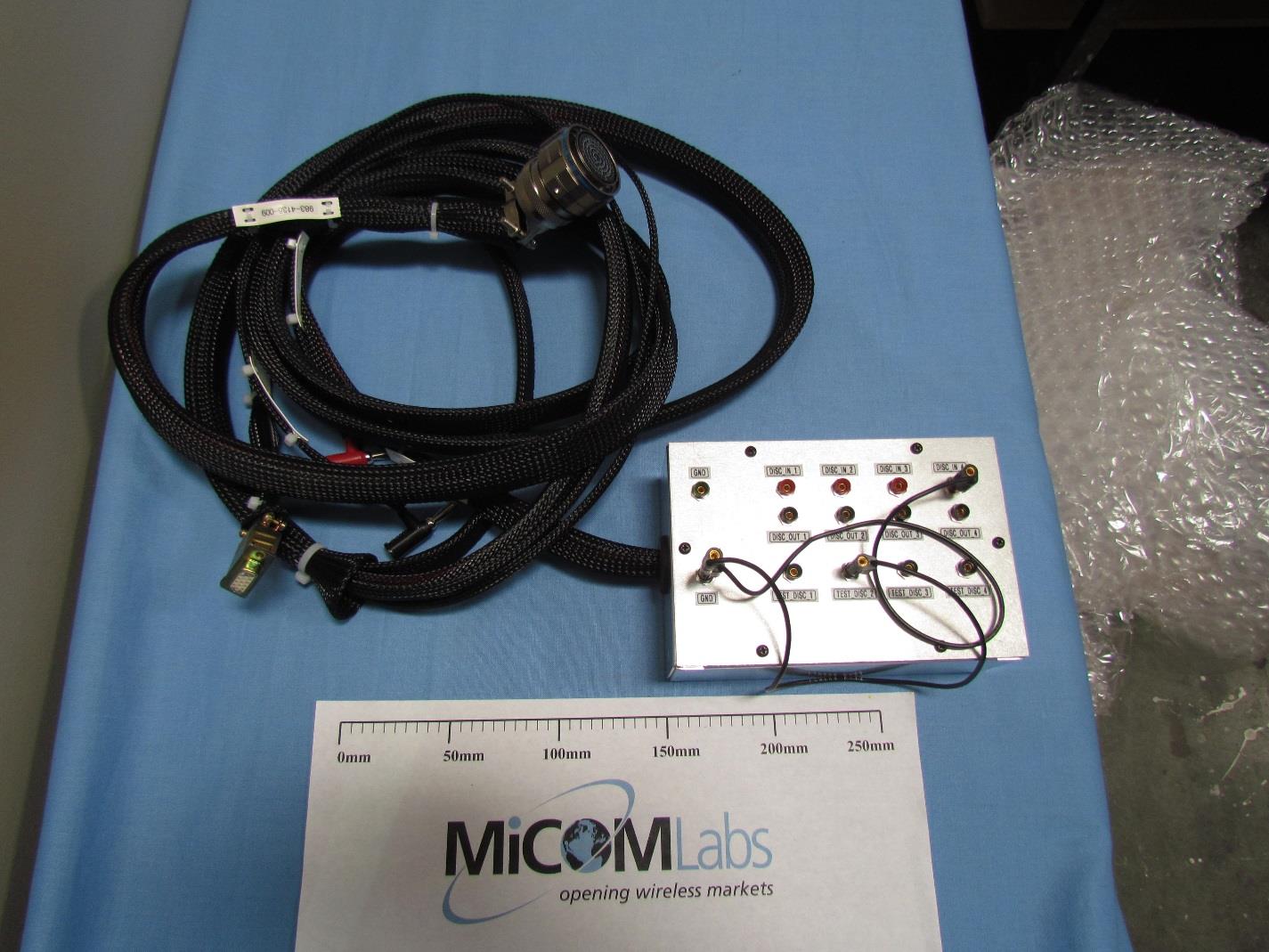

ROCKWELL IMS-6010 Test Setup Photo RF Conducted

Company: Rockwell Collins Product Name: IMS-6010 Report No.: ROCK28 - IMS 6010 802.11n Mode Addition Test Setup Photos PHOTOS - TEST SETUP Title: ROCK28 – IMS 6010, addition of 802.11n Test Setup Photos To: Serial #: Issue Date: 14 June 2018 Page: 2 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1. Test Setup Photographs 1.1.1. Test Setup - RE#1 - Radiated Emissions - 3m Chamber Radiated Emissions Antenna 865-5366-715 Title: ROCK28 – IMS 6010, addition of 802.11n Test Setup Photos To: Serial #: Issue Date: 14 June 2018 Page: 3 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com Radiated Emissions Antenna 865-5366-71S Title: ROCK28 – IMS 6010, addition of 802.11n Test Setup Photos To: Serial #: Issue Date: 14 June 2018 Page: 4 of 5 This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. All changes will be noted in the Document History section of the report. MiCOM Labs, 575 Boulder Court, Pleasanton, California 94566 USA, Phone: +1 (925) 462 0304, Fax: +1 (925) 462 0306, www.micomlabs.com 1.1.2. Test Setup - RF#2 - Conducted RF Conducted 575 Boulder Court Pleasanton, California 94566, USA Tel: +1 (925) 462 0304 Fax: +1 (925) 462 0306 www.micomlabs.com
