AJKPN822-2763VHF TRANSCEIEVER

Rockwell Collins, Inc. VHF-2200 Users Manual This manual provided to the FCC for product guidance, it should not be used by our OEM customers. Scope: This document will detail information required to install and use the VHF-2200 unit. Introduction: The Rockwell Collins ® VHF-2200 contains two independent VHF communications transceivers. Each VHF communications transceiver consists of a direct sampling A/D converter type receiver, PLL controlled frequency synthesizer and RF amplifier transmitter, I-Q modulator, DSP, and power supply. Both transceivers share a System Processor that provides common Maintenance Reporting as well as ARINC 429 serial and discrete interfaces. Each transceiver within the VHF-2200 operates in a frequency range from 118.000 MHz to 136.992 MHz selectable in 8.33-kHz increments. The VHF-2200 also operates in the frequency range from 118.000 MHz to 136.975 MHz selectable in 25-kHz increments. The VHF-2200 provides both voice and data communications. The 8.33-kHz channels only support voice mode for receiver and transmitter communications, and the 25-kHz channels support both voice and data mode for receiver and transmitter communications. Primary control functions are provided by the ARINC defined aircraft radio management panel (RMP), this is accomplished by serial word control according to the ARINC 429 standard. Analog voice, VDL Mode A data, and VDL Mode 2 data communications capabilities are provided by the VHF-2200. A complete self-test capability checks critical components in all receivers and transmitters for proper operation. The ARINC 429 serial tune bus is also tested to ensure that the unit is receiving valid tuning information from the frequency selector system. LED indicators are provided to verify LRU, external frequency control and antenna/transmission line integrity. Mechanical Description The VHF-2200 VHF Communications Transceiver is housed in a 3 MCU case designed to mount in a rack that conforms to the provisions of ARINC specification 600. The VHF- 2200 is structured with formed aluminum members that include a front panel, a rear panel, a bottom panel, a top panel, a central partition that rigidly maintains the alignment of the other panels, and swing-out side panels. Design The table below details the characteristics of the VHF-2200. CHARACTERISTIC SPECIFICATION Weight 4.8 kg (10.6 lbs) max Cooling Blow-through cooling metered along the plenum with various sized holes Overall dimensions Width: 94.9 mm (3.74 in), max Height: 200.0 mm (7.87 in), max Length: 380.26 mm (14.98 in), max Test report reference FAA TSO- C128a, C160, C169a Design specification ARINC 429P1-16, 429P2-15, 429P3-18, 600-9, 604-1, 615-3, 618- 8, 631-5, 714-3, 716-11, 724B, 748, 750-4, 758-2 CHARACTERISTIC SPECIFICATION documents RTCA DO-160E, DO-178B, DO-186B, DO-207, DO-224B, DO-254, DO-281A EUROCAE ED-12B, ED-14E, ED-23B, ED-67, ED-92 Receiver Characteristics CHARACTERISTIC SPECIFICATION Receiver 25-kHz Bandwidth Sensitivity (voice and analog data) 2 μV hard (-107 dBm) for 6 dB (s+n)/n Sensitivity (VDL Mode 2) -98 dBm for .001 BER (.159 BFR) Selectivity 6 dB maximum attenuation at ±8.0 kHz 60 dB minimum attenuation at ±17.0 kHz 8.33-kHz Bandwidth (voice only) Sensitivity 2 μV hard (-107 dBm) for 6 dB (s+n)/n Selectivity 6 dB maximum attenuation at ±2.8 kHz 60 dB minimum attenuation at ±7.3 kHz Undesired Signal Frequency Attenuated at least 60 dB (80 dB image) Cross Modulation Audio output at least 10 dB below that produced by a 10-μV signal modulated 50% by 1000 Hz Undesired Signal Frequency Undesired level (50% modulation with signal strength of 100 to 100 000 μV) ±25 kHz 10 000 μV ±50 kHz 20 000 μV ±100 kHz 60 000 μV ±500 kHz 100 000 μV ±1.0 MHz and greater 200 000 μV Desired Signal 10-μV signal modulated 50% by 1000 Hz Audio Power Output 40 mW maximum, adjustable to less than 5 mW into a 600 ohm ±20% resistive load (The nominal setting should be 10 mW at 1000Hz with a RF input modulated at 85%) Transmitter Characteristics See table below CHARACTERISTIC SPECIFICATION Transmitter Output Power 25 watts minimum into a 50 ohm resistive load (voice, analog data and Mode A); 15 watts minimum into a 50 ohm resistive load (VDL Mode 2) Antenna Impedance 50 ohms Frequency Stability 5 parts per million (±0.0005%) Sidetone 40 mW maximum, adjustable to less than 5 mW into a 600 ohm ±20% resistive load (The nominal setting should be 10 mW at 1000Hz with a RF input modulated at 85%) Transmitter Spurious Emissions Harmonic and other, less than -46 dBW Modulation Level (voice and analog data) 0.125 V rms input at 1000 Hz will modulate the transmitter at least 90%; adjustable for levels up to 20 dB higher Speech Processing (voice and analog data) Greater than 20 dB of compression (automatic volume control) Transceiver Operation Transmit-to-Receive Time 50 ms, maximum (voice, analog data and Mode A) 1.5 ms, maximum (Mode 2) Receive-to-Transmit Time 50 ms, maximum (voice, analog data and Mode A) 2.75 ms, maximum (Mode 2) Frequency Range 118.000 to 136.992 MHz Channel Spacing 25 kHz and 8.33 kHz Tuning Input Dual serial inputs, per ARINC 429 Data Inputs Dual serial HS inputs, per ARINC 750 Installation: The picture below details the VHF-2200 unit mounted in the ARINC 600 3MCU mount. These type mounts have mechanical mechanisms to allow capture and restraint of the front feet of the unit. This restraint ensures the unit will not come loose from the mount and also that the ARINC defined connector does remains in contact with the rear pins. The harness that connects the RMP to the VHF-2200 is defined by the aircraft manufacturer. The pinout is defined by the ARINC 750 and 716 standard to allow interchangeable product migration. The VHF-2200 pinout can be found below. Rear Pin Out Error! Reference source not found.The following pictures provide a generic depiction of the VHF-2200 rear connector. The top, middle and bottom insert will be defined later in this chapter. Top Insert (TP) Middle Insert…

Text truncated - open the document above for the full version.

Laurie Bertenthal Government Regulatory Specialist, Federal Affairs 1300 Wilson Boulevard, Suite 200 Arlington, Virgina 22209-2307 Tel 703.516.8227 Fax 703.516.8293 [email protected] August 2, 2011 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: I hereby appoint Sharon Hoffman of Timco Engineering, Inc. to act as our agent in the preparation of an application for equipment authorization of FCC ID: AJKPN822-2763 to the FCC Rules and Regulations. I certify that all exhibits contained within this filing properly describe the device or system for which authorization is sought. I further certify that appropriate arrangements have been made to assure that production units of this equipment bearing the name and FCC identifier listed in this application will continue to comply with the Commission's requirements. I further certify by signature below that no party (per 47 CFR 1.2002(b)) to the application is subject to a denial of Federal benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely, Laurie Bertenthal

Laurie Bertenthal Government Regulatory Specialist, Federal Affairs 1300 Wilson Boulevard, Suite 200 Arlington, Virgina 22209-2307 Tel 703.516.8227 Fax 703.516.8293 [email protected] August 2, 2011 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: AJKPN822-2763. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Schematic – Capicitor card 828-7183-001B.pdf Schematic – Modem 828-7043-002B.pdf Schematic – Power supply 828-9176-002C.pdf Schematic – Rear Interconnect 828-9175- 002C.pdf Schematic – RF 828-9177-001C.pdf Schematic – System Processor 828-9178- 002B.pdf Block Diagrams Circuit Description Alignment Procedure VHF-2200 Block Diagram.pdf VHF-2200 Circuit Description.pdf VHF-2200 Tuning Procedure.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Page 2 of 2 The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Laurie Bertenthal

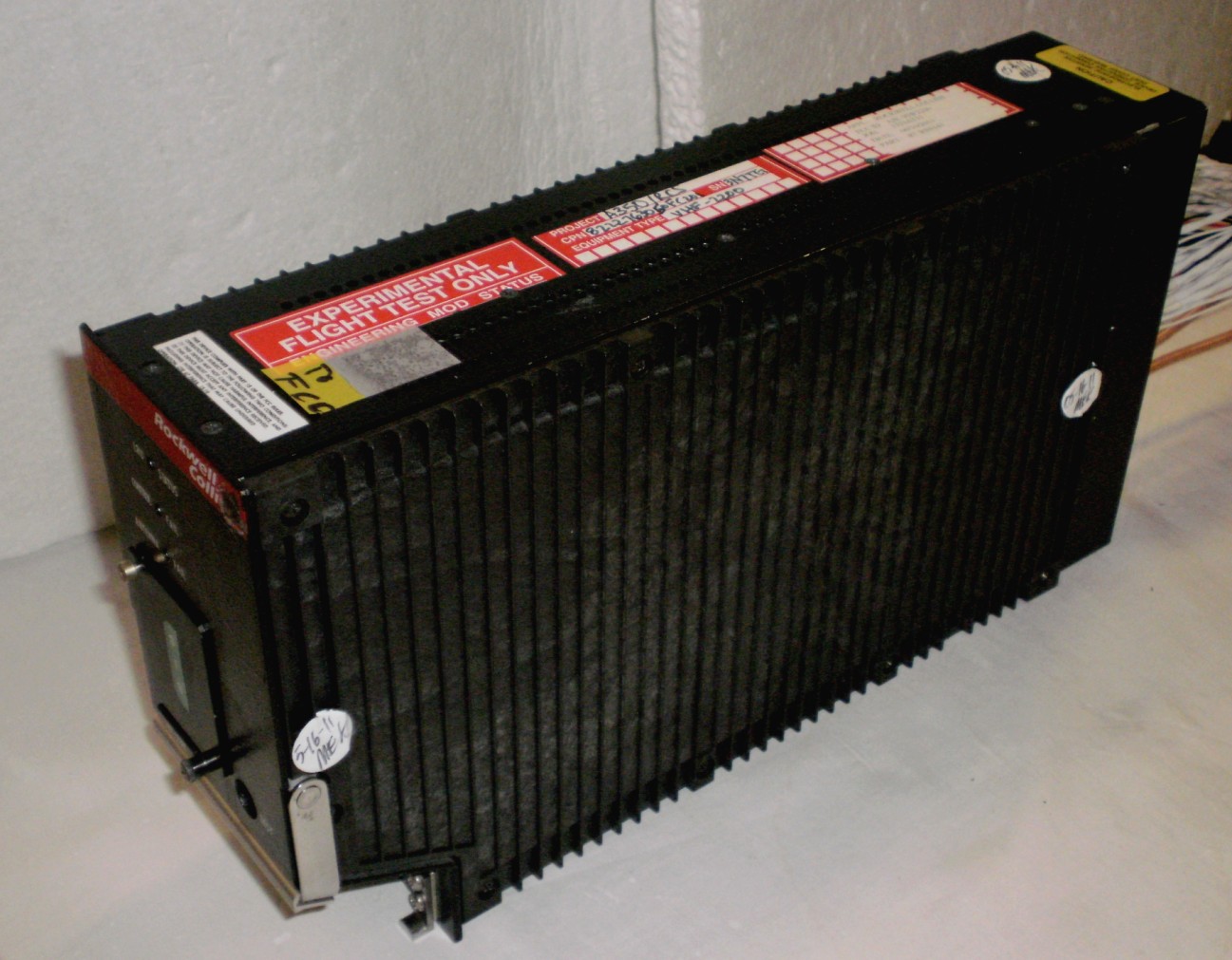

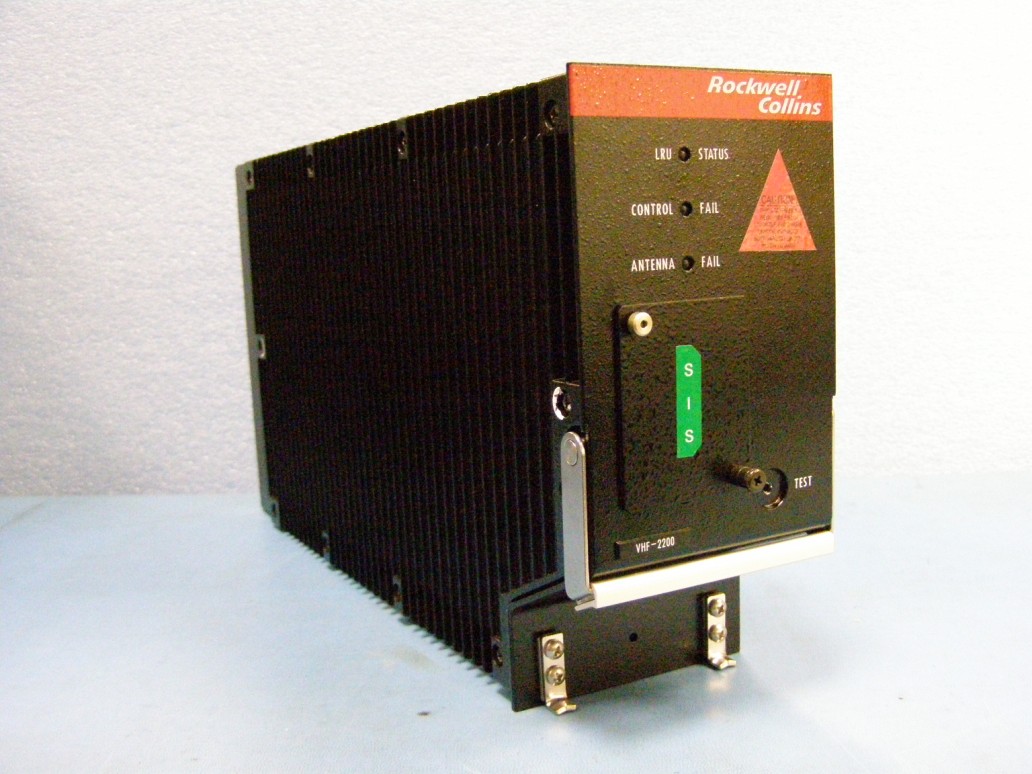

APPLICANT: ROCKWELL COLLINS FCC ID: AJKPN822-2763 EXTERNAL PHOTOS

VHF FCC label Placement Label 1 Label 2 The following labels will be present on the VHF-2200 radio. Label 1 – FCC Statement Label 2 – FCC ID

APPLICANT: ROCKWELL COLLINS FCC ID: AJKPN822-2763 INTERNAL PHOTOS

STATE 3 - ENGINEERING RELEASE 2011-02-07

STATE 3 - ENGINEERING RELEASE 2011-02-13

STATE 3 - ENGINEERING RELEASE 2010-03-17

STATE 3 - ENGINEERING RELEASE 2010-06-09

STATE 3 - ENGINEERING RELEASE 2011-02-07

STATE 3 - ENGINEERING RELEASE 2011-02-07

FCC PART 87 TEST REPORT APPLICANT ROCKWELL COLLINS AIR TRANSPORT SYSTEMS 1300 WILSON BLVD. SUITE 200 ARLINGTON VA 22209 USA FCC ID AJKPN822-2763 MODEL NUMBER VHF-2200 PRODUCT DESCRIPTION VHF TRANSCEIVER DATE SAMPLE RECEIVED 6/16/2011 DATE TESTED 7/26/2011 TESTED BY Joe Scoglio APPROVED BY Mario R. de Aranzeta TIMCO REPORT NO. 1323AT11TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP: //WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 2 of 17 TABLE OF CONTENTS STATEMENT OF COMPLIANCE .................................................................................. 3 GENERAL INFORMATION .......................................................................................... 4 EMC EQUIPMENT LIST ............................................................................................. 6 TEST PROCEDURES ................................................................................................. 7 RF POWER OUTPUT .................................................................................................. 8 MODULATION CHARACTERISTICS ............................................................................ 9 VOICE MODULATED COMMUNICATION EQUIPMENT ............................................. 10 FIELD STRENGTH OF SPURIOUS EMISSIONS ......................................................... 16 FREQUENCY STABILITY .......................................................................................... 17 Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 3 of 17 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: Mario R. de Aranzeta Signature: Function: Lab Supervisor/Engineer Date: 7/29/11 Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 4 of 17 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description VHF TRANSCEIVER FCC ID AJKPN822-2763 Model Number VHF-2200 Operating Frequency 118-136 Type of Emission 5K0A3E, 10K0A3D, 14K0G1D, 14K0G1E Modulation DSB voice and data, D8PSK data DUT Power Source 110–120Vac/50– 60Hz DC Power 28 Vdc Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 5 of 17 Test Facility: The test sites used by Timco Engineering Inc. for collecting radiated and conducted emission data are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT: No modification was made to the DUT during testing. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Applicable Standards: ANSI/TIA 603-C: 2004 FCC CFR 47 Part 87 8 level DPSK or D8PSK (14K0G1D & 14K0G1E)) AM Double Sideband (5K0A3E), (10K0A3D) Part 2.1033(c) (4) Type of Emission: The authorized bandwidth is kHz. Part 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY INPUT POWER – HIGH: (28 Vdc)(6.6A) = 184.8 Watts Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 6 of 17 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Active Loop ETS-Lindgren 6502 00062529 CAL 9/23/10 9/23/12 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 9/1/09 9/2/11 Frequency Counter HP 5385A 2730A03025 CAL 8/17/11 8/17/13 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 7/18/11 7/18/13 Digital Multimeter Fluke FLUKE-77 35053830 CAL 11/18/09 11/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 Antenna ETS 3117 41534 9/22/2010 9/22/2012 Antenna Electro metrics LPA-25 1122 5/04/2011 5/04/2013 Antenna Electro metrics BIA-25 1171 1/15/2010 1/15/2012 Applicant: ROCKWELL COLLINS FCC ID: AJKPN822-2763 Report: R\ROCKWELL_AJK\1323AT11\1323AT11TestReport.doc Page 7 of 17 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C: 2005 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as…
