AJYSL600GNSS RTK

1 SL600 GNSS RTK Manual Manual Revision Revision Date Revision Level Description Apr.2014 1 SL600 GNSS RTK Manual1.0 GEOSOLUTION I GOTEBORG AB All Rights Reserved 2 Content Preface ................................................................................................. 4 1. Instruction ................................................................................ 5 2. Your Suggestions ..................................................................... 5 Summary ............................................................................................. 6 1. Introduction ............................................................................. 7 2. Product Features ...................................................................... 7 3. Usage and Notes ...................................................................... 8 Receiver Introduction .......................................................................... 9 1. Introduction ........................................................................... 10 2. Receiver Appearance ............................................................. 10 3. Control Panel ......................................................................... 10 4. Upper Cover .......................................................................... 11 5. Lower Cover .......................................................................... 12 6. Battery ................................................................................... 12 7. Environmental Requirement .................................................. 13 8. Electrical Interference ........................................................... 14 General Operations ............................................................................ 15 1. Introduction ........................................................................... 16 2. Button functions .................................................................... 17 3. Led Status Instructions .......................................................... 19 4. Static Data Storage ................................................................ 20 5. RTK Data Storage .................................................................. 20 6. Self-inspect and reset Receiver .............................................. 20 7. Format Receiver .................................................................... 21 8. Power Supply System ............................................................ 21 Technical Parameters ......................................................................... 25 1. Introduction ........................................................................... 26 2. Receiver ................................................................................. 26 5. Ports ....................................................................................... 27 6. Function Key and LED .......................................................... 27 3 7. Intelligent Voice Module ....................................................... 27 8. Accuracy ................................................................................ 27 9. Physical Feature ..................................................................... 28 10. Environment ........................................................................ 28 4 Preface ■ Instruction ■ Your Suggestions C H A P T E R 1 5 1. Instruction Welcome to SL600 Series GNSS RTK system manual. This manual is designed for SL600 GNSS RTK system, and use SL600 GNSS RTK as an example to explain the installation, setup, and usage of the GNSS RTK system. If you have used other GNSS RTK system before, we suggests you read this manual carefully and this manual will help you to understand our SL600 GNSS RTK system easily. 2. Your Suggestions If you have any suggestions or comments on the manual, please feel free to contact us, it will help us to improve our manual quality greatly. 6 Summary ■ Introduction ■ Products Features ■ Usage and Notes C H A P T E R 2 7 1. Introduction SL600 GNSS RTK system adopts modularized design, so as to enable users to change into different differential transmission modules according to various requirements. Meanwhile the designed self-diagnosis function can automatically check the working status of all hardware and software of the SL600 receiver while working, and arouse the problem part by its intelligent voice messenger in case of some problem. Data collection controller can be connected with receiver mainframe via Bluetooth or cable; built-in high-capacity battery is suitable for long-time field work; static data can be stored in the built-in memory card of receiver and downloaded via USB port to your PC. Tips: 1. SL600 GNSS RTK system has many modules. This manual does not represent standard configuration. Users need to notify their own requirements for the different configuration due to different applications. 2. And before using, we suggest users firstly to check whether the package box is damaged, and then open careful and check whether inner items matched with the order list of their own. If there are some missing or damaging cases exist for products and accessories, please contact with the local distributor Immediately. 3. Last but not least, please carefully read manual before carrying, handling and using! 2. Product Features 1. BD970 mother board of Pacific Crest, a Trimble Company, multi‐satellite, multi‐system kernel. 8 2. 1+X multi-module communication units. 3. PCC Radio module (optional) compatible with Trimble/Leica RTK. 4. Double battery capacity as 5000mAh, 12 hours for RTK operating. 5. The highest performance in waterproof, dustproof and anti-drop. 6. Adjustable to be single GNSS system or multi-GNSS system: GPS, GLONASS, GALILEO. 3. Usage and Notes Although SL600 receiver using chemical and impact resistance material, but necessary taking care and maintenance is still required for such a precise instrument. Warning: The rec…

Text truncated - open the document above for the full version.

775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 GEOSOLUTION I GOTEBORG AB SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2014/5/20 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, GEOSOLUTION I GOTEBORG AB __ hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： GNSS RTK Trade Name： Model Name： SL600 Serial Model： N/A FCC ID： AJYSL600 We affirm that between SIEMIC and ___ GEOSOLUTION I GOTEBORG AB ___ , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: ZHI ZHOU NIU Title: Manager Tel: 00862022883956

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 GEOSOLUTION I GOTEBORG AB 2014-5-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: AJYSL600 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Sincerely, Client’s signature Signature Name: ZHI ZHOU NIU Title: Manager Tel: 00862022883956

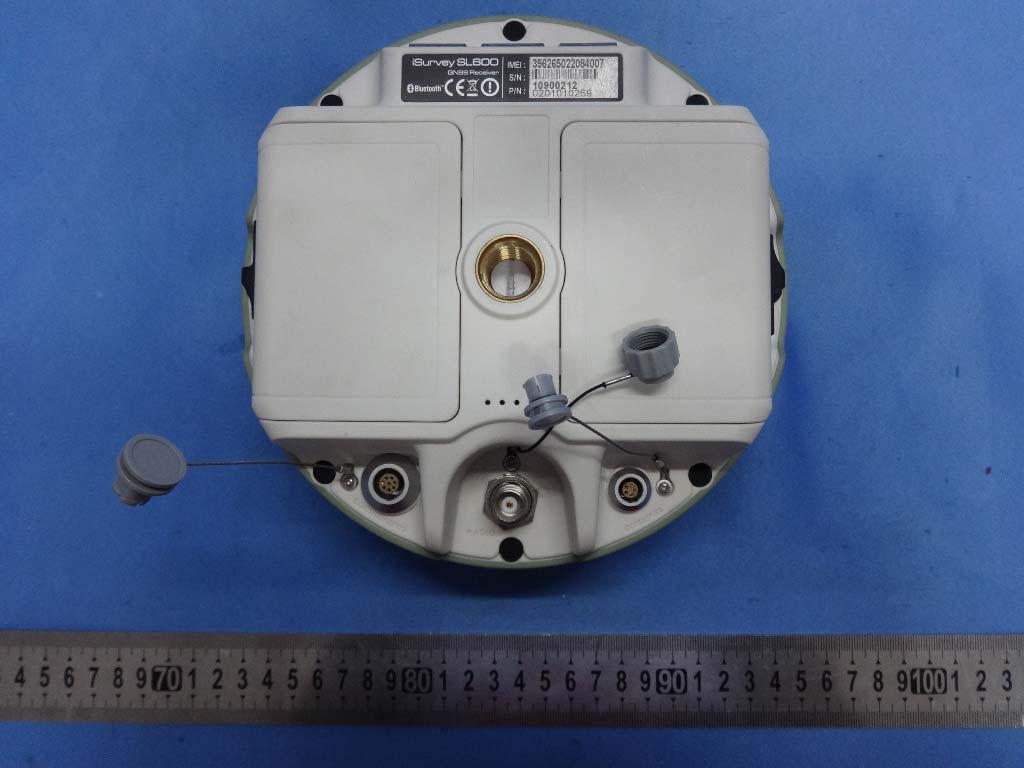

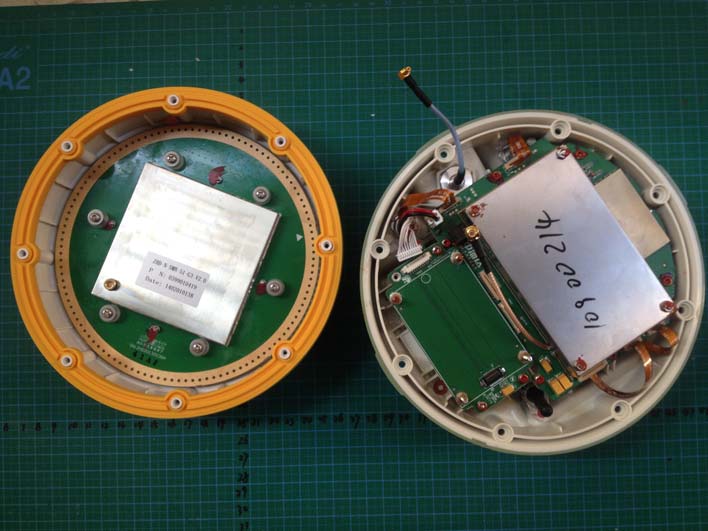

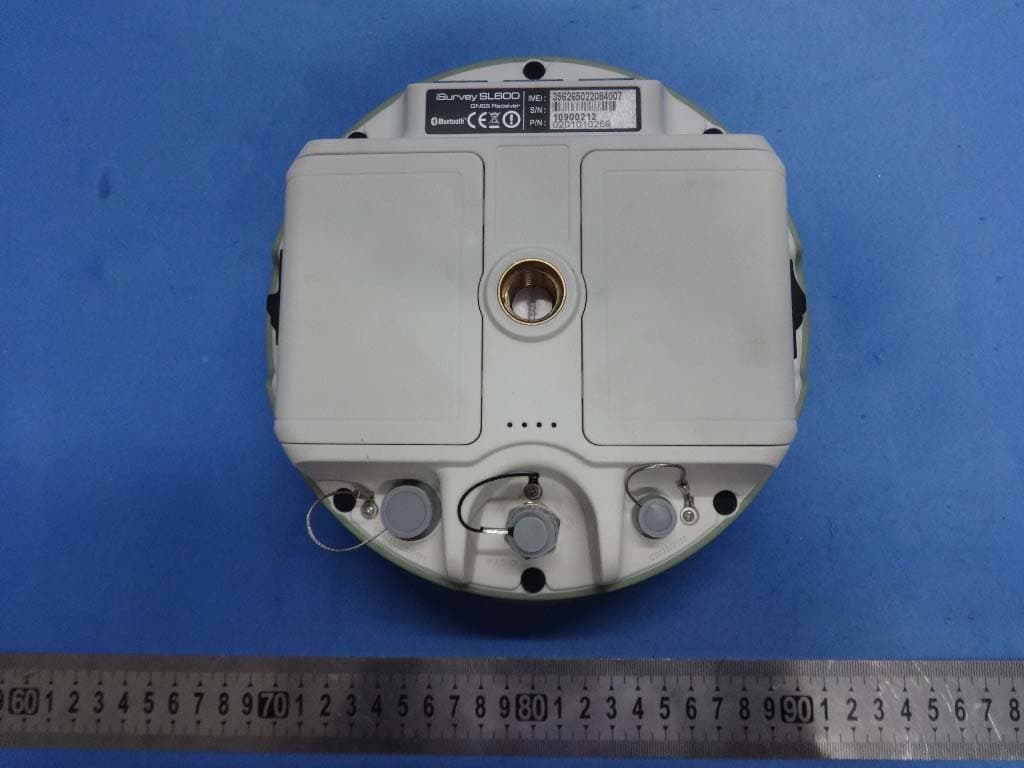

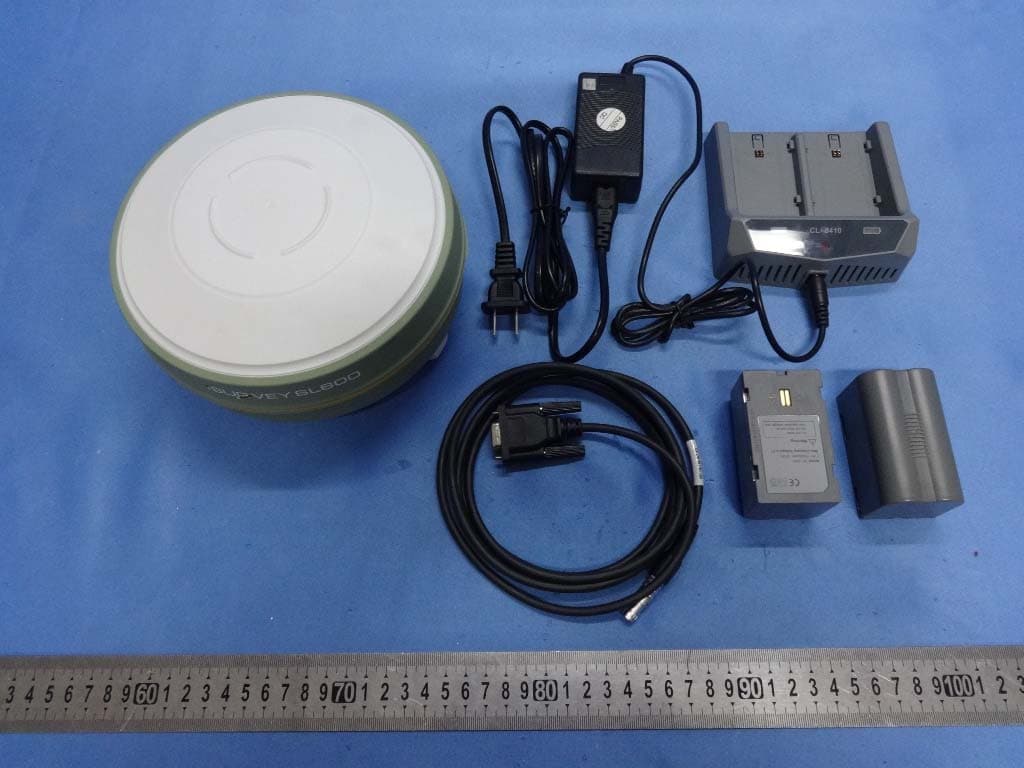

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 GPS ANT Port USB Port

24.8mm*39.8mm

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 BT ANT Photo 15 Photo 16 Photo 17 Photo 18 Photo 19 Photo 20 Photo 21 Photo 22 Photo 23

FCC ID : AJYSL600 RF EXPOSURE EVALUATION METHOD SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID : AJYSL600 Maximum measured transmitter power. BT frequency Maximum Peak Conducted Output Power Max Antenna Gain GHz dBm dBi 2402 3.129 1.0 2441 3.597 1.0 2480 3.628 1,0 Remark: The best case gain of the antenna is 1.0dBi. 1.0dBi logarithmic terms convert to numeric result is nearly 1.25 2.402GHz: 3.129dbm=2.055mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.055/5*√2.402=0.6 4≤3.0 Thresh old at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2.441GHz: 3.597dbm=2.289mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.289/5*√2.441=0.71≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2.480GHz: 3.628dbm=2.30mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 2.30/5*√2.480=0.72≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. FCC ID : AJYSL600 BT frequency Maximum Peak Conducted Output Power Max Antenna Gain GHz dBm dBi 2.402 0.254 1.0 2.441 0.435 1.0 2.480 0.285 1,0 Remark: The best case gain of the antenna is 1.0dBi. 1.0dBi logarithmic terms convert to numeric result is nearly 1.25 2.402GHz: 0.254dbm=1.060mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.060/5*√2.402=0.33≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2.441GHz: 0.435dbm=1.105mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.105/5*√2.441=0.34≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. 2.480GHz: 0.285dbm=1.067mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.067/5*√2.480=0.335≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

FCC RADIO TEST REPORT FCC ID: AJYSL600 Product： GNSS RTK Trade Name： Model Name： SL600 Serial Model： N/A Report No.： BZT-20140514234F2 Prepared for GEOSOLUTION I GOTEBORG AB Datavagen 21 B 436 32 ASKIM GOTHENBURG SWEDEN Prepared by BZT Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China Page 2 of 87 Report No.: BZT-20140514234F2 TEST RESULT CERTIFICATION Applicant’s name ................. : GEOSOLUTION I GOTEBORG AB Address ................................. : Datavagen 21 B 436 32 ASKIM GOTHENBURG SWEDEN Manufacture's Name ............ : Hi-Target Surveying Instrument Co., Ltd Address ................................. : Building 13, Tian'An Technology Zone HQ Center, No 555, North of Panyu RD, Panyu District, 511400 Guangzhou, China Product description Product name ........................... : GNSS RTK Model and/or type reference : SL600 Serial Model： N/A Standards ............................. : FCC Part15.247:2013 Test procedure ..............................ANSI C63.4:2003, DA 00-705 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : 10 Apr. 2014 ~20 Apr. 2014 Date of Issue ........................................... : 20 Apr. 2014 Test Result ............................................... : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 87 Report No.: BZT-20140514234F2 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 9 2.4 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.5 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BELOW 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30M – 1000 MHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 3.2.9 TEST RESULTS (RESTRICTED BANDS REQUIREMENTS) 42 4 . NUMBER OF HOPPING CHANNEL 54 4.1 APPLIED PROCEDURES / LIMIT 54 4.1.1 TEST PROCEDURE 54 4.1.2 DEVIATION FROM STANDARD 54 4.1.3 TEST SETUP 54 4.1.4 EUT OPERATION CONDITIONS 54 4.1.5 TEST RESULTS 55 5 . AVERAGE TIME OF OCCUPANCY 56 Page 4 of 87 Report No.: BZT-20140514234F2 Table of Contents Page 5.1 APPLIED PROCEDURES / LIMIT 56 5.1.1 TEST PROCEDURE 56 5.1.2 DEVIATION FROM STANDARD 56 5.1.3 TEST SETUP 57 5.1.4 EUT OPERATION CONDITIONS 57 5.1.5 TEST RESULTS 58 6 . HOPPING CHANNEL SEPARATION MEASUREMENT 64 6.1 APPLIED PROCEDURES / LIMIT 64 6.1.1 TEST PROCEDURE 64 6.1.2 DEVIATION FROM STANDARD 64 6.1.3 TEST SETUP 64 6.1.4 EUT OPERATION CONDITIONS 64 6.1.5 TEST RESULTS 65 7 . BANDWIDTH TEST 71 7.1 APPLIED PROCEDURES / LIMIT 71 7.1.1 TEST PROCEDURE 71 7.1.2 DEVIATION FROM STANDARD 71 7.1.3 TEST SETUP 71 7.1.4 EUT OPERATION CONDITIONS 71 7.1.5 TEST RESULTS 72 8 . PEAK OUTPUT POWER TEST 78 8.1 APPLIED PROCEDURES / LIMIT 78 8.1.1 TEST PROCEDURE 78 8.1.2 DEVIATION FROM STANDARD 78 8.1.3 TEST SETUP 78 8.1.4 EUT OPERATION CONDITIONS 78 8.1.5 TEST RESULTS 79 9 . ANTENNA REQUIREMENT 85 9.1 STANDARD REQUIREMENT 85 9.2 EUT ANTENNA 85 10 . EUT TEST PHOTO 86 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 87 Report No.: BZT-20140514234F2 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A 15.247(a)(1) Hopping Channel Separation PASS 15.247(b)(1) Peak Output Power PASS 15.247(c) Radiated Spurious Emission PASS 15.247(a)(iii) Number of Hopping Frequency PASS 15.247(a)(iii) Dwell Time PASS 15.247(a)(1) Bandwidth PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 87 Report No.: BZT-20140514234F2 1.1 TEST FACILITY BZT Testing Technology Co., Ltd. Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registered No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 87 Report No.: BZT-20140514234F2 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment GNSS RTK Trade Name Model Name SL600 Serial Model N/A Model Difference N/A Product Description The EUT is a GNSS RTK Operation Frequency: 2402~2480 MHz Modulation Type: BT(1Mbps): GFSK BT EDR(2Mbps): ∏ /4-DQPSK BT EDR(3Mbps): 8-DPSK Bit Rate of Transmitter 1Mbps/2Mbps/3Mbps Number Of Channel 79 CH Antenna Designation: Please see Note 3. Output Power(Conducted): BT(1Mbps): 3.628dBm BT EDR(2Mbps): 3.090dBm BT EDR(3Mbps): 3.191dBm B…

Text truncated - open the document above for the full version.

Page 86 of 87 Report No.: BZT-20140514234F2 10. EUT TEST PHOTO Radiated Measurement Photos Page 87 of 87 Report No.: BZT-20140514234F2 Conducted Emission Photos
