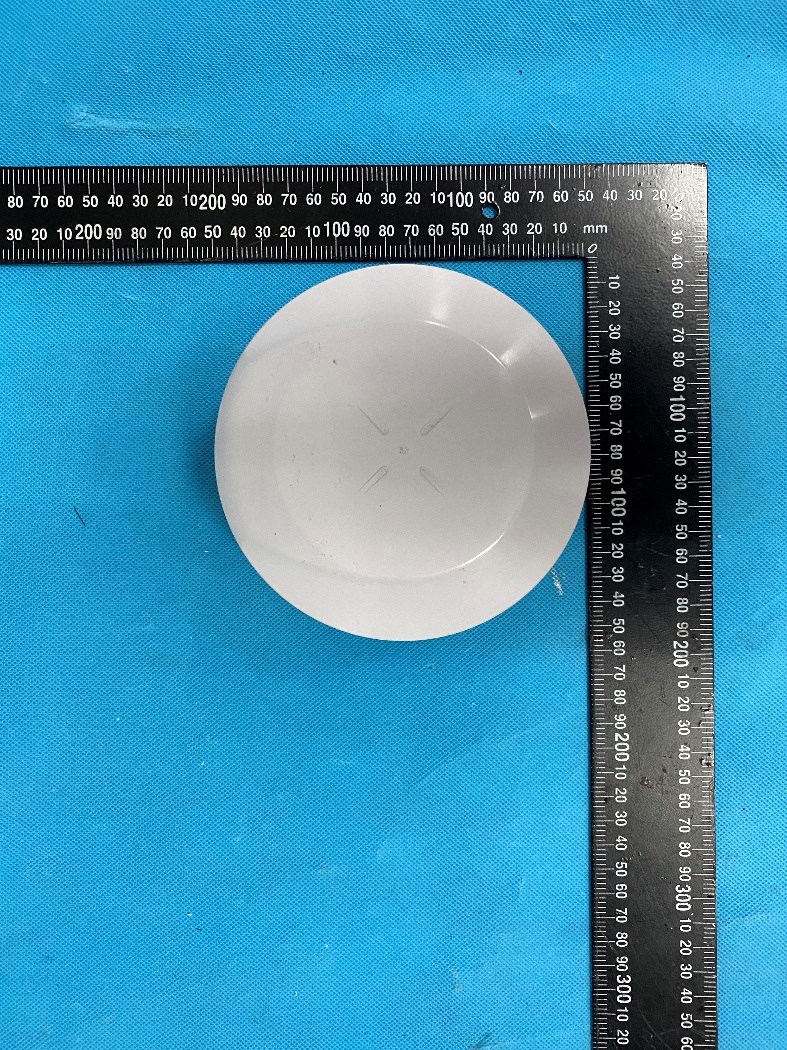

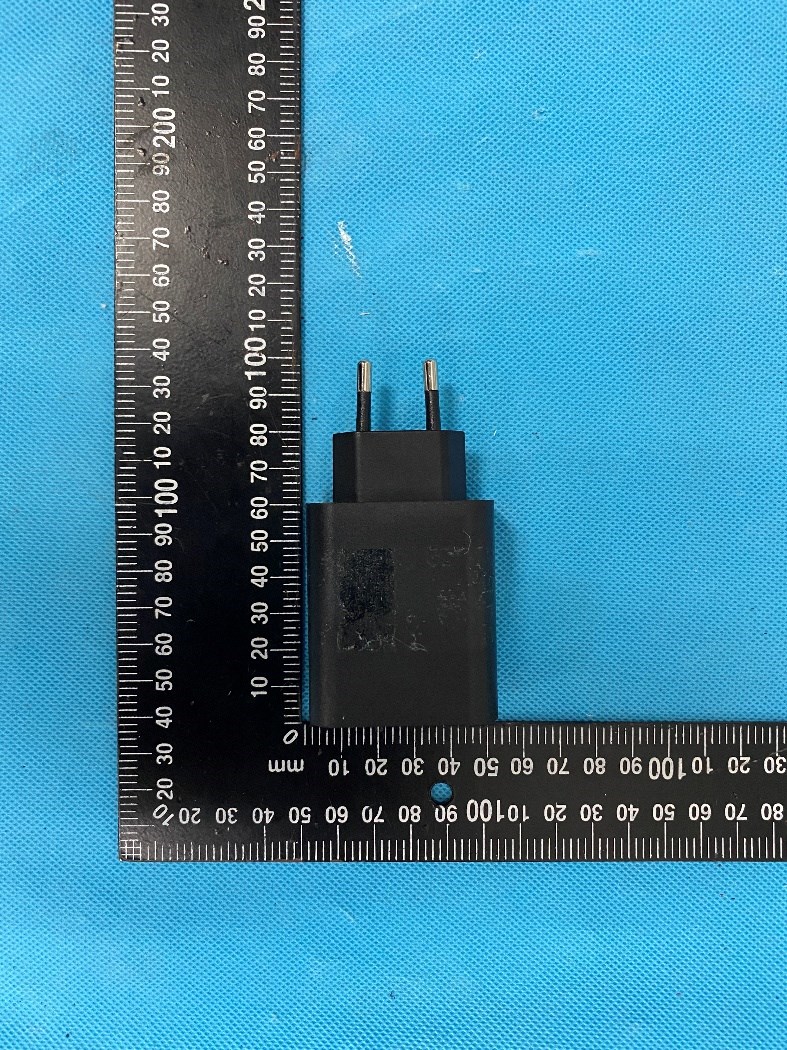

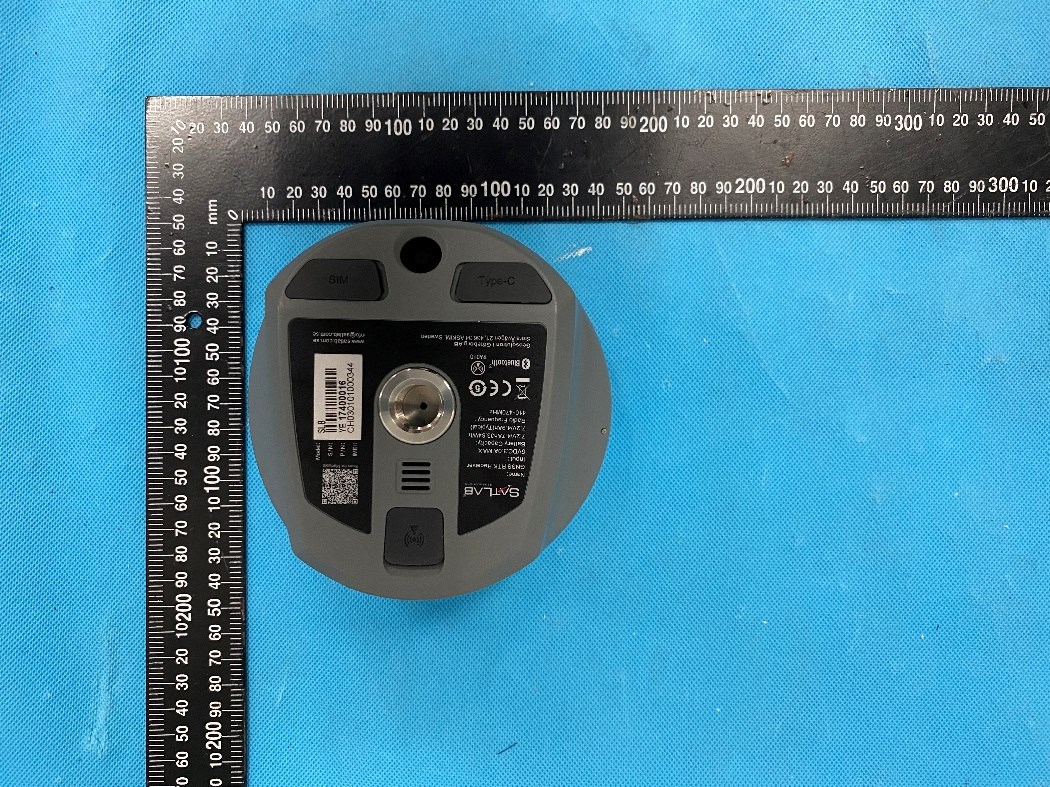

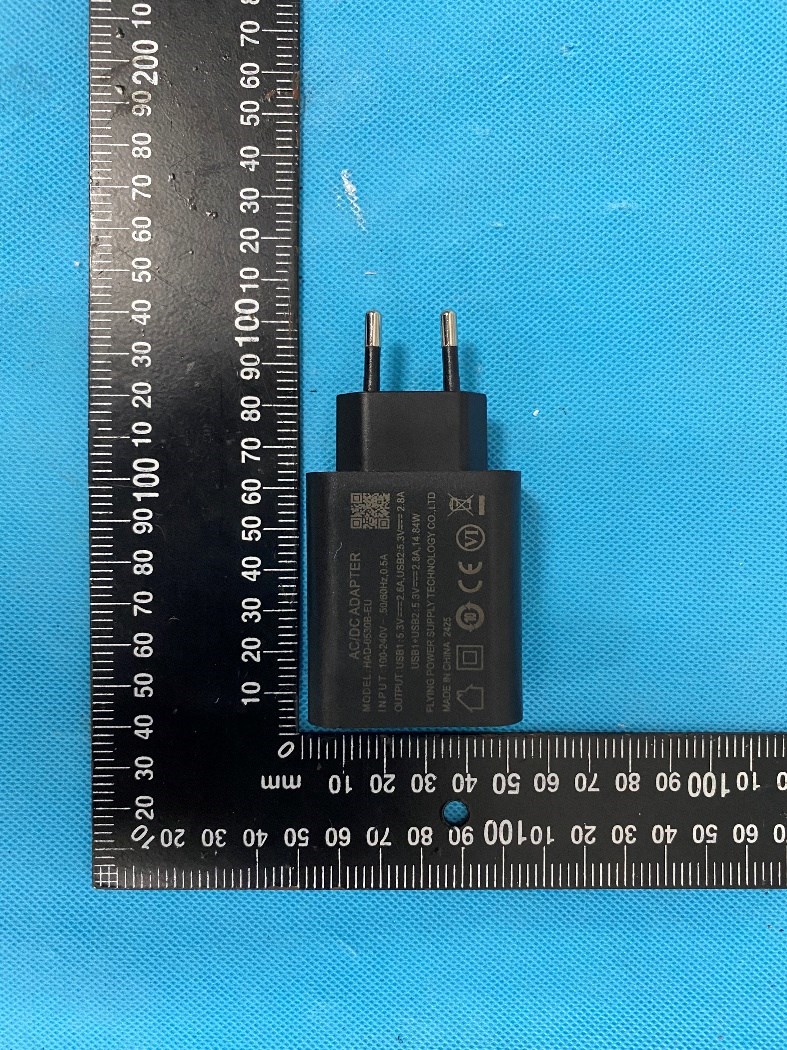

AJYSL8GNSS RTK Receiver

SL8 GNSS RTK System User Manual I SL8 GNSS RTK System User Manual SL8 GNSS RTK System User Manual II Manual Revision Geosolution i Goteborg AB Revision Date Revision Level Description August 2025 1 SL8 GNSS RTK System User Manual SL8 GNSS RTK System User Manual III Preface Introduction Welcome to the user manual for the SL8. This manual applies to SL8 and provides instructions on how to set up and operate these devices. Please note that the images, icons, and other illustrations shown in this manual may differ from the actual product. Always refer to the physical product for accurate reference. Experience requirement To ensure optimal use of the SL8, it is recommended to read this manual carefully before operation. If you are not yet familiar with the SL8, please visit SatLab official website: https://www.satlab.com.se/ Tips for safe use Notice: These are special operations and need your special attention. Please read them carefully. Caution: The contents here are very important as the wrong operation may damage the machine. This can lead to the loss of data, or break the system and endanger your safety. SL8 GNSS RTK System User Manual IV Exclusions Before using the product, please read these operating instructions carefully, as they will help you to use it better. GeoSolution i Göteborg AB assumes no responsibility if you fail to operate the product according to the instructions or operate it wrongly because you have misunderstood them. SatLab is committed to constantly perfecting the product’s functions and performance, improving its service quality and reserves the right to change these operating instructions without notice. We have checked the contents of the instructions and software and hardware but please note the possibility of deviation. The pictures in the operating instructions are for reference only and the actual products may vary from them. Technology and service If you have any technical issues, please call the SatLab technology department for help, and we will answer your question. Relevant information You can obtain this introduction by: Purchasing SatLab products: this manual is found in the instrument container and will help you to operate the instrument. Logging on to the SatLab official website and downloading the electronic version of this introduction from Partner Center: http://members.SatLab.com.cn/ SL8 GNSS RTK System User Manual V Advice If you have any suggestions for this product, please email us: [email protected]. Your feedback information will help us to improve our product and service. SL8 GNSS RTK System User Manual VI Contents Preface ..................................................................................... III Overview..................................................................................... 7 Foreword ................................................................................... 8 Features..................................................................................... 8 Use and Precautions .................................................................... 9 Product Introduction ................................................................. 10 Appearance and Interfaces ..................................................... 11 Buttons and Indicators ............................................................ 12 WEB management system ......................................................... 14 WEB management system ....................................................... 15 Main menu ............................................................................... 15 Information view ..................................................................... 18 Working mode ......................................................................... 20 Document management ........................................................... 22 Firmware management ............................................................ 22 System Settings ....................................................................... 23 coordinate system .................................................................... 26 SL8 GNSS RTK System User Manual VII Static survey .............................................................................. 29 Static survey ............................................................................ 30 Static data collection steps ....................................................... 30 Static Data Download .............................................................. 31 Dynamic RTK Surveying ............................................................. 33 Base Station Setup ................................................................... 34 Rover Station Setup ................................................................. 35 Tilt Survey ................................................................................. 37 Tilt Survey Initialization .......................................................... 38 Firmware Upgrade .................................................................... 40 Firmware Upgrade ................................................................... 41 Upgrade by USB Cable ............................................................ 41 Upgrade by Using the Web Management System..................... 41 Remote online firmware upgrade ............................................. 42 Image Measurement ................................................................. 43 Image Survey ........................................................................... 44 Device Preparation .................................................................. 44 Manual Shooting Process ......................................................... 44 SL8 GNSS RTK System User Manual VIII Automatic Shooting Process .................................................... 45 Modeling Mode ....................................................................... 45 Image Saving ................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 1 of 5 Appendix - Test Setup Photos for GZCR250700106407 & 08 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 2 of 5 Test Setup Photo RF Conducted Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 3 of 5 Radiated Spurious Emissions Below 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 5 of 5 Radiated Spurious Emissions Above 1GHz, Field strength of spurious radiation. - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106408 Page: 1 of 19 FCC ID: AJYSL9 TEST REPORT Application No.: GZCR2507001064AT Applicant:Geosolution i Goteborg AB Address of Applicant: Stora Avagen 21, 436 34 ASKIM, Sweden Manufacturer:Geosolution i Goteborg AB Address of Manufacturer:Stora Avagen 21, 436 34 ASKIM, Sweden Factory:Geosolution i Goteborg AB Address of Factory:Stora Avagen 21, 436 34 ASKIM, Sweden Product Name:GNSS RTK Receiver Model No.: SL8 Trade Mark: Standard(s) : 47 CFR Part 2 47 CFR Part 27 Date of Receipt: 2025-07-15 Date of Test: 2025-08-12 to 2025-08-15 Date of Issue: 2025-08-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106408 Page: 2 of 19 Revision Record VersionReport No.DateRemark 01GZCR2507001064082025-08-16Original Authorized for issue by: Key Liang/Project Engineer Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106408 Page: 3 of 19 2Test Summary LTE Band 7 Test Item FCC Rule No. RequirementsVerdict Effective (Isotropic) Radiated Power Output Data §2.1046 §27.50(h) EIRP≤2W PASS Peak-Average Ratio§27.50(d)(5)≤13dBPASS Bandwidth§2.1049 OBW: No limit EBW: No limit PASS Band Edge Compliance §2.1051 §27.53(m)(4) PASS Spurious emissions at antenna terminals §2.1051 §27.53(m)(4) PASS Field strength of spurious radiation §2.1051 §27.53(m)(4) For mobile digital stations, the attenuation factor shall be not less than 40 + 10 log (P) dB on all frequencies between the channel edge and 5 megahertz from the channel edge, 43 + 10 log (P) dB on all frequencies between 5 megahertz and X megahertz from the channel edge, and 55 + 10 log (P) dB on all frequencies more than X megahertz from the channel edge, where X is the greater of 6 megahertz or the actual emission bandwidth as defined in paragraph (m)(6) of this section. In addition, the attenuation factor shall not be less that 43 + 10 log (P) dB on all frequencies between 2490.5 MHz and 2496 MHz and 55 + 10 log (P) dB at or below 2490.5 MHz. PASS Frequency stability §2.1055 §27.54 The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. PASS Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106408 Page: 4 of 19 3Contents Page 1Cover Page...............................................................................................................................................1 2Test Summary..........................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................6 4.1Details of E.U.T.................................................................................................................................6 4.2Description of Support Units..............................................................................................................7 4.3Test Frequency..................................................................................................................................7 4.4Test Environment..............................................................................................................................7 4.5Measurement Uncertainty.................................................................................................................8 4.6Test Location.....................................................................................................................................8 4.7Test Facility.......................................................................................................................................9 4.8Deviation from Standards..................................................................................................................9 4.9Abnormalities from Standard Conditions...........................................................................................9 5Equipment List.......................................................................................................................................10 6Radio Spectrum Matter Test Results...................................................................................................12 6.1Effective (Isotropic) Radiated Power Output Data...........................................................................12 6.1.1E.U.T. Operation.........................................................................................................................12 6.1.2Test Mode Description................................................................................................................12 6.1.3Test Setup Diagram....................................................................................................................12 6.1.4Measurement Procedure and Data............................................................................................12 6.2Peak-Average Ratio........................................................................................................................13 6.2.1E.U.T. Operation.........................................................................................................................13 6.2.2Test Mode Description......................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106406 Page: 1 of 20 FCC ID: AJYSL8 TEST REPORT Application No.: GZCR2507001064AT Applicant:Geosolution i Goteborg AB Address of Applicant:Stora Avagen 21, 436 34 ASKIM, Sweden Manufacturer:Geosolution i Goteborg AB Address of Manufacturer:Stora Avagen 21, 436 34 ASKIM, Sweden Factory:Geosolution i Goteborg AB Address of Factory:Stora Avagen 21, 436 34 ASKIM, Sweden Product Name:GNSS RTK Receiver Model No.: SL8 Trade Mark: Standard(s) : 47 CFR Part 2 47 CFR Part 90 Date of Receipt: 2025-07-15 Date of Test: 2025-08-12 to 2025-08-15 Date of Issue: 2025-08-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106407 Page: 2 of 20 Revision Record VersionReport No.DateRemark 01GZCR2507001064072025-08-16Original Authorized for issue by: Tested By Key Liang/Project Engineer Approved By Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106407 Page: 3 of 20 2Test Summary Radio Spectrum Matter Part Test Item FCC Rule No. Verdict Effective Radiated Power (ERP) Output Data §2.1046 §90.205 PASS Modulation Characteristics §2.1047 §90.207 N/A Note1 Occupied Bandwidth & Emission Mask §2.1049 §90.209 §90.210 PASS Transient Frequency Behavior§90.214PASS Spurious emissions at antenna terminals §2.1053 §90.210 PASS Field strength of spurious radiation §2.1053 §90.210 PASS Frequency stability §2.1055 §90.213 PASS Adjacent Channel Power(ACP)§90.221N/A Note2 Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. N/A Note1 : The EUT is used in digital modulation. N/A Note2 : Authorized bandwidth (kHz) < 20 kHz. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106407 Page: 4 of 20 3Contents Page 1Cover Page.................................................................................................................................................1 2Test Summary............................................................................................................................................3 3Contents.....................................................................................................................................................4 4General Information...................................................................................................................................6 4.1Details of E.U.T...................................................................................................................................6 4.2Description of Support Units................................................................................................................6 4.3Test Frequency...................................................................................................................................6 4.4Test Environment................................................................................................................................7 4.5Measurement Uncertainty...................................................................................................................7 4.6Test Location.......................................................................................................................................7 4.7Test Facility.........................................................................................................................................8 4.8Deviation from Standards....................................................................................................................8 4.9Abnormalities from Standard Conditions.............................................................................................8 5Equipment List...........................................................................................................................................9 6Radio Spectrum Matter Test Results.....................................................................................................10 6.1Effective Radiated Power (ERP) Output Data...................................................................................10 6.1.1E.U.T. Operation...........................................................................................................................10 6.1.2Test Mode Description..................................................................................................................10 6.1.3Test Setup Diagram......................................................................................................................10 6.1.4Measurement Procedure and Data..............................................................................................10 6.2Occupied Bandwidth & Emission Mask.............................................................................................11 6.2.1E.U.T. Operation...........................................................................................................................11 6.2.2Test Mode Description..................................................................................................................11 6.2.3Test Setup Diagram......................................................................................................................11 6.2.4Measurement Procedure and Data..............................................................................................11 6.3Transient Frequency Behavior..........................................................................................................12 6.3.1E.U.T. Operation...........................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 48 Appendix Test Data for report GZCR250700106408 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 2 of 48 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B7_5MHz_EIRP Band: 7 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2502.5 1 0 23.47 0.500 23.97 <=33.01 Pass 13 23.37 0.500 23.87 <=33.01 Pass 24 23.37 0.500 23.87 <=33.01 Pass 12 0 23.41 0.500 23.91 <=33.01 Pass 6 23.23 0.500 23.73 <=33.01 Pass 13 23.33 0.500 23.83 <=33.01 Pass 25 0 23.33 0.500 23.83 <=33.01 Pass 2535 1 0 23.44 0.500 23.94 <=33.01 Pass 13 23.28 0.500 23.78 <=33.01 Pass 24 23.39 0.500 23.89 <=33.01 Pass 12 0 23.3 0.500 23.80 <=33.01 Pass 6 23.21 0.500 23.71 <=33.01 Pass 13 23.28 0.500 23.78 <=33.01 Pass 25 0 23.35 0.500 23.85 <=33.01 Pass 2567.5 1 0 23.41 0.500 23.91 <=33.01 Pass 13 23.39 0.500 23.89 <=33.01 Pass 24 23.36 0.500 23.86 <=33.01 Pass 12 0 23.34 0.500 23.84 <=33.01 Pass 6 23.22 0.500 23.72 <=33.01 Pass 13 23.33 0.500 23.83 <=33.01 Pass 25 0 23.43 0.500 23.93 <=33.01 Pass 16QAM 2502.5 1 0 23.46 0.500 23.96 <=33.01 Pass 13 23.42 0.500 23.92 <=33.01 Pass 24 23.73 0.500 24.23 <=33.01 Pass 12 0 23.37 0.500 23.87 <=33.01 Pass 6 23.32 0.500 23.82 <=33.01 Pass 13 23.37 0.500 23.87 <=33.01 Pass 25 0 23.45 0.500 23.95 <=33.01 Pass 2535 1 0 23.67 0.500 24.17 <=33.01 Pass 13 23.26 0.500 23.76 <=33.01 Pass 24 23.54 0.500 24.04 <=33.01 Pass 12 0 23.42 0.500 23.92 <=33.01 Pass 6 23.36 0.500 23.86 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 3 of 48 13 23.32 0.500 23.82 <=33.01 Pass 25 0 23.28 0.500 23.78 <=33.01 Pass 2567.5 1 0 23.63 0.500 24.13 <=33.01 Pass 13 23.59 0.500 24.09 <=33.01 Pass 24 23.52 0.500 24.02 <=33.01 Pass 12 0 23.51 0.500 24.01 <=33.01 Pass 6 22.38 0.500 22.88 <=33.01 Pass 13 22.28 0.500 22.78 <=33.01 Pass 25 0 22.42 0.500 22.92 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.2 B7_10MHz_EIRP Band: 7 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2505 1 0 23.45 0.500 23.95 <=33.01 Pass 25 23.31 0.500 23.81 <=33.01 Pass 49 23.38 0.500 23.88 <=33.01 Pass 25 0 23.36 0.500 23.86 <=33.01 Pass 13 23.31 0.500 23.81 <=33.01 Pass 25 23.34 0.500 23.84 <=33.01 Pass 50 0 23.36 0.500 23.86 <=33.01 Pass 2535 1 0 23.56 0.500 24.06 <=33.01 Pass 25 23.34 0.500 23.84 <=33.01 Pass 49 23.41 0.500 23.91 <=33.01 Pass 25 0 23.38 0.500 23.88 <=33.01 Pass 13 23.27 0.500 23.77 <=33.01 Pass 25 23.35 0.500 23.85 <=33.01 Pass 50 0 23.29 0.500 23.79 <=33.01 Pass 2565 1 0 23.44 0.500 23.94 <=33.01 Pass 25 23.32 0.500 23.82 <=33.01 Pass 49 23.44 0.500 23.94 <=33.01 Pass 25 0 23.46 0.500 23.96 <=33.01 Pass 13 23.32 0.500 23.82 <=33.01 Pass 25 23.37 0.500 23.87 <=33.01 Pass 50 0 23.35 0.500 23.85 <=33.01 Pass 16QAM 2505 1 0 23.59 0.500 24.09 <=33.01 Pass 25 23.54 0.500 24.04 <=33.01 Pass 49 23.23 0.500 23.73 <=33.01 Pass 25 0 23.36 0.500 23.86 <=33.01 Pass 13 23.28 0.500 23.78 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 4 of 48 25 23.26 0.500 23.76 <=33.01 Pass 50 0 23.41 0.500 23.91 <=33.01 Pass 2535 1 0 23.67 0.500 24.17 <=33.01 Pass 25 23.33 0.500 23.83 <=33.01 Pass 49 23.54 0.500 24.04 <=33.01 Pass 25 0 23.38 0.500 23.88 <=33.01 Pass 13 23.33 0.500 23.83 <=33.01 Pass 25 23.36 0.500 23.86 <=33.01 Pass 50 0 23.36 0.500 23.86 <=33.01 Pass 2565 1 0 23.66 0.500 24.16 <=33.01 Pass 25 23.25 0.500 23.75 <=33.01 Pass 49 23.51 0.500 24.01 <=33.01 Pass 25 0 23.22 0.500 23.72 <=33.01 Pass 13 23.41 0.500 23.91 <=33.01 Pass 25 23.39 0.500 23.89 <=33.01 Pass 50 0 23.43 0.500 23.93 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.3 B7_15MHz_EIRP Band: 7 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2507.5 1 0 23.47 0.500 23.97 <=33.01 Pass 38 23.26 0.500 23.76 <=33.01 Pass 74 23.32 0.500 23.82 <=33.01 Pass 36 0 22.36 0.500 22.86 <=33.01 Pass 18 22.19 0.500 22.69 <=33.01 Pass 39 22.24 0.500 22.74 <=33.01 Pass 75 0 22.25 0.500 22.75 <=33.01 Pass 2535 1 0 23.46 0.500 23.96 <=33.01 Pass 38 23.31 0.500 23.81 <=33.01 Pass 74 23.48 0.500 23.98 <=33.01 Pass 36 0 22.33 0.500 22.83 <=33.01 Pass 18 22.22 0.500 22.72 <=33.01 Pass 39 22.26 0.500 22.76 <=33.01 Pass 75 0 22.28 0.500 22.78 <=33.01 Pass 2562.5 1 0 22.64 0.500 23.14 <=33.01 Pass 38 22.74 0.500 23.24 <=33.01 Pass 74 23.27 0.500 23.77 <=33.01 Pass 36 0 22.42 0.500 22.92 <=33.01 Pass 18 22.63 0.500 23.13 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 5 of 48 39 22.34 0.500 22.84 <=33.01 Pass 75 0 22.39 0.500 22.89 <=33.01 Pass 16QAM 2507.5 1 0 22.71 0.500 23.21 <=33.01 Pass 38 22.57 0.500 23.07 <=33.01 Pass 74 22.61 0.500 23.11 <=33.01 Pass 36 0 22.39 0.500 22.89 <=33.01 Pass 18 22.28 0.500 22.78 <=33.01 Pass 39 22.28 0.500 22.78 <=33.01 Pass 75 0 22.29 0.500 22.79 <=33.01 Pass 2535 1 0 22.76 0.500 23.26 <=33.01 Pass 38 22.63 0.500 23.13 <=33.01 Pass 74 22.43 0.500 22.93 <=33.01 Pass 36 0 22.36 0.500 22.86 <=33.01 Pass 18 22.35 0.500 22.85 <=33.01 Pass 39 22.43 0.500 22.93 <=33.01 Pass 75 0 22.37 0.500 22.87 <=33.01 Pass 2562.5 1 0 22.86 0.500 23.36 <=33.01 Pass 38 22.53 0.500 23.03 <=33.01 Pass 74 22.74 0.500 23.24 <=33.01 Pass 36 0 22.56 0.500 23.06 <=33.01 Pass 18 22.39 0.500 22.89 <=33.01 Pass 39 22.45 0.500 22.95 <=33.01 Pass 75 0 22.44 0.500 22.94 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain 1.1.4 B7_20MHz_EIRP Band: 7 / Bandwidth: 20MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2510 1 0 23.42 0.500 23.92 <=33.01 Pass 50 23.31 0.500 23.81 <=33.01 Pass 9…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 23 Appendix Test Data for report GZCR250700106407 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 2 of 23 1. Effective Radiated Power (ERP) Output Data 1.1 Test Result Conducted Power (dBm) Maximum ERP (dBm) Note1 Modulation Mode Channel Separation (kHz) Test Channel High Power Level Middle Power Level Low Power Level Gain (dBi) High Power Level Middle Power Level Low Power Level Verdict 12.5L30.6528.3725.423.031.50 29.2226.27Pass 12.5M30.7828.2325.373.031.63 29.0826.22Pass 12.5H30.8628.3525.393.031.71 29.226.24Pass 25L30.6928.2725.413.031.54 29.1226.26Pass 25M30.6728.3225.343.031.52 29.1726.19Pass 4FSK 25H30.8928.2725.383.031.74 29.1226.23Pass 12.5L30.7228.3825.373.031.57 29.2326.22Pass 12.5M30.7428.3325.343.031.59 29.1826.19Pass 12.5H30.8128.4125.313.031.66 29.2626.16Pass 25L30.6928.3925.293.031.54 29.2426.14Pass 25M30.6528.2325.323.031.50 29.0826.17Pass GMSK 25H30.7128.2625.413.031.56 29.1126.26Pass Note1: ERP=Conducted Power + Antenna Gain - 2.15 dB According to part 90.205 (s), the limit is as below: Rated high power: 2W (33 dBm) Rated middle power: 1W (30 dBm) Rated Low power: 0.5W (27 dBm) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 3 of 23 2. Frequency Stability 2.1 Test Result Middle Channel, High Power Freq. vs. Rated (ppm) Channel Separation (kHz) Temp. (°C) Voltage Freq. Error (Hz) ResultLimit Verdict LV-0.900-0.0020 -2.5 to 2.5Pass NV-1.090-0.0055 -2.5 to 2.5Pass 20 HV-2.800-0.0109 -2.5 to 2.5Pass -30NV2.1000.0025 -2.5 to 2.5Pass -20NV3.3000.0052 -2.5 to 2.5Pass -10NV-2.700-0.0130 -2.5 to 2.5Pass 0NV1.800-0.0111 -2.5 to 2.5Pass 10NV-2.600-0.0059 -2.5 to 2.5Pass 30NV3.900-0.0111 -2.5 to 2.5Pass 40NV4.100-0.0152 -2.5 to 2.5Pass 12.5 50NV6.400-0.0170 -2.5 to 2.5Pass LV-2.500-0.0043 -5 to 5Pass NV-4.800-0.0100 -5 to 5Pass 20 HV4.200-0.0118 -5 to 5Pass -30NV3.7000.0080 -5 to 5Pass -20NV2.9000.0064 -5 to 5Pass -10NV-5.500-0.0102 -5 to 5Pass 0NV-1.300-0.0052 -5 to 5Pass 10NV-2.300-0.0052 -5 to 5Pass 30NV2.500-0.0039 -5 to 5Pass 40NV5.200-0.0066 -5 to 5Pass 25 50NV7.700-0.0080 -5 to 5Pass Note: (1) Parts per million (ppm) is obtained as the difference from the reference frequency (in Hz) divided by the reference frequency (in MHz). (2) All modes have been tested and we only record the worst test result. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 4 of 23 3. Occupied Bandwidth & Emission Mask 3.1 Test Result Modulation Channel Separation (kHz) Test Channel Power Level 99% Occupied Bandwidth (kHz) 26 dB Occupied Bandwidth (kHz) Authorized bandwidth (kHz) Verdict 12.5LHigh5.9477.947< 11.25Pass 12.5MHigh6.2018.718< 11.25Pass 12.5HHigh6.0338.577< 11.25Pass 25LHigh11.95715.79< 20Pass 25MHigh12.48417.79< 20Pass 4FSK 25HHigh11.87216.16< 20Pass 12.5LHigh4.9536.236< 11.25Pass 12.5MHigh4.9816.270< 11.25Pass 12.5HHigh4.9926.203< 11.25Pass 25LHigh10.02812.42< 20Pass 25MHigh9.97912.60< 20Pass GMSK 25HHigh9.92912.48< 20Pass Note: (1) Only record the worst test result. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 5 of 23 3.2 Test Graph 3.2.1 OBW & XDB 4FSK_12.5kHz_LCH 4FSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 6 of 23 4FSK_12.5kHz_HCH 4FSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 7 of 23 4FSK_25kHz_MCH 4FSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 8 of 23 GMSK_12.5kHz_LCH GMSK _12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 9 of 23 GMSK _12.5kHz_HCH GMSK _25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 10 of 23 GMSK _25kHz_MCH GMSK _25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 11 of 23 3.2.2 Emission Mask 4FSK_12.5kHz_LCH 4FSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 12 of 23 4FSK_12.5kHz_HCH 4FSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 13 of 23 4FSK_25kHz_MCH 4FSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 14 of 23 GMSK_12.5kHz_LCH GMSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 15 of 23 GMSK_12.5kHz_HCH GMSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 16 of 23 GMSK_25kHz_MCH GMSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 17 of 23 4. Spurious emissions at antenna terminals 4.1 Test Result LCH_12.5 kHz LCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 18 of 23 MCH_12.5 kHz MCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 19 of 23 HCH_12.5 kHz HCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.…

Text truncated - open the document above for the full version.
