AJYSL9GNSS RTK Receiver

SL9 GNSS RTK System User Manual www.satlab.com.se 54 Figure 4-2-10 Figure 4-2-11 Figure 4-2-12 Figure 4-2-13 Figure 4-2-14 Figure 4-2-15 SL9 GNSS RTK System User Manual www.satlab.com.se 55 Figure 4-2-16 Figure 4-2-17 Notice: If you have entered SLAM-RTK mode, you can directly enter SLAM image measurement mode without initialization again. 1. SLAM image measurement precautions: ⚫ The location of the puncture point should not be at the edge of the image, because the image is distorted, and the distortion in the edge part is larger, which will affect the accuracy. ⚫ In the 5-10s near the moment of taking a photo, there should be no dynamic objects, such as pedestrians and vehicles, between the camera and the real location of the puncture point. Otherwise, there will be a point cloud of dynamic objects in the map construction, resulting in the puncture point hitting dynamic objects. (Avoid multiple values in the direction of depth search). ⚫ Please do not choose objects with low reflectivity, transparency or light absorption where the puncture point is located. Common objects such as glass, liquid, smooth water surface, mirror and asphalt ground. ⚫ If the puncture point is far away, it is best to stay for about 5s first, so that the LiDar can fully scan the object of the required puncture point before taking a photo of the puncture point. Otherwise, the puncture point object is too sparse, which will affect the puncture point accuracy. SL9 GNSS RTK System User Manual www.satlab.com.se 56 ⚫ Auxiliary points should be selected on the side that is more continuous in depth. ⚫ Sufficient initialization can improve the accuracy of image measurement. 4.3 SLAM After connecting to a host supporting SLAM function by WiFi, you can enter the function interface to create 3d point cloud data of tasks scanning nearby objects, and display or operate the point cloud data. 4.3.1 Task management After entering the SLAM function, a list of point cloud data tasks will be displayed. Click "Start", input the task information and click "OK". The task is created successfully, and then jump to the scanning point cloud interface. Click the shooting button to start scanning the point cloud data of ground objects. Figure 4-3-1 Figure 4-3-2 SL9 GNSS RTK System User Manual www.satlab.com.se 57 Figure 4-3-3 Figure 4-3-4 Figure 4-3-5 The small window in the upper right corner displays the front camera of the host by default. Click the bottom switch button to switch the three camera images on the left, middle and right of the host. When clicking the small window image, the camera image can be exchanged with the point cloud data display image. There is also a shrink button in the upper right corner of the small window, which can hide or unfold the small window. SL9 GNSS RTK System User Manual www.satlab.com.se 58 Figure 4-3-6 [Height configuration] The height configuration entrance is above the small window, or you can click the collection button to configure. Figure 4-3-7 Figure 4-3-8 SL9 GNSS RTK System User Manual www.satlab.com.se 59 Figure 4-3-9 Figure 4-3-10 The left toolbar contains the following functions: [Center/free] When switching to center, swipe the screen with your finger to rotate the point cloud data with the current position as the fixed point; when switching to free, swipe the screen with two fingers to move the point cloud data as a whole, and swipe the screen with one finger to rotate the point cloud data. [Panoramic] Zoom the point cloud data to display all of it on the screen, centered on the current position. [Point library] Click to jump to the SLAM point library of the point data. [Color] Click the color button to select different point cloud display modes, including color, elevation, and intensity. SL9 GNSS RTK System User Manual www.satlab.com.se 60 Figure 4-3-11 Figure 4-3-12 [View] Click the view button to select different view directions to display point cloud data, including front view, top view and left view. (Note: The view takes the laser scanning direction of the host as the positive direction) Figure 4-3-13 Figure 4-3-14 SL9 GNSS RTK System User Manual www.satlab.com.se 61 After clicking the 'Scan' button to finish the scanning, click the 'Earthwork' button. Click 'Confirm' to start the earthwork calculation. Once the relevant buttons for earthwork calculation are displayed, click the 'Select Range' button to display a movable pointer. Move the pointer to select the vertices of the earthwork range and click the 'Select Point' button to confirm the selection. After selecting the range, slide the elevation slider on the right to adjust the lowest point (which will serve as the reference elevation surface for the earthwork calculation). Then, click 'Calculation Results' to switch to the calculation result interface, where you can export the results. Figure 4-3-15 Figure 4-3-16 Figure 4-3-17 SL9 GNSS RTK System User Manual www.satlab.com.se 62 Figure 4-3-18 Figure 4-3-19 Figure 4-3-20 [Replace battery] Click the replace battery button, click OK, and complete the battery replacement within 30s countdown. Figure 4-3-21 Figure 4-3-22 SL9 GNSS RTK System User Manual www.satlab.com.se 63 Figure 4-3-23 Figure 4-3-24 4.3.2 Project management After the host creates a task in the project, it will be uploaded to the host. Click the "Management" button in the upper right corner of the task list interface to enter the host project management interface for viewing. SL9 GNSS RTK System User Manual www.satlab.com.se 64 Figure 4-3-25 Figure 4-3-26 [Display mode] Click to switch the display mode of project information. Figure 4-3-27 Figure 4-3-28 The software displays projects in descending order of usage time by default. When users click the sort button, a pop-up window appears offering options to sort by name ascending, descending, usage time ascending, or descending. Users can select their preferred sorting method from this window to organize the projects. SL9 GNSS RTK System User Manual www.satlab.com.se …

Text truncated - open the document above for the full version.

SL9 SLAM RTK User Manual www.satlab.com.se 1 SL9 SLAM RTK User Manual SL9 SLAM RTK User Manual www.satlab.com.se 2 Manual Revision SatLab GEOSOLUTIONS AB Revision Date Revision Level Description May 2025 1 SL9 SLAM RTK product manual V1.0 SL9 SLAM RTK User Manual www.satlab.com.se 3 SL9 SLAM RTK User Manual SL9 SLAM RTK User Manual www.satlab.com.se 4 Preface Introduction Welcome to the SatLab SL9 receiver. This introduction describes how to use this product. Experience requirement To help you use the SatLab products better, SatLab suggests that you read the instructions carefully. If you are unfamiliar with the products, please refer to https://www.satlab.com.se/ Tips for safe use Exclusions Before using the product, please read these operating instructions carefully, as they will help you to use it better. GeoSolution i Gö teborg AB assumes no responsibility if you fail to operate the product according to the instructions or operate it wrongly because you have misunderstood them. SatLab is committed to constantly perfecting the product’s functions and performance, improving its service quality and reserves the right to change these operating instructions without notice. We have checked the contents of the instructions and software and hardware but please note the possibility of deviation. The pictures in the operating instructions are for reference only and the actual products may vary from them. Technology and service If you have any technical issues, please call the SatLab technology department for help, and we will answer your question. Relevant information You can obtain this introduction by: Notice: These are special operations and need your special attention. Please read them carefully. Warning: The contents here are very important as the wrong operation may damage the machine. This can lead to the loss of data, or break the system and endanger your safety. SL9 SLAM RTK User Manual www.satlab.com.se 5 Purchasing SatLab products: this manual is found in the instrument container and will help you to operate the instrument. Logging on to the SatLab official website and downloading the electronic version of this introduction from Partner Center: http://members.satlab.com.se/ Advice If you have any suggestions for this product, please email us: [email protected]. Your feedback information will help us to improve our product and service. SL9 SLAM RTK User Manual www.satlab.com.se 6 Preface ....................................................................................................................................................................4 Introduction ............................................................................................................................................................4 Experience requirement .......................................................................................................................................4 Tips for safe use .....................................................................................................................................................4 Exclusions ................................................................................................................................................................4 Technology and service ........................................................................................................................................4 Relevant information .........................................................................................................................................4 Advice ..................................................................................................................................................................5 ...................................................................................................................................................................6 Chapter 1 .........................................................................................................................................................9 Overview .....................................................................................................................................................9 1.1 Foreword ................................................................................................................................................... 10 1.2 Features ..................................................................................................................................................... 10 1.3 Use and precautions ................................................................................................................................ 10 Chapter 2..................................................................................................................................................... 13 Product introduction ............................................................................................................................................. 13 2.1 Overall appearance ................................................................................................................................. 14 2.1.1 Structure ............................................................................................................................................... 14 2.2 Basic functions .......................................................................................................................................... 15 2.2.1 Battery installation ............................................................................................................................... 15 2.2.2 Battery disassembly .............................................................................................................................. 16 2.2.3 Key function ...................................................................................................................…

Text truncated - open the document above for the full version.

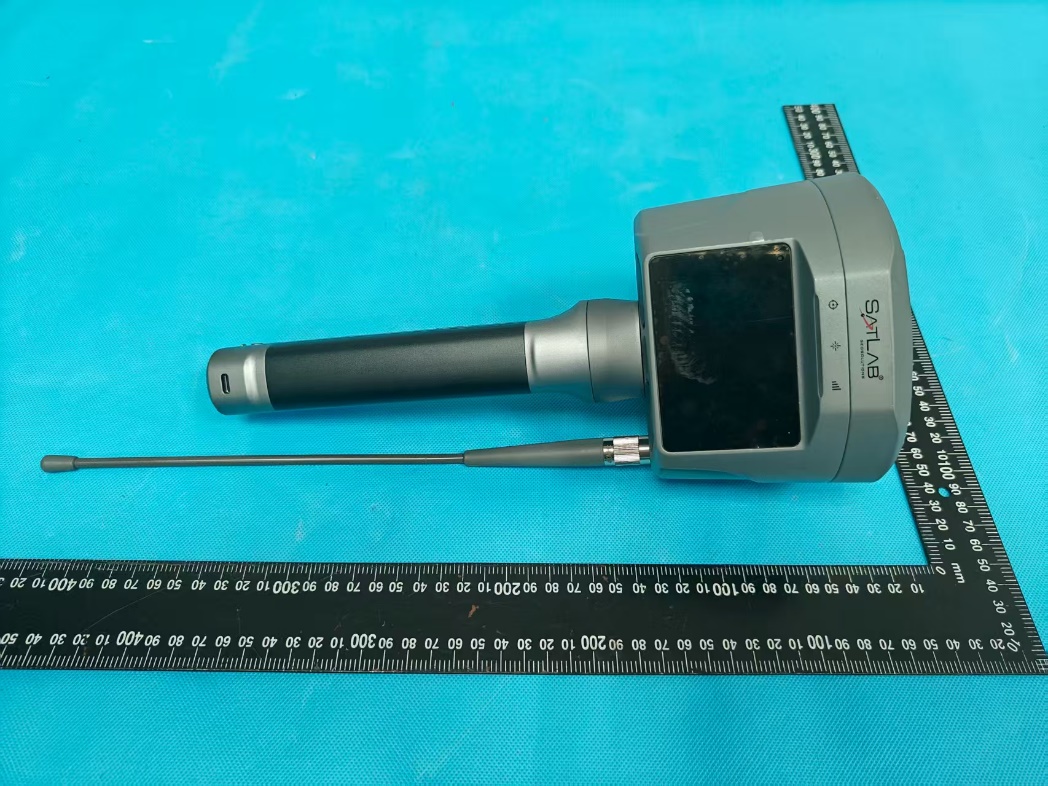

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 1 of 11 Appendix Internal Photos for GZCR2507001065AT Test Model: SL9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 2 of 11 EUT Constructional Details (EUT Photos) Radio ANT SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 3 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 4 of 11 LTE/GPS Rx/Wi- Fi/BT ANT NFC Tag SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 5 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 6 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 7 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 8 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 9 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 10 of 11 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-03 Rev 1.1 Page: 11 of 11 - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 1 of 5 Appendix - Test Setup Photos for GZCR250700106507 & 08 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 2 of 5 Test Setup Photo RF Conducted Test Setup SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 3 of 5 Radiated Spurious Emissions Below 1GHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-04 Rev 1.1 Page: 5 of 5 Radiated Spurious Emissions Above 1GHz, Field strength of spurious radiation & Spurious Radiated Emissions - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 23 Appendix Test Data for report GZCR250700106507 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 2 of 23 1. Effective Radiated Power (ERP) Output Data 1.1 Test Result Conducted Power (dBm) Maximum ERP (dBm) Note1 Modulation Mode Channel Separation (kHz) Test Channel High Power Level Middle Power Level Low Power Level Gain (dBi) High Power Level Middle Power Level Low Power Level Verdict 12.5L31.7628.7425.853.032.61 29.5926.70Pass 12.5M31.8228.6825.873.032.67 29.5326.72Pass 12.5H31.7928.7225.863.032.64 29.5726.71Pass 25L31.7228.5625.853.032.57 29.4126.70Pass 25M31.7828.5925.783.032.63 29.4426.63Pass 4FSK 25H31.7728.7125.813.032.62 29.5626.66Pass 12.5L31.7728.6425.813.032.62 29.4926.66Pass 12.5M31.7828.6725.733.032.63 29.5226.58Pass 12.5H31.8128.6625.863.032.66 29.5126.71Pass 25L31.7528.6125.743.032.60 29.4626.59Pass 25M31.7928.5825.793.032.64 29.4326.64Pass GMSK 25H31.7728.5925.853.032.62 29.4426.70Pass Note1: ERP=Conducted Power + Antenna Gain - 2.15 dB According to part 90.205 (s), the limit is as below: Rated high power: 2W (33 dBm) Rated middle power: 1W (30 dBm) Rated Low power: 0.5W (27 dBm) SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 3 of 23 2. Frequency Stability 2.1 Test Result Middle Channel, High Power Freq. vs. Rated (ppm) Channel Separation (kHz) Temp. (°C) Voltage Freq. Error (Hz) ResultLimit Verdict LV-1.300-0.0030 -2.5 to 2.5Pass NV-2.400-0.0055 -2.5 to 2.5Pass 20 HV-4.800-0.0109 -2.5 to 2.5Pass -30NV1.1000.0025 -2.5 to 2.5Pass -20NV2.3000.0052 -2.5 to 2.5Pass -10NV-5.700-0.0130 -2.5 to 2.5Pass 0NV-4.900-0.0111 -2.5 to 2.5Pass 10NV-2.600-0.0059 -2.5 to 2.5Pass 30NV-4.900-0.0111 -2.5 to 2.5Pass 40NV-6.700-0.0152 -2.5 to 2.5Pass 12.5 50NV-7.500-0.0170 -2.5 to 2.5Pass LV-1.900-0.0043 -5 to 5Pass NV-4.400-0.0100 -5 to 5Pass 20 HV-5.200-0.0118 -5 to 5Pass -30NV3.5000.0080 -5 to 5Pass -20NV2.8000.0064 -5 to 5Pass -10NV-4.500-0.0102 -5 to 5Pass 0NV-2.300-0.0052 -5 to 5Pass 10NV-2.300-0.0052 -5 to 5Pass 30NV-1.700-0.0039 -5 to 5Pass 40NV-2.900-0.0066 -5 to 5Pass 25 50NV-3.500-0.0080 -5 to 5Pass Note: (1) Parts per million (ppm) is obtained as the difference from the reference frequency (in Hz) divided by the reference frequency (in MHz). (2) All modes have been tested and only record the worst test result. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 4 of 23 3. Occupied Bandwidth & Emission Mask 3.1 Test Result Modulation Channel Separation (kHz) Test Channel Power Level 99% Occupied Bandwidth (kHz) 26 dB Occupied Bandwidth (kHz) Authorized bandwidth (kHz) Verdict 12.5LHigh4.9416.160< 11.25Pass 12.5MHigh5.0176.081< 11.25Pass 12.5HHigh5.0026.195< 11.25Pass 25LHigh12.05317.23< 20Pass 25MHigh12.42617.55< 20Pass 4FSK 25HHigh12.00516.16< 20Pass 12.5LHigh4.9356.279< 11.25Pass 12.5MHigh4.9676.269< 11.25Pass 12.5HHigh4.9086.215< 11.25Pass 25LHigh9.94611.97< 20Pass 25MHigh9.99212.49< 20Pass GMSK 25HHigh9.95212.38< 20Pass Note: (1) Only record the worst test result. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 5 of 23 3.2 Test Graph 3.2.1 OBW & XDB 4FSK_12.5kHz_LCH 4FSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 6 of 23 4FSK_12.5kHz_HCH 4FSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 7 of 23 4FSK_25kHz_MCH 4FSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 8 of 23 GMSK_12.5kHz_LCH GMSK _12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 9 of 23 GMSK _12.5kHz_HCH GMSK _25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 10 of 23 GMSK _25kHz_MCH GMSK _25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 11 of 23 3.2.2 Emission Mask 4FSK_12.5kHz_LCH 4FSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 12 of 23 4FSK_12.5kHz_HCH 4FSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 13 of 23 4FSK_25kHz_MCH 4FSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 14 of 23 GMSK_12.5kHz_LCH GMSK_12.5kHz_MCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 15 of 23 GMSK_12.5kHz_HCH GMSK_25kHz_LCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 16 of 23 GMSK_25kHz_MCH GMSK_25kHz_HCH SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 17 of 23 4. Spurious emissions at antenna terminals 4.1 Test Result LCH_12.5 kHz LCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 18 of 23 MCH_12.5 kHz MCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 19 of 23 HCH_12.5 kHz HCH_12.5 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 20 of 23 LCH_25 kHz LCH_25 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 21 of 23 MCH_25 kHz MCH_25 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 22 of 23 HCH_25 kHz HCH_25 kHz SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 23 of 23 5. Transient Frequency Behavior 5.1 Test Result Channel Spacing (kHz)Time Intervals (ms)Maximum Frequency Difference (kHz)Result 10.0 (t1)±25.0Pass 25.0 (t2)±12.5Pass 25 10.0 (t3)±25.0Pass 10.0 (t1)±12.5Pass 25.0 (t2)±6.25Pass 12.5 10.0 (t3)±1 2.5Pass - End of the Appendix -

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-02 Rev 1.1 Page: 1 of 51 Appendix Test Data for report GZCR250700106508 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 2 of 51 1. Effective (Isotropic) Radiated Power Output Data 1.1 Test Result 1.1.1 B7_5MHz_EIRP Band: 7 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2502.5 1 0 23.41 0.50 23.91 <=33.01 Pass 13 23.40 0.50 23.90 <=33.01 Pass 24 23.43 0.50 23.93 <=33.01 Pass 12 0 22.37 0.50 22.87 <=33.01 Pass 6 22.30 0.50 22.80 <=33.01 Pass 13 22.30 0.50 22.80 <=33.01 Pass 25 0 22.39 0.50 22.89 <=33.01 Pass 2535 1 0 23.40 0.50 23.90 <=33.01 Pass 13 23.24 0.50 23.74 <=33.01 Pass 24 23.40 0.50 23.90 <=33.01 Pass 12 0 22.32 0.50 22.82 <=33.01 Pass 6 22.24 0.50 22.74 <=33.01 Pass 13 22.31 0.50 22.81 <=33.01 Pass 25 0 22.36 0.50 22.86 <=33.01 Pass 2567.5 1 0 23.40 0.50 23.90 <=33.01 Pass 13 23.34 0.50 23.84 <=33.01 Pass 24 23.40 0.50 23.90 <=33.01 Pass 12 0 22.34 0.50 22.84 <=33.01 Pass 6 22.24 0.50 22.74 <=33.01 Pass 13 22.33 0.50 22.83 <=33.01 Pass 25 0 22.40 0.50 22.90 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 3 of 51 Band: 7 / Bandwidth: 5MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit 16QAM 2502.5 1 0 22.62 0.50 23.12 <=33.01 Pass 13 22.56 0.50 23.06 <=33.01 Pass 24 22.52 0.50 23.02 <=33.01 Pass 12 0 21.43 0.50 21.93 <=33.01 Pass 6 21.40 0.50 21.90 <=33.01 Pass 13 21.41 0.50 21.91 <=33.01 Pass 25 0 21.46 0.50 21.96 <=33.01 Pass 2535 1 0 22.62 0.50 23.12 <=33.01 Pass 13 22.45 0.50 22.95 <=33.01 Pass 24 22.53 0.50 23.03 <=33.01 Pass 12 0 21.40 0.50 21.90 <=33.01 Pass 6 21.44 0.50 21.94 <=33.01 Pass 13 21.44 0.50 21.94 <=33.01 Pass 25 0 21.32 0.50 21.82 <=33.01 Pass 2567.5 1 0 22.64 0.50 23.14 <=33.01 Pass 13 22.41 0.50 22.91 <=33.01 Pass 24 22.46 0.50 22.96 <=33.01 Pass 12 0 21.48 0.50 21.98 <=33.01 Pass 6 21.33 0.50 21.83 <=33.01 Pass 13 21.42 0.50 21.92 <=33.01 Pass 25 0 21.45 0.50 21.95 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 4 of 51 1.1.2 B7_10MHz_EIRP Band: 7 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2505 1 0 23.39 0.50 23.89 <=33.01 Pass 25 23.33 0.50 23.83 <=33.01 Pass 49 23.35 0.50 23.85 <=33.01 Pass 25 0 22.40 0.50 22.90 <=33.01 Pass 13 22.34 0.50 22.84 <=33.01 Pass 25 22.34 0.50 22.84 <=33.01 Pass 50 0 22.34 0.50 22.84 <=33.01 Pass 2535 1 0 23.35 0.50 23.85 <=33.01 Pass 25 23.40 0.50 23.90 <=33.01 Pass 49 23.44 0.50 23.94 <=33.01 Pass 25 0 22.38 0.50 22.88 <=33.01 Pass 13 22.33 0.50 22.83 <=33.01 Pass 25 22.36 0.50 22.86 <=33.01 Pass 50 0 22.31 0.50 22.81 <=33.01 Pass 2565 1 0 23.38 0.50 23.88 <=33.01 Pass 25 23.36 0.50 23.86 <=33.01 Pass 49 23.38 0.50 23.88 <=33.01 Pass 25 0 22.50 0.50 23.00 <=33.01 Pass 13 22.38 0.50 22.88 <=33.01 Pass 25 22.38 0.50 22.88 <=33.01 Pass 50 0 22.41 0.50 22.91 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 5 of 51 Band: 7 / Bandwidth: 10MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit 16QAM 2505 1 0 22.56 0.50 23.06 <=33.01 Pass 25 22.41 0.50 22.91 <=33.01 Pass 49 22.54 0.50 23.04 <=33.01 Pass 25 0 21.37 0.50 21.87 <=33.01 Pass 13 21.30 0.50 21.80 <=33.01 Pass 25 21.27 0.50 21.77 <=33.01 Pass 50 0 21.40 0.50 21.90 <=33.01 Pass 2535 1 0 22.62 0.50 23.12 <=33.01 Pass 25 22.47 0.50 22.97 <=33.01 Pass 49 22.67 0.50 23.17 <=33.01 Pass 25 0 21.36 0.50 21.86 <=33.01 Pass 13 21.33 0.50 21.83 <=33.01 Pass 25 21.39 0.50 21.89 <=33.01 Pass 50 0 21.40 0.50 21.90 <=33.01 Pass 2565 1 0 22.80 0.50 23.30 <=33.01 Pass 25 22.40 0.50 22.90 <=33.01 Pass 49 22.20 0.50 22.70 <=33.01 Pass 25 0 21.33 0.50 21.83 <=33.01 Pass 13 21.25 0.50 21.75 <=33.01 Pass 25 21.26 0.50 21.76 <=33.01 Pass 50 0 21.39 0.50 21.89 <=33.01 Pass Note1: EIRP=Conducted Power+Antenna Gain SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 6 of 51 1.1.3 B7_15MHz_EIRP Band: 7 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit QPSK 2507.5 1 0 23.44 0.50 23.94 <=33.01 Pass 38 23.34 0.50 23.84 <=33.01 Pass 74 23.34 0.50 23.84 <=33.01 Pass 36 0 22.35 0.50 22.85 <=33.01 Pass 18 22.26 0.50 22.76 <=33.01 Pass 39 22.25 0.50 22.75 <=33.01 Pass 75 0 22.29 0.50 22.79 <=33.01 Pass 2535 1 0 23.48 0.50 23.98 <=33.01 Pass 38 23.52 0.50 24.02 <=33.01 Pass 74 23.44 0.50 23.94 <=33.01 Pass 36 0 22.34 0.50 22.84 <=33.01 Pass 18 22.30 0.50 22.80 <=33.01 Pass 39 22.38 0.50 22.88 <=33.01 Pass 75 0 22.34 0.50 22.84 <=33.01 Pass 2562.5 1 0 23.59 0.50 24.09 <=33.01 Pass 38 23.45 0.50 23.95 <=33.01 Pass 74 23.40 0.50 23.90 <=33.01 Pass 36 0 22.54 0.50 23.04 <=33.01 Pass 18 22.39 0.50 22.89 <=33.01 Pass 39 22.35 0.50 22.85 <=33.01 Pass 75 0 22.45 0.50 22.95 <=33.01 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-ARF-05 Rev 1.1 Page: 7 of 51 Band: 7 / Bandwidth: 15MHz / NTNV Modulation Frequency (MHz) RB Allocation Conducted Power (dBm) Gain (dBi) EIRP (dBm) Verdict Size Offset Result Limit 16QAM 2507.5 1 0 22.74 0.50 23.24 <=33.01 Pass 38 22.66 0.50 23.16 <=33.01 Pass 74 22.62 0.50 23.12 <=33.01 Pass 36 0 21.44 0.50 21.94 <=33.01 Pass 18 21.30 0.50 21.80 <=33.01 Pass 39 21.35 0.50 21.85 <=33.01 Pass 75 0 21.33 0.50 21.83 <=33.01 Pass 2535 1 0 22.63 0.50 23.13 <=33.01 Pass 38 22.72 0.50 23.22 <=33.01 Pass 74 22.72 0.50 23.22 <=33.01 Pass 36 0 21.41 0.50 21.91 <=33.01 Pass 18 21.30 0.50 21.80 <=33.01 Pass 39 21.38 0.50 21.88 <=33.01 Pass 75 0 21.35 0.50 21.85 <=33.01 Pass 2562.5 1 0…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106508 Page: 1 of 21 FCC ID: AJYSL9 TEST REPORT Application No.: GZCR2507001065AT Applicant:Geosolution i Goteborg AB Address of Applicant: Stora Avagen 21, 436 34 ASKIM, Sweden Manufacturer:Geosolution i Goteborg AB Address of Manufacturer:Stora Avagen 21, 436 34 ASKIM, Sweden Factory:Geosolution i Goteborg AB Address of Factory:Stora Avagen 21, 436 34 ASKIM, Sweden Product Name:GNSS RTK Receiver Model No.: SL9 Trade Mark: Standard(s) : 47 CFR Part 2 47 CFR Part 27 Date of Receipt: 2025-07-15 Date of Test: 2025-07-16 to 2025-08-15 Date of Issue: 2025-09-15 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106508 Page: 2 of 21 Revision Record VersionReport No.DateRemark 01GZCR2507001065082025-09-15Original Authorized for issue by: Key Liang/Project Engineer Vico Cui/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106508 Page: 3 of 21 2Test Summary LTE Band 7 Test Item FCC Rule No. RequirementsVerdict Effective (Isotropic) Radiated Power Output Data §2.1046 §27.50(h) EIRP≤2W PASS Peak-Average Ratio§27.50(d)(5)≤13dBPASS Bandwidth§2.1049 OBW: No limit EBW: No limit PASS Band Edge Compliance §2.1051 §27.53(m)(4) PASS Spurious emissions at antenna terminals §2.1051 §27.53(m)(4) PASS Field strength of spurious radiation §2.1051 §27.53(m)(4) For mobile digital stations, the attenuation factor shall be not less than 40 + 10 log (P) dB on all frequencies between the channel edge and 5 megahertz from the channel edge, 43 + 10 log (P) dB on all frequencies between 5 megahertz and X megahertz from the channel edge, and 55 + 10 log (P) dB on all frequencies more than X megahertz from the channel edge, where X is the greater of 6 megahertz or the actual emission bandwidth as defined in paragraph (m)(6) of this section. In addition, the attenuation factor shall not be less that 43 + 10 log (P) dB on all frequencies between 2490.5 MHz and 2496 MHz and 55 + 10 log (P) dB at or below 2490.5 MHz. PASS Frequency stability §2.1055 §27.54 The frequency stability shall be sufficient to ensure that the fundamental emission stays within the authorized frequency block. PASS Note: E.U.T./EUT means Equipment Under Test. Pass means the test result passed the test standard requirement, please find the detailed decision rule in the report relative section. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch EMC-TRF-01 Rev 2.0 Report No.: GZCR250700106508 Page: 4 of 21 3Contents Page 1Cover Page...............................................................................................................................................1 2Test Summary..........................................................................................................................................3 3Contents....................................................................................................................................................4 4General Information.................................................................................................................................6 4.1Details of E.U.T.................................................................................................................................6 4.2Description of Support Units..............................................................................................................7 4.3Test Frequency..................................................................................................................................7 4.4Test Environment..............................................................................................................................7 4.5Measurement Uncertainty.........................................................................................…
