ALZMV2RXMULTIVOICE Coach to Player receive only device

Product Description The Multi-Voice Radio combines conference communication with wireless radio. This full duplex system allows hands free communication on a secure signal in a comfort­ able all in one headset design Measurements Length: 2.4 in Height: 0.55 in Width: 1.37 in Weight: 1.2 oz Signal Frequency: 902-928 MHz Frequency Hopping Spread Spectrum Output Power: None, RX only Range: Up To 1/2 Mile Line of Sight Proprietary Encryption Battery 7 Hour Operation Temp: -20c +60c Rechargeable Lithium-polymer 2775 mAh UL 1642, FCC ID: ALZMV2RX IC: TBD Model : MV2RX MULTIVOICE Coach To Player Quickstart Guide Call for Support 1-800-604-0737 Speaker Long Press and Hold Power ON / OFF Quick Click Toggle Change Mode: 1 / Mode 2 USB-C : Charging / Audio Output Channel UP Power I Menu hannel Down MUL TIVOICE, MV-C2P,and the MUL TIVOICE marks and logos are each trademarks of MUL TIVOICE. (800)-604-0737 I www.MULTIVOICE.com I © MUL TIVOICE 2016 I R1 .0 2023 FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IC Caution: This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le pr ésent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. L ' a p p a r e i l a é t é é v a l u é p o u r r é p o n d r e a u x e x i g e n c e s g é n é r a l e s d ' e x p o s i t i o n R F . L ' a p p a r e i l p e u t ê t r e u t i l i s é d a n s d e s c o n d i t i o n s d ' e x p o s i t i o n p o r t a b l e s s a n s r e s t r i c t i o n .

Multi-Voice Radio LLC U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Multi-Voice Radio LLC FRN: 0021402482 Contact Name: Dustin Fraser Address: 266e 900s, Mapleton, Utah, United States 84664 Telephone No: 801-636-9149 Email: [email protected] This letter is to confirm that we (Multi-Voice Radio LLC) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023-08-22 Signed by (Printed Name/Title): Dustin Fraser /Vice President The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Multi-Voice Radio LLC FCC ID: ALZMV2RX Contact Name: Dustin Fraser Address: 266e 900s, Mapleton, Utah, United States 84664 Telephone No: 801-636-9149 Email: [email protected] Applicant Signature: Date: 2023-08-22 Signed by (Printed Name/Title): Dustin Fraser /Vice President

Multi-Voice Radio LLC 2023.08.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: ALZMV2RX [Multi-Voice Radio LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Dustin Fraser Multi-Voice Radio LLC 2023.08.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: ALZMV2RX [Multi-Voice Radio LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Dustin Fraser

Multi-Voice Radio LLC 2023.08.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: MULTIVOICE Coach to Player receive only device Trademark: N/A MODEL : MV2RX FCC ID : ALZMV2RX To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Dustin Fraser / Vice President Contact information / address: 266e 900s, Mapleton, Utah, United States 84664

Multi-Voice Radio LLC 2023.08.22 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Dustin Fraser / Vice President Contact information / address: 266e 900s, Mapleton, Utah, United States 84664

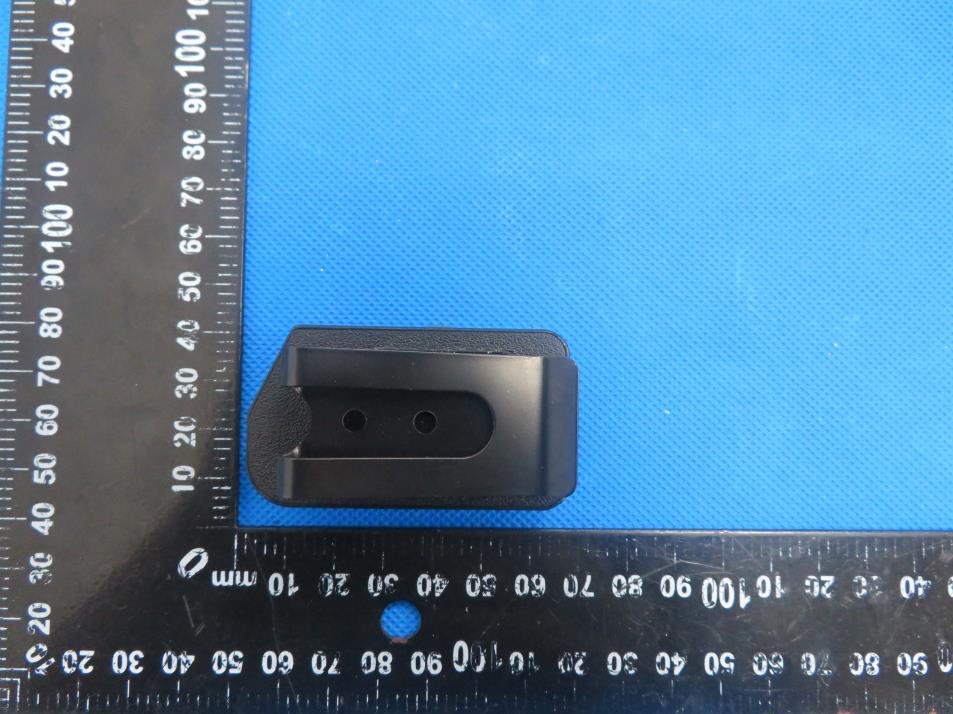

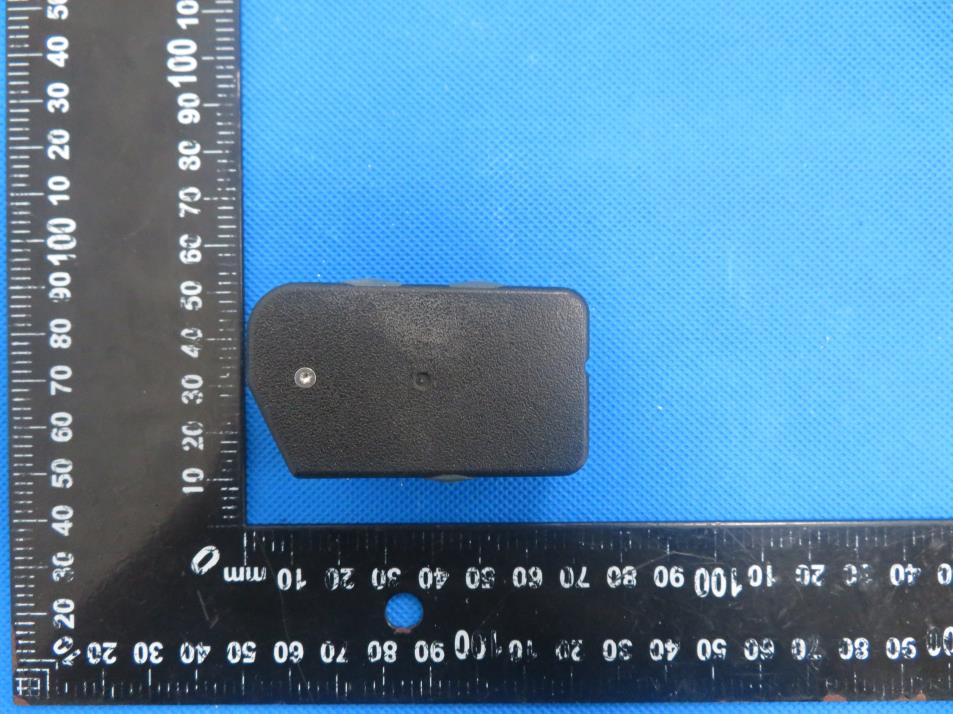

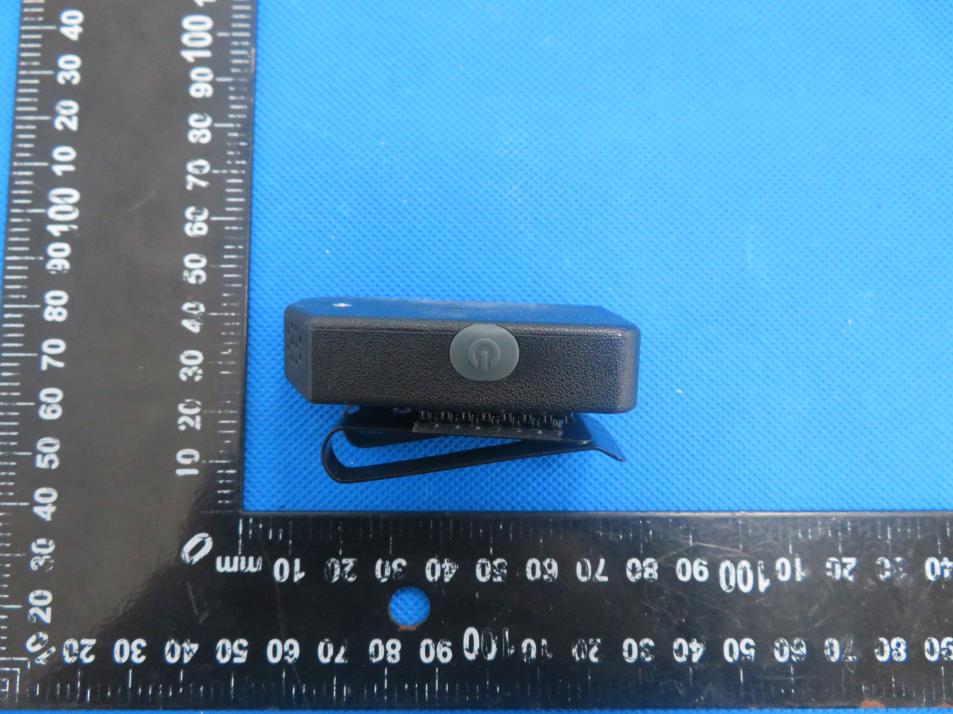

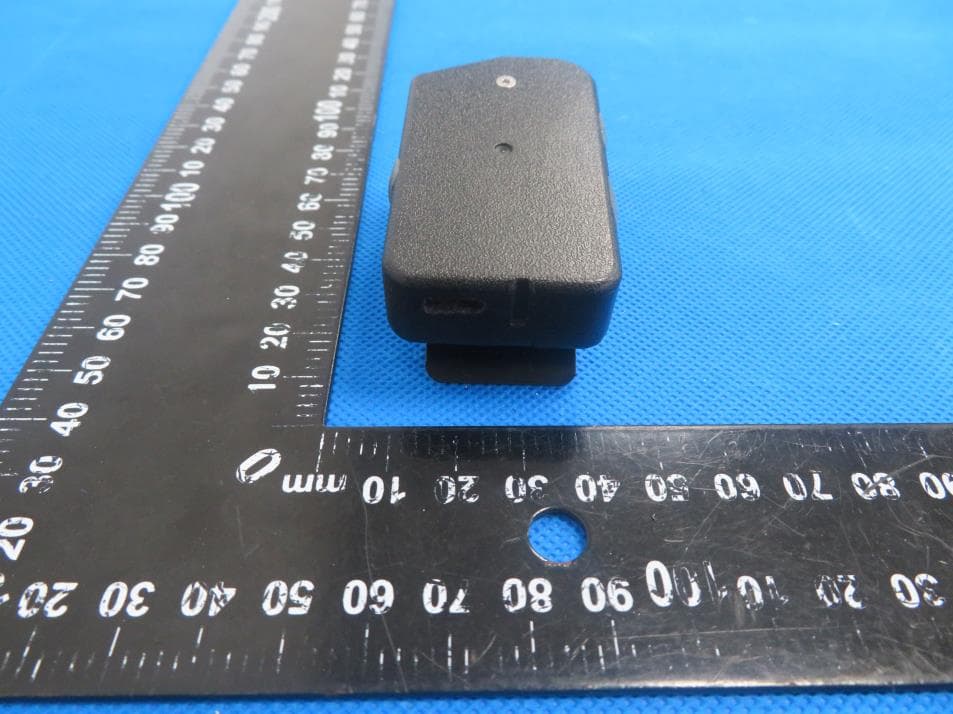

External Photos

Size:20*10mm MULTIVOICE Coach to Player receive only device FCC ID: ALZMV2RX Label location

Internal Photos BT Antenna 902-928MHz RX Antenna

No.：BCTC/RF-EMC-005 Page 1 of 64 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2306732339-2E Applicant: Multi-Voice Radio LLC Product Name: MULTIVOICE Coach to Player receive only device Model/Type Ref.: MV2RX Tested Date: 2023-08-10 Issued Date: 2023-08-23 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 2 of 64 Edition：B.0 FCC ID:ALZMV2RX The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: MULTIVOICE Coach to Player receive only device Trademark: N/A Model/Type Ref.: MV2RX Applicant: Multi-Voice Radio LLC Address: 266e 900s, Mapleton, Utah, United States, 84664 Manufacturer: Multi-Voice Radio LLC Address: 266e 900s, Mapleton, Utah, United States, 84664 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-06-14 Sample tested Date: 2023-08-10 Issue Date: 2023-08-23 SAR Max. Values is： 0.238 W/kg (1g) for Body Test Standards: IEEE Std C95.1, 2019/ IEEE Std 1528™-2013/FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Hubery Cai/Project Handler Zero Zhou/Reviewer Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 3 of 64 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 11 6.3 Support Equipment ................................................................................................ 11 6.4 Test Environment .................................................................................................. 11 7. Test Facility and Test Instrument Used ............................................................... 12 7.1 Test Facility ........................................................................................................... 12 7.2 Test Instrument Used ............................................................................................ 12 8. Specific Absorption Rate (SAR) .......................................................................... 14 8.1 Introduction ............................................................................................................ 14 8.2 SAR Definition ....................................................................................................... 14 9. SAR Measurement System ................................................................................. 15 9.1 The Measurement System ..................................................................................... 15 9.2 Probe ..................................................................................................................... 15 9.3 Probe Calibration Process ..................................................................................... 17 9.4 Phantom ................................................................................................................ 18 9.5 Device Holder ........................................................................................................ 18 10. Tissue Simulating Liquids .................................................................................... 19 10.1 Composition of Tissue Simulating Liquid ............................................................. 19 10.2 Limit ..................................................................................................................... 20 10.3 Tissue Calibration Result ..................................................................................... 21 11. System Check ..................................................................................................... 22 11.1 Purpose of System Performance Check .............................................................. 22 11.2 System Setup ...................................................................................................... 22 11.3 Validation Results ................................................................................................ 23 12. EUT Testing Position ........................................................................................... 24 Body-worn Position ...................................................................................................... 24 13. SAR Measurement Procedures ........................................................................... 25 13.1 Measurement Procedures ................................................................................... 25 13.2 Spatial Peak SAR Evaluation .............................................................................. 25 13.3 Area & Zoom Scan Procedures ........................................................................... 26 13.4 Volume Scan Procedures .................…

Text truncated - open the document above for the full version.

Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 46 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 47 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 48 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 49 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 50 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 51 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 52 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 53 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 54 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 55 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 56 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 57 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 58 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 59 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 60 of 64 Edition：B.0 Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 61 of 64 Edition：B.0 17. EUT Photographs EUT Front View EUT Back View Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 62 of 64 Edition：B.0 Antenna View BT Antenna Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 63 of 64 Edition：B.0 18. EUT Test Setup Photographs Body mode Exposure Conditions Test distance: 0mm Back Front Report No：BCTC2306732339-2E No.：BCTC/RF-EMC-005 Page 64 of 64 Edition：B.0 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without stamp of laboratory. 4. The test report is invalid without signature of person(s) testing and authorizing. 5. The test process and test result is only related to the Unit Under Test. 6. The quality system of our laboratory is in accordance with ISO/IEC17025. 7. If there is any objection to report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao’an District, Shenzhen, Guangdong, China TEL：400-788-9558 1) C.: 518103 FAX：0755-33229357 Website：http://www.chnbctc.com E-Mail：[email protected] ※※※※※ END ※※※※※

Report No.: BL-SZ2360874-AA 1 / 1 EUT PHOTO --BLANK BELOW-- Antenna

Report No.: BL-SZ2360874-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: MULTIVOICE LLC Address: 224 South Main St #401 Springville, Utah 84663. Equipment Type: MULTIVOICE Coach to Player receive only device Model Name: MV2RX Brand Name: N/A Test Standard: IEEE Std 149-2021 Sample Arrival Date: Jun. 20, 2023 Test Date: Aug. 01, 2023 Date of Issue: Aug. 22, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Xia Long Approved by: Tolan Tu (Testing Director) _______________ _______________ _______________ Report No.: BL-SZ2360874-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Rev. 01 Aug. 22, 2023 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ................................................................................................................... 3 1.2 Test Location ....................................................................................................................... 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information ........................................................................................................... 4 2.2 Manufacturer Information .................................................................................................... 4 2.3 General Description for Equipment under Test (EUT) ......................................................... 4 2.4 Ancillary Equipment ............................................................................................................. 4 2.5 Technical Information .......................................................................................................... 4 3 SUMMARY OF TEST RESULTS ............................................................................................... 5 3.1 Test Standards .................................................................................................................... 5 3.2 Test Verdict ......................................................................................................................... 5 3.3 Test Uncertainty .................................................................................................................. 5 4 GENERAL TEST CONFIGURATIONS ...................................................................................... 6 4.1 Test Condition ..................................................................................................................... 6 4.2 Test Equipment List ............................................................................................................. 6 4.3 Test Setup ........................................................................................................................... 7 ANNEX A TEST RESULTS ........................................................................................................... 8 A.1 Gain and Efficiency ............................................................................................................. 8 A.2 VSWR ................................................................................................................................. 9 ANNEX B RADIATION PATTERN .............................................................................................. 10 ANNEX C TEST SETUP PHOTOS ............................................................................................. 13 ANNEX D EUT PHOTO .............................................................................................................. 13 Report No.: BL-SZ2360874-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Report No.: BL-SZ2360874-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 14 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-09-07) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant MULTIVOICE LLC Address 224 South Main St #401 Springville, Utah 84663. 2.2 Manufacturer Information Manufacturer N/A Address N/A 2.3 General Description for Equipment under Test (EUT) EUT Name MULTIVOICE Coach to Player receive only device Model Name Under Test MV2RX Antenna Type Ceramic Antenna Dimensions 3.5*1.5*1.0 mm 2.4 Ancillary Equipment Note: Not applicable. 2.5 Technical Information Test Frequencies 2400MHz, 2410MHz, 2420MHz, 2430MHz, 2440MHz, 2450MHz, 2460MHz, 2470MHz, 2480MHz, 2490MHz, 2500MHz Report No.:…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2360874-AO 1 / 2 TEST SETUP PHOTOS Report No.: BL-SZ2360874-AO 2 / 2 --BLANK BELOW--

No.：BCTC/RF-EMC-007 Page: 1 of 79 Edition：B.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2306732339-1E Applicant: Multi-Voice Radio LLC Product Name: MULTIVOICE Coach to Player receive only device Model/Type reference: MV2RX Tested Date: 2023-06-13 to 2023-07-17 Issued Date: 2023-07-17 Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 2 of 79 Edition：B.0 FCC ID:ALZMV2RX The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: MULTIVOICE Coach to Player receive only device Trademark: N/A Model/Type Reference: MV2RX Prepared For: Multi-Voice Radio LLC Address: 266e 900s, Mapleton, Utah, United States, 84664 Manufacturer: Multi-Voice Radio LLC Address: 266e 900s, Mapleton, Utah, United States, 84664 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-06-13 Sample tested Date: 2023-06-13 to 2023-07-17 Issue Date: 2023-07-17 Report No.: BCTC2306732339-1E Test Standards FCC Part15.247 ANSI C63.10-2013 Test Results PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 3 of 79 Edition：B.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Spurious RF Conducted Emissions ..................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 Test Result .......................................................................................................... 27 10. 20 dB Bandwidth ..............................…

Text truncated - open the document above for the full version.

Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 62 of 79 Edition：B.0 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 63 of 79 Edition：B.0 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 64 of 79 Edition：B.0 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 65 of 79 Edition：B.0 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2306732339-1E No.：BCTC/RF-EMC-007 Page: 66 of 79 Edition：B.0 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping freque…
