AMH101002SmartTraxx Fixed

Emerson Digital Cold Chain, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Dec 10, 2012
Application Purpose: Original Equipment
Date of Application: Dec 09, 2012
Equipment Note: SmartTraxx Fixed
Frequency Range: 2405.00000000 - 2475.00000000
Company: Emerson Digital Cold Chain, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: AMH101002 IC: 10124A-101002 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project: 12-2036 Manufacturer: Locus Solutions LLC Model: SmartTraxx Fixed User Manual LocusTraxx.com 14924 Corporate Road S. Jupiter, Fl 33478 877-998-7299 LocusTraxxTM User Guide LocusTraxx.com 14924 Corporate Road S. Jupiter, Fl 33478 877-998-7299 System Description The Locus Traxx Fixed wireless system enables fresh produce shippers to deliver produce with a freshness confidence. The system does this with a series of radio systems that wirelessly track product location, temperature, and other condition and, or shipment sensors. Sensor modules termed “Smart Tags” transmit their information via a 802.15.4 local wireless network back to a central portable or fixed unit. The portable, or fixed units, concatenate this local sensor information with position data from a dedicated GPS receiver and transmits the data package to a central motoring facility through either a GSM cellular or Iridium network. Installation Hooking up the Fixed System (Performed by a Professional LocusTraxx Installer) 1. Remove the fixed unit from the shipping container. On the top side of the device, verify that the Green LED is flashing indicating that the unit is awake. 2. Attach the fixed unit to a covered section of the host vehicle. Connect host battery power to the fixed unit with appropriate cables. 3. Connect the dipole antenna port to the refrigeration container RF SMA feed through with the RF cable provided. Connect the dipole antenna inside the refrigeration container. Apply Silicone sealant over each outer SMA connector. 4. Connect the triband combination antenna to the fixed unit and splitter and route the RF cables such that the combination puck antenna can be mounted with a clear view of the sky. Apply Silcone sealant over each outer SMA connector. 5. Remove the Smart Tag unit(s) from the shipping case and place on item to be monitored. For optimal performance, insure that the Tag operates within approximately 60 feet of the fixed mounted section. 6. Verify that the system is correctly monitoring the tag temperature and current location. Monitor the Item 1. In a web browser open www.locusraxx.com and login with the user ID and password provided. LocusTraxx.com 14924 Corporate Road S. Jupiter, Fl 33478 877-998-7299 Radio Comments Optimum performance of the Smart Traxx system may require repositioning of the Smart Tag in relation to the fixed or portable device. Excessive attenuation of the RF communication can result if the line of sight is obstructed by materials that significantly attenuate the signal. It is therefore advised to keep this in mind when positioning your wireless system. Warning: Changes or modifications to this device not expressly approved by Locus Traxx could void the user’s authority to operate the equipment. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. 802.15.4 Quarter Wave Dipole: 2.15 dBi. Puck Antenna: GSM (EGSM,DPCS): 1 dBi max. 2.4 GHz ISM: 1dBi A professional antenna installer from Locus Traxx is required and used on all installations. To improve connection durability and enable tamper resilience, a LocusTraxx.com 14924 Corporate Road S. Jupiter, Fl 33478 877-998-7299 silicone sealant is applied over the outer barrel of each electrical connection to and from the unit. Class B Devices: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipme…

Text truncated - open the document above for the full version.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: AMH101002 To Whom It May Concern: The following application is submitted on behalf of our client, Locus Solutions, LLC, for evaluation of their model SmartTraxx Fixed for certification under FCC Part 15.247. The Locus Solutions, LLC. SmartTraxx Fixed, FCC ID: AMH101002, is a 2.4 GHz wireless transceiver used for the tracking and monitoring of goods during transit. The transceiver gathers the location, temperature and other conditions of the shipment and communicates them via an IEEE 802.15.4 wireless network. The FCC ID: AMH101002 includes an external two way power divider connected at the output of the 2.4 GHz RF port which feeds to a 1/4 wave dipole and a triband puck antenna. The unit also encloses a Quake Global Q4000 module which incorporates a GPS receiver and a Telit GSM wireless transceiver module (FCC ID:RI7GE865 / IC: 5131A-GE865). The FCC ID: AMH101002 was tested in full to the aforementioned tests requirements as well as for collocation with the GSM transceiver with both radios transmitting at the same time. The FCC ID: AMH101002 was found to be in compliance with the test requirements. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

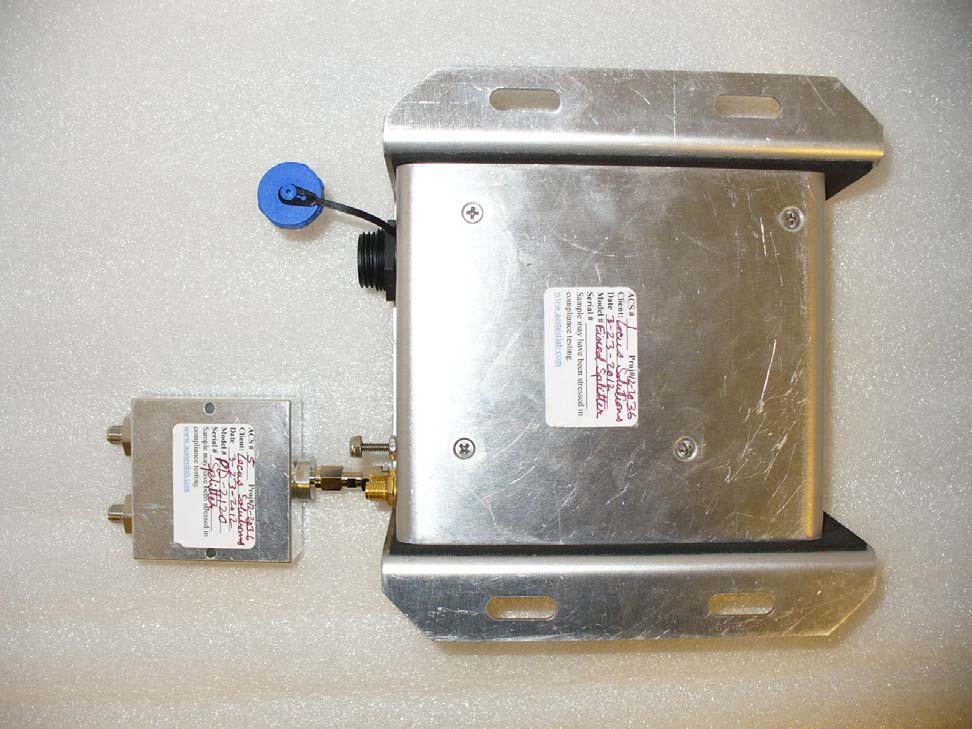

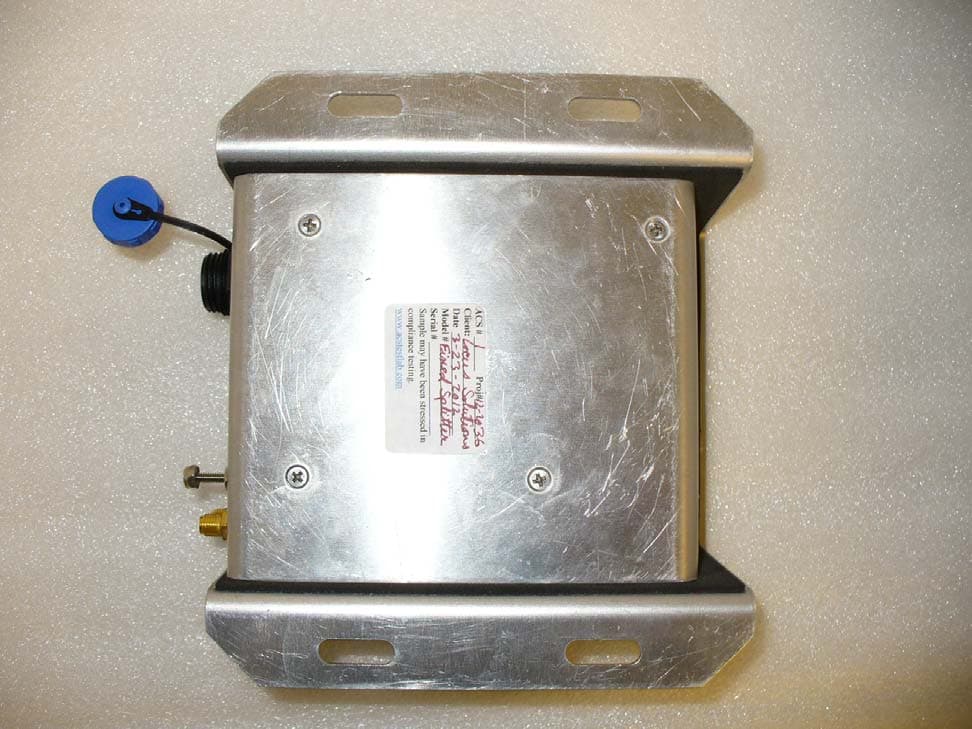

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: AMH101002 IC: 10124A-101002 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 12-2036 Manufacturer: Locus Solutions LLC Model: SmartTraxx Fixed RF Exposure Model: SmartTraxx Fixed FCC ID: AMH101002 IC: 10124A-101002 ACS Project: 12-2036 Advanced Compliance Solutions Page 2 General Information: Applicant: Locus Solutions LLC ACS Project: 12-2036 Device Category: Mobile Environment: General Population/Uncontrolled Exposure Technical Information: The SmartTraxx Fixed uses an external two way RF divider at the RF output port which is connected to a dipole and a puck antenna. The dipole and puck antennas are designed to be installed at significant distances with significant isolation thus eliminating the need to consider collocation with respect to RF exposure. Antenna 1 Type: ¼ Wave Dipole Antenna Antenna Gain: 2.15 dBi Antenna 2 Type: Puck Antenna Antenna Gain: 1 dBi Conducted RF Output Power: 16.58 dBm, 45.50 mW (Power provided to each antenna) Maximum System EIRP: 21.184 dBm, 131.3415 mW (Considering directional gain) The maximum system EIRP is calculated using the directional antenna gain per KDB 662911 D01 Multiple Transmitter Output v01r02. Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 ) 2 / NANT] dBi = 10 log[(10 2.15/20 + 10 1 /20 ) 2 / 2] = 4.604 dBi Note: The insertion loss of the power divider is taken into consideration for determining maximum conducted output power to each antenna. Output power of 19.59 dBm was measured at the EUT RF output. Output power of 16.58 dBm was provided to each antenna. MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 240516.581.0045.502.151.641 200.015 240516.581.0045.5011.259 200.011 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Per the customer, the dipole and puck antennas are designed to be installed at significant distances with significant isolation (>>20 cm). Therefore, the maximum power density is calculated using the antenna configuration leading to the highest value = 0.015 mW/cm^2. Model: SmartTraxx Fixed FCC ID: AMH101002 IC: 10124A-101002 ACS Project: 12-2036 Advanced Compliance Solutions Page 3 Collocation with GSM / GPRS Modem This Locus Solutions SmartTraxx contains a Quake Modem Q4000 in addition to the 2.4 GHz Zigbee transmitter. The Quake Modem Q4000 encloses a Telit GSM850/PCS1900 transceiver module (FCC ID: RI7GE865 / IC: 5131A-GE865). The Quake Q4000 modem and the Zigbee 2.4 GHz share the triband puck antenna and can transmit simultaneously. The puck antenna provides a 1 dBi gain for both GSM 850 and PCS 1900 bands. The EUT dipole antenna is designed to be installed at a significant distance (>>20cm) and with significant isolation from the puck antenna thus eliminating the need to consider simultaneous transmissions with respect to RF exposure. Simultaneous transmission with respect to RF exposure is only considered for the triband puck antenna. Table 2: MPE Calculations – GSM 850 / PCS 1900 Radios MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* GSM 85082431.80.551513.5611.259200.379 PCS 19001850.229.41.00870.9611.259200.218 Mode of Operation Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Summation of Power Densities – Simultaneous Transmissions This device contains multiple transmitters which can operate simultaneously and therefore the maximum RF exposure is determined by the summation of MPE ratios. The limit is such that the summation of MPE ratios is ≤ 1.0. The summation of MPE ratios is as follows: 2.4 GHz Zigbee and GSM 850 Module operating simultaneously: 2.4 GHz Zigbee MPE Ratio + GSM 850 MPE Ratio (0.011 / 1.00) + (0.379 / 0.55) = (0.011) + (0.689) = 0.700 0.700 < 1 2.4 GHz Zigbee and PCS 1900 Module operating simultaneously: 2.4 GHz Zigbee MPE Ratio + GSM 1900 MPE Ratio (0.011 / 1.00) + (0.218 / 1.00) = (0.011) + (0.218) = 0.229 0.229 < 1 Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

Test Report

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Test Report FCC ID: AMH101002 IC: 10124A-101002 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 12-2036.W06.1B Manufacturer: Locus Solutions LLC Model: SmartTraxx Fixed Test Begin Date: March 23, 2012 Test End Date: November 10, 2012 Report Issue Date: December 7, 2012 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Steve O'Steen Kirby Munroe EMC Technician Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 31 pages TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Product Description .......................................................................................................................... 3 1.3 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES ................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................ 10 7 SUMMARY OF TESTS ................................................................................. 11 7.1 Antenna Requirement – FCC: Section 15.203 ............................................................................. 11 7.2 6 dB Bandwidth - FCC: Section 15.247(a)(2) 99% Bandwidth IC: RSS-210 A8.2(a) ............... 11 7.3 Peak Output Power - FCC Section 15.247(b)(3) IC: RSS-210 A8.4(4)....................................... 16 7.4 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) IC:RSS-210 A8.5 ................ 18 7.5 Power Spectral Density - FCC Section 15.247(e) IC: RSS-210 A8.2(b) ..................................... 29 8 CONCLUSION .............................................................................................. 31 Model: SmartTraxx Fixed FCC ID: AMH101002 IC: 10124A-101002 ACS Report: 12-2036.W06.1B Advanced Compliance Solutions Page 3 of 31 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Product Description The Locus Solutions, LLC. SmartTraxx Fixed is a 2.4 GHz wireless transceiver with an external two way RF power divider at the RF port which feeds to a 1/4 wave dipole and a triband puck antenna. The unit also encloses a Quake Global Q4000 transceiver module which incorporates a GPS receiver and a Telit GSM wireless transceiver module (FCC ID:RI7GE865 / IC: 5131A-GE865). The SmartTraxx Fixed is used to monitor shipment location, temperature and other conditions as well as shipment sensors. The SmartTraxx Fixed communicates the information via an IEEE 802.15.4 local wireless network to a central portable or fixed unit. Technical Information: Band of Operation: 2405 MHz - 2475 MHz Number of Channels: 15 Modulation Format: OQPSK Antenna Type/Gain: 1/4 Wave Dipole Antenna, 2.15 dBi Puck Antenna, 1 dBi Operating Voltage: 12 VDC Manufacturer Information: Locus Solutions LLC 14924 Corporate Rd S Jupiter, FL 33478 Test Sample Serial Number(s): ACS #1 Test Sample Condition: The unit was in good operating condition with no physical damages. 1.3 Test Methodology and Considerations The Locus Solutions, Inc. SmartTraxx Fixed was programmed via Hyperterminal. The power settings were set to level 5 across the range of operation for the evaluation for both Radiated and RF conducted emissions measurements. The RF conducted measurements were performed directly at the RF output of the unit, bypassing the splitter. For the radiated emissions evaluation, the unit was setup in three orthogonal orientations. The final measurements were performed using the orientation leading to the highest emissions. The unit was also evaluated for collocation with the Telit wireless module for both the GSM 850 and the PCS 1900 bands. All intermodulation products for the collocated radios transmitting at the same time were found to be compliant to the limits of 15.209. The evaluation for the unintentional emissions is documented separately in a Verification Report. Model: SmartTraxx Fixed FCC ID: AMH101002 IC: 10124A-101002 ACS Report: 12-2036.W06.1B Advanced Compliance Solutions Page 4 of 31 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Tes…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Amy Childress(VP General Manager)

[email protected]561-665-6542Fax: 5616247881

Test Firm

Advanced Compliance Solutions, Inc.Sam Wismer

[email protected]561-961-5585

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	91.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this filing. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 1.476% controlled by software or firmware. Co-located with FCC ID: RI7GE865
