APB26440-00A2TRF RC Transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB26440-00A2T FCC ID LABEL

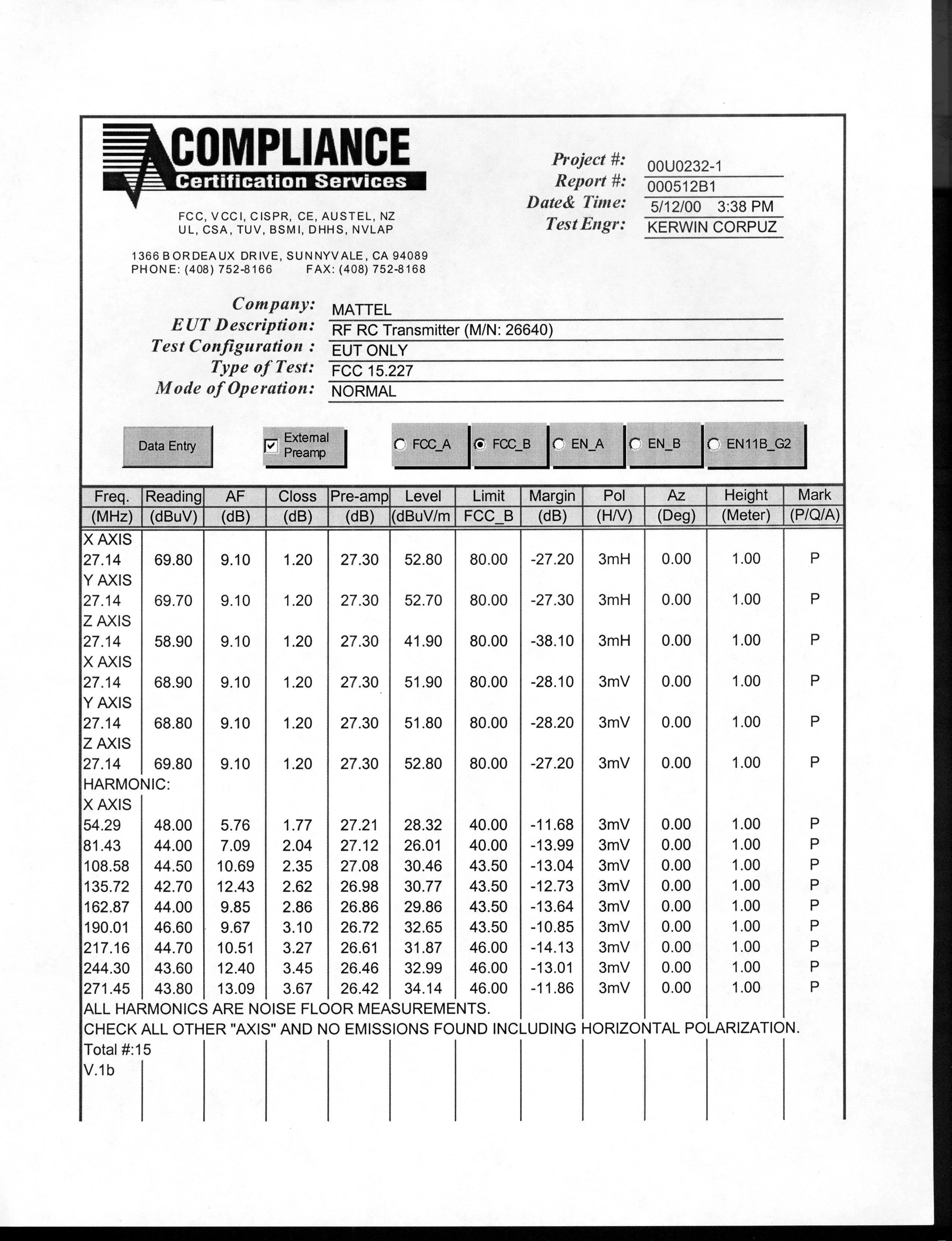

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RF RC TRANSMITTER MODEL NO: 26640 FCC ID NO: APB26440-00A2T REPORT NO: 00U0232-1 ISSUE DATE: MAY 12, 2000 Prepared for MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 00U232 FCC ID:APB26440-00A2T DATE: MAY 12, 2000 EUT: RF RC TRANSMITTER COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE................................................................... 1 2.PRODUCT DESCRIPTION................................................................................. 2 3.TEST FACILITIES ........................................................................................... 2 4.MEASUREMENT STANDARDS ....................................................................... 2 5.TEST METHODOLOGY .................................................................................... 2 6.MEASUREMENT EQUIPMENT USED .............................................................. 3 7.PPOWERLINE RFI LIMITS .............................................................................. 3 8.RADIATED EMISSION LIMITS ....................................................................... 3 9.TEST SETUP AND CONFIGURATION ............................................................. 4 10.EQUIPMENT MODIFICATIONS ....................................................................... 5 11.TEST PROCEDURE AND RESULT .................................................................. 5 EXHIBIT 1. Proposed FCC ID Label Format 2. Agent Authorization Letter Attachment • EUT Photographs • Schematic Diagram REPORT NO: 00U232 FCC ID:APB26440-00A2T DATE: MAY 12, 2000 EUT: RF RC TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON:VLADIMIR SOSNOVSKY / PROJECT ENGINEER TELEPHONE NO.:(310) 252-5595 EUT DESCRIPTION:RF RC TRANSMITTER MODEL NAME/NUMBER:26640 BRAND NAME:DANCING DIVA DEBBIE SERIAL NUMBER:2 FCC ID:APB26440-00A2T DATE TESTED :MAY 12, 2000 REPORT NUMBER:00U0232-1 TYPE OF EQUIPMENTREMOTE CONTROL EQUIPMENT TYPE27 MHZ TRANSMITTER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Approved By T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 00U232 FCC ID:APB26440-00A2T DATE: MAY 12, 2000 EUT: RF RC TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2.PRODUCT DESCRIPTION CHASSI S TYP E PLASTIC Fundamental Frequency 27.145 MHz Power Source 4 AAA Batteries, 6V CHIPSET BRAND AND PART NO MATTEL. 26640/TX Transmitting Time CONTINUOUS BOARD REVISION NO F NO. OF LAYER 1 Local Osc. 27.145 MHz 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO: 00U232 FCC ID:APB26440-00A2T DATE: MAY 12, 2000 EUT: RF RC TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6.Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8568BSpectrum Analyzer (100Hz - 1.5GHz) 11/18/00 EMCO6502Active Loop Antenna (10K - 30MHz) 02/23/01 SCHAFFNER- CHASE CBL6112BAntenna (30-2000 MHz) 11/23/00 H.P.8447DPreamplifier (0.1 - 130…
