FCC ID: APBC6746-04A43R Technical Description : The brief circuit description is listed as follows : - Q1, Q2, Q3 of RF Module and associated circuit act as Super-regenerative Receiver. - Q2, Q4, Q5 and associated circuit act as Voltage Regulator. - IC1, Q1 and associated circuit act as Encoder. - IC2, Q3 and associated circuit act as Microcontroller and Speed Generator. - Q4 ~ Q10 of Motor Board and associated circuit act as Motor Driver. Antenna Used : A permanent wire antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : APBC6746-04A43R Mattel Inc. Application For Certification (FCC ID: APBC6746-04A43R) Superregenerative Receiver Sample Description : Barbie Serafina - LAAM Model : C6746 0407160 WN/at May 5, 2004 INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R ii MEASUREMENT/TECHNICAL REPORT Mattel Inc. - MODEL: C6746 FCC ID: APBC6746-04A43R May 5, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for intentional radiator Report prepared by: Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility .......................................................................................................... 3 2.0 System Test Configuration ...................................................................................... 5 2.1 Justification........................................................................................................... 5 2.2 EUT Exercising Software ...................................................................................... 5 2.3 Support Equipment List and Description................................................................ 5 2.4 Equipment Modification......................................................................................... 6 2.5 Special Accessories.............................................................................................. 6 3.0 Emission Results..................................................................................................... 8 3.1 Field Strength Calculation ..................................................................................... 9 3.2 Radiated Emission Configuration Photograph ..................................................... 10 3.3 Radiated Emission Data...................................................................................... 11 4.0 Equipment Photographs ........................................................................................ 14 5.0 Product Labelling................................................................................................... 16 6.0 Technical Specifications........................................................................................ 18 7.0 Instruction Manual ................................................................................................. 20 8.0 Miscellaneous Information.................................................................................... 22 8.1 Stabilization Waveform........................................................................................ 23 8.2 Emissions Test Procedures................................................................................. 24 8.2 Emissions Test Procedures (cont'd) .................................................................... 25 INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.pdf Test Report Stabilization Waveform superreg.pdf External Photo External Photo external photos.pdf Internal Photo Internal Photo internal photos.pdf Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: APBC6746-04A43R 2 1.0 General Description 1.1 Product Description The equipment under test (EUT) is a receiver for a RC Toy operating at 433.42 MHz which is controlled by a LC Oscillator. The EUT is powered by three AA batteries. The EUT has a power ON/OFF switch and two buttons. In manual mode. Once the EUT is power on, the EUT will move its head and tail with sounds and phrases, when the user presses the buttons on its left front paw or top of its back. In audio/video mode, the EUT will respond with head and tail movement with sounds and phrases, when the corresponding transmitter is activated by the corresponding audio program. The brief circuit description is saved with filename: descri.pdf 1.2 Related Submittal(s) Grants This is a single …

Text truncated - open the document above for the full version.

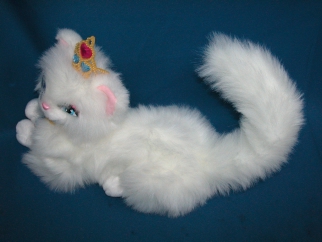

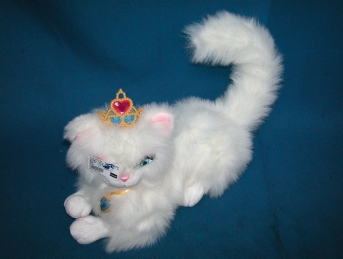

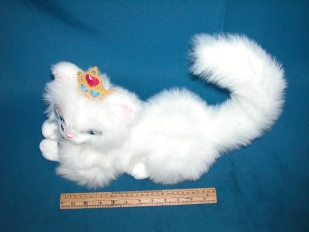

INTERTEK TESTING SERVICES Front View Back View
