APB34337-98A4TToy Car Transmitter

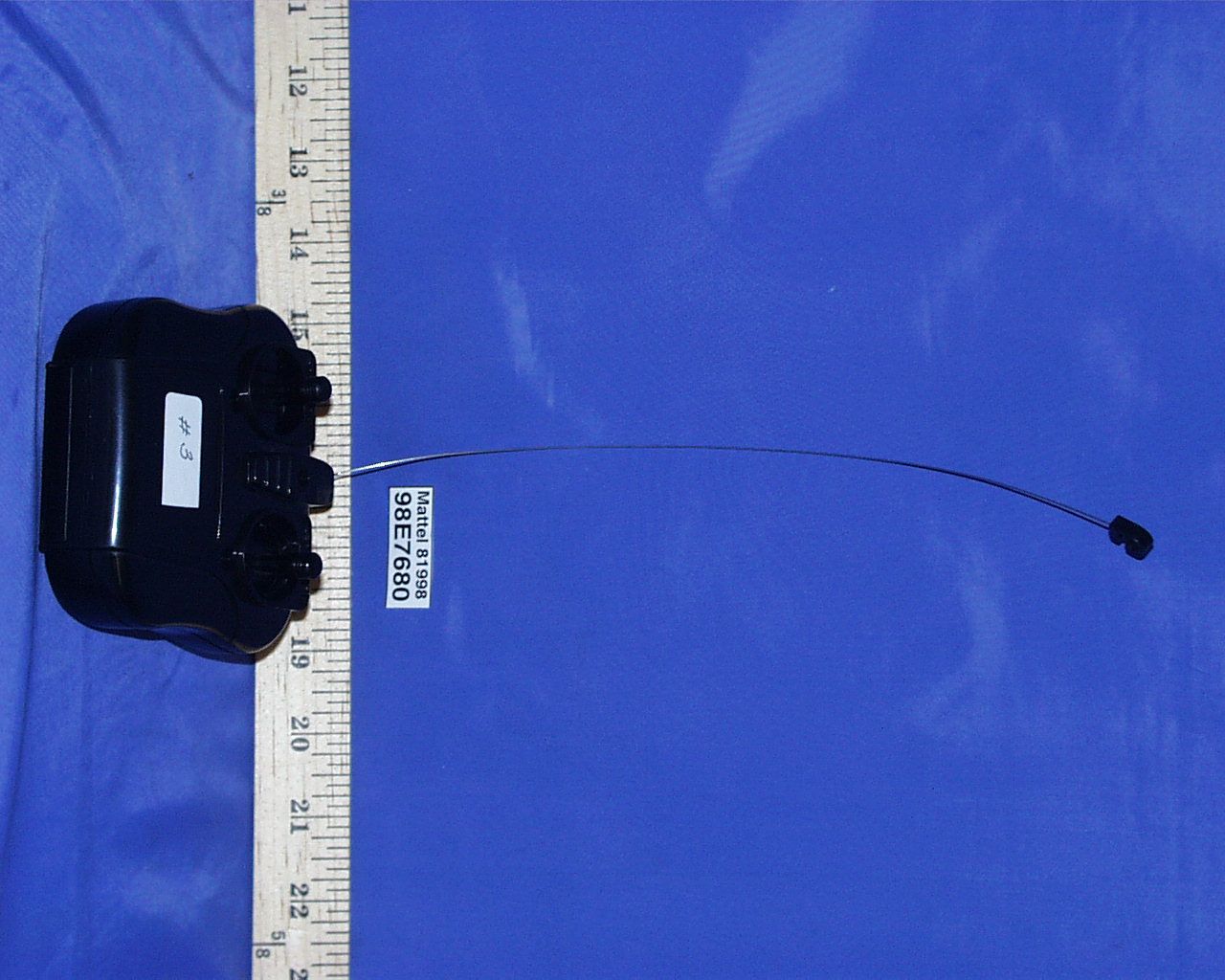

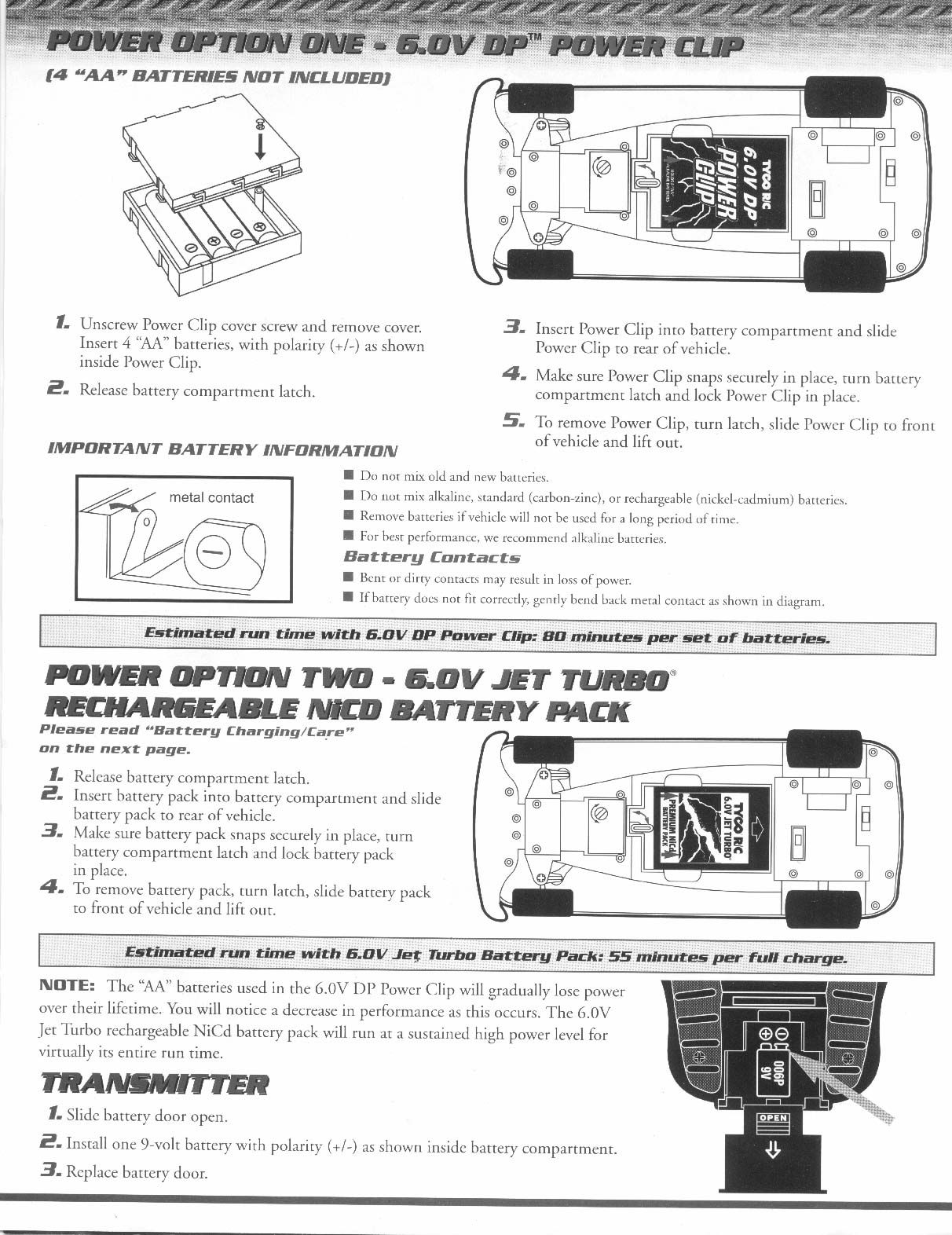

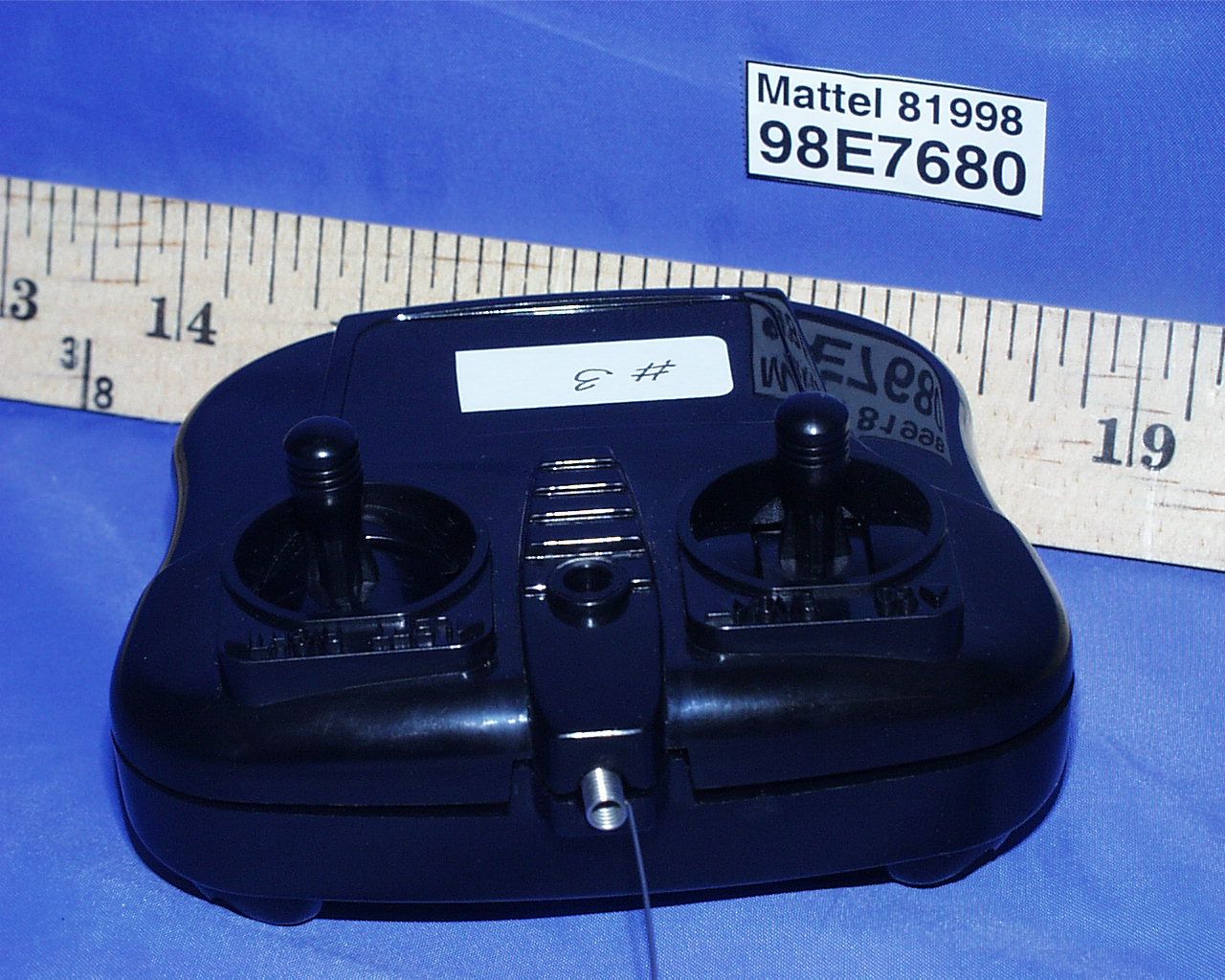

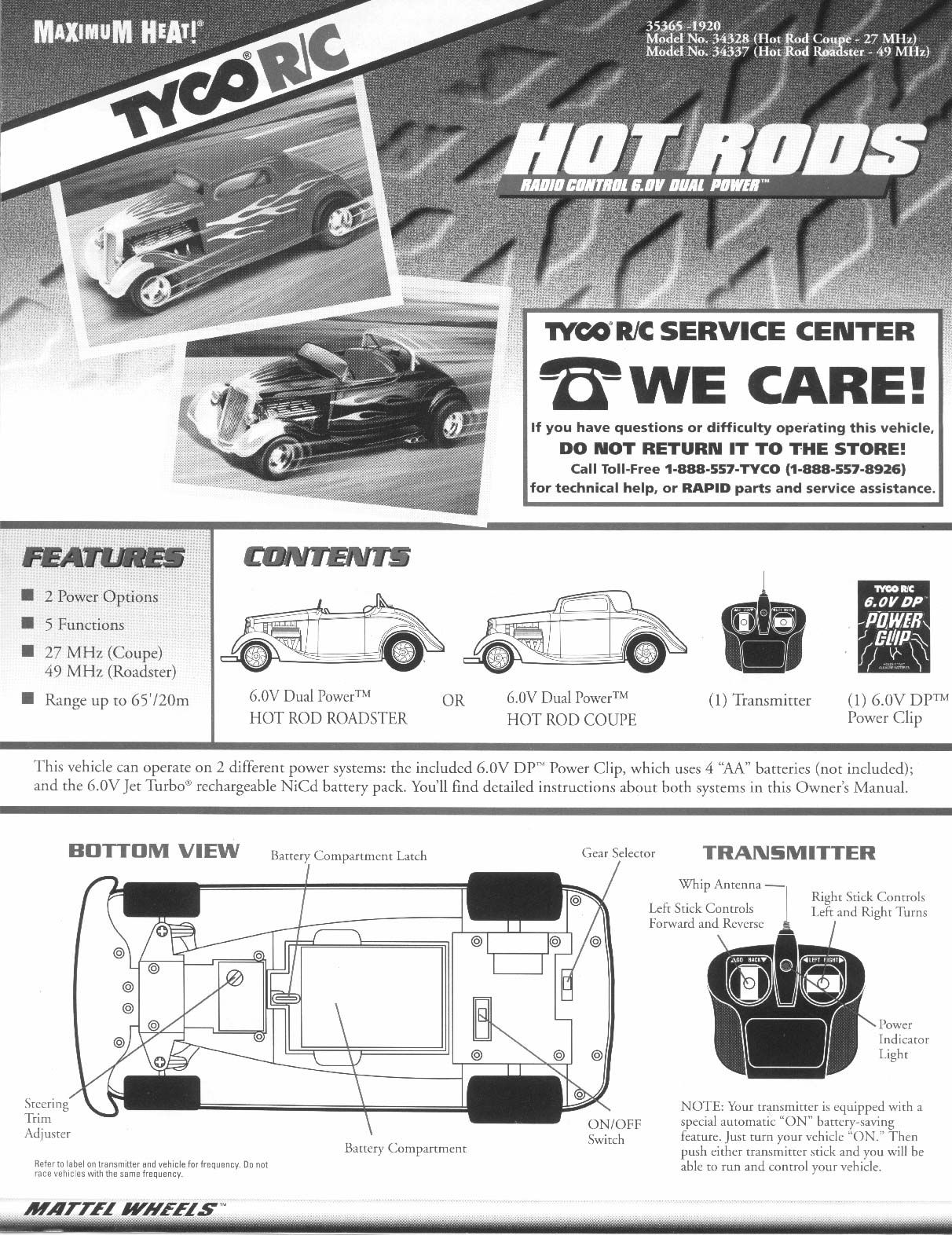

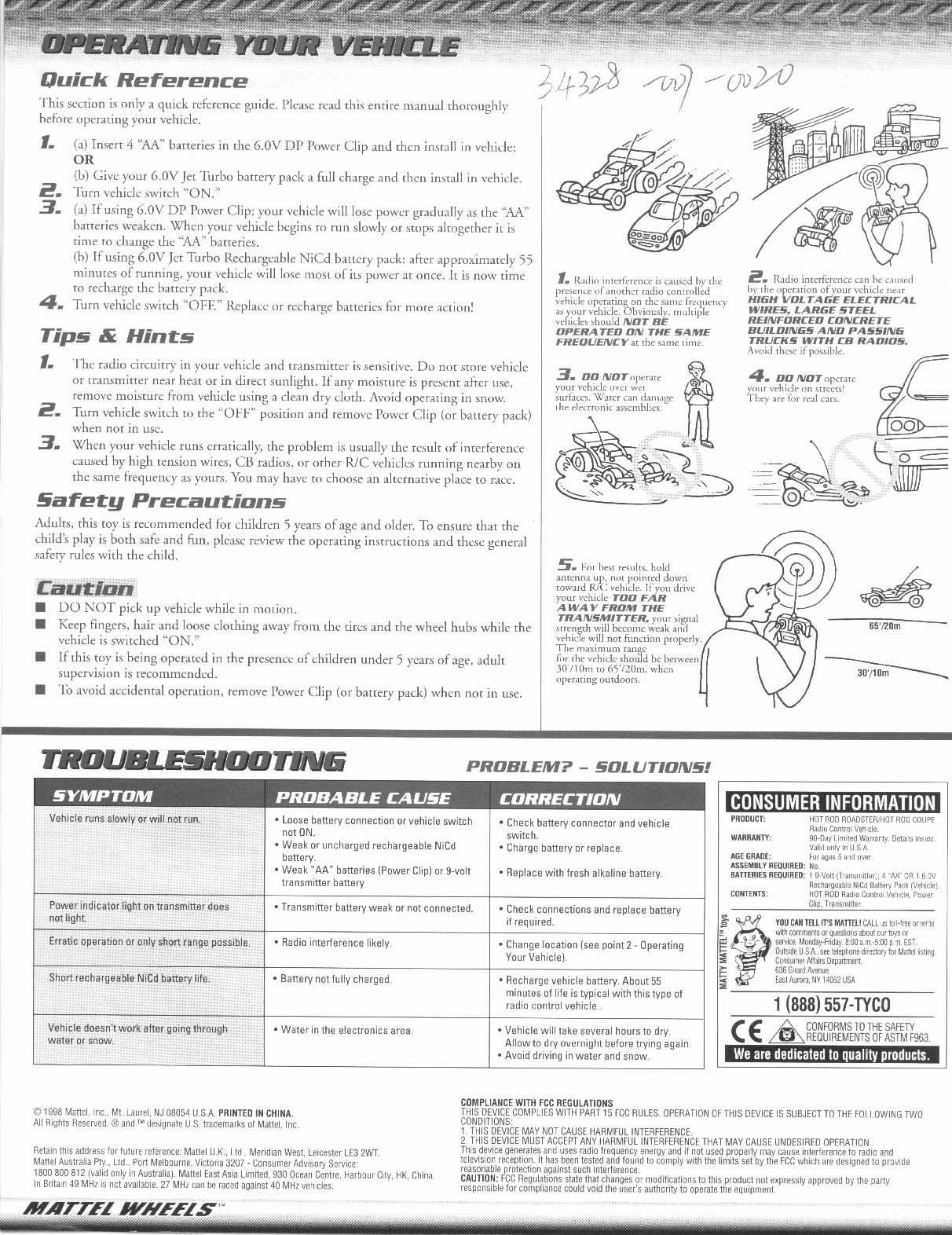

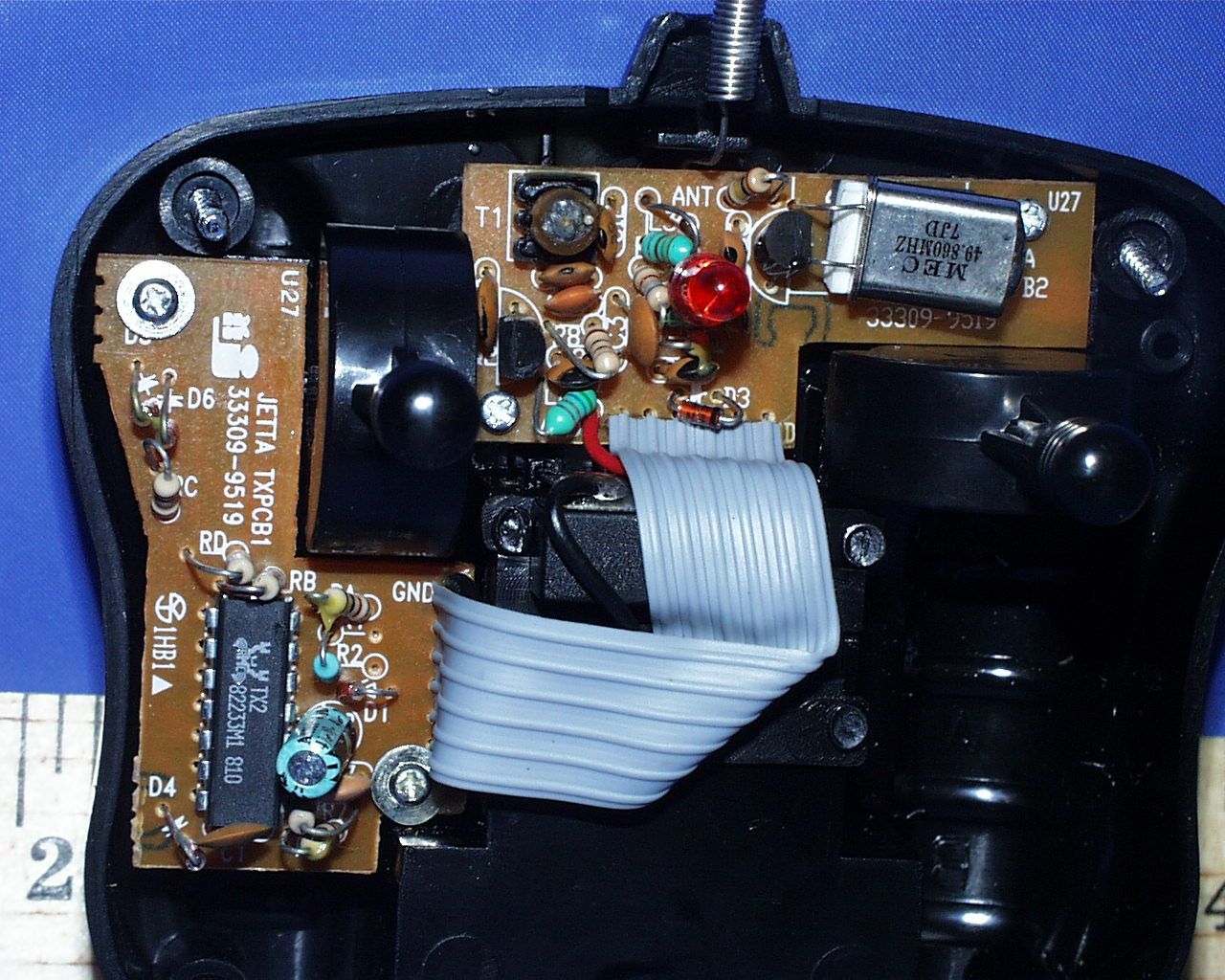

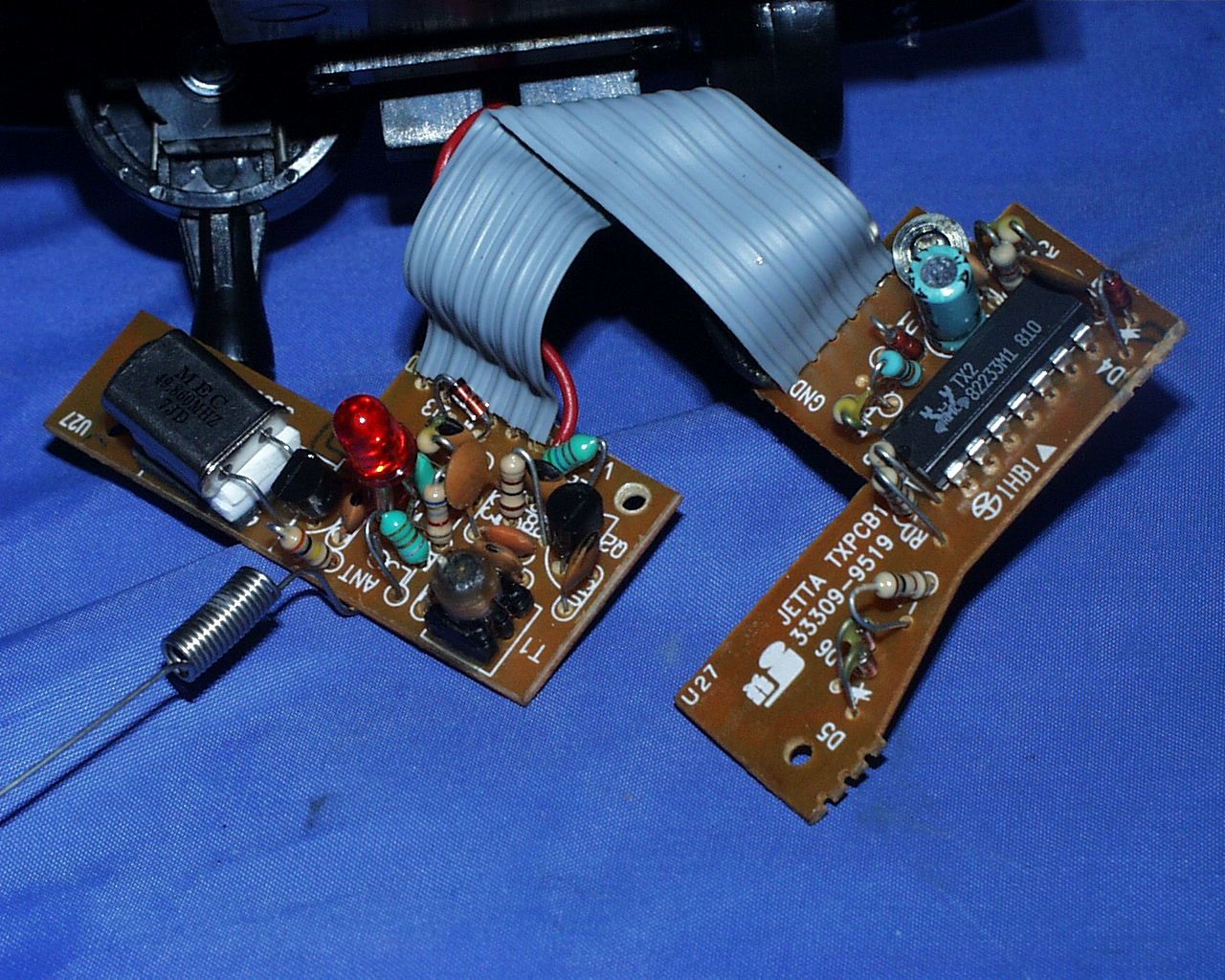

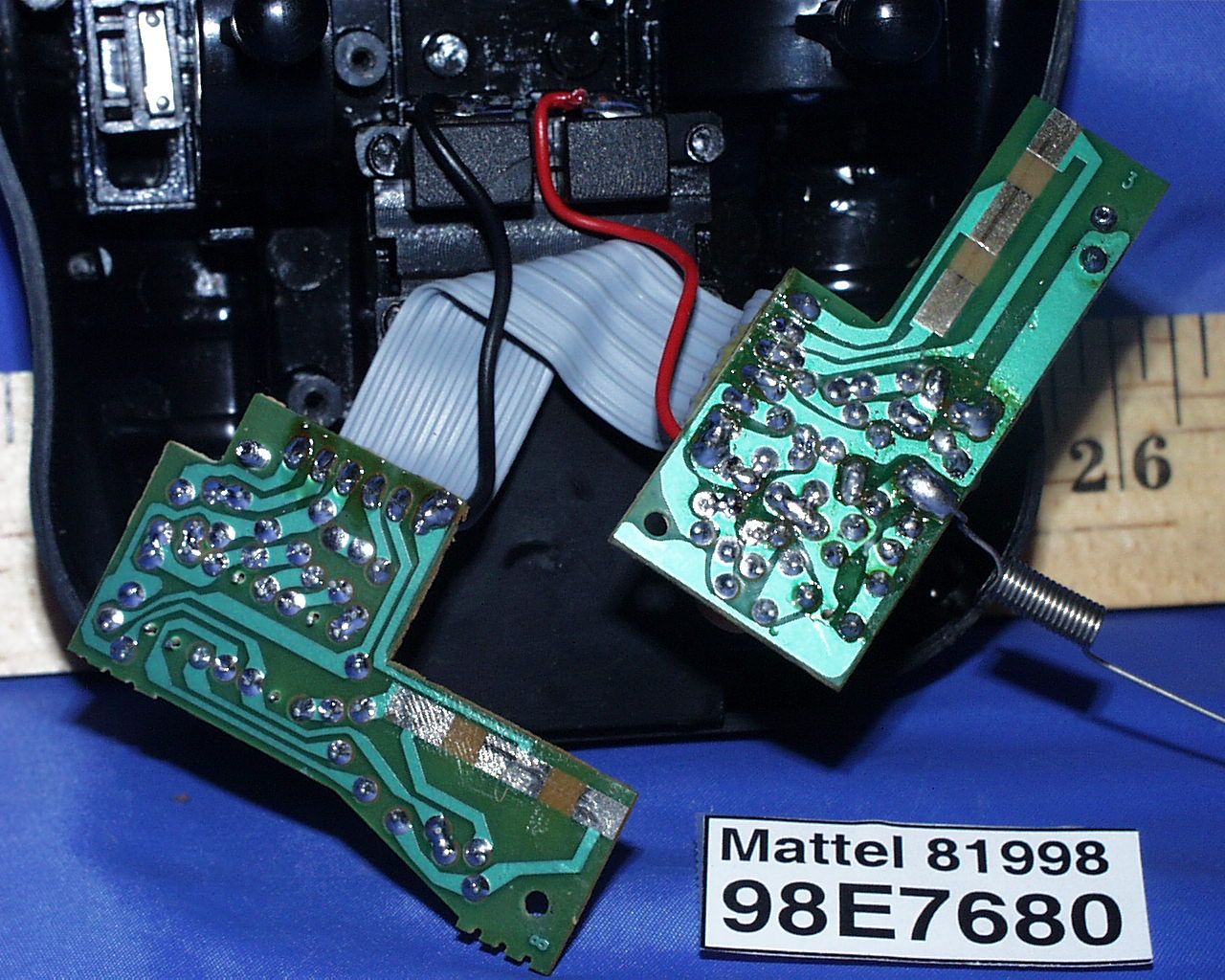

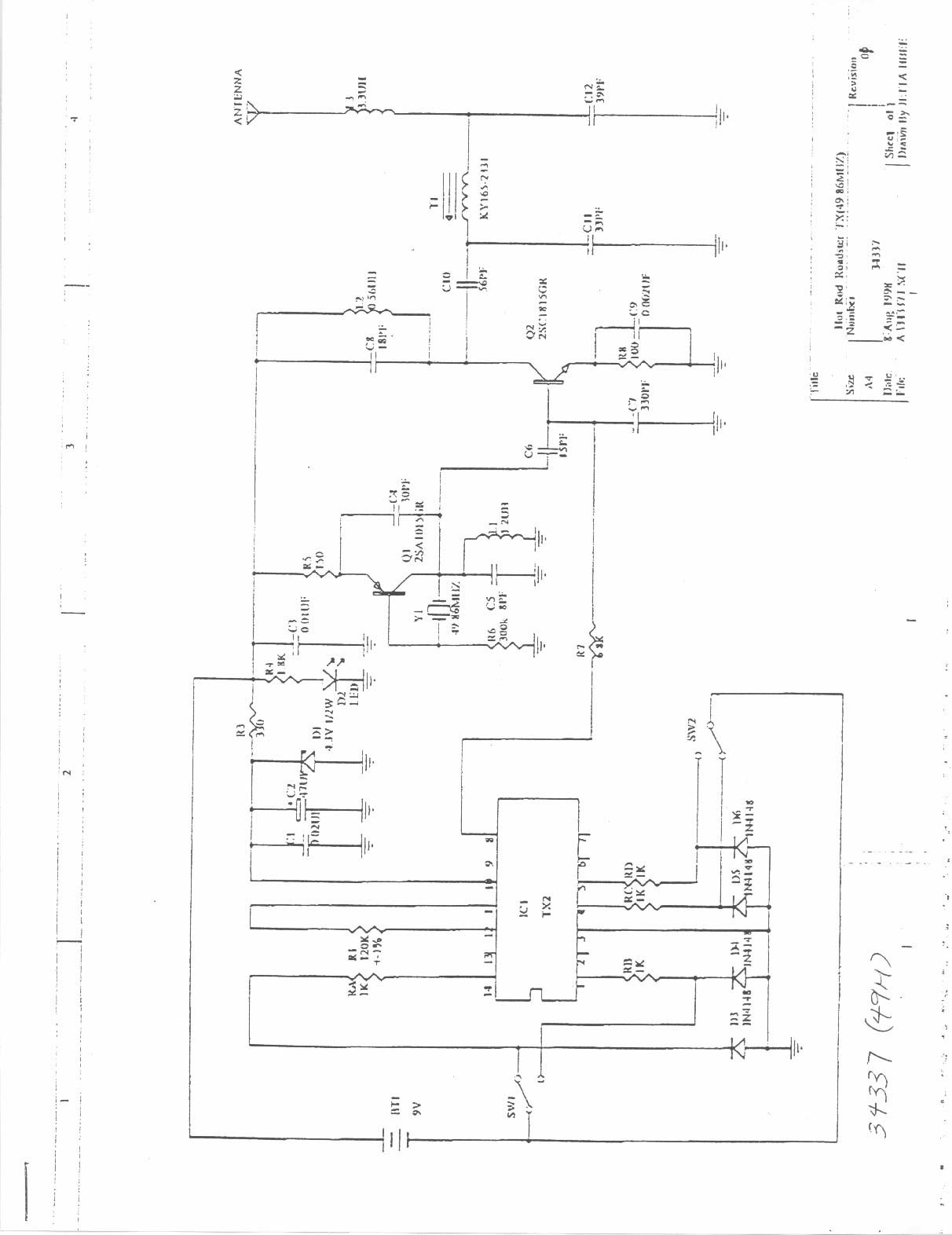

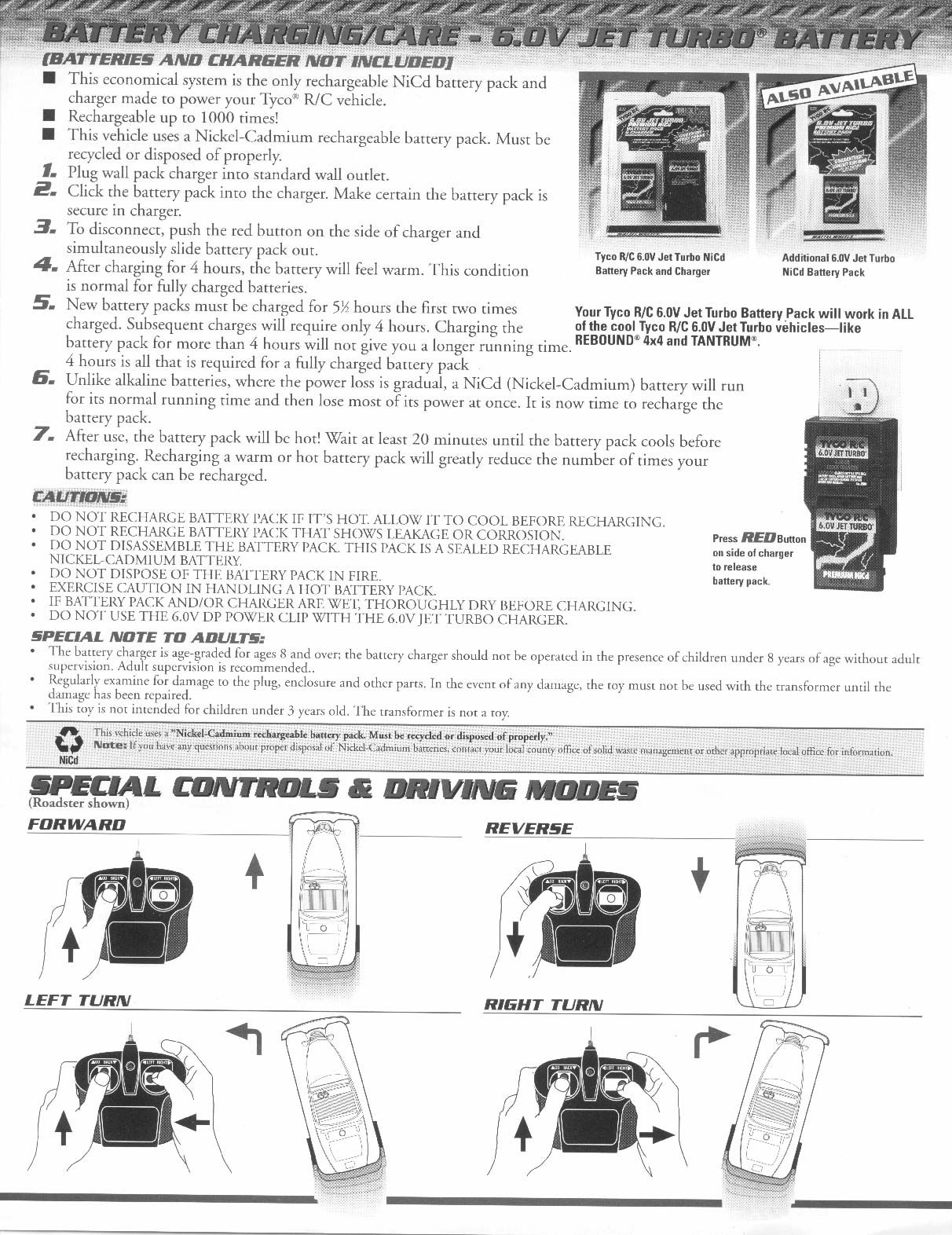

Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia MD 21046 Attention:Application Examiner Subject :Application for Certification Reference:FCC ID:APB34337-98A4T Dear Application Examiner : On behalf of MATTEL TOYS, INC., I, the undersigned, hereby submit the application for certification per FCC Part 15 rules. EUT is an intentional radiator to be classified as low power transmitter under FCC 15.235 . The following attachments are included in the electronic filling : Attachment A:This letter Attachment B: Agent authorization letter Attachment C: FCC ID label format and location Attachment D: Schematic Diagram Attachment E: Technical report w/ setup photo Attachment F: Internal / External photo Attachment G: User Manual If you have any question, please feel free to contact me. Best Regards Mike C.I. Kuo / Vice President Compliance Engineering Services, Inc. 1366 Bordeaux Drive Sunnyvale CA 94089 Tel(408)752-8166 x:105 E-Mail :[email protected]

PROPOSED FCC ID LABEL FORMAT APPLICANT :MATTEL TOYS, INC. FCC ID:APB34337-98A4T FCC ID:APB34337-98A4T This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RC CAR TRANSMITTER MODEL NO: 34337 BRAND NAME: HOT ROD ROADSTER FCC ID NO: APB34337-98A4T REPORT NO: 98E7680 ISSUE DATE: AUGUST 18, 1998 Prepared for MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE............................. 2 2.PRODUCT DESCRIPTION.................................... 3 3.TEST FACILITIES ....................................... 3 4.MEASUREMENT STANDARDS ................................. 3 5.TEST METHODOLOGY ...................................... 3 6.MEASUREMENT EQUIPMENT USED ............................ 4 7.TEST PROCEDURES AND TEST RESULTS....................... 4 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8.RADIATED EMISSION TEST SETUP PHOTO..................... 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON:VLADIMIR BUZGA DIRECTOR OF DEVELOPMENT, CES TELEPHONE NO.:310-252-2000 EUT DESCRIPTION:RC CAR TRANSMITTER MODEL NAME/NUMBER:34337 FCC ID:APB34337-98A4T DATE TESTED :AUGUST 18, 1998 REPORT NUMBER:98E7680 EQUIPMENT TYPE49.86 MHz TRANSMITTER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.Product Description CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9 VOLT Battery (4 X AA) Transmitting Time Continuous Type of Antenna Permanently attached No. of Channel One NO. OF LAYER 1 Board Revision No 33309-9519 Associated Receiver Mattel Toys, Inc. Model no: 34337 FCC ID:APB34337-98A4R 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 6.Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8546AEMI Receiver (9kHz - 6.5GHz) 03/99 H.P.85460ARF Filter Section (9kHz - 6.5GHz) 03/99 EMCO3146Antenna (200-1000 MHz) 10/98 EMCO3110Antenna (30-200 MHz) 10/98 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/98 7.Test Procedures and Test Results Radiated Emission Test: ( 15.235 (a)) Test Procedure 1. The EUT was placed on a wooden table on the outdoor ground plane. The search antenna was placed 3 meter from the EUT. The EUT was placed in X,Y, and Z position to simulate the actual usage. 2.The turntable was slowly rotated to locate the direction of maximum emission at each EUT position. Once the maximum direction and EUT position was determined, the search antenna was raised and lowered in both vertical and horizontal polarization. The maximum reading so obtained are recorded in the data list below. Test Result : Refer to attached tabular data sheet. (Data report number :980818F1 REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Emission Test: ( 15.235 (b)) Test Requirement : The field strength between the band edges and up to 10kHz above and below the band edges shall be attenuated at least 26 dB below the level of the unmodulated carrier or to the general limits in 15.209, which permits the higher emission levels. Test Procedure: 1.Verification of antenna output power was made before the tests. Since the EUT’s antenna is permanently attached and can not produce unmodulated signle, EUT was tested with radited emission setup at 3…

Text truncated - open the document above for the full version.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RC CAR TRANSMITTER MODEL NO: 34337 BRAND NAME: HOT ROD ROADSTER FCC ID NO: APB34337-98A4T REPORT NO: 98E7680 ISSUE DATE: AUGUST 18, 1998 Prepared for MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................. 2 2. PRODUCT DESCRIPTION.................................... 3 3. TEST FACILITIES ....................................... 3 4. MEASUREMENT STANDARDS ................................. 3 5. TEST METHODOLOGY ...................................... 3 6. MEASUREMENT EQUIPMENT USED ............................ 4 7. TEST PROCEDURES AND TEST RESULTS....................... 4 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO..................... 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON : VLADIMIR BUZGA DIRECTOR OF DEVELOPMENT, CES TELEPHONE NO. : 310-252-2000 EUT DESCRIPTION : RC CAR TRANSMITTER MODEL NAME/NUMBER : 34337 FCC ID : APB34337-98A4T DATE TESTED : AUGUST 18, 1998 REPORT NUMBER : 98E7680 EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. Product Description CHASSIS TYPEPLASTIC Fundamental Frequency49.86 MHz Power Source9 VOLT Battery (4 X AA) Transmitting TimeContinuous Type of AntennaPermanently attached No. of ChannelOne NO. OF LAYER1 Board Revision No33309-9519 Associated ReceiverMattel Toys, Inc. Model no: 34337 FCC ID:APB34337-98A4R 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 6. Measurement Equipment Used Manufacturer Model Number Description Cal Due Date H.P. 8546A EMI Receiver (9kHz - 6.5GHz) 03/99 H.P. 85460A RF Filter Section (9kHz - 6.5GHz) 03/99 EMCO 3146 Antenna (200-1000 MHz) 10/98 EMCO 3110 Antenna (30-200 MHz) 10/98 H.P. 8447D Preamplifier (0.1 - 1300 MHz) 09/98 7. Test Procedures and Test Results Radiated Emission Test: ( 15.235 (a)) Test Procedure 1. The EUT was placed on a wooden table on the outdoor ground plane. The search antenna was placed 3 meter from the EUT. The EUT was placed in X,Y, and Z position to simulate the actual usage. 2. The turntable was slowly rotated to locate the direction of maximum emission at each EUT position. Once the maximum direction and EUT position was determined, the search antenna was raised and lowered in both vertical and horizontal polarization. The maximum reading so obtained are recorded in the data list below. Test Result : Refer to attached tabular data sheet. (Data report number :980818F1 REPORT NO:98E7680 FCC ID:APB34337-98A4T DATE:08/18/98 PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Emission Test: ( 15.235 (b)) Test Requirement : The field strength between the band edges and up to 10kHz above and below the band edges shall be attenuated at least 26 dB below the level of the unmodulated carrier or to the general limits in 15.209, which permits the higher emission levels. Test Procedure: 1. Verification of antenna output power was made before the tests. Since the EUT’s antenna is permanently attached and can not produce unmodulated signle, EUT was …
