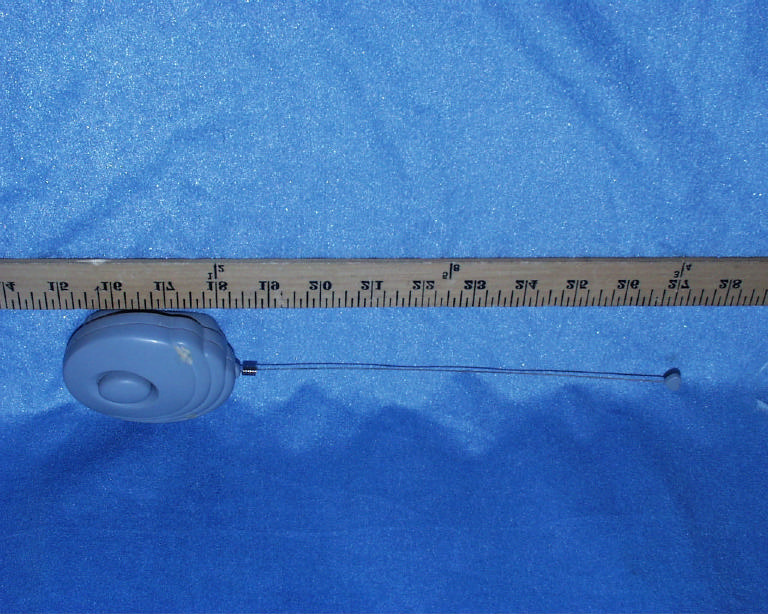

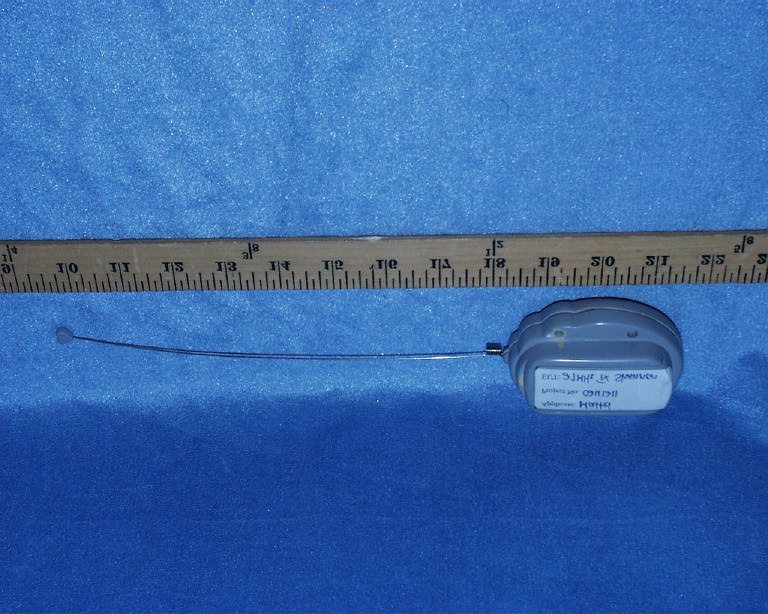

APB47999-02A2TRemote Control Toy Transmitter

47999-9993 MINI SKATEBOARDApr. 10. 02Apr. 10. 0247999-9993 MINI SKATEBOARD BATTERY INSTALLATION: •Skateboard •Stickers GETTING STARTED •Controller © 2002 Mattel, Inc., El Segundo, CA 90245 U.S.A. All Rights Reserved. Mattel East Asia Ltd., World Finance Centre, Harbour City, Tsimshatsui, HK, China. Retain this address for future reference: Mattel U.K., Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Help line 01628500303 BATTERY SAFETY INFORMATION • Non-rechargeable batteries are not to be recharged. • Rechargeable batteries are to be removed from the toy before being charged (If designed to be removable). • Rechargeable batteries are only to be charged under adult supervision (If designed to be moveable). • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Do not mix old and new batteries. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity. • Exhausted batteries are to be removed from the toy. • The supply terminals are not to be short-circuited. • Dispose of batteries safely. Do not dispose of in fire as batteries may explode or leak. • Products with non-replaceable batteries are not to be disposed of in a fire as the batteries inside may explode or leak. CAUTION: To prevent entanglement, keep hair away from wheels .
47999-9993-S1 Please keep these instructions for future reference, as they contain important information. 2. Insert 3 "AA" (LR6) alkaline batteries (not included), as indicated inside the battery compartent. Remove the labels from the sticker sheet and place anywhere on the skateboard, helmet and/or controller •Hair band removal installation Pull ends of strips to release hair. Remove any remaining thread from hair. 3. Replace and screw the battery door after installing the batteries 1. Unscrew and remove the battery door. 2. Insert one "9V" alkaline battery (not included), as indicated inside the battery compartent. 3. Close the battery door. Surface washable 1. Slide open the battery door. 1. Press the power ON/OFF button on the top of the skateboard to turn the unit on and off. 4. To turn the product off, pick up by the back of the skateboard or lift the doll by the head and press the On/Off button. 2. The skateboard spins clockwise continuously when the Power button is pressed ON. 3. When you hold the button on the controller down, the skateboard will tilt back into a wheelie and move forward until the button is released. The skateboard will then continue to spin until the button is pressed down again. NOTE: Changes or modifications not expressively approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Mattel Inc. 333 Continental Blvd. El Segundo,CA (310) 252-2400 • Operating multiple vehicles with the same frequency in close proximity will cause interference and poor performance. • Works best away from high voltage power lines, large buildings and walls. • Hold the transmitter antenna up for best performance. • When the product does not respond, slows down, or loses range, change the batteries. • If transmitter is accidentally dropped in the water, remove battery(ies) and allow transmitter to air dry. Replace with fresh battery(ies) before operation. • Requires 3 AA alkaline batteries for the skateboard and one 9-V alkaline battery for the transmitter. • Play Safely! - Do not drive vehicle in the street! • For longer life use only alkaline batteries. • This product is not recommended for use on loose dirt or wet surfaces. • Do not immerse in water. Screwdriver not included Power OFF Power ON R/C toy operates from up to 30 feet (9m) away. This product operates at a frequnecy of 27MHz

PROPOSED FCC ID LABEL AND LOCATION MATTEL INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB47999-02A2T FCC ID LABEL

TX Project 02U1211 Model # 47999 Mini Shannen Skateboard TRANSMITTER OPERATIONAL DESCRIPTION. The RF transmitter is intended for use with RC toy vehicles. Transistor Q51, in association with crystal X1 and passive components L51, R52 R52 and C58, operates as 27.145 MHz oscillator of carrier RF signal. The carrier signal is modulated by amplitude by multivibrator built on the base of transistors Q52 and Q53 and passive components C54, C55, R55, R56 and R54. The frequence of modulating signal is 1000 Hz. Passive components C52 ,C57, L52 and C53 match the impedances of oscillator and permanently attached straight wire antenna. L52 is intended for adjustment of transmitter output power after assembling. Transmitter starts to operate by closing S51, which applies power voltage 9V DC to the transmitter circuits. When S51 is switched off, the transmitter is inoperative.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15, SECTION 227 REQUIREMENTS for INTENTIONAL RADIATOR RF REMOTE CONTROLLER FOR TOYS MODEL NO: 47999 BRAND NAME: MINI SHANNEN SKATEBOARD FCC ID NO: APB47999-02A2T REPORT NO: 02U1211-1 ISSUE DATE: MARCH 18, 2002 Prepared for MATTEL, INC 2031 MARIPOSA AVENUE EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1121 FCC ID: APB47999-02A2T DATE: MARCH 18, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE.............................................................................3 2. PRODUCT DESCRIPTION.............................................................................................4 3. TEST FACILITY..............................................................................................................4 4. MEASUREMENT STANDARDS....................................................................................4 5. TEST METHODOLOGY.................................................................................................4 6. MEASUREMENT EQUIPMENT USED.........................................................................5 7. POWERLINE RFI LIMIT...............................................................................................5 8. RADIATED EMISSION LIMITS....................................................................................5 9. SYSTEM TEST CONFIGURATION..............................................................................6 10. EQUIPMENT MODIFICATION.................................................................................7 11. TEST PROCEDURE AND RESULT...........................................................................7 12. APPENDIX....................................................................................................................9 EXTERNAL & INTERNAL PHOTOS............................................................................................10 SCHEMATICS..........................................................................................................................14 BLOCK DIAGRAM...................................................................................................................14 USER MANUAL......................................................................................................................14 REPORT NO: 02U1121 FCC ID: APB47999-02A2T DATE: MARCH 18, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 3 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL, INC. 2031 MARIPOSA EL SEGUNDO, CA 90245 USA CONTACT PERSON : SOSNOVSKY VLADIMIR/SENIOR PROJECT ENGINEER TELEPHONE NO. : 310-252-5595 EUT DESCRIPTION : RF REMOTE CONTROLLER FOR TOYS MODEL NAME/NUMBER : 47999 BRAND NAME : MINI SHANNEN SKATEBOARD SERIAL NUMBER : 1 FCC ID : APB47999-02A2T DATE TESTED : MARCH 12, 2002 REPORT NUMBER : 02U1121 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 27 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: FRANK IBRAHIM MIKE HECKROTTE EMC ENGINEER CHIEF EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1121 FCC ID: APB47999-02A2T DATE: MARCH 18, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 4 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 27.145 MHz Power Requirement ONE 9 VOLT BATTERY Type of Transmission CONTINUOUS Antenna Requirement PERMANENTLY ATTACHED Local Osc. 27.145MHz Type of Antenna STRAIGHT WIRE ANTENNA Usuage REMOTE CONTROLLED TOY 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. …

Text truncated - open the document above for the full version.

REPORT NO: 02U1121 FCC ID: APB47999-02A2T DATE: MARCH 18, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 6 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). Radiated Open Site Test Set-up
