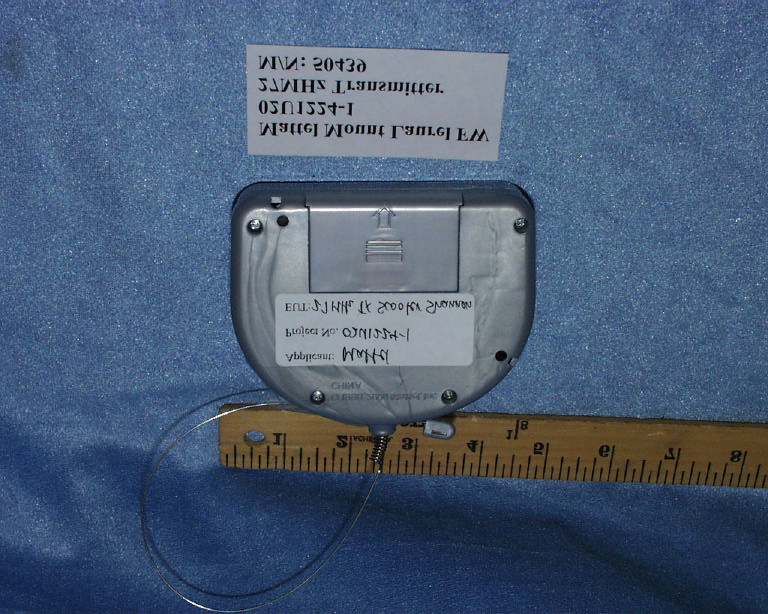

APB50439-02A2TRemote Control Toy Transmitter

ANTENNA 006P(9V) LEFTB FOSC OSC1 OSC0 PC VDD SO RIGHTB TESTB GND BACKWARDB FORWARDB TURBOB SC TX2C OSCILLATOR TIMING GENERATOR ENCODINGCIRCUIT LOGIC LATCH CIRCUIT CRYSTALOSCILLATOR RFAMP VOLTAGE REGULATOR BLOCK-DIAGRAM 50439 TRANSMITTER TX PCB 50439TX

PROPOSED FCC ID LABEL AND LOCATION MATTEL INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB50439-02A2T FCC ID LABEL

Model # 55647 Mini Shannen Skateboard TRANSMITTER OPERATIONAL DESCRIPTION. The RF transmitter is intended for use with RC toys. Transistor Q1, in association with crystal Y1 and passive components L1, R5 R6, C4 and C5, operates as 27.145 MHz oscillator of carrier RF signal. Q1 and passive components R8, C7, C8, C9 and L2 form RF amplifier-amplitude modulator. IC1 encodes control signals. The encoder generates pulse signals from its output (p.8) when switch SW connects p.5 (FW) or p.4 (BW) to the negative terminal of battery. These signals are applied through R7 to the input of RF modulator (base of Q2) and modulate RF carrier signal by amplitude. When SW is released (middle position), the transmitter circuit is disconnected from battery and inoperative. R1 sets IC1 system clock. C1, C2, D1, R3 provide stable power voltage for IC1. Passive components C10, C11, C12 and L3 match the impedances of amplifier and permanently attached straight wire antenna. Tunable inductor T1 is intended for adjustment of transmitter output power after assembling.

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 7-Mar-2002 Sheet of File: A:\50439TX-1.sch Dra wn By: C6 47PF C3 0.01UF C12 18PF C11 100PF C5 22PF C1 0.02UF C4 33PF C7 470PF C9 0.01UF C10 47PF C8 47PF D3 IN4148 D2 IN4148 BT19V ANTENNA C2 47UF Q2 2SC1815GR Q1 2SA1015GR D1 4.3V 1/2W L3 5.6UH L1 1.2UH L21.2UH T1 Y1 27.145MHZ SW 123 4 5 6 7 8 9 10 11 12 13 14 R3330 R21K R4 1K R5 470 R6 68K R76.8K IC1 TX2C R8100 R1150K VESPA SCOOTER(TWO FUNCTION) JETTA HBEE 00 KY165-4444 LT RT BW FW 1 1 50439TX-1

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RF REMOTE CONTROLLER FOR TOYS MODEL NO: 50439, 55372, 55373, 55656 BRAND NAME: VESPA SCOOTER SHANNEN AND ZIP ‘N ZOOM SHANNEN FCC ID NO: APB50439-02A2T REPORT NO: 02U1224-1 ISSUE DATE: MARCH 20, 2002 Prepared for MATTEL INC. 2031 MARIPOSA AVENUE EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1224-1 FCC ID: APB50439-02A2T DATE: MARCH 20, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE.............................................................................3 2. PRODUCT DESCRIPTION.............................................................................................4 3. TEST FACILITY..............................................................................................................4 4. MEASUREMENT STANDARDS....................................................................................4 5. TEST METHODOLOGY.................................................................................................4 6. MEASUREMENT EQUIPMENT USED.........................................................................5 7. POWERLINE RFI LIMIT...............................................................................................5 8. RADIATED EMISSION LIMITS....................................................................................5 9. SYSTEM TEST CONFIGURATION..............................................................................6 10. EQUIPMENT MODIFICATION.................................................................................7 11. TEST PROCEDURE AND RESULT...........................................................................7 12. APPENDIX..................................................................................................................11 EXTERNAL & INTERNAL PHOTOS............................................................................................11 SCHEMATICS..........................................................................................................................14 BLOCK DIAGRAM...................................................................................................................14 USER MANUAL......................................................................................................................14 REPORT NO: 02U1224-1 FCC ID: APB50439-02A2T DATE: MARCH 20, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 3 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL INC. 2031 MARIPOSA AVENUE EL SEGUNDO, CA 90245 USA CONTACT PERSON : VLADIMIR SOSNOVSKT/ PROJECT ENGINEER TELEPHONE NO. : 310-252-5595 EUT DESCRIPTION : RF REMOTE CONTROLLER FOR TOYS MODEL NAME/NUMBER : 50439, 55372, 55373, 55656 BRAND NAME : VESPA SCOOTER SHANNEN AND ZIP ‘N ZOOM SHANNEN SERIAL NUMBER : 1 FCC ID : APB50439-02A2T DATE TESTED : MARCH 19, 2002 REPORT NUMBER : 02U1224-1 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 27 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: THU CHAN MIKE HECKROTTE SENIOR EMC ENGINEER CHIEF EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1224-1 FCC ID: APB50439-02A2T DATE: MARCH 20, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 4 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION CHASSIS TYPE Plastic Fundamental Frequency 27.145 MHz Power Source One 9Volt Battery Transmitting Time Continuous Type of antenna Straight Wire Antenna Antenna Requirement Permanently Attached Local Osc. 27.145MHz Usage Remote Controlled Toys 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARDS The site is constructed an…

Text truncated - open the document above for the full version.

REPORT NO: 02U1224-1 FCC ID: APB50439-02A2T DATE: MARCH 20, 2002 EUT: RF REMOTE CONTROLLER FOR TOYS Page 6 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). Radiated Open Site Test Set-up
