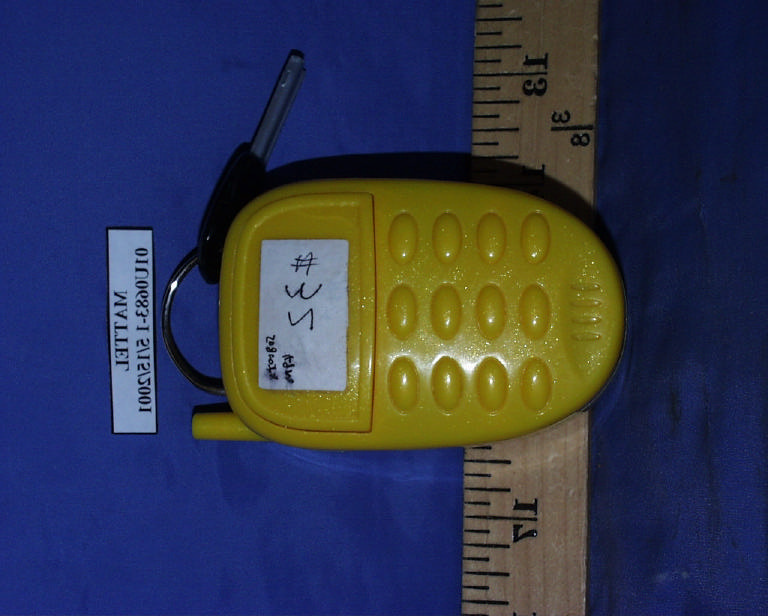

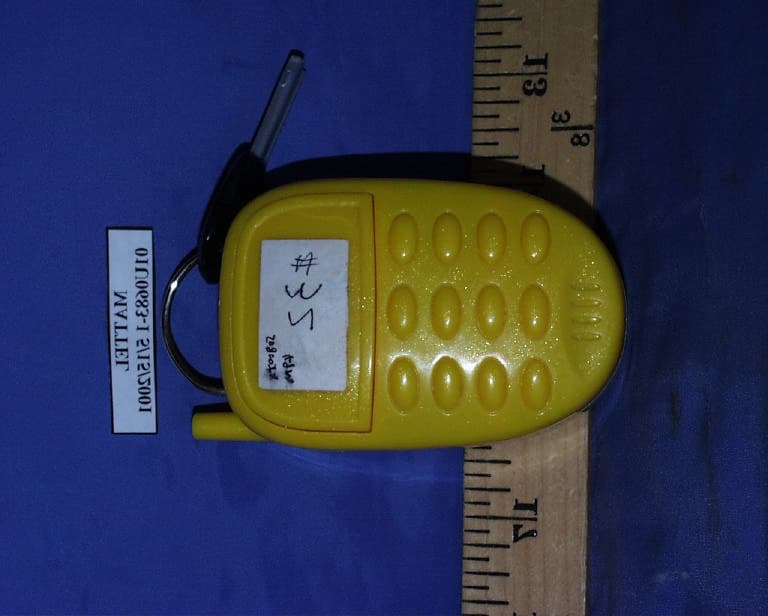

APB50800-01A4TRemote Control Toy Transmitter

® 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period.In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely.This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty.Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you.Hours: 8:00 A.M. – 5:00 P.M. Eastern Time; Monday – Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number.ADDRESS FOR RETURNS:CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052Send only the product to the address above. Send all correspondence to Consumer Relations, Mattel, Inc., 333 Continental Blvd., El Segundo, California 90245-5012 U.S.A. Or you may phone us toll-free at 1-800-524-TOYS, Monday–Friday, 8:00 a.m.–6:00 p.m. Eastern Time. Outside U.S.A., see telephone directory for Mattel listing. CONSUMER INFORMATION 1 ( 800 ) 524-TOYS We are dedicated to quality products. CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963. MATTY MATTEL™ toys YOU CAN TELL IT’S MATTEL!™ Call us toll-free or write with any comments or questions about our products or service. Monday–Friday, 8:00 a.m–6:00 p.m. Eastern Time. Outside U.S.A., see telephone directory for Mattel listing. Consumer Relations, Mattel, Inc., 333 Continental Blvd., El Segundo, CA 90245 U.S.A. Keep these instructions for future reference as  they contain important information. INSTRUCTION SHEET SPECIFICATIONS Toy: Toy No.: Part No.:Trim Size:Folded Size:Type of Fold:# colors:Colors:Paper Stock:Paper Weight:EDM No.: 49MHZ R/C Chatmobile 54967 0920 11"W x 8.5" H 5.5"W x 8.5" H See Dummy One Black White Offset 70 lb. 54967-0920 INSTRUCTIONS BATTERY INSTALLATION Unscrew battery cover. Remove and set aside. Install three "AA" alkaline batteries with polarity (+/-) as shown. Replace cover. Slide open battery cover. Remove and set aside. Install one 9V alkaline battery with polarity (+/-) as shown. Replace cover. IMPORTANT BATTERY INFORMATION:Bent or dirty contacts may result in loss of power. If battery does not fit correctly, gently bend back metal contacts. Vehicle: Transmitter: Vehicle requires three "AA" alkaline batteries (not included) and transmitter requires one 9V alkaline battery (not included). Operating frequency: 49 MHz Mattel, Inc., El Segundo, CA 90245 U.S.A. © 2001 Viacom International Inc. All Rights Reserved. Nickelodeon, Rugrats, and all related titles, logos, and characters are trademarks of Viacom International Inc. Rugrats created by Klasky, Csupo Inc. Mattel U.K. Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Helpline 01628500303. Mattel Australia Pty Ltd., Richmond, Victoria. 3121. Consumer Advisory Service 1 800 800 812 (valid only in Australia).




C h a t mo b i l e
SAFETY PRECAUTIONS: Adults, this toy is recommended for children 4 years of age and older. To ensure that the child’s play is both safe and fun, please review the operating instructions and these general rules with the child:• Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended during operation of this vehicle.• To avoid accidental operation, remove batteries when not in use.• DO NOT operate your vehicle on streets! They’re for real cars. Place flower labels on vehicle as desired. COMPLIANCE WITH FCC REGULATIONSTHIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:(1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.(2)THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable protection against such interference.CAUTION: FCC Regulations state that changes or modifications to this product not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. • Your transmitter is the “remote” on your keychain. It has an automatic ON feature. Just press and hold the button to steer straight ahead. • Release the button to back up and turn. Press it again to go forward when the vehicle is facing the direction you want. Insert the key and turn it counterclockwise to the OFF position after use. Remove the key for storage. OPERATION A. B. C. D. Your vehicle starts with a key, just like a real car! Lift the rear whe…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION MATTEL TOYS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB50800-01A4T FCC ID LABEL LOCATION

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49MHz REMOTE CONTROL CAR TRANSMITTER MODEL NO: 50800 BRAND NAME: R/C SUSIE AND ANGELICA CHATMOBILE FCC ID NO: APB50800-01A4T REPORT NO: 01U0683-1 ISSUE DATE: MAY 14, 2001 Prepared for MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245-5012 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................ 2 2. PRODUCT DESCRIPTION.......................................................................... 3 3. TEST FACILITY ........................................................................................ 3 4. MEASUREMENT STANDARDS ................................................................. 3 5. TEST METHODOLOGY ............................................................................. 3 6. MEASUREMENT EQUIPMENT USED ........................................................ 4 7. TEST PROCEDURES AND TEST RESULTS................................................. 5 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO.............................................. 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245-5012 USA CONTACT PERSON : JOHN DASPIT, STAFF ENGINEER TELEPHONE NO. : 310-252-2000 EUT DESCRIPTION : 49MHz REMOTE CONTROL CAR TRANSMITTER MODEL NAME/NUMBER : 50800 BRAND NAME : R/C SUSIE AND ANGELICA CHATMOBILE SERIAL NUMBER : N/A FCC ID : APB50800-01A4T DATE TESTED : MAY 07, 2001 REPORT NUMBER : 01U0683-1 TYPE OF EQUIPMENT REMOTE CONTROL CAR EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: MIKE ZHU STEVE CHENG SENIOR EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9VOLT BATTERY Transmitting Time CONTINUOUS Type of Antenna PERMANENTLY ATTACHED No. of Channel 1 NO. OF LAYER 1 Associated Receiver APB50800-01A4R 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Serial No. Cal Due Date H.P. 8566B Spectrum Analyzer 3014A06685 06/16/01 H.P. 8447D Pre-Amplifier 2944A06833 11/21/01 H.P. 8560A Quasi-Peak Detector C005599 05/04/02 SCHAFFNER- CHASE CBL6112B Antenna, Bilog 2586 12/11/01 BATTERY Energizer 9Volt Nicad or 9V Alkaline N/A N/A REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval o…

Text truncated - open the document above for the full version.

REPORT NO:01U0683-1 FCC ID: APB50800-01A4T DATE: MAY 14, 2001 EUT: 49 MHz REMOTE CONTROL CAR TRANSMITTER PAGE NO: 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED EMISSION TEST SETUP PHOTOS
