PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB80412-02A4R FCC ID LABEL

Spiderman Truck 49.860 MHz Mattel Part # 80412 Receiver FCC ID: APB80412-02A4R 03/20/02 0SP000IDERMAN MONSTER TRUCK # 80412 49.860MHz RECEIVER OPERATIONAL DESCRIPTION The Spiderman Monster Truck is a full function radio controlled toy truck . It operates on 6 volts supplied by 6.0V Nicad battery pack. It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the truck’s permanently attached wire whip antenna . The electrical signal is selectively amplified by a super regenerative input circuit ( Q1,T1,L1,C2-C5 ). The signal is then capacitively coupled ( via C8 ) to an integrated circuit ( RX2C ) were the signal is further amplified and decoded. A pair of digital outputs from the integrated circuit drives a full H-bridge drive circuit ( Q12-Q15 ) for controlling the speed and rotational direction of the drive motor. A second pair of digital outputs from the integrated circuit drives a second full H- bridge drive circuit ( Q7-Q10 ) for controlling the steering motor. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49 MHz RADIO CONTROL TRUCK (RECEIVER) MODEL NO: 80412-6518 (U49) BRAND NAME: TYCO R/C-6V SPIDERMAN MONSTER TRUCK FCC ID NO: APB80412-02A4R REPORT NO: 02U1184-1 DATE: MARCH 19, 2002 Prepared for MATTEL MT. LAUREL 6000 MIDLANTIC AVENUE MT. LAUREL, NJ 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...........................................................................................3 2. PRODUCT DESCRIPTION..............................................................................................................4 3. TEST FACILITY..................................................................................................................................4 4. MEASUREMENT EQUIPMENT USED......................................................................................5 5. TEST CONFIGURATION.................................................................................................................5 6. TESTS CONDUCTED........................................................................................................................5 7. RADIATED EMISSION TEST PROCEDURE..........................................................................6 8. COHERENT TESTS............................................................................................................................6 9. EQUIPMENT MODIFICATIONS..................................................................................................7 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)...........................8 • TEST DATA o Coherent Emission Plot o Radiated Emission Data • PROPOSED FCC ID LABEL FORMAT • AUTHORIZATION LETTER • SCHEMATIC DIAGRAM • USER MANUAL • EUT PHOTOGRAPHS REPORT NO: 02U1184-1 FCC ID: APB80412-02A4R DATE: MARCH 19, 2002 EUT: 49 MHz RADIO CONTROL TRUCK (RECEIVER) Page 3 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDLANTIC AVENUE MT. LAUREL, NJ 08504 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT TELEPHONE NO. : 856-840-1259 EUT DESCRIPTION : 49MHz RADIO CONTROL TRUCK (RECEIVER) MODEL NAME/NUMBER : 80412-6518 (U49) BRAND NAME : TYCO R/C-6V SPIDERMAN MONSTER TRUCK FCC ID : APB80412-02A4R DATE TESTED : MARCH 18, 2002 REPORT NUMBER : 02U1184-1 TYPE OF EQUIPMENT REMOTE CONTROL TOY RECEIVER (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: JERRY HOVEY MIKE HECKROTTE EMC ENGINEER CHIEF EMC ENGINNER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1184-1 FCC ID: APB80412-02A4R DATE: MARCH 19, 2002 EUT: 49 MHz RADIO CONTROL TRUCK (RECEIVER) Page 4 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION MATTEL MT. LAUREL., Model No# 80412-6518(U49) TYCO R/C-6V SPIDERMAN MONSTER TRUCK is the receiving portion of a remote control toy. The associated Transmitter is manufactured by MATTEL MT. LAUREL., Model No# 80412-49T, FCC ID APB80412-02A4T. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. REPORT NO: 02U1184-1 FCC ID: APB80412-02A4R DATE: MARCH 19, 2002 EUT: 49 MHz RADIO CONTROL TRUCK (RECEIVER) Page 5 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 4. MEASUREMENT EQUIPMENT USED 5. TEST CONFIGURATION Set signal generator to transmit at 49 MHz. Adjusted generator level and frequency to get the maximum coherent and emission of the Eut. The receiver receives the signal. All the wires are placed on the turntable…

Text truncated - open the document above for the full version.

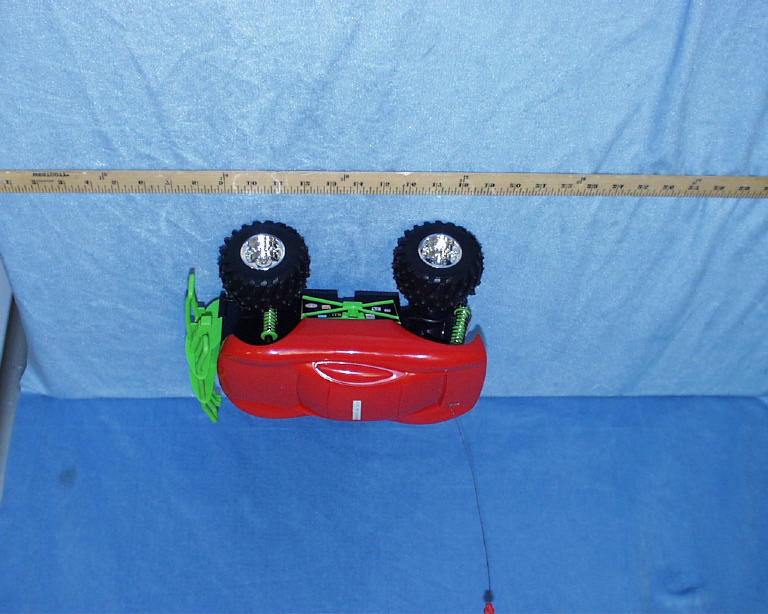

REPORT NO: 02U1184-1 FCC ID: APB80412-02A4R DATE: MARCH 19, 2002 EUT: 49 MHz RADIO CONTROL TRUCK (RECEIVER) Page 8 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test) REPORT NO: 02U1184-1 FCC ID: APB80412-02A4R DATE: MARCH 19, 2002 EUT: 49 MHz RADIO CONTROL TRUCK (RECEIVER) Page 9 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.
