APB88238-00A2TRemote control car transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB88238-00A2T FCC ID LABEL

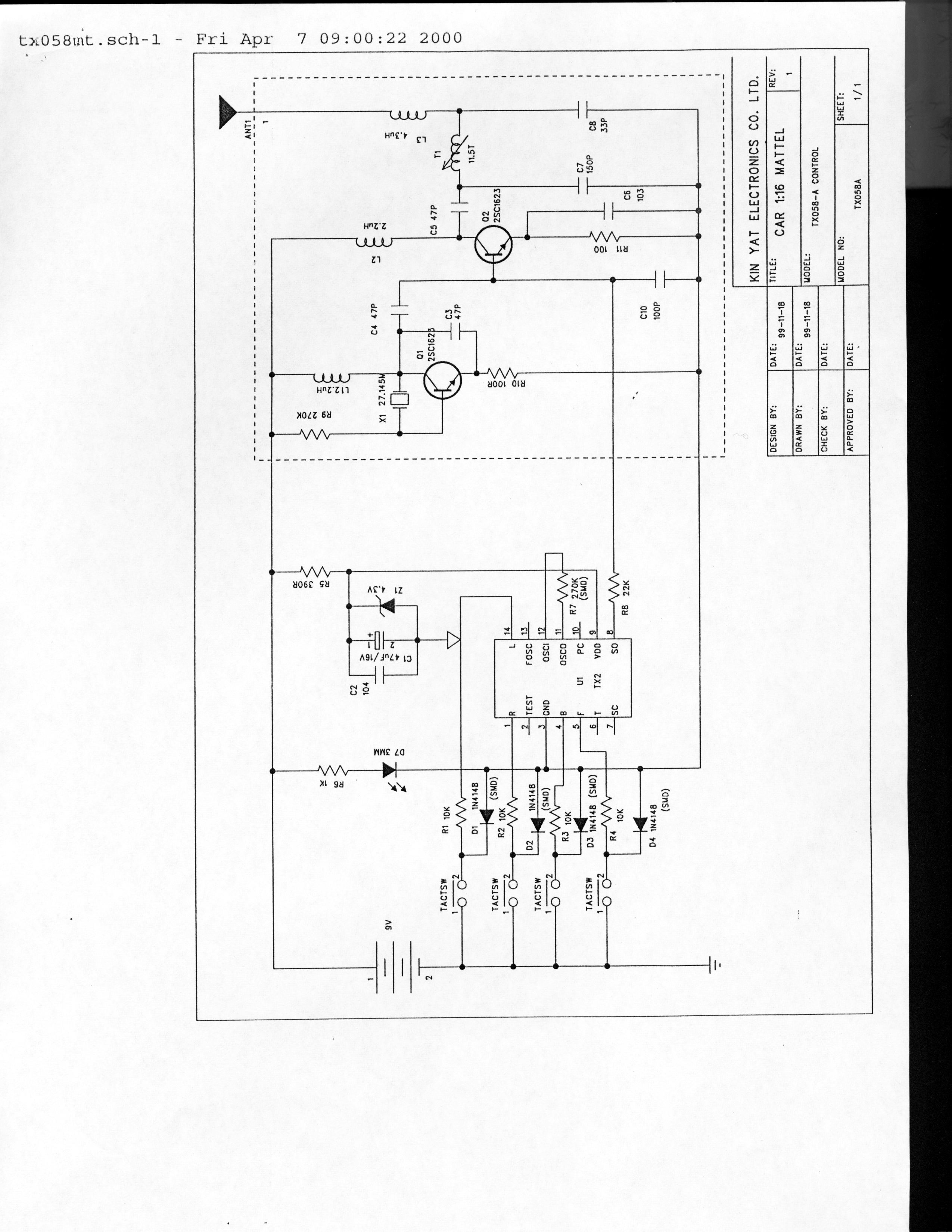

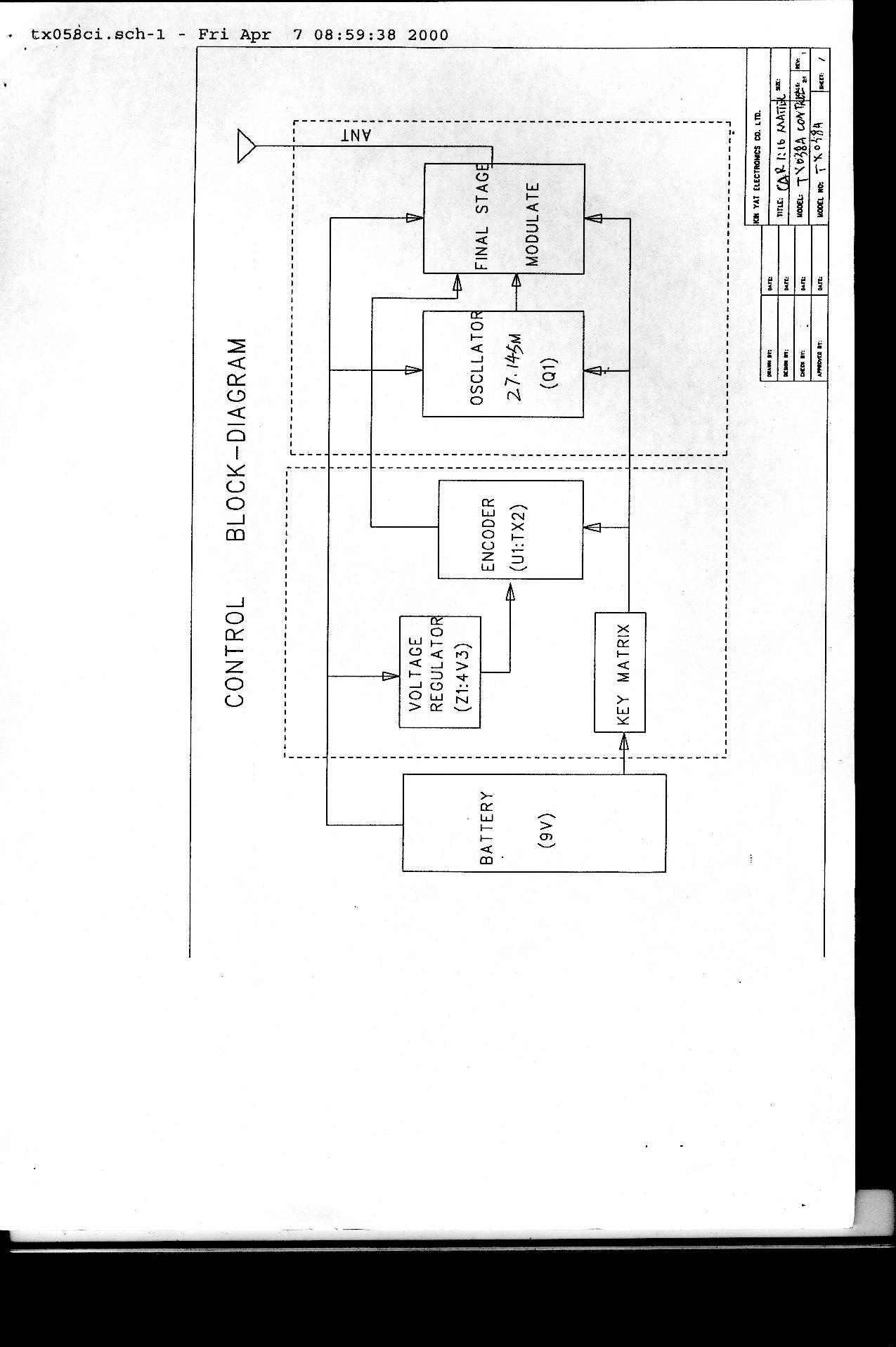

Deluxe Key Start Micro R/C 27.145 MHz Transmitter FCC ID: APB92182 – 00A2T 10/20/2000 OPERATIONAL DESCRIPTION The GRAVEDIGGER R/C transmitter is a low powered, hand held unit for controlling the movement of a toy car or truck. The single function transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency OF 27.145 MHz band. See the attached block diagram and schematic. Joystick inputs trigger an integrated circuit (TX2) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 27.145 MHz crystal (Y1) and a pnp transistor (Q1). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q2). The modulated output of the RF amplifier stage is capacitively coupled ( via C10) to the antenna through a “ pi “ matching network comprised of C11, L3 and C12. The whip antenna is 12 inches long and permanently attached. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

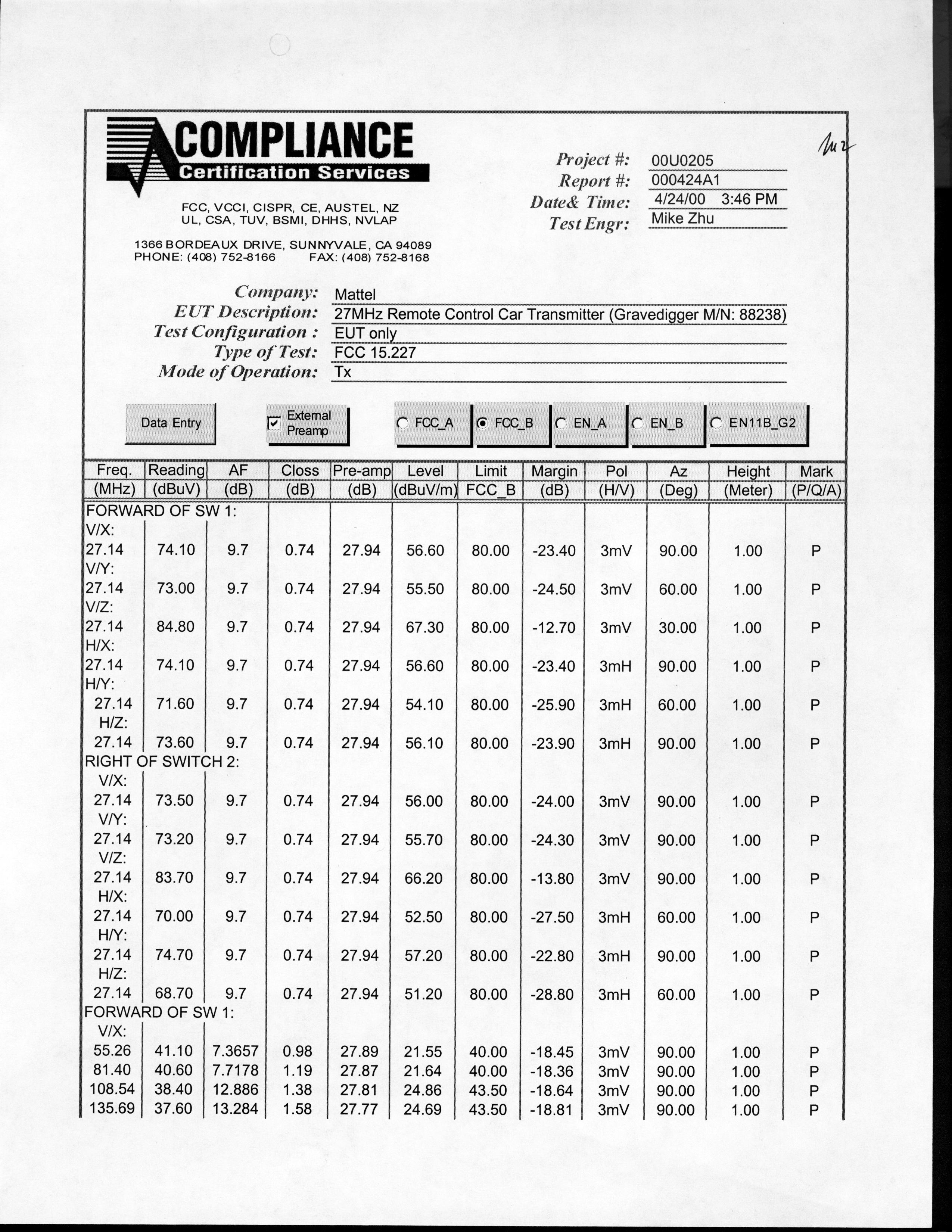

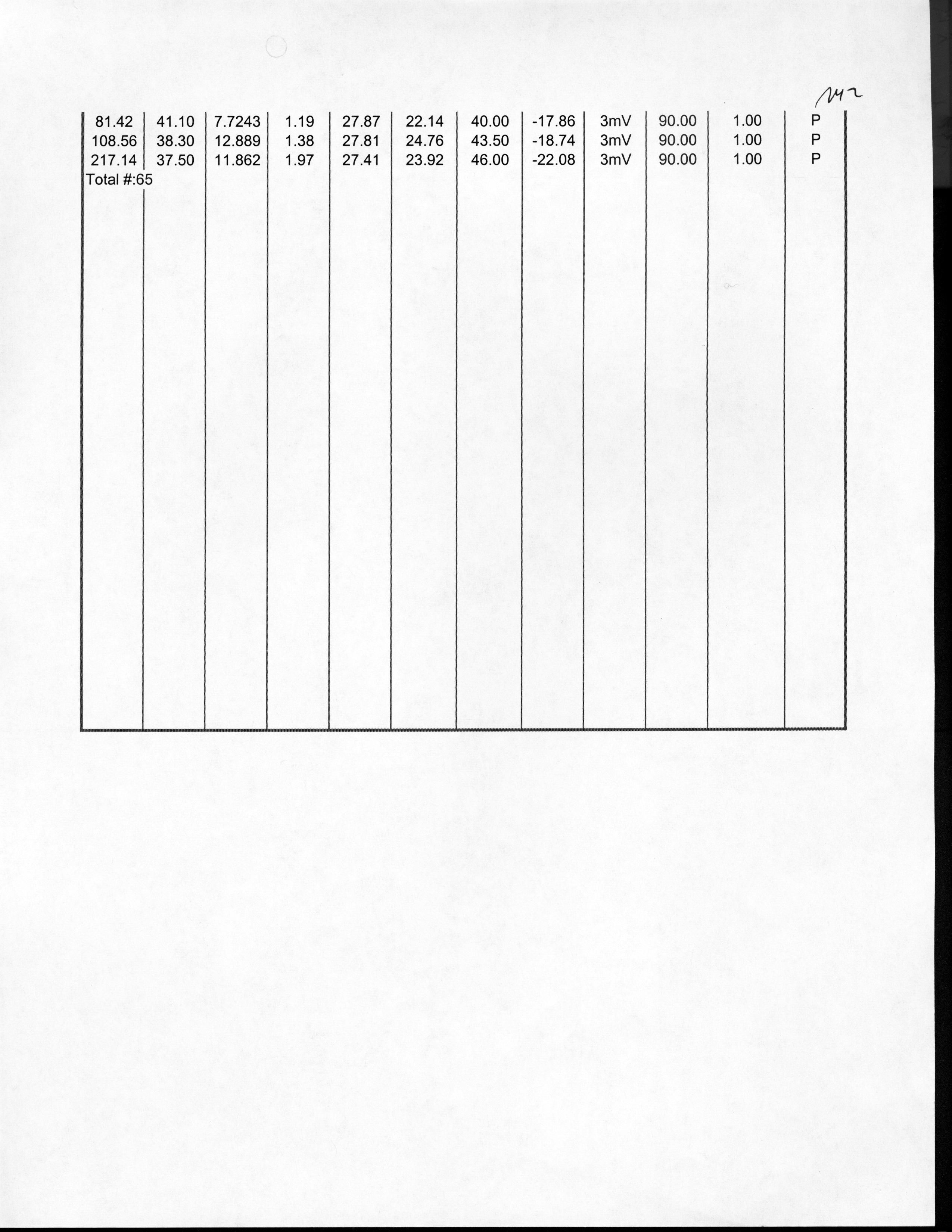

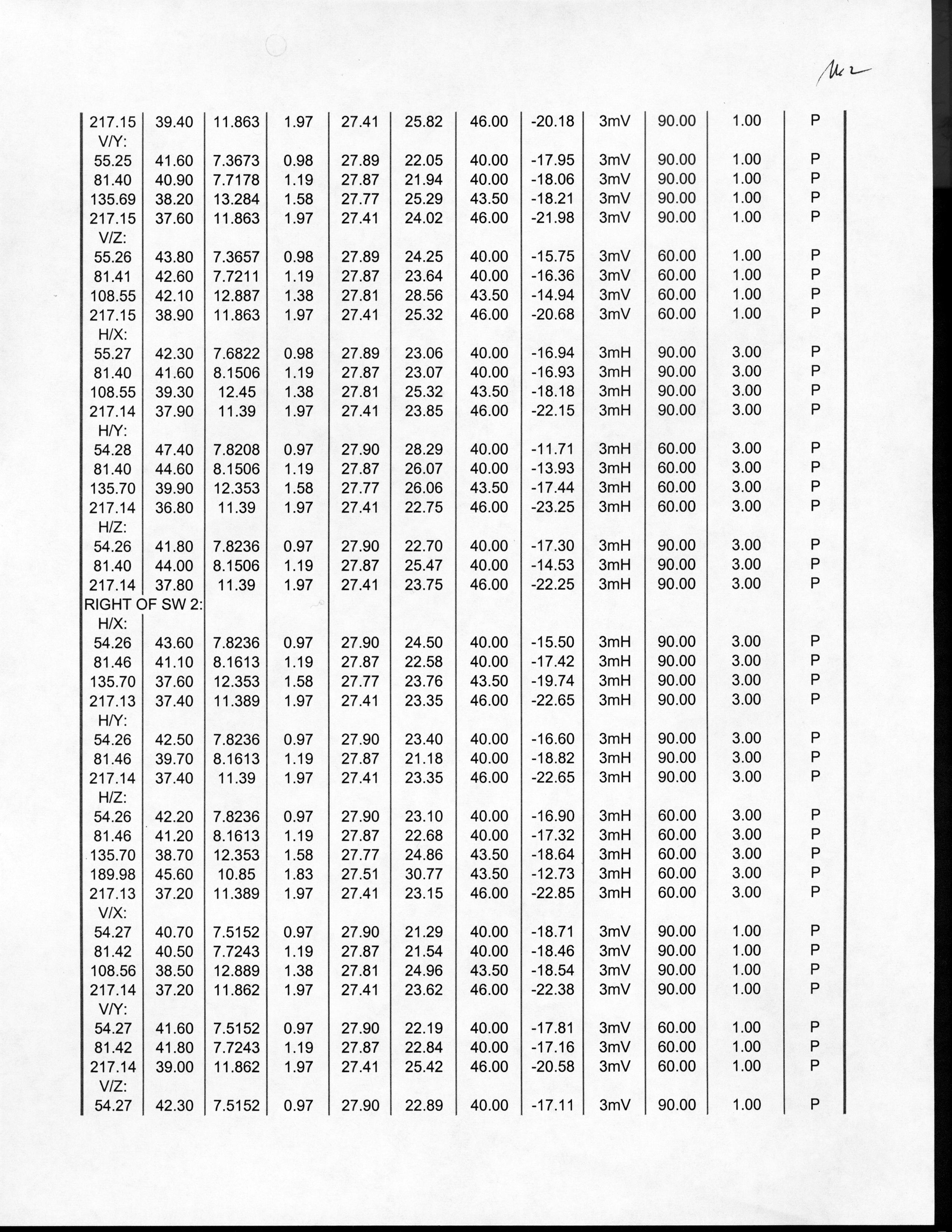

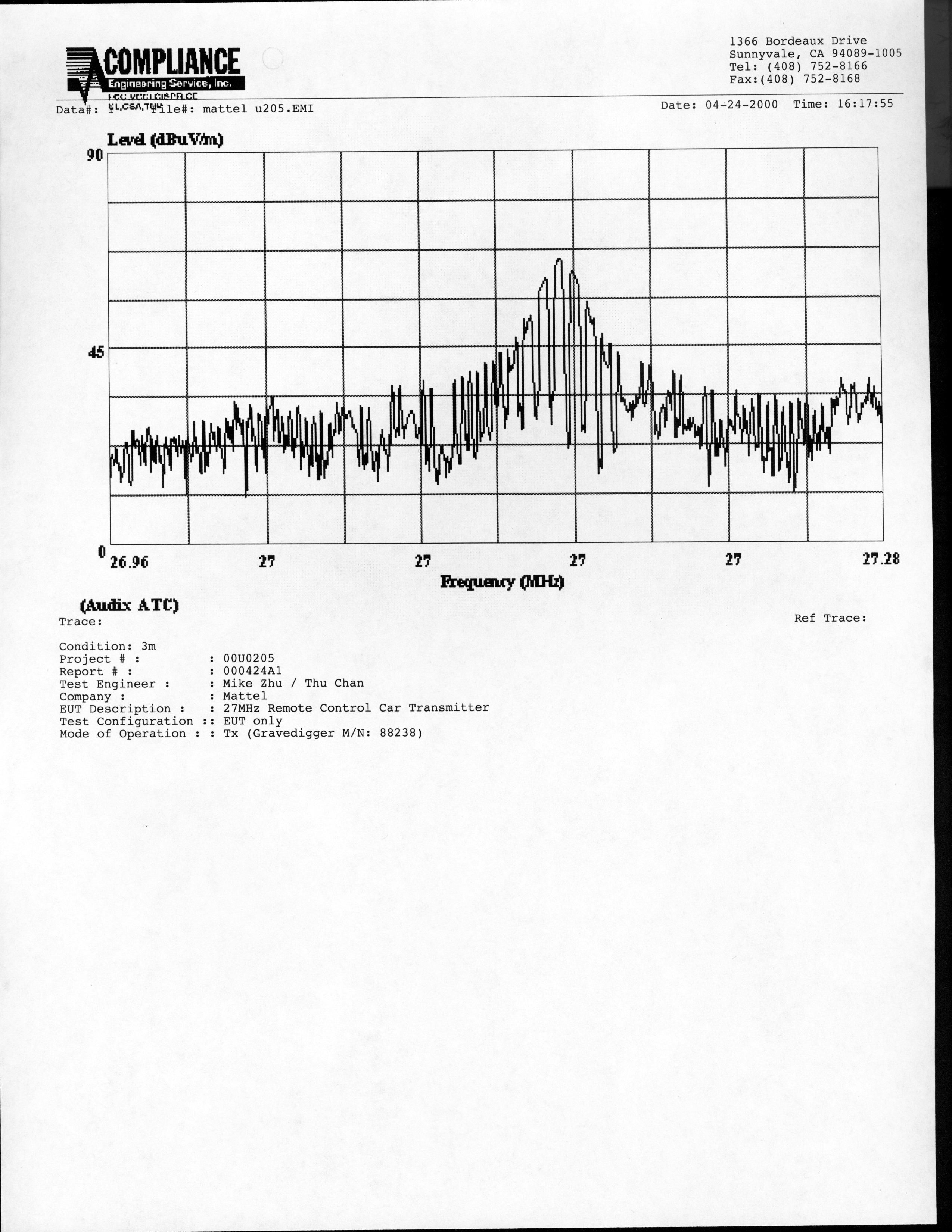

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR REMOTE CONTROL CAR TRANSMITTER MODEL NO: 88238 FCC ID NO: APB88238-00A2T REPORT NO: 00U0205-1 ISSUE DATE: APRIL 24, 2000 Prepared for MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 00U0205 FCC ID:APB88238-00A2T DATE:APRIL 24, 2000 EUT: REMOTE CONTROL CAR TRANSMITTER COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE................................................................... 1 2.PRODUCT DESCRIPTION................................................................................. 2 3.TEST FACILITIES ........................................................................................... 2 4.MEASUREMENT STANDARDS ....................................................................... 2 5.TEST METHODOLOGY .................................................................................... 2 6.MEASUREMENT EQUIPMENT USED .............................................................. 3 7.PPOWERLINE RFI LIMITS .............................................................................. 3 8.RADIATED EMISSION LIMITS ....................................................................... 3 9.TEST SETUP AND CONFIGURATION ............................................................. 4 10.EQUIPMENT MODIFICATIONS ....................................................................... 5 11.TEST PROCEDURE AND RESULT .................................................................. 5 EXHIBIT 1. Proposed FCC ID Label Format 2. Agent Authorization Letter Attachment • EUT Photographs • Schematic Diagram REPORT NO: 00U0205 FCC ID:APB88238-00A2T DATE:APRIL 24, 2000 EUT: REMOTE CONTROL CAR TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON:VLADIMIR SOSNOVSKY / PROJECT ENGINEER TELEPHONE NO.:(310) 252-5595 EUT DESCRIPTION:REMOTE CONTROL CAR TRANSMITTER MODEL NAME/NUMBER:88238 BRAND NAME:GRAVEDIGGERSERIAL NUMBER: 1 FCC ID:APB882386-00A2T DATE TESTED :APRIL 24, 2000 REPORT NUMBER:00U0205 TYPE OF EQUIPMENTREMOTE CONTROL TRANSMITTER EQUIPMENT TYPE27 MHZ TRANSMITTER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO: 00U0205 FCC ID:APB88238-00A2T DATE:APRIL 24, 2000 EUT: REMOTE CONTROL CAR TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2.Product Description CHASSI S TYP E PLASTIC Fundamental Frequency 27.145 MHz Power Source 9V Battery CHIPSET BRAND AND PART NO TX058A-R1 Transmitting Time CONTINUOUS BOARD REVISION NO 1.0 NO. OF LAYER 1 Local Osc. 27.145 MHz 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO: 00U0205 FCC ID:APB88238-00A2T DATE:APRIL 24, 2000 EUT: REMOTE CONTROL CAR TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6.Measurement Equipment Used ManufacturerModel Number DescriptionCal Due Date H.P.8566BSpectrum Analyzer (100Hz – 22GHz) 7/01/00 CHASE EMCCBL6112Antenna (25 - 2000MHz) 8/12/00 EMCO6502Antenna (10 kHz – …

Text truncated - open the document above for the full version.

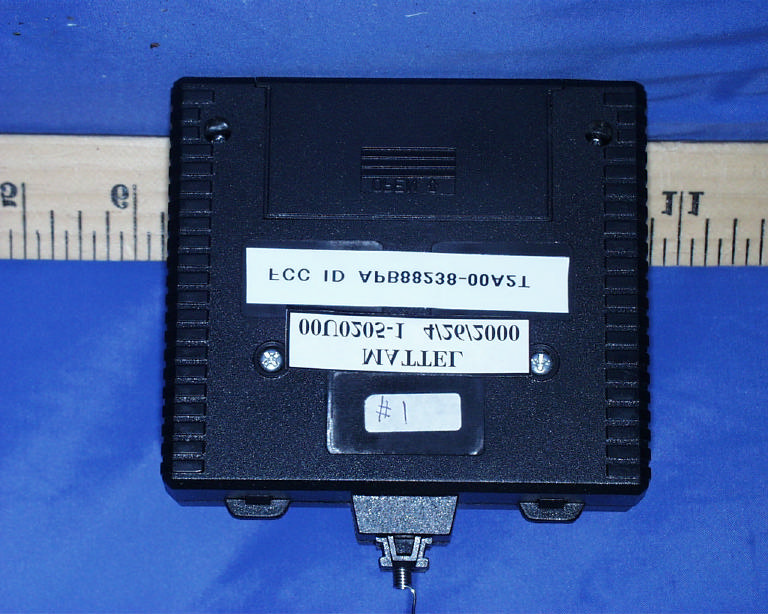

REPORT NO: 00U0205 FCC ID:APB88238-00A2T DATE:APRIL 24, 2000 EUT: REMOTE CONTROL CAR TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). The EUT is attached to a block of plastic foam using a rubber band to cause continuous transmission. Please refer to the following photograph for actual setup. Radiated Open Site Test Set-up
