89899-0720 IV. ❺ ❹ ❷ ❸ ❶ OWNERS MANUAL Keep these instructions for future reference as they contain important information. MANUAL DEL USUARIO Recomendamos guardar estas instrucciones para futura referencia, ya que contienen información importante. GUIDE DE L’UTILISATEUR Ce mode d’emploi contient des nformations importantes. Conservez-le pour pouvoir vous y référer en cas de besoin. I. II. 2 x 1.5V d.c. U.S.A. 90-DAY LIMITED WARRANTY TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warranty gives you spe- cific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or conse- quential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052 Mattel de México, S.A. De C.V., garantiza sus productos por un perio- do de 90 días en todas sus partes y mano de obra, a partir de la fecha de entrega. Condiciones: 1.- El consumidor presentará el producto en el lugar donde lo adquirió y/o presentarlo o enviarlo a nuestro centro de servicio ubicado en Lebrija 296-a, Col. Cerro de la Estrella, Iztapalapa C.P. 09880, México, D.F. Tels: 426-44-87 y 426-44-38 2.- Durante la vigencia de esta póliza nos comprometemos a efectuar sin cargo la reparación, en un plazo que no excederá de 30 días a partir de la fecha de recepción del producto en nuestro sentro de servicio, o al cambio del producto defectuoso en su caso. Así mismo cubrimos gastos que se deriven de la presenta garantía. 3.- Refacciones para este producto podrán ser adquiridas en nuestro centro de servicio. Esta garantía se invalida en los siguientes casos: si ha sufrido un deterioro esencial, grave o irreparable por causa del consumidor, por daños causados por maltrato, mal uso, golpes accidentales o inten- cionales, o que el artículo se hay expuesto a elementos como agua (a excepción de que el instructivo indique otra cosa), áci- dos, fuego, intemperie, así como daños causados por baterías que se dejen dentro del juguete por largos periodos de tiempo sin uso. NOMBRE DEL CONSUMIDOR: LÍNEA DE PRODUCTO: _____________________________________ SERIE: __________________________________________________ MODELO: _______________________________________________ NOMBRE DEL DISTRIBUIDOR: _______________________________ DIRECCIÓN: _____________________________________________ SELLO O FIRMA DEL DISTRIBUIDOR: _________________________ FECHA DE COMPRA: ______________________________________ FECHA DE ENTREGA: ______________________________________ CANADA 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. If defective, return the product along with proof of the date of purchase, postage prepaid to Mattel Canada Inc., Consumer Service, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2 for replacement with an identical toy or a similar toy of equal or greater value according to availability. This warranty gives you specific legal rights and you may have other rights which vary from province to province. This warranty does not cover damage resulting from acci- dent, misuse or abuse. Valid for products sold in Canada only. YOU MAY CALL US FREE AT 1-800-665-6288 Monday – Friday, 8:00 a.m. – 5:00 p.m. EST; 5:00 a.m. – 2:00 p.m. PST. CANADA GARANTIE LIMITÉE DE 90 JOURS Mattel garantit à l’acheteur initial que le produit est couvert contre les vices de matériau ou de fabrication pour une période de 90 jours (à moins d’indication contraire dans d’autres garanties) à compter de la date d’achat. Tout produit défectueux doit être retourné, accompagné d’une preuve de la date d’achat et dûment affranchi, au Service à la clientèle de Mattel Canada Inc., 6155, Freemont Blvd., Mississauga (Ontario) L5R 3W2, où il sera remplacé par un produit identique ou un produit semblable de valeur égale ou supérieure, selon la disponi- bilité. La présente garantie procure certains droits légaux à l’acheteur, qui peut également bénéficier de droits supplémentaires qui varient d’une province à l’autre. La présente garantie ne couvre pas les dom- mages occasionnés par un accident ou un usage abusif ou inappro- prié.…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB90883-02A2T FCC ID LABEL

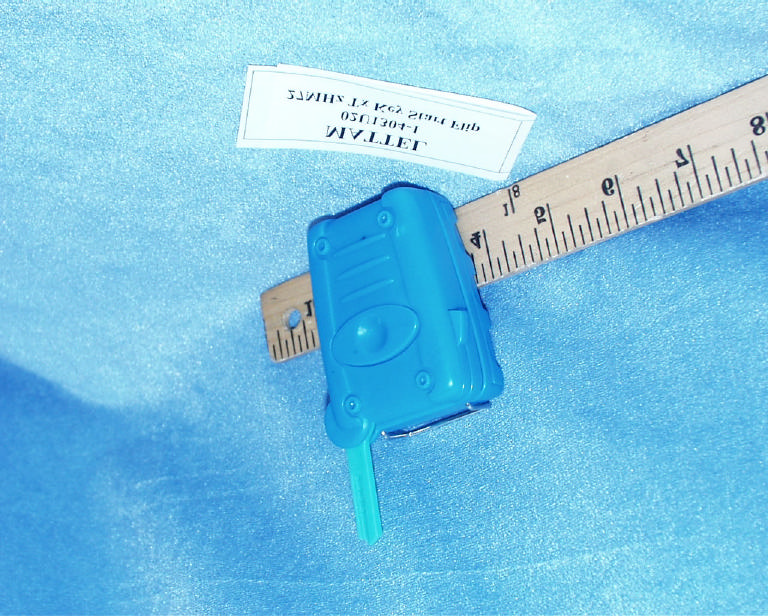

EASY DRIVERS TX 27.145 MHz Transmitter FCC ID: APB90883 – 02A2T 05/10/02 EASY DRIVERS TX 27.145MHz TRANSMITTER OPERATIONAL DESCRIPTION The Easy Drivers R/C transmitter is a low powered, hand held unit for controlling the movement of a toy car or truck. The single function transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 26.96 – 27.28 MHz band. See the attached block diagram and schematic. A single push button switch activates a multi vibrator circuit (Q3 and Q4) which produces the digital control signal which will modulate the carrier signal. The carrier signal is generated by a LC oscillator amplifier circuit comprised of a T2,C13,C15,C12 and a npn transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q1). The modulated output of the RF amplifier stage is capacitively coupled (via C3) to the antenna through a “ pi “ matching network comprised of C1, T1 and C2. The antenna is ~ 5 inches long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

REPORT NO: 02U1304-1 FCC ID: APB90883-02A2T DATE: MAY 16, 2002 EUT: 27.145MHz RC TRANSMITTER Page 6 of 17 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). Radiated Open Site Test Set-up
