APB91497-02A4TRemote Control Toy Transmitter

B0407-0720 CAUTION:Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. PRECAUCIÓN:Si las piezas electrónicas se mojan, es posible que las superficies se calienten y causen quemaduras. No usar el vehículo en agua ni nieve. MISE EN GARDE: Les surfaces peuvent devenir chaudes et causer des brûlures si les composantes électroniques sont mouillées. Ne pas faire rouler ce véhicule sur des surfaces mouillées ou enneigées. U.S.A. 90-DAY LIMITED WARRANTY TYCO® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warranty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052 Mattel de México, S.A. De C.V., garantiza sus productos por un periodo de 90 días en todas sus partes y mano de obra, a partir de la fecha de entrega. Condiciones: 1.- El consumidor presentará el producto en el lugar donde lo adquirió y/o presentarlo o enviarlo a nuestro centro de ser- vicio ubicado en Lebrija 296-a, Col. Cerro de la Estrella, Iztapalapa C.P. 09880, México, D.F. Tels: 426-44-87 y 426-44-38 2.- Durante la vigencia de esta póliza nos comprometemos a efectuar sin cargo la reparación, en un plazo que no excederá de 30 días a partir de la fecha de recepción del producto en nuestro sentro de servicio, o al cambio del producto defectu- oso en su caso. Así mismo cubrimos gastos que se deriven de la presen- ta garantía. 3.- Refacciones para este producto podrán ser adquiridas en nuestro centro de servicio. Esta garantía se invalida en los siguientes casos: si ha sufrido un deterioro esencial, grave o irreparable por causa del consumidor, por daños causados por maltrato, mal uso, golpes acci- dentales o intencionales, o que el artículo se hay expuesto a elementos como agua (a excepción de que el instructivo indique otra cosa), ácidos, fuego, intemperie, así como daños causados por baterías que se dejen dentro del juguete por largos periodos de tiempo sin uso. NOMBRE DEL CONSUMIDOR: LÍNEA DE PRODUCTO: ________________________________________ SERIE: ____________________________________________________ MODELO: __________________________________________________ NOMBRE DEL DISTRIBUIDOR: _________________________________ DIRECCIÓN: ________________________________________________ SELLO O FIRMA DEL DISTRIBUIDOR: ____________________________ FECHA DE COMPRA: _________________________________________ FECHA DE ENTREGA: _________________________________________ CANADA 90-DAY LIMITED WARRANTY Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workman- ship for ninety (90) days (unless specified in alternate war- ranties) from the date of purchase. If defective, return the product along with proof of the date of purchase, postage pre- paid to Mattel Canada Inc., Consumer Service, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2 for replacement with an identical toy or a similar toy of equal or greater value according to availability. This warranty gives you specific legal rights and you may have other rights which vary from province to province. This warranty does not cover damage resulting from accident, misuse or abuse. Valid for products sold in Canada only. YOU MAY CALL US FREE AT 1-800-665-6288 Monday – Friday, 8:00 a.m. – 5:00 p.m. EST; 5:00 a.m. – 2:00 p.m. PST. CANADA GARANTIE LIMITÉE DE 90 JOURS Mattel garantit à l’acheteur initial que le produit est couvert contre les vices de matériau ou de fabrication pour une période de 90 jours (à moins d’indication contraire dans d’autres garanties) à compter de la date d’achat. Tout produit défectueux doit être retourné, accompagné d’une preuve de la date d’achat et dûment affranchi, au Service à la clientèle de Mattel Canada Inc., 6155, Freemont Blvd., Mississauga (Ontario) L5R 3W2, où il sera remplacé par un produit iden- tique ou un produit semblable de valeur égale ou supérieure, selon la disponibilité. La présente garantie procure certains droits légaux à l’acheteur, qui peut également bénéficier de droits supplémentaires qui varient d’une province à l’autre. La présente garanti…

Text truncated - open the document above for the full version.

ANTENNA 006P(9V) LEFTB FOSC OSC1 OSC0 PC VDD SO RIGHTB TESTB GND BACKWARDB FORWARDB TURBOB SC TX2C OSCILLATOR TIMING GENERATOR ENCIDINGCIRCUIT LOGIC LATCH CIRCUIT CRYSTALOSCILLATOR MODULATORRF AMPLIFIER VOLTAGE REGULATOR BLOCK-DIAGRAM91497 TRANSMITTERMAIN PCB :91496 TX REV:02 & SWITCH PCB FILTER 49.86MHZ

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB91497-02A4T FCC ID LABEL

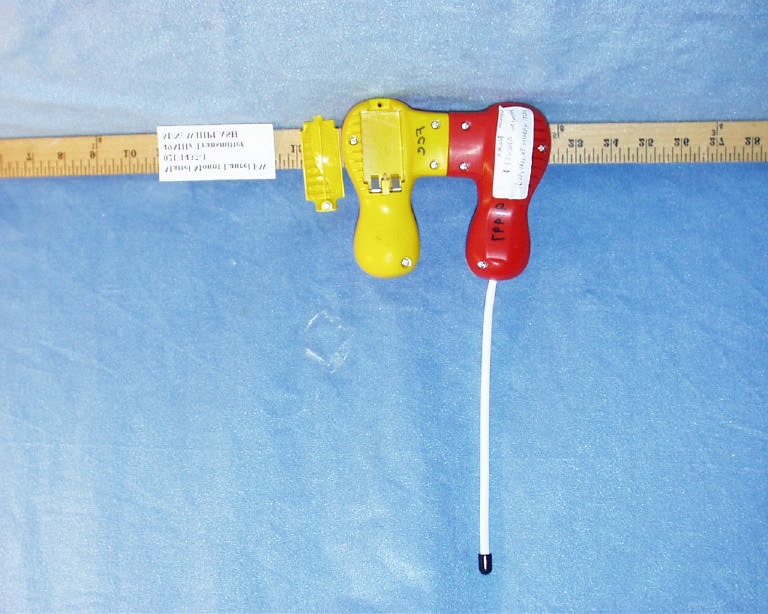

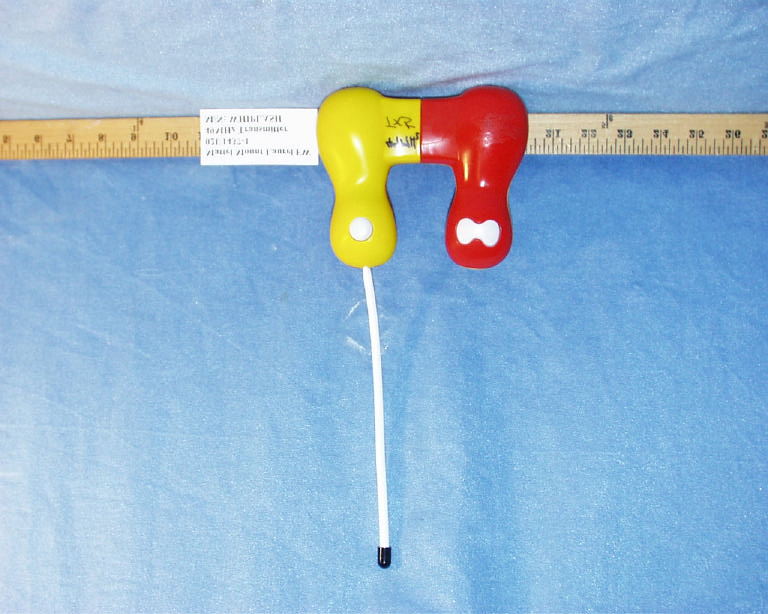

WHIPLASH 49.860 MHz Mattel Part # 91497 Transmitter FCC ID: APB91497-02A4T 7/29/02 WHIPLASH #91497 49.860 MHz TRANSMITTER OPERATIONAL DESCRIPTION The Whiplash radio control transmitter is a low powered, hand held unit for controlling the movement of a toy car. The transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 49.82-49.90 MHz band. See the attached block diagram and schematic. Input switches trigger an integrated circuit ( U1 ) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 49.860 MHz crystal ( Y1 ) and a npn transistor ( Q2 ). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q4 ). The modulated output of the RF amplifier stage is capacitively coupled ( via C12 ) to the antenna through a “ pi “ matching network comprised of C13, T1 and C14. The whip antenna is 8 inches long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments that can be made by the user. No external ground is required or used with this transmitter.

1 2 3 4 ABCD 4 3 2 1 DCBA Title Number Revision Size A4 Date: 25-Jul-2002 Sheet of File: \\..\TX-49M-FCC02.sch Drawn By: C7 15PF C3 0.01uF C14 33PF C13 33PF C1 0.01uF C4 12PF C9 150PF C11 0.01UF C12 56PF C10 8PF D2 IN4148 D5 IN4148 D4 IN4148 D3 IN4148 BT1 9V ANTENNA C2 47uF Q4 2SC1815GR Q2 2SC1815GR ZD1 4.3V 1/2W L3 2.2uH L1 1.2uH L2 1.2uH T1 TH07-866284 Y1 49.86MHZ R1 330 R4 1K R51K R6 1K R3 1K R7560 OHM R8 68K R9 47K R11 100 R2 140K WHIPLASH FCC (02) 1 1 91497 transmitter(49MHZ) C5 0.01uF C6 0.01uF C8 22PF R10 220 SW3 1 2 3 4 5 6 78 9 10 11 12 13 14 U1 TX2C SW1 SW2 ly SW4

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49.860MHz RC TRANSMITTER MODEL NO: 91497 BRAND NAME: TYCO RC-WHIPLASH FCC ID NO: APB91497-02A4T REPORT NO: 02U1437-1 ISSUE DATE: AUGUST 12, 2002 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 2 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE....................................................................................3 2.PRODUCT DESCRIPTION.....................................................................................................4 3.TEST FACILITY.......................................................................................................................4 4.MEASUREMENT STANDARDS............................................................................................4 5.TEST METHODOLOGY.........................................................................................................5 6.MEASUREMENT EQUIPMENT USED................................................................................5 7.TEST PROCEDURES AND TEST RESULTS.......................................................................6 RADIATED EMISSION TEST: ( 15.235 (A))...........................................................................6 RADIATED EMISSION TEST: ( 15.235 (B))...........................................................................6 8.RADIATED EMISSION TEST SETUP PHOTOS..............................................................11 9.APPENDIX...............................................................................................................................13 EUT PHOTOGRAPHS.............................................................................................................13 SCHEMATICS.........................................................................................................................17 BLOCK DIAGRAM.................................................................................................................17 USER’S MANUAL..................................................................................................................17 REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 3 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1259 EUT DESCRIPTION : 49.860MHz RC TRANSMITTER MODEL NAME/NUMBER : 91497 BRAND NAME : TYCO RC-WHIPLASH SERIAL NUMBER : N/A FCC ID : APB97993-02A4T DATE TESTED : AUGUST 8, 2002 REPORT NUMBER : 02U1437-1 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 SUBPART C The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15 SUBPART C. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Reviewed & Released For CCS By: THU CHAN STEVE CHENG SENIOR EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 4 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION CHASSIS TYPE Plastic Fundamental Frequency 49.86 MHz Rated FR Output Less than 30uW (ave) Type of Transmission Data & Continuous Type of Modulation On Off Keying of a fixed frequency carrier wave- OOK AM Duty Cycle of Transmitter 4 start bits @ 75% duty cycle followed by N data bits @ 50% duty cycle Antenna Type(s) and Number of Each 8” Long, Permanently Attached Whip Antenna Antenna Requirement Permanently Affixed Power Requirement 9VDC Power Derived From 9 Volt Battery Describe Intended Use RC Transmitter For Controlling a Toy Vehicle Associated Receiver APB91497-02A4R 3.TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4.MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 5 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONT…

Text truncated - open the document above for the full version.

REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 11 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.RADIATED EMISSION TEST SETUP PHOTOS X-POSITION Y-POSITION REPORT NO:02U1437-1 FCC ID: APB91497-02A4T DATE: AUGUST 12, 2002 EUT: 49.860MHZ RC TRANSMITTER Page 12 of 17 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-POSITION
