JOYSTICK INPUTS ENCODER IC 49.860 MHz CRYSTAL RF OSCILLATOR RF AMPLIFIER ANTENNA MATCHING NETWORK ANTENNA 9 VOLT BATTERY 4.3 VOLT REGULATOR LED 49.860 MHz AIR REBOUND TRANSMITTER BLOCK DIAGRAM #91554

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB91554-02A4T FCC ID LABEL

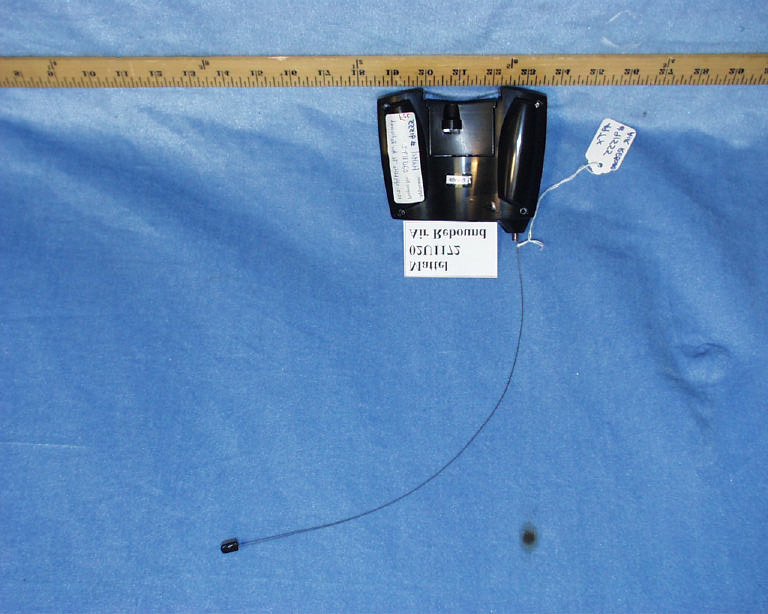

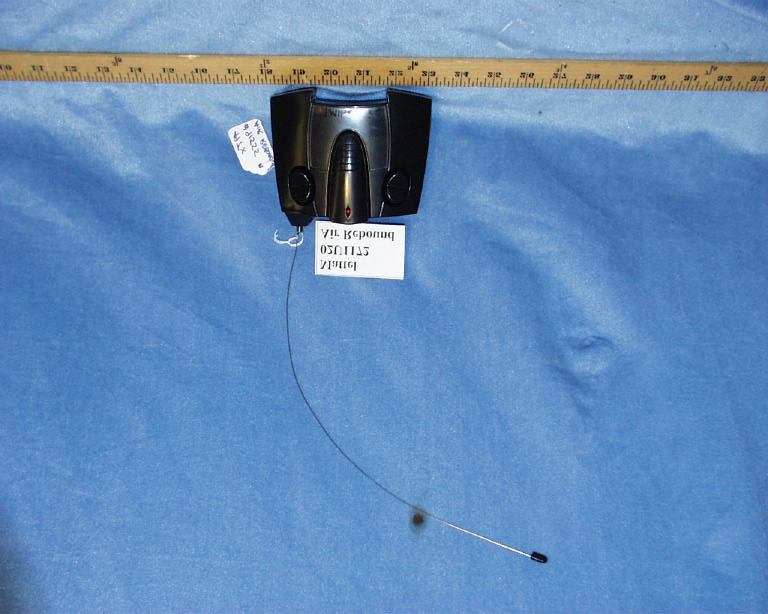

Air Rebound #91554 49.860 MHz Transmitter Operational Description The Air Rebound transmitter is a low powered, hand held unit for controlling the movements of a toy vehicle. A 9 volt battery powers the transmitter. It is designed to operate on a single fixed frequency in the 49.82 – 49.90 MHz band. See the attached block diagram and schematic. U2 is an RC clocked encoder IC that detects switch closures and transmits encoded control information. The modulation scheme uses on /off keying and 2 fixed duty cycles which comprise the data format. See attached transmission protocol document. The carrier signal is generated by a crystal controlled oscillator/amplifier circuit comprised of (X1) a 49.860 MHz crystal, (Q2) a NPN transistor and associated passive components. The carrier output is capacitively coupled via (C7) to the digital output signal of the encoder IC at the base of the RF amplifier stage (Q1). The modulated output of the RF amplifier is capacitively coupled to the antenna via (C3) to the antenna through a “pi” matching network comprised of C2, L2, and C2. A permanently attached 15-inch whip antenna is used as the transmission radiator. U2 receives its 4.3V regulated power from a 9 volt battery and zener regulator circuit. The RF oscillator and amplifier receive their power from an unregulated 9 volt source. LED (D2) is powered when the transmitter is powered. The manufacturer performs all tuning and verifications and there are no adjustments, which can be made by the user. No external ground is required or used with this transmitter.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49.860MHz RADIO CONTROL TRANSMITTER MODEL NO: 91554-6508-49T BRAND NAME: TYCO RC-AIR REBOUND FCC ID NO: APB91554-02A4T REPORT NO: 02U1172-1 ISSUE DATE: APRIL 8, 2002 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:02U1172-1 FCC ID: APB91554-02A4T DATE: APRIL 8, 2002 EUT: 49.860MHZ RADIO CONTROL TRANSMITTER Page 2 of 19 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE.......................................................................3 2.PRODUCT DESCRIPTION.........................................................................................4 3.TEST FACILITY.............................................................................................................4 4.MEASUREMENT STANDARDS...............................................................................4 5.TEST METHODOLOGY..............................................................................................4 6.MEASUREMENT EQUIPMENT USED..................................................................5 7.TEST PROCEDURES AND TEST RESULTS.......................................................6 RADIATED EMISSION TEST: ( 15.235 (A)).........................................................................6 RADIATED EMISSION TEST: ( 15.235 (B)).........................................................................6 9.APPENDIX.......................................................................................................................14 EUT PHOTOGRAPHS.........................................................................................................14 SCHEMATICS.....................................................................................................................19 BLOCK DIAGRAM.............................................................................................................19 USER’S MANUAL..............................................................................................................19 REPORT NO:02U1172-1 FCC ID: APB91554-02A4T DATE: APRIL 8, 2002 EUT: 49.860MHZ RADIO CONTROL TRANSMITTER Page 3 of 19 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : STEVE WEISS, ELECTRONIC D&D MANAGER TELEPHONE NO. : (856) 840-1149 EUT DESCRIPTION : 49.860MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 91554-6508-49T BRAND NAME : TYCO RC-AIR REBOUND SERIAL NUMBER : N/A FCC ID : APB91554-02A4T DATE TESTED : APRIL 5, 2002 REPORT NUMBER : 02U1172-2 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 SUBPART C The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15 SUBPART C. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Reviewed & Released For CCS By: KERWIN CORPUZ MIKE HECKROTTE ASSOCIATE EMC ENGINEER CHIEF ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:02U1172-1 FCC ID: APB91554-02A4T DATE: APRIL 8, 2002 EUT: 49.860MHZ RADIO CONTROL TRANSMITTER Page 4 of 19 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2.PRODUCT DESCRIPTION The Air Rebound is a full function radio control transmitter for controlling the movement of a toy vehicle. It is powered by a 9Volt battery and operates at a single fixed frequency of 49.860MHz. The transmitter has two joysticks. The left joystick cotrols clockwise and counter clockwise rotation of the left drice motor. The right joystick controls clockwise and counter clockwise rotation of the right drive motor. CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Derived From 9VOLT BATTERY Type of Transmission CONTINUOUS Antenna Requirement PERMANENTLY AFFIXED Type of Modulation ON/OFF KEY Duty Cycle Transmitter ½, ¾ PWM ENCODED Antenna Type 15” WIRE WHIP Intended Use RADIO CONTROLLED TOY TRANSMITTER Associated Receiver APB91554-02A4R 3.TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4.MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without go…

Text truncated - open the document above for the full version.

REPORT NO:02U1172-1 FCC ID: APB91554-02A4T DATE: APRIL 8, 2002 EUT: 49.860MHZ RADIO CONTROL TRANSMITTER Page 12 of 19 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION TEST SETUP PHOTOS REPORT NO:02U1172-1 FCC ID: APB91554-02A4T DATE: APRIL 8, 2002 EUT: 49.860MHZ RADIO CONTROL TRANSMITTER Page 13 of 19 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS.
