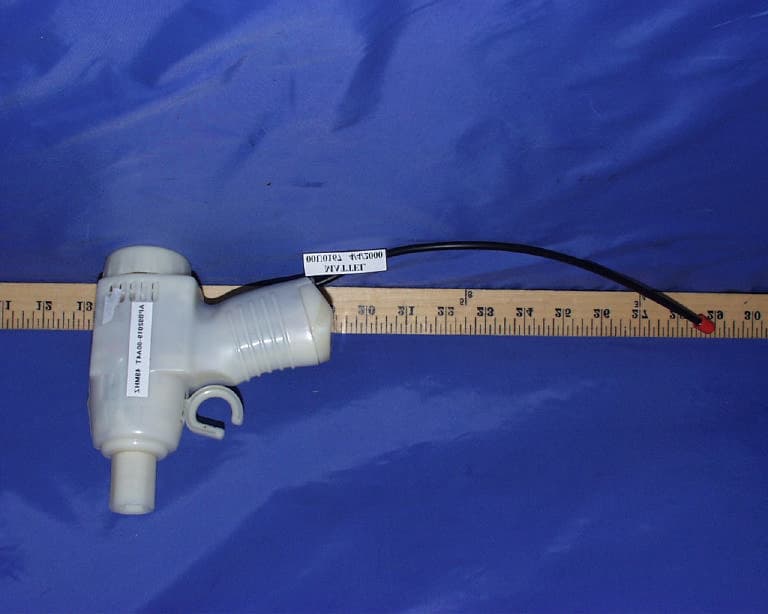

APB92019-00A4T49MHz RC Toy Car Transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB92019-00A4T FCC ID LABEL

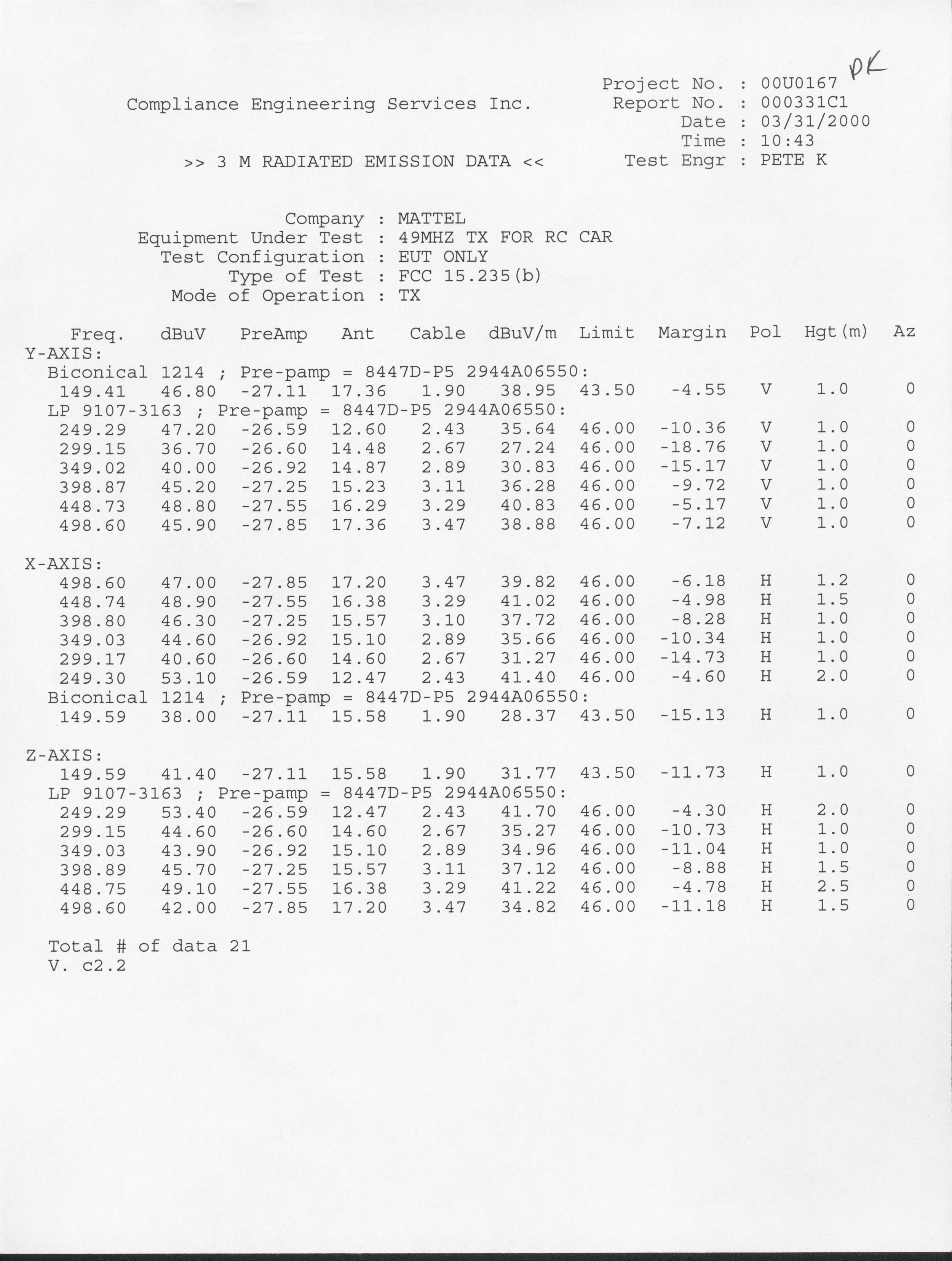

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR RC TOY CAR TRANSMITTER 49MHz RC TOY CAR TRANSMITTER MODEL NO: 92019 FCC ID NO: APB92019-00A4T REPORT NO: 00U0167 Prepared for MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO:00U0167 FCC ID:APB92019-00A4T DATE:APRIL 05, 2000 PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1.VERIFICATION OF COMPLIANCE............................................................ 2 2.PRODUCT DESCRIPTION.......................................................................... 3 3.TEST FACILITIES ..................................................................................... 3 4.MEASUREMENT STANDARDS ................................................................. 3 5.TEST METHODOLOGY ............................................................................. 3 6.MEASUREMENT EQUIPMENT USED ........................................................ 4 7.TEST PROCEDURES AND TEST RESULTS................................................. 4 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8.RADIATED EMISSION TEST SETUP PHOTO.............................................. 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:00U0167 FCC ID:APB92019-00A4T DATE:APRIL 05, 2000 PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL TOYS, INC. 333 CONTINENTAL BLVD. EL SEGUNDO, CA 90245 USA CONTACT PERSON:VLADIMIR SOSNOVSKY TELEPHONE NO.:310-252-2000 EUT DESCRIPTION:49MHz RF RC TOY CAR TRANSMITTER MODEL NAME/NUMBER :92019 BRAND NAME:SPEED WRENCH CAR SERIAL NUMBER:1 FCC ID:APB92019-00A4T DATE TESTED :APRIL 05, 2000 REPORT NUMBER:00U0167 EQUIPMENT TYPE49.86 MHz TRANSMITTER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. T. N. COKENIAS / ENGIEERING DIRECTOR COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00U0167 FCC ID:APB92019-00A4T DATE:APRIL 05, 2000 PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2.Product Description CHASSI S TYP E PLASTIC Fundamental Frequency 49.86 MHz Power Source 9 VOLT Battery (4 X AA) Transmitting Time Continuous Type of Antenna Permanently attached No. of Channel One NO. OF LAYER 1 Board Revision No REV. 1.0 Associated Receiver N/A 3.Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4.Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5.Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:00U0167 FCC ID:APB92019-00A4T DATE:APRIL 05, 2000 PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 6.Measurement Equipment Used Manufacturer Model Number DescriptionCal Due Date H.P.8546AEMI Receiver (9kHz - 6.5GHz) 03/2001 H.P.85460ARF Filter Section (9kHz - 6.5GHz) 03/2001 EMCO3146Antenna (200-1000 MHz) 10/2000 EMCO3110Antenna (30-200 MHz) 10/2000 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/2000 7.Test Procedures and Test Results Radiated Emission Test: ( 15.235 (a)) Test Procedure 1. The EUT was placed on a wooden table on the outdoor ground plane. The search antenna was placed 3 meter from the EUT. The EUT was placed in X,Y, and Z position to simulate the actual usage. 2.The turntable was slowly rotated to locate the direction of maximum emission at each EUT position. Once the maximum direction and EUT position was determined, the search antenna was raised and lowered in both vertical and horizontal polarization. The maximum reading so obtained are recorded in the data list below. Test Result: Peak emission was under average limit. Refer to attached plots. REPORT NO:00U0167 FCC ID:APB92019-00A4T DATE:APRIL 05, 2000 PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC.CCS DOCUMENT NO:CCSUP4026B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USATEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. Radiated Emission Test: ( 15.235 (b)) Test Requirement : The field strength between the band edges and up to 10kHz above and below the band edges shall be attenuated at least 26 dB below the level of the unmodulated carrier or to the general limits in 15.2…
