APB92647-02A2TRemote Control Toy Transmitter

Keep these instructions for future reference: they contain important information. I ❶ II III V ❶ ❸ ❷ ❹ ❺ 97013-0920 ® ❷ ❷ ❸ ❹ ❺ ❶ Battery Contact WHEELIE CYCLE WHEELIE CYCLE ™ © 2000 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., V anwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDI- TIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARM- FUL INTERFERENCE THAT MAY CAUSE UNDE- SIRED OPERATION. This device generates and uses radio fre- quency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable protec- tion against such interference. CAUTION:Changes or modifica- tions not expressly approved by the manufac- turer responsible for compliance could void the user’s authority to operate the equipment. 90-DAY LIMITED WARRANTY TYCO ® R/C PRODUCTS Mattel, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for ninety (90) days (unless specified in alternate warranties) from the date of purchase. Mattel will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product, postage prepaid and insured, to the address below. Enclose your name, address, dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return only the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned with- out a dated sales receipt the product may be excluded from coverage under this warranty. Mattel’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A.This warran- ty gives you specific legal rights and you may have other rights, which vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-888-557-TYCO (8926) (valid only in U.S.A.) Hours: 8:00 A.M. - 5:00 P.M. Eastern Time; Monday - Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. ADDRESS FOR RETURNS: CONSUMER RELATIONS, 636 GIRARD AVENUE, EAST AURORA, NY 14052 I BATTERY INSTALLATION (Transmitter & Vehicle) ❶Use a screwdriver (not included) to unscrew vehicle battery door. Swing bat- tery door open and install 3 AA alkaline batteries, with polarity (+/-) as shown inside battery compartment. Close bat- tery door and tighten screw. ❷Push transmitter battery door open. Install 1 9V battery, with polarity (+/-) as shown inside battery compartment. Close battery door. II. OPERATION ❶Insert the key and turn it clockwise to the ON position. ❷Remove the key and set your vehicle down. After a second or two, your vehi- cle will get up into a vertical 360°wheel- ie-spin. ❸Your auto-ON transmitter is the “remote” on your keychain. When your spinning vehicle is facing the direction you want, press the button to drive straight. ❹Release the button to start the wheelie- spin again. ❺Insert the key and turn it counterclock- wise to the OFF position after use. Remove the key for storage. III. BATTERY INFORMATION Bent or dirty contacts may result in loss of power. If battery does not fit correctly, gen- tly bend back metal contact as shown. BATTERY SAFETY INFORMATION • Insure that battery polarity is correct. • Use only batteries of the type recommend- ed (or equivalent). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon- zinc), or rechargeable (nickel-cadmium) batteries. • Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period. • Do not recharge non-rechargeable batter- ies. • Do not short-circuit terminals. • Remove rechargeable batteries before recharging (if the batteries are designed to be removable). • Recharge batteries only under adult super- vision (if the batteries are designed to be removable). • Dispose of batteries safely. Do not dispose of batteries (or products containing non- replaceable batteries) in fire, as batteries may explode or leak. Battery Performance Note: For best performance use alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (carbon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. IV. QUICK TIPS ❶When your vehicle starts to lose power, it may lose functions or performance. It's time for fresh batteries. Your vehicle's running time may change depending on your driving style. ❷Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on the same frequency; electrica…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB92647-02A2T FCC ID LABEL

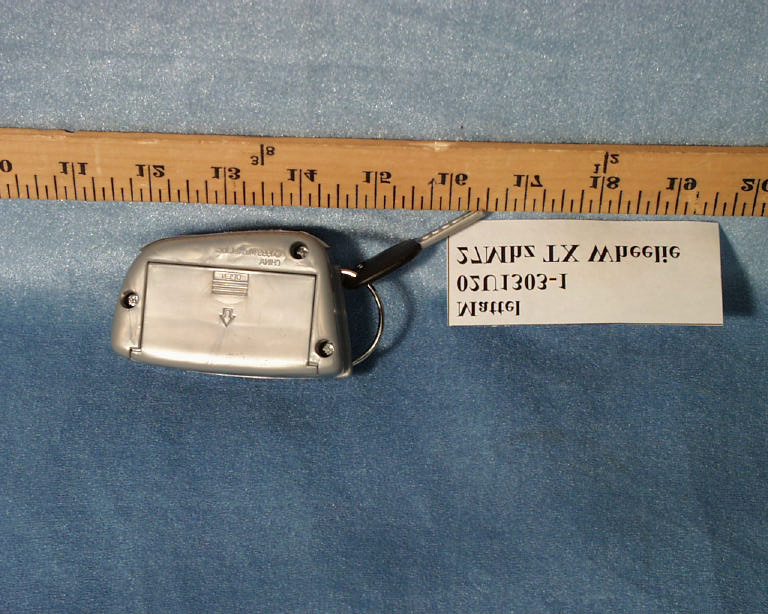

Key Start TX 27.145 MHz Transmitter FCC ID: APB92647 – 02A2T 05/13/02 KEY START WHEELIE CYCLE 27.145MHz TRANSMITTER OPERATIONAL DESCRIPTION The Key Start R/C transmitter is a low powered, hand held unit for controlling the movement of a toy motorcycle. The single function transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 26.96 – 27.28 MHz band. See the attached block diagram and schematic. A single push button switch activates a multi vibrator circuit (Q3 and Q4) which produces the digital control signal which will modulate the carrier signal. The carrier signal is generated by a LC oscillator amplifier circuit comprised of a T2,C13,C15,C12 and a npn transistor (Q2). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q1). The modulated output of the RF amplifier stage is capacitively coupled (via C3) to the antenna through a “ pi “ matching network comprised of C1, T1 and C2. The antenna is ~ 4 inches long and permanently attached. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 27.145MHZ RC TRANSMITTER MODEL NO: 95720 BRAND NAME: TYCO R/C – KEY START WHEELIE CYCLE FCC ID NO: APB92647-02A2T REPORT NO: 02U1303-1 ISSUE DATE: MAY 3, 2002 Prepared for MATTEL MT LAUREL 6000 MIDLANTIC DRIVE MT. LAUREL, NEW JERSEY 08054 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1303-1 FCC ID: APB95720-02A2T DATE: MAY 13, 2002 EUT: 27.145MHz RC TRANSMITTER COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE............................................................................................3 2. PRODUCT DESCRIPTION.............................................................................................................4 3. TEST FACILITY...............................................................................................................................4 4. MEASUREMENT STANDARDS....................................................................................................4 5. TEST METHODOLOGY.................................................................................................................4 6. MEASUREMENT EQUIPMENT USED........................................................................................5 7. POWERLINE RFI LIMIT...............................................................................................................5 8. RADIATED EMISSION LIMITS....................................................................................................5 9. SYSTEM TEST CONFIGURATION..............................................................................................6 10. EQUIPMENT MODIFICATION................................................................................................7 11. TEST PROCEDURE AND RESULT..........................................................................................7 12. APPENDIX..................................................................................................................................11 EXTERNAL & INTERNAL PHOTOS...........................................................................................................11 SCHEMATICS...........................................................................................................................................14 BLOCK DIAGRAM...................................................................................................................................14 USER MANUAL.......................................................................................................................................14 REPORT NO: 02U1303-1 FCC ID: APB95720-02A2T DATE: MAY 13, 2002 EUT: 27.145MHz RC TRANSMITTER Page 3 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDLANTIC DRIVE MT. LAUREL, NEW JERSEY 08054 USA CONTACT PERSON : FRANK WINKLER/SENIOR ELECTRONICS ENGINEER TELEPHONE NO. : 856-840-1259 EUT DESCRIPTION : 27.145MHz RC TRANSMITTER MODEL NAME/NUMBER : 95720 BRAND NAME : TYCO R/C – KEYSTART WHEELIE CYCLE SERIAL NUMBER : N/A FCC ID : APB92647-02A2T DATE TESTED : MAY 7, 2002 REPORT NUMBER : 02U1303-1 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 27 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15 SUBPART C The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15 SUBPART C. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: FRANK IBRAHIM MIKE HECKROTTE EMC ENGINEER CHIEF ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1303-1 FCC ID: APB95720-02A2T DATE: MAY 13, 2002 EUT: 27.145MHz RC TRANSMITTER Page 4 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION CHASSIS TYPE Plastic Fundamental Frequency 27.145 MHz Power Requirement 9VDC Power Derived From 9V Battery Type of Transmission Data/Continuous Rated RF Output (mW) Less than 30uW (average) Type of Modulation On Off Keying of a fixed frequency carrier wave Necessary Channel Bandwidth 3KHz Emission Designator (ITU) 2K00A1D Channel Bandwidth & Number of Channels Single Channel in…

Text truncated - open the document above for the full version.

REPORT NO: 02U1303-1 FCC ID: APB95720-02A2T DATE: MAY 13, 2002 EUT: 27.145MHz RC TRANSMITTER Page 6 of 14 COMPLIANCE CERTIFICATION SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). Radiated Open Site Test Set-up
