APB92649-00A2TRC TOY TRANSMITTER

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB92649-00A2T FCC ID LABEL

6V Street Grinder R/C 27.145 MHz Mattel Part # 92649 Transmitter FCC ID: APB92649 – 00A2T 10/18/2000 OPERATIONAL DESCRIPTION The Street Grinder R/C transmitter is a low powered, hand held unit for controlling the move ment of a toy skate boarder. The transmitter is powered by a 9 volt battery. It is designed to operate on a single fixed frequency in the 26.96 – 27.28 MHz band. See the attached block diagram and schematic. Joystick inputs trigger an integrated circuit (TX2) which produces the digital control signals which will modulate the carrier signal. The carrier signal is generated by a crystal oscillator/ amplifier circuit comprised of a 27.145 MHz crystal (Y1) and a pnp transistor (Q1). The RF carrier signal is modulated by the digital control signal at the base of an RF amplifier stage ( Q2). The modulated output of the RF amplifier stage is capacitively coupled ( via C10) to the antenna through a “ pi “ matching network comprised of C11, L3 and C12. The whip antenna is 12 inches long and permanently attached. All tuning and verification are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this transmitter.

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 27MHz RC SKATEBOARD TRANSMITTER MODEL NO: TYCO R/C-6.0V STREET GRINDER FCC ID NO: APB92649-00A2T REPORT NO: 00U0476-1 ISSUE DATE: SEPTEMBER 18, 2000 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27 MHz RC SKATEBOARD TRANSMITTER COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE................................................................... 1 2. PRODUCT DESCRIPTION................................................................................. 2 3. TEST FACILITIES ........................................................................................... 2 4. MEASUREMENT STANDARDS ....................................................................... 2 5. TEST METHODOLOGY .................................................................................... 2 6. MEASUREMENT EQUIPMENT USED .............................................................. 3 7. PPOWERLINE RFI LIMITS .............................................................................. 3 8. RADIATED EMISSION LIMITS ....................................................................... 3 9. TEST SETUP AND CONFIGURATION ............................................................. 4 10. EQUIPMENT MODIFICATIONS ....................................................................... 5 11. TEST PROCEDURE AND RESULT .................................................................. 5 EXHIBIT 1. Proposed FCC ID Label Format 2. Agent Authorization Letter Attachment • EUT Photographs • Schematic Diagram REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27MHz RC SKATEBOARD TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MOUNT LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : MATTHEW DEL DUKE, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 778-5338 EUT DESCRIPTION : 27MHz RC SKATEBOARD TRANSMITTER MODEL NAME/NUMBER : 92649 BRAND NAME : TYCO R/C-6.0V STREET GRINDER SERIAL NUMBER : N/A FCC ID : APB92649-00A2T DATE TESTED : SEPTEMBER 18, 2000 REPORT NUMBER : 00U0476-1 TYPE OF EQUIPMENT REMOTE CONTROL EQUIPMENT TYPE 27 MHZ TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE CERTIFICATION SERVICES REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27MHz RC SKATEBOARD TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 2. Product Description CHASSIS TYPE PLASTIC Fundamental Frequency 27.145 MHz Power Source 9 VOLT BATTERY Transmitting Time CONTINUOUS Chip Set Brand and Model MATTEL 92649/TX NO. OF LAYER 1 Local Osc. 27.145MHz 3. Test Facility The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. Measurement Standards The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. Test Methodology For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27MHz RC SKATEBOARD TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 6. Measurement Equipment Used Manufacturer Model Number Description Cal Due Date H.P. 8566B Spectrum Analyzer (0.1K-22 GHz) 06/16/01 EATON 94455-1 Antenna (30 - 200 MHz) 08/30/01 EMCO 3146 Antenna (200-2000 MHz) 09/05/01 EMCO 6502 Active Loop Antenna (10 K-30 MHz) 02/23/01 7. POWERLINE RFI LIMIT CONNECTED TO AC POWER LINE SECTION 15.207 CARRIER CURRENT SYSTEM IN THE FREQUENCY RANGE OF 450 KHz TO 30 MHz SECTION 15.205 AND SECTION 15.209, 15.221, 15.223, 15.225 OR 15.227, AS APPROPRIATE. BATTERY POWER NO REQUIRED. 8. RADIATED EMISSION LIMITS GENERAL REQUIREMENTS SECTION 15.209 RESTRICTED BANDS OF OPERATION SECTION 15.205 OPERATION WITHIN THE BAND 26.96 - 27.28 MHZ SECTION 15.227 REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27MHz RC SKATEBOARD TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX…

Text truncated - open the document above for the full version.

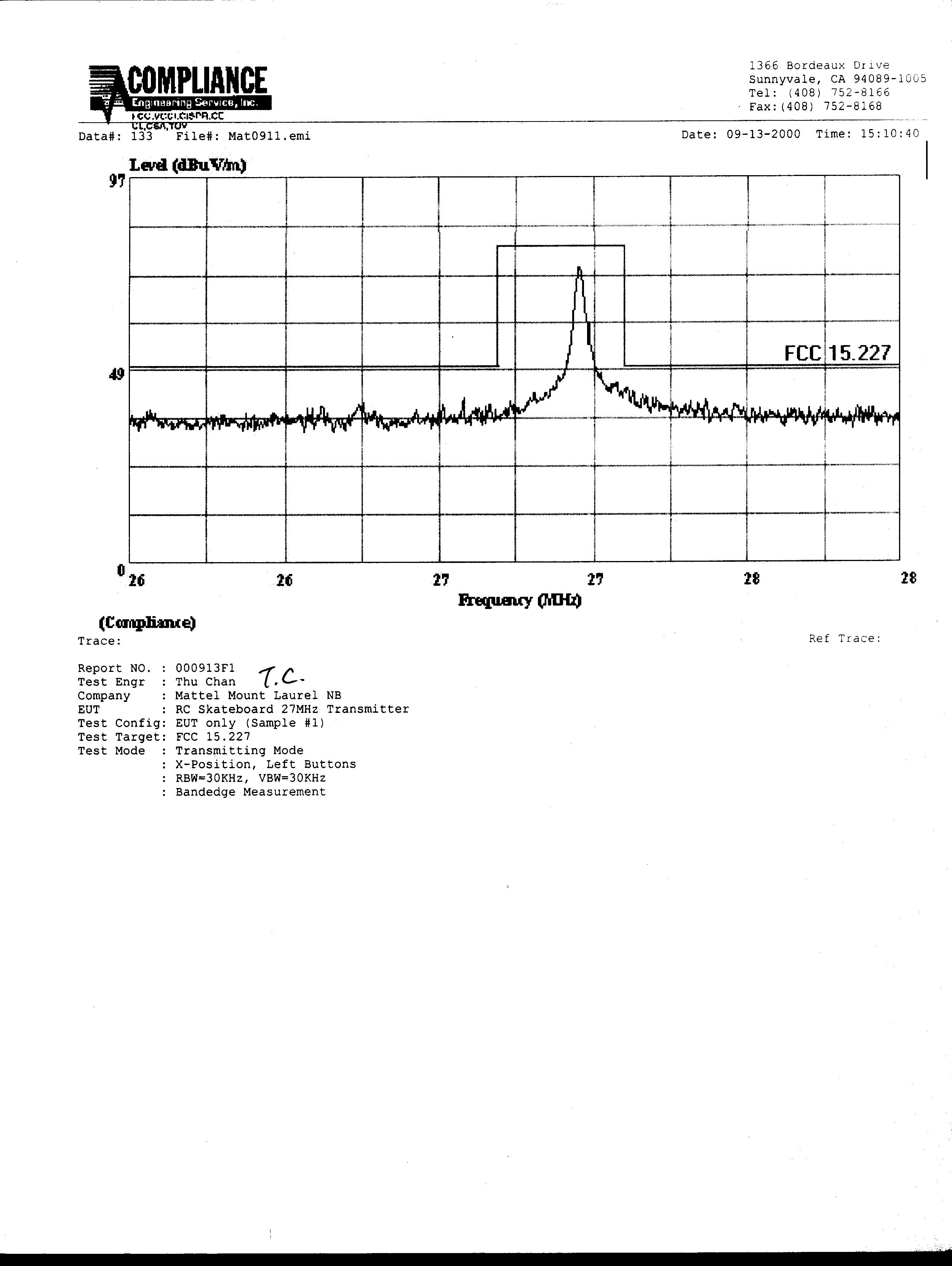

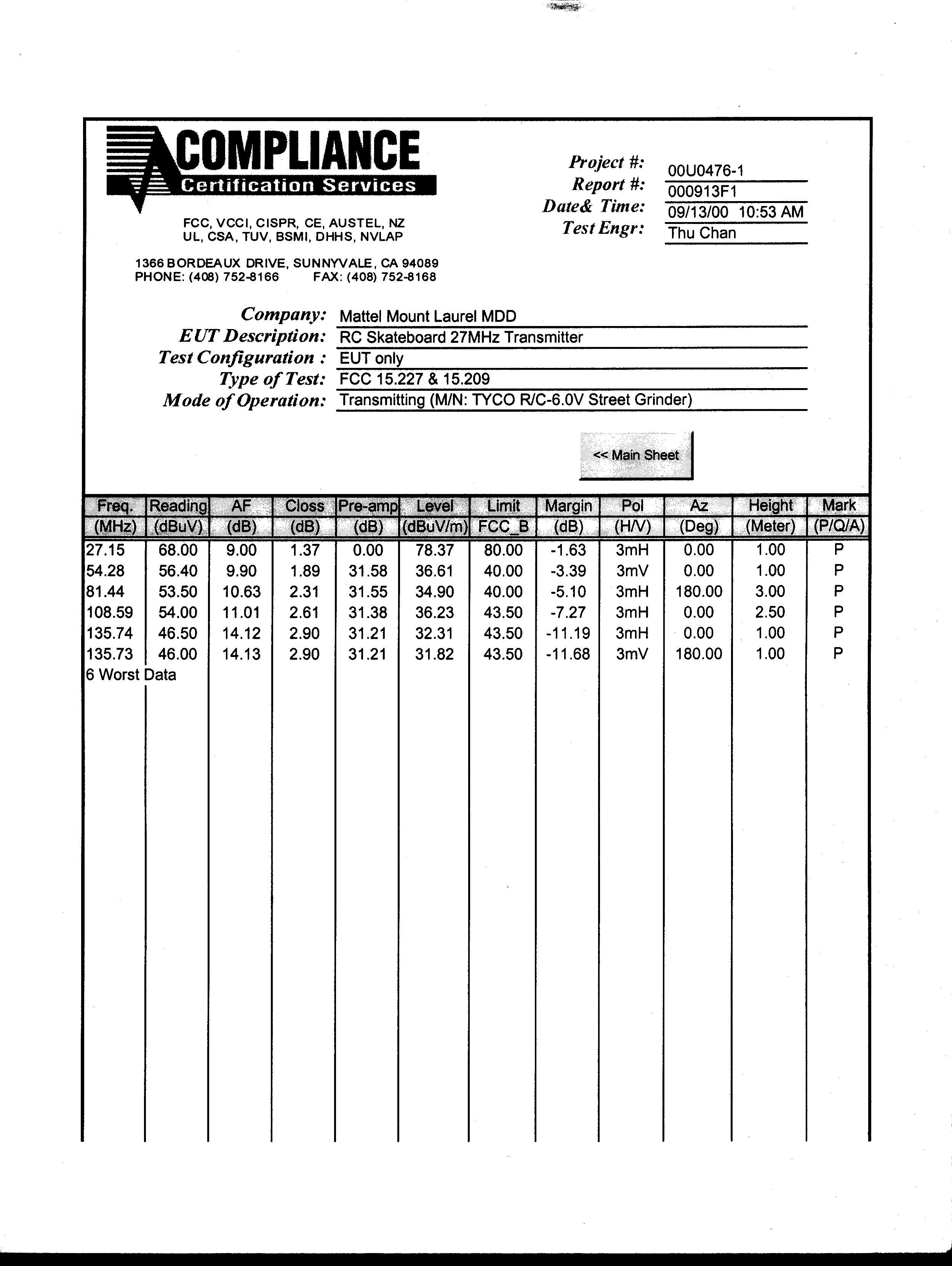

REPORT NO: 00U0476-1 FCC ID: APB92649-00A2T DATE: SEPTEMBER 18, 2000 EUT: 27MHz RC SKATEBOARD TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089, USA TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be repruduced except in full, without the written approval of CCS. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). A rubber band was tied up to the EUT in order to activate continuous transmission during testing. Push-to-Transmit switch is held in transmit position using electrician’s (PVC) tape for transmit mode. The tape is removed for receive mode. Please refer to the following photograph for actual setup. Radiated Open Site Test Set-up
