APB92959-00A4RRADIO CONTROL TOY RECEIVER

Keep these instructions for future reference: they contain important information. 92141-0921 I. READY...SET...GO! 1. Unscrew vehicle battery door. 2. Insert 2 AA alkaline batteries with polarity as shown inside battery compartment. Replace battery door. 3. Push transmitter battery door open. 4. Insert 1 9V alkaline battery as shown. Replace battery door. 5. Turn vehicle switch ON. 6. Push either transmitter button to activate. II. OPERATION ❶ FORWARD ❷ REVERSE ❸ LEFT TURN ❹ RIGHT TURN ❺ TIGHT SPIN LEFT ❻ TIGHT SPIN RIGHT Your transmitter is also a cool display stand. Store your vehicle on it when you’re done playing. WARNING:Never allow young children to play in or around water without adult supervision. HYDRO RACER HYDRO RACER ™ ❶ On-Off Switch ❷ ❹❻❺ ❸ Antenna 6LR61 9 V d.c. III. QUICK TIPS ❶When your vehicle starts to lose power, it may lose func- tions or performance. It’s time for fresh batteries. Your vehi- cle’s running time may change depending on your driving style. ❷Radio interference can make your vehicle run badly. Interfer- ence can be caused by other R/C vehicles running on the same frequency; electrical wires; large buildings; or CB radios. Try to stay away from these! ❸ Point your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won’t work proper- ly. DO NOT EXPOSE THE TRANSMITTER TO WATER. If the transmitter is accidentally exposed to water, remove the transmitter battery and allow the transmitter to air-dry. Replace with a fresh battery before resuming operation. ❹Your vehicle is designed for operation in calm, fresh water. Pools and shallow ponds are recommended. Do not expose vehicle to water unless the bat- tery compartment cover is prop- erly closed and latched. AVOID SALT WATER OPERATION. ❺Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. After each use, remove any water or moisture from vehicle using a clean dry cloth. Note to Adults Adults, this toy is recommended for children 5 years of age and older. To ensure that the child’s play is both safe and fun, please review the operating instructions and these general safety rules with your child. Safety Tips • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose cloth- ing away from the propeller drive while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. • Do not operate near swimmers. Stand away from the water’s edge when operating. IMPORTANT BATTERY INFORMATION "Insure that battery polarity is correct. "Use only batteries of the type recommended (or equivalent). "Do not mix old and new batter- ies. "Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. "Remove used-up batteries imme- diately. Remove batteries if vehi- cle will not be used for a long period. "For best performance use alka- line batteries (where disposable batteries are called for). Battery life may vary depending on bat- tery brand. "Do not recharge non-recharge- able batteries. "Do not short-circuit terminals. "Remove rechargeable batteries before recharging. Recharge batteries only under adult super- vision. "Dispose of batteries safely. ©2000 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA. All Rights Reserved. ® and ™ designate U.S. trade- marks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., V anwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Con- sumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION OF THIS DEVICE IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARM- FUL INTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY HARMFUL INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This device generates and uses radio fre- quency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC, which are designed to provide reasonable protec- tion against such interference. CAUTION: Changes or modifica- tions not expressly approved by the man- ufacturer responsible for compliance could void the user’s authority to operate the equipment. ❺❹❶❷❸

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB92959-00A4R FCC ID LABEL LOCATION

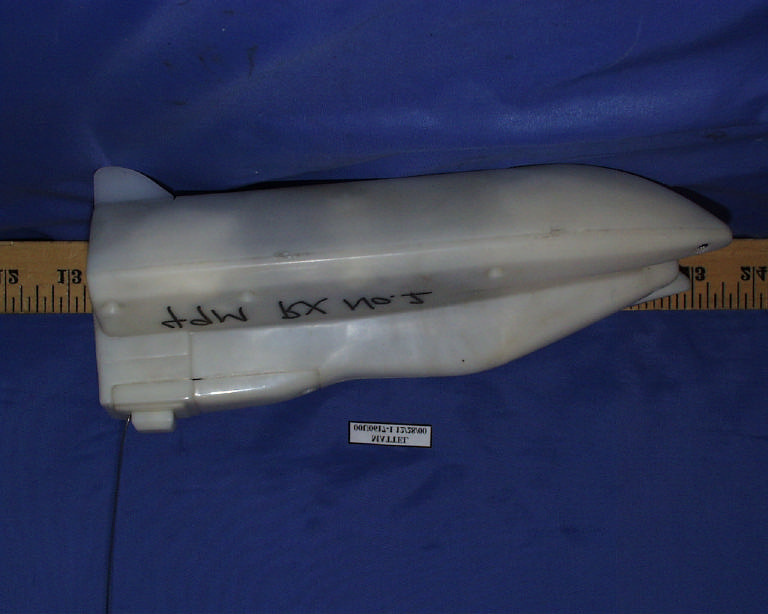

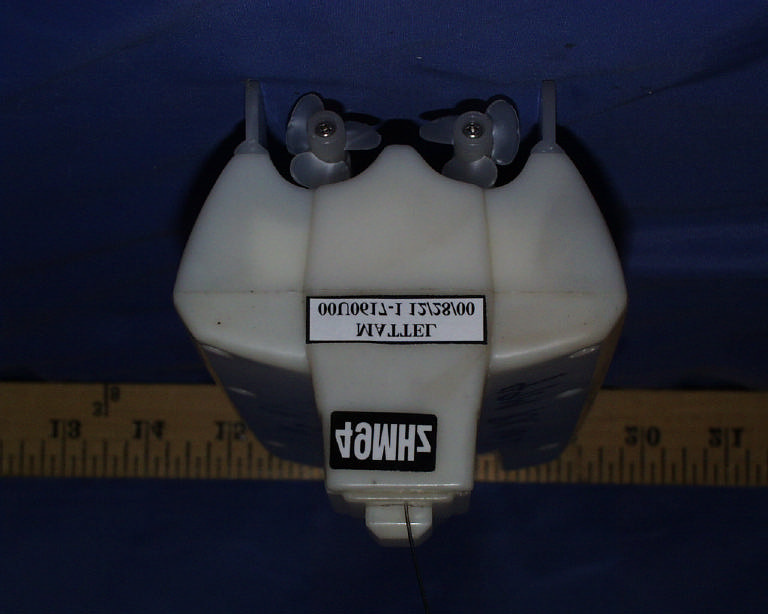

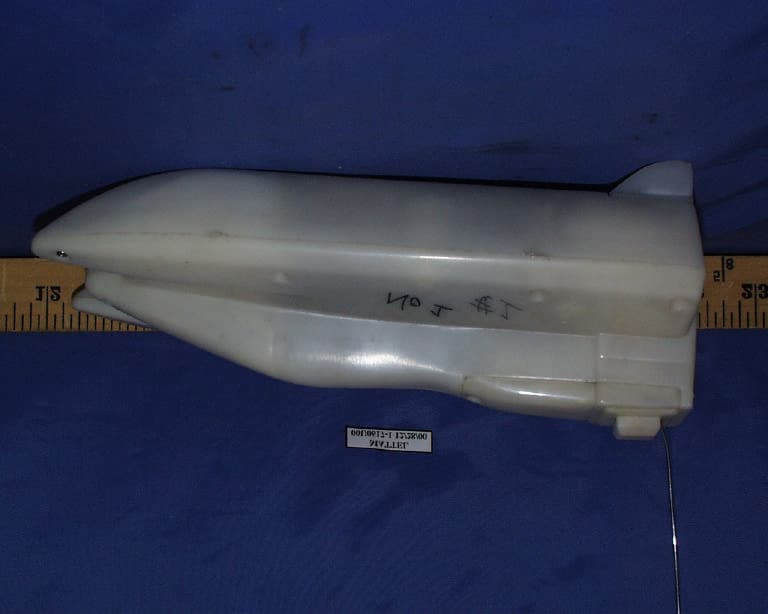

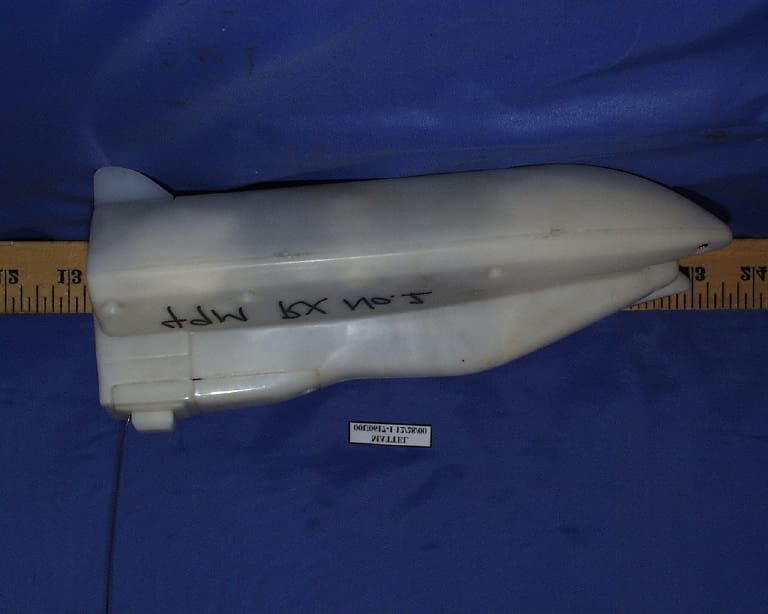

Hydro Racer R/C 49.860 MHz Mattel Part # 92959 Receiver FCC ID: APB92959 – 00A4R 12/1/2000 RC HYDRO RACER 49 MHZ RECEIVER OPERATIONAL DESCRIPTION The Hydro Racer R/C is a full function radio controlled toy boat . It operates on 3 volts supplied by two 1.5 volt alkaline AA batteries. It is designed to operate on a single fixed frequency in the 49.82 – 49.90 MHz band. See the attached block diagram and schematic. The modulated RF signal from the transmitter induces an electrical signal into the boat’s 11 inch long permanently attached whip antenna . The electrical signal is selectively amplified by a super regenerative input circuit ( Q1,L3,C3). The signal is then capacitively coupled ( via C12 ) to an integrated circuit ( U1 ) were the signal is further amplified and decoded. Two pair of digital outputs from U1 drive two full H-bridge motor drive circuits ( Q6,Q7,Q9,Q10 and Q4,Q5,Q12,Q13) for controlling the speed and rotational direction of the two drive motors. Steering is accomplished by changing the speed or rotational direction of one motor relative to the other. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

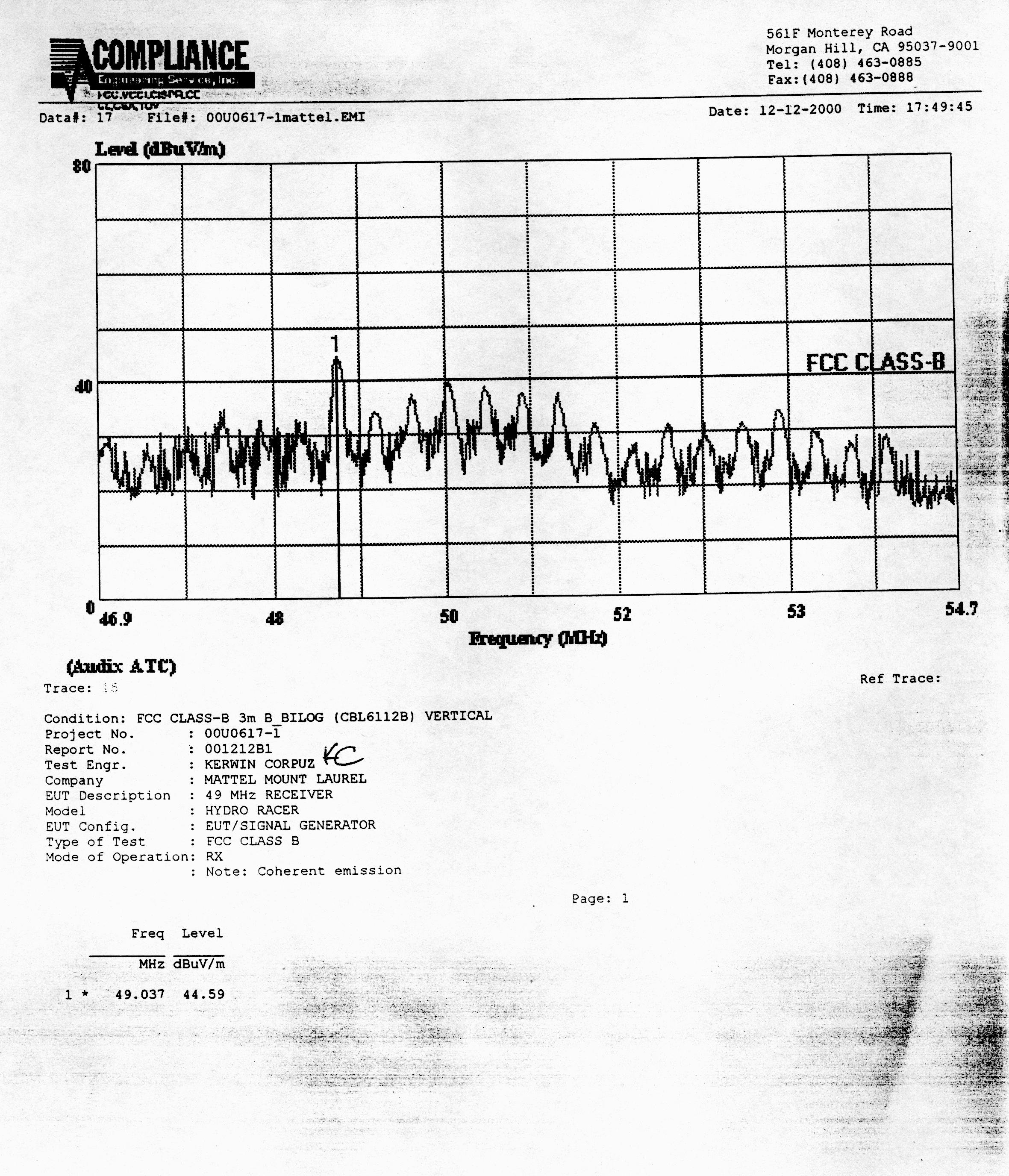

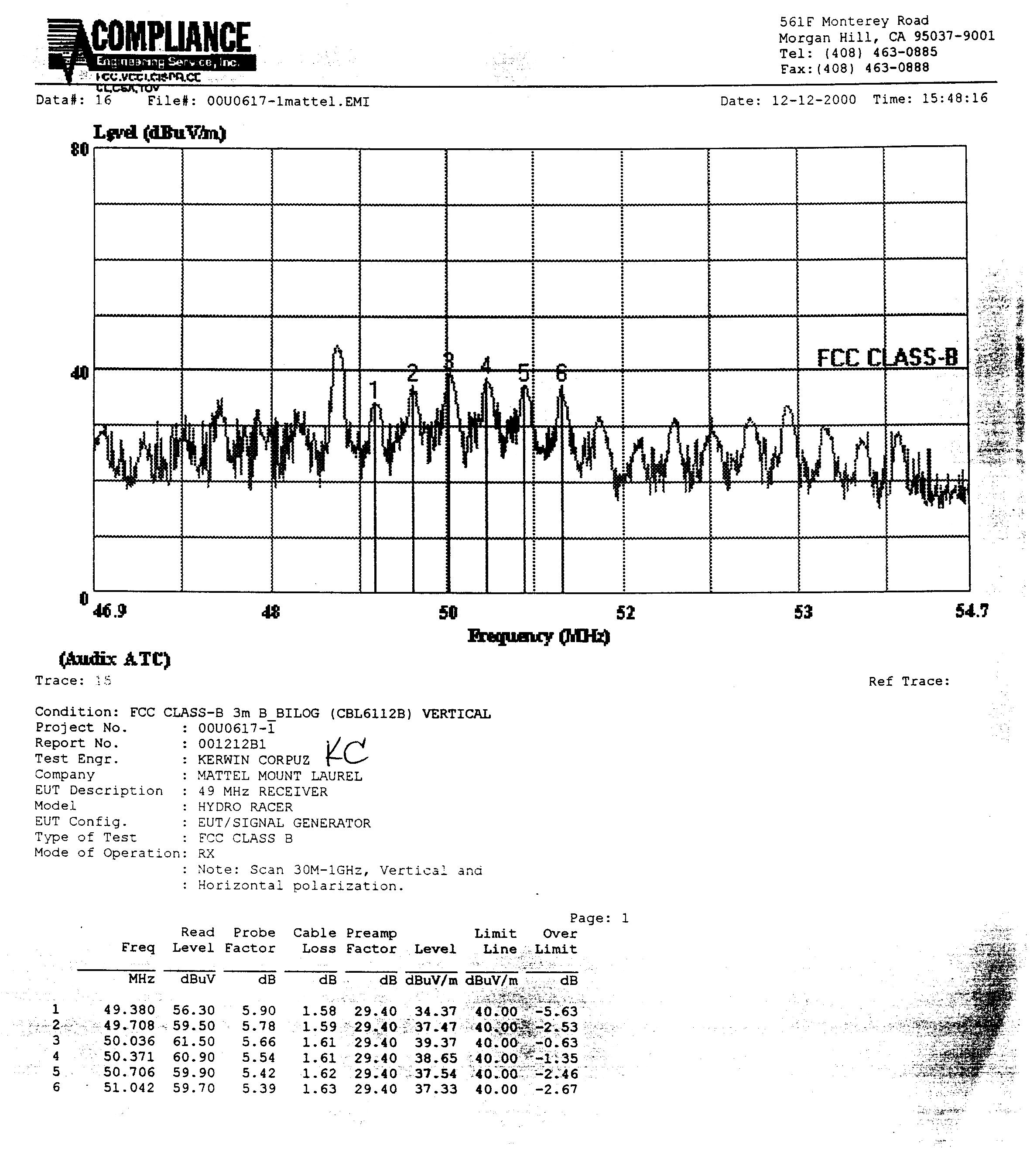

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49 MHz RC BOAT RECEIVER MODEL: 92959 FCC ID NO: APB92959-00A4R REPORT NO: 00U0617-1 DATE: DECEMBER 27, 2000 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...........................................................................................1 2. PRODUCT DESCRIPTION..............................................................................................................2 3. TEST FACILITY..................................................................................................................................2 4. MEASUREMENT EQUIPMENT USED......................................................................................3 5. TEST CONFIGURATION.................................................................................................................3 6. TESTS CONDUCTED........................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE..........................................................................4 8. COHERENT TESTS............................................................................................................................4 9. EQUIPMENT MODIFICATIONS..................................................................................................5 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST)...........................6 • TEST DATA o Cohered Emission Plot o Radiated Emission Data • PROPOSED FCC ID LABEL FORMAT • AUTHORIZATION LETTER • SCHEMATIC DIAGRAM • USER MANUAL • EUT PHOTOGRAPHS REPORT NO:00U0617-1 FCC ID: APB92959-00A4R DATE: DECEMBER 27, 2000 EUT: 49 MHz RC BOAT RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : VIK SINHA, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1279 EUT DESCRIPTION : 49MHz RC BOAT RECEIVER MODEL NAME/NUMBER : 92959 BRAND NAME : R/C HYDRO RACER SERIAL NUMBER : N/A FCC ID : APB92959-00A4R DATE TESTED : DECEMBER 12, 2000 REPORT NUMBER : 00U0617-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. KERWIN CORPUZ / ASSOCIATE ENGINEER COMPLIANCE CERTIFICATION SERVICES, INC. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE CERTIFICATION SERVICES, INC. REPORT NO:00U0617-1 FCC ID: APB92959-00A4R DATE: DECEMBER 27, 2000 EUT: 49 MHz RC BOAT RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2 2. PRODUCT DESCRIPTION MATTEL MT. LAUREL, Model HYDRO RACER is the receiving portion of a remote control toy. The associated Transmitter is manufactured by MATTEL MT. LAUREL, Model No 92959: FCC ID APB92959-00A4T. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. REPORT NO:00U0617-1 FCC ID: APB92959-00A4R DATE: DECEMBER 27, 2000 EUT: 49 MHz RC BOAT RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3 4. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8568B Spectrum Analyzer (100Hz - 1.5GHz) 01/14/01 SCHAFFNER- CHASE CBL6112B Antenna (30-2000 MHz) 12/11/01 H.P. 8447D Pre-Amplifier (0.1-1300 MHz) 09/19/01 H.P. 8640B Signal Generator (0.5 - 1024 MHz) 02/01/01 5. TEST CONFIGURATION Set signal generator to transmit at 49 MHz. Adjusted generator level and frequency to get the maximum coherent and emission of the Eut. The rec…

Text truncated - open the document above for the full version.

REPORT NO:00U0617-1 FCC ID: APB92959-00A4R DATE: DECEMBER 27, 2000 EUT: 49 MHz RC BOAT RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY, MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 6 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test)
