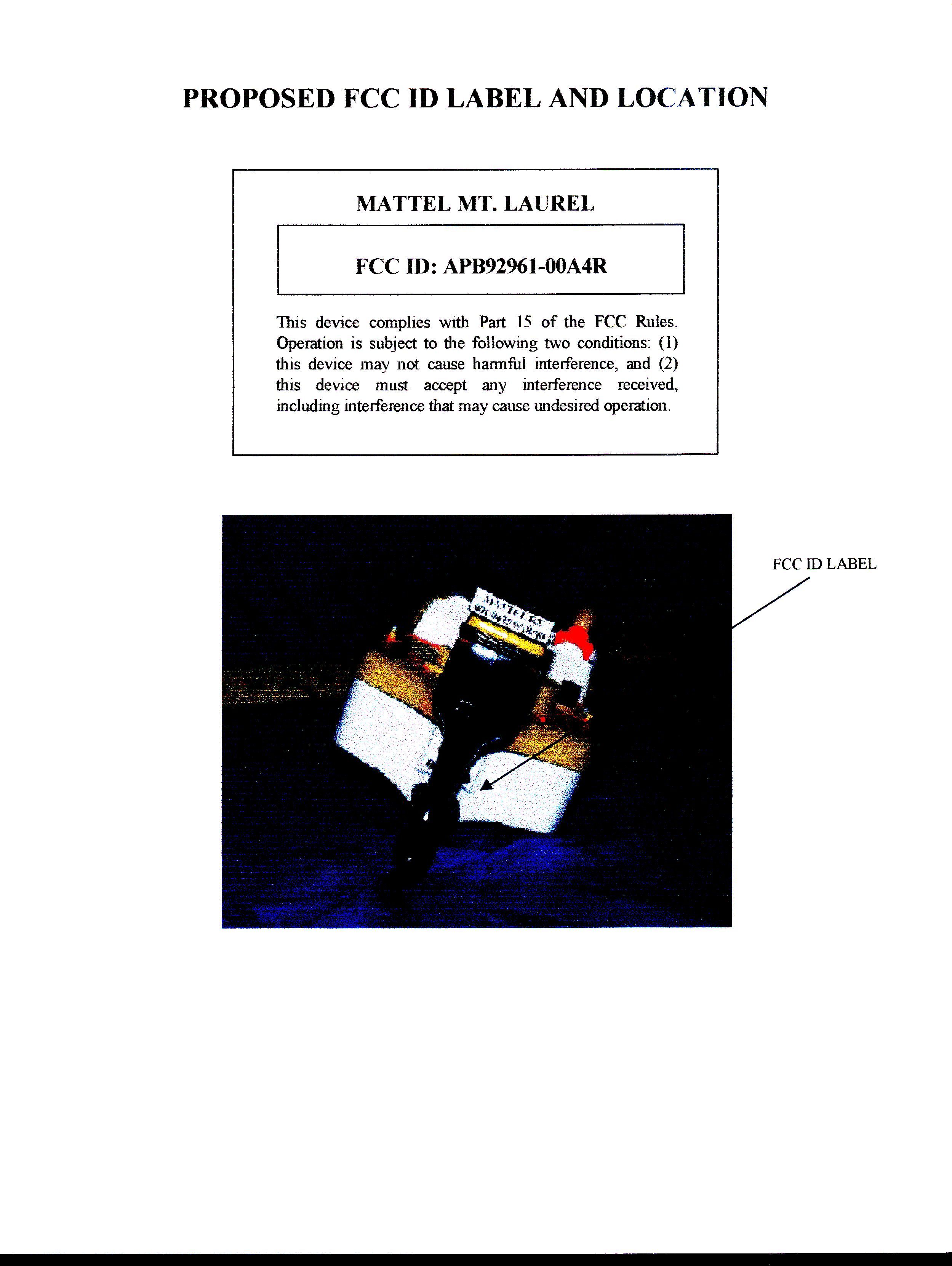

APB92961-00A4RRemote Control Toy Receiver

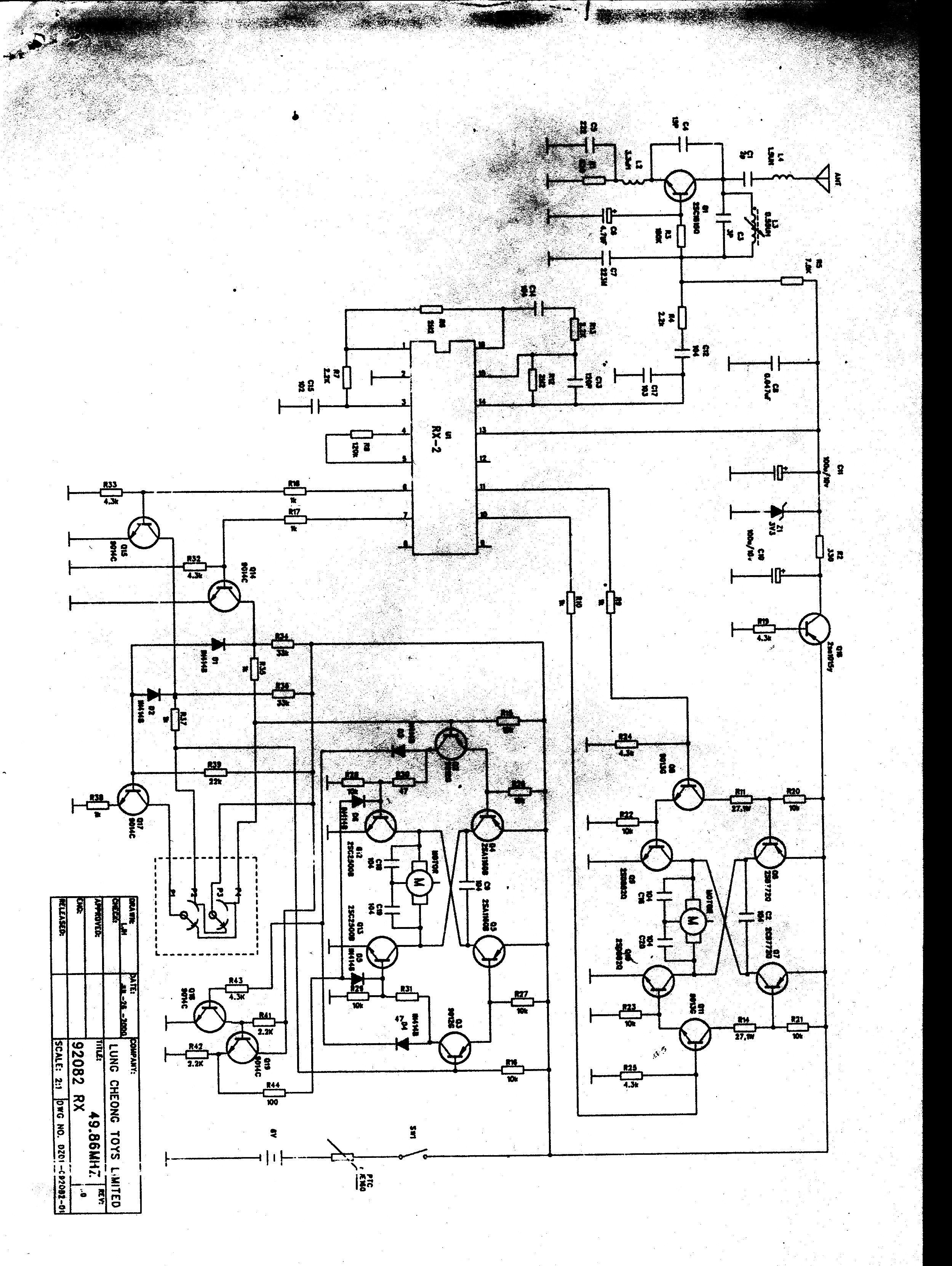

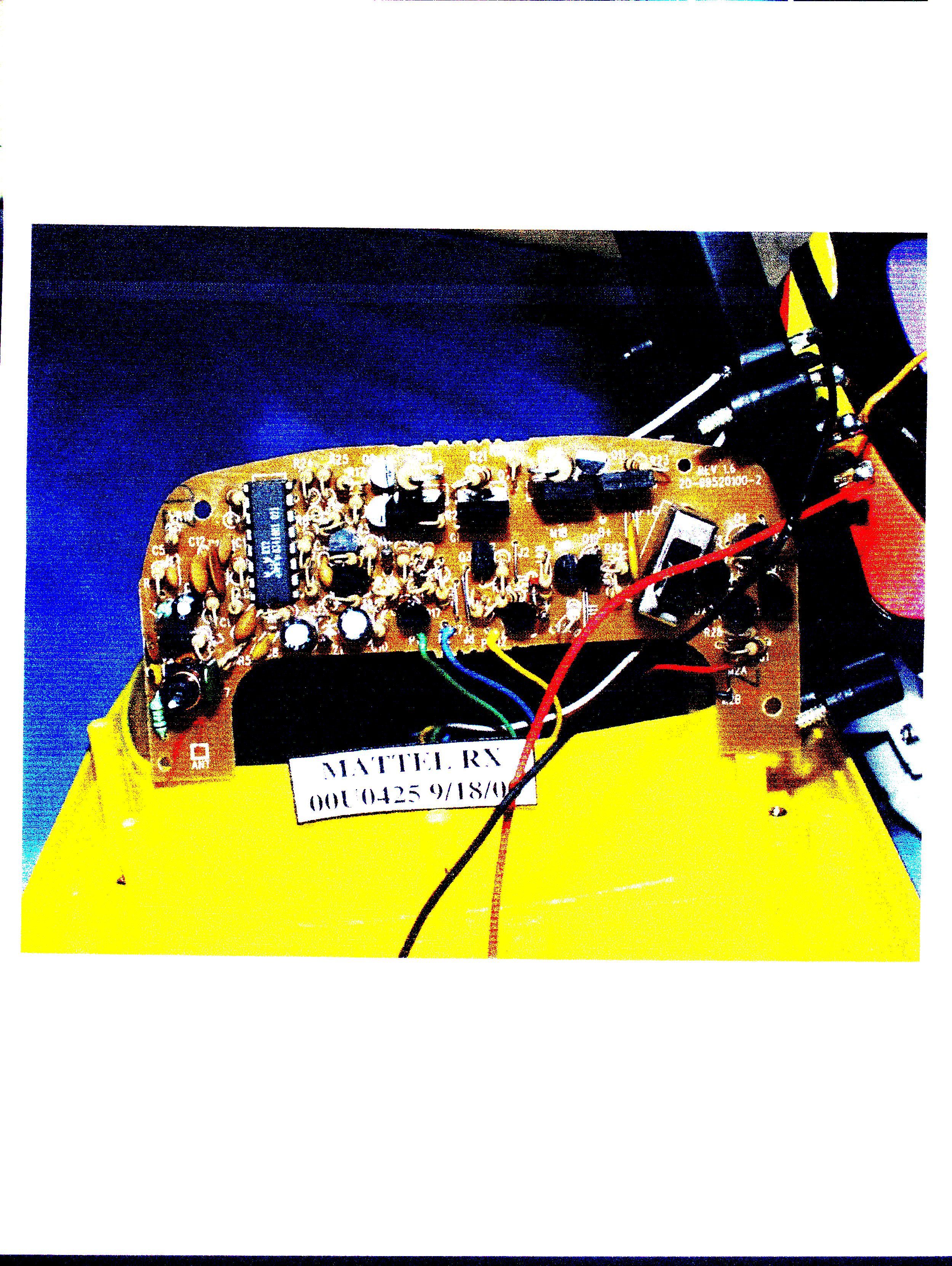

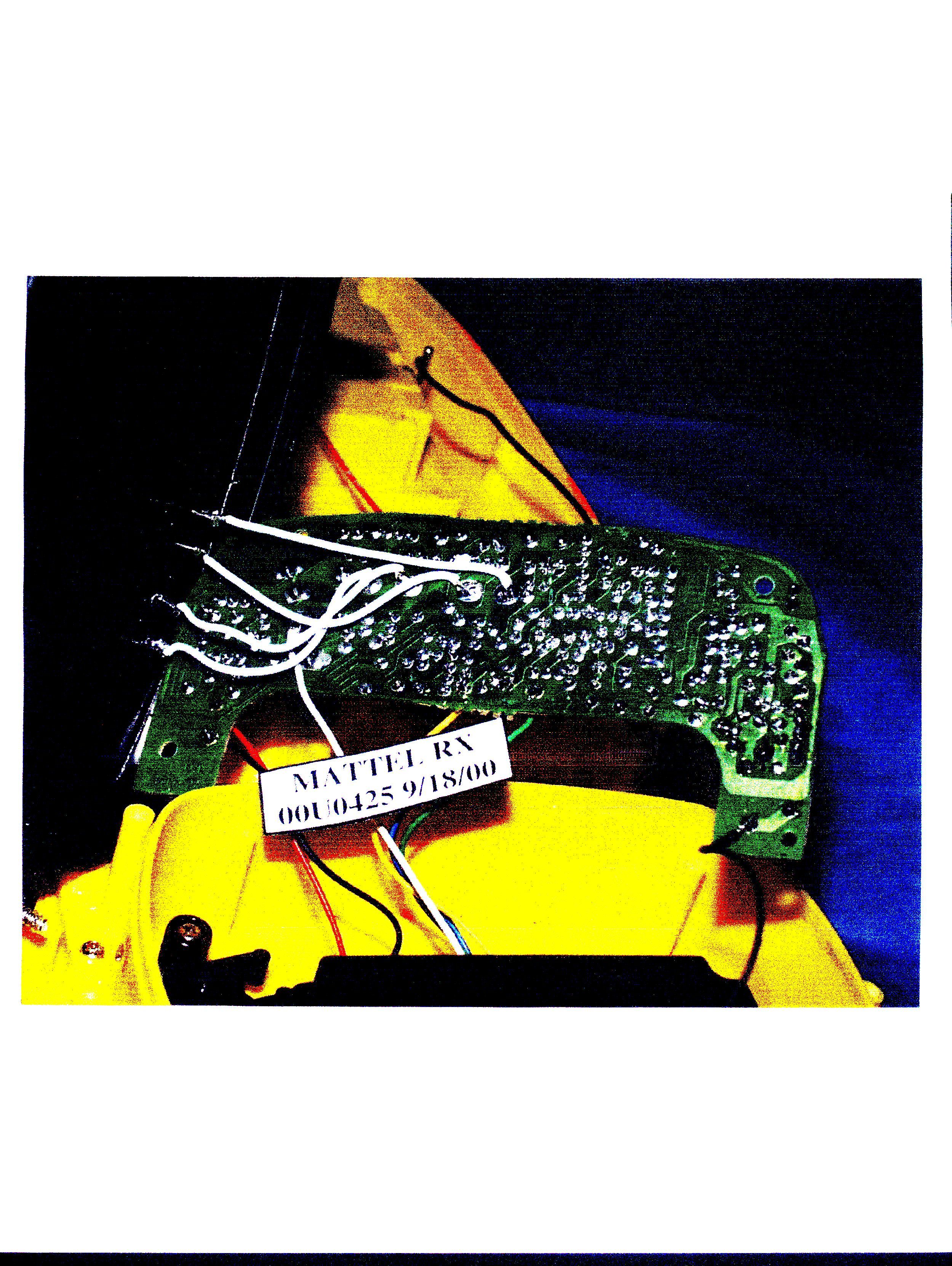

6VDP Sea Arro w R/C 49.860 MHz Mattel Part # 92961 Receiver FCC ID: APB92961 – 00A4R 10/30/2000 RECEIVER OPERATIONAL DESCRIPTION The Sea Arrow R/C is a full function radio controlled toy boat . It is powered by a 6 volt rechargeable nicad battery pack or by four 1.5 volt alkaline AA batteries. It is designed to operate on a single fixed frequency in the 49.82 – 49.90 MHz band. See the attached schematic. The modulated RF signal from the transmitter induces an electrical signal into the boat’s 13 inch long permanently attached whip antenna . The electrical signal is selectively amplified by a super regenerative input circuit ( Q1,L3,C3). The signal is then capacitively coupled ( via C12 ) to an integrated circuit ( U1 ) were the signal is further amplified and decoded. A pair of digital outputs from U1 drive a full H-bridge motor drive circuit ( Q6,Q7,Q9,Q10 ) for controlling the speed and rotational direction of the drive motor. Steering is accomplished by a closed loop three position servo system. A second set of digital outputs from U1, combined with position feedback signals from a position sensor ( P1-P4 ) and discrete logic ( Q14, Q15, Q17 ) , drive another full H-bridge circuit ( Q4,Q5,Q12,Q13 ) to control the steering motor. A self resetting fuse ( PTC ) is included in the positive supply line for overload protection. All tuning and verifications are performed by the manufacturer and there are no adjustments which can be made by the user. No external ground is required or used with this receiver.

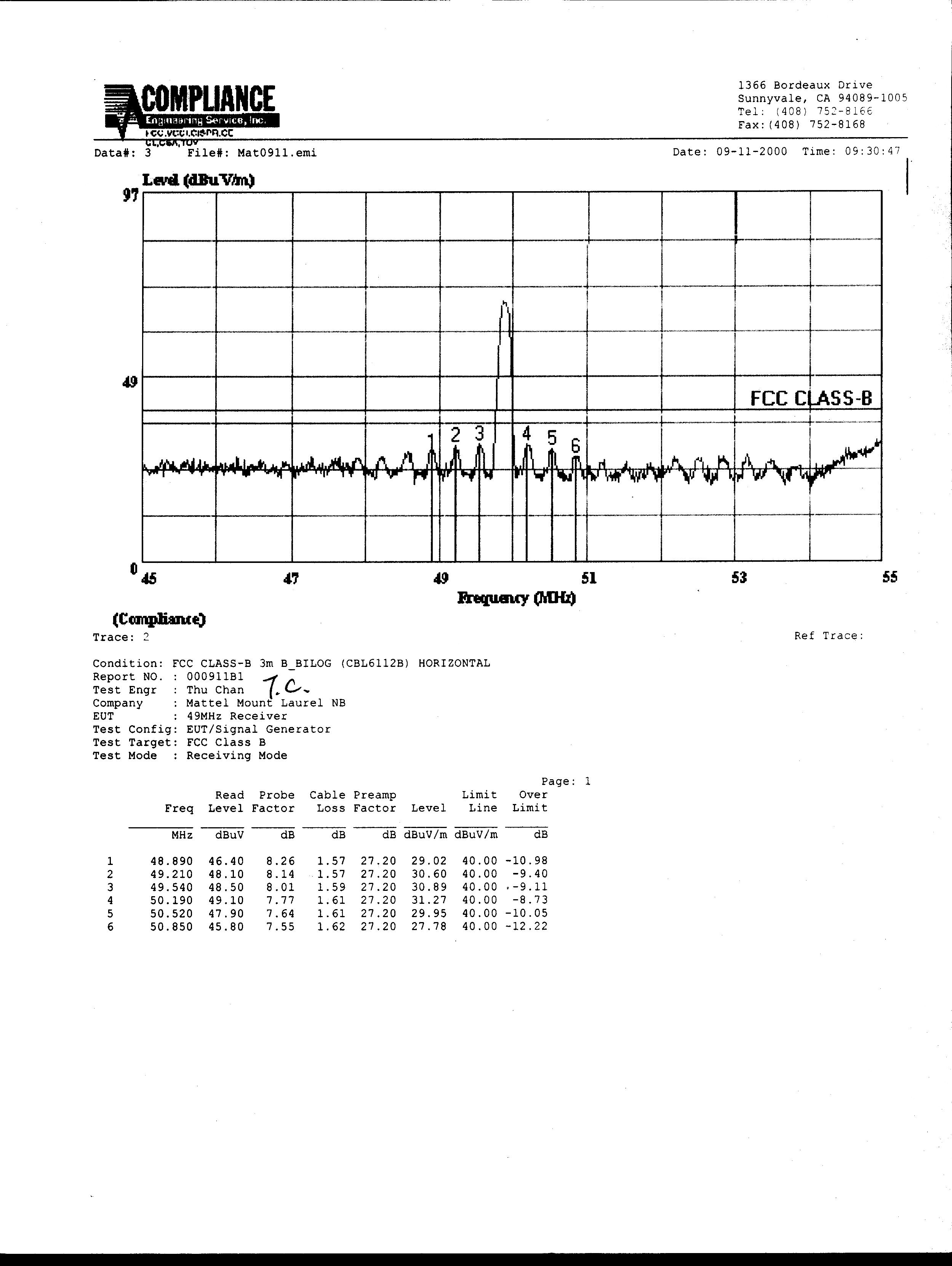

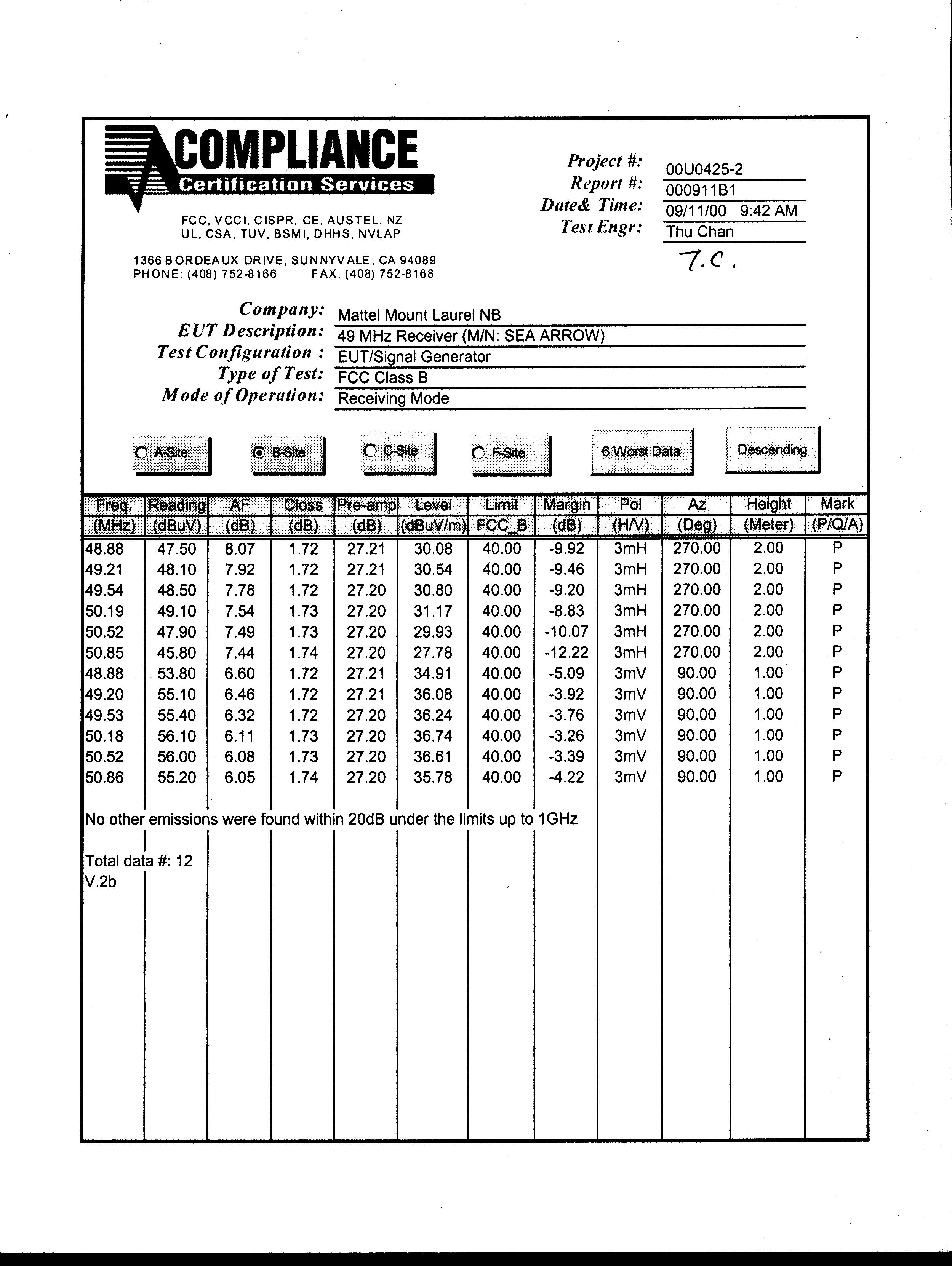

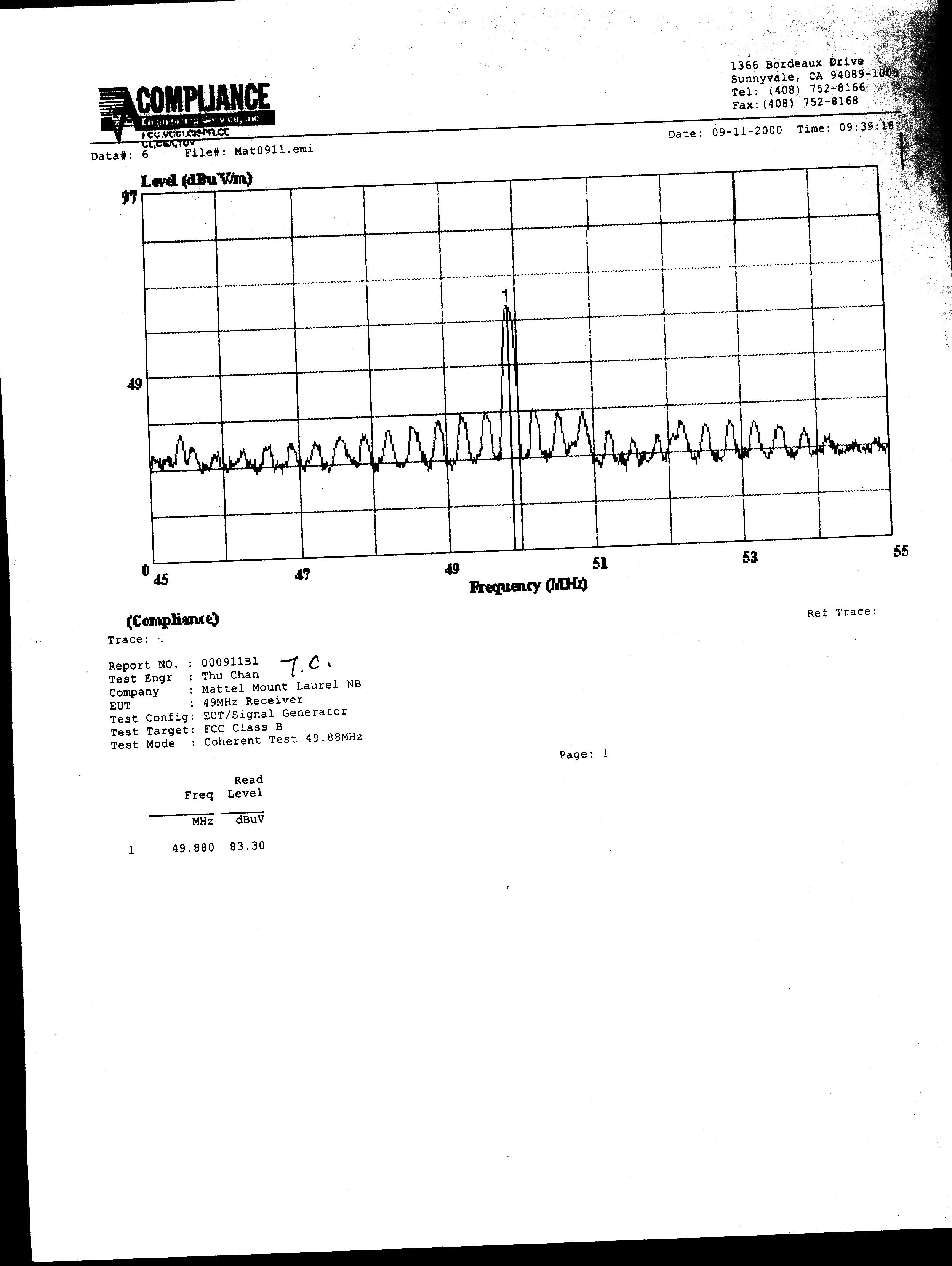

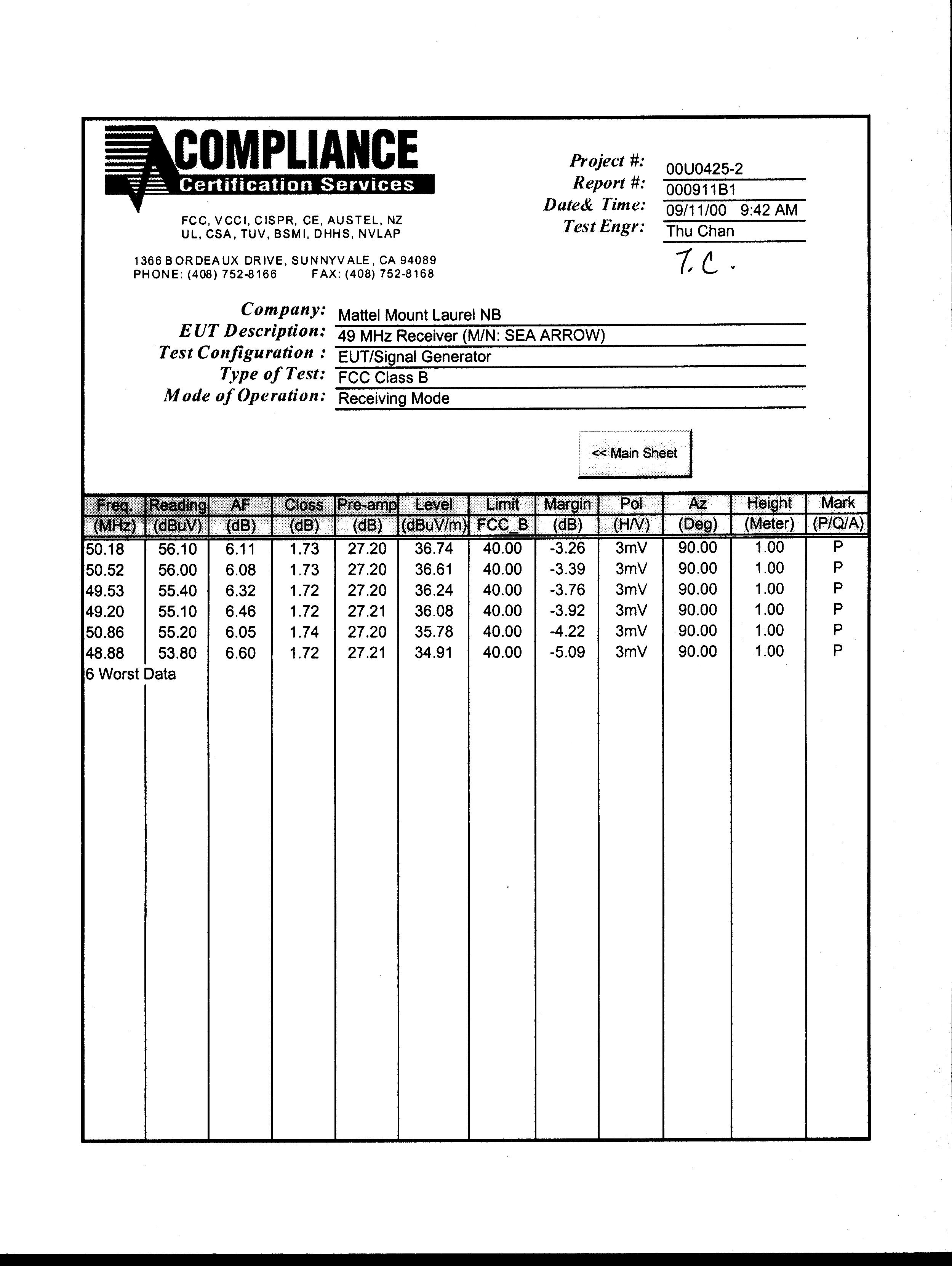

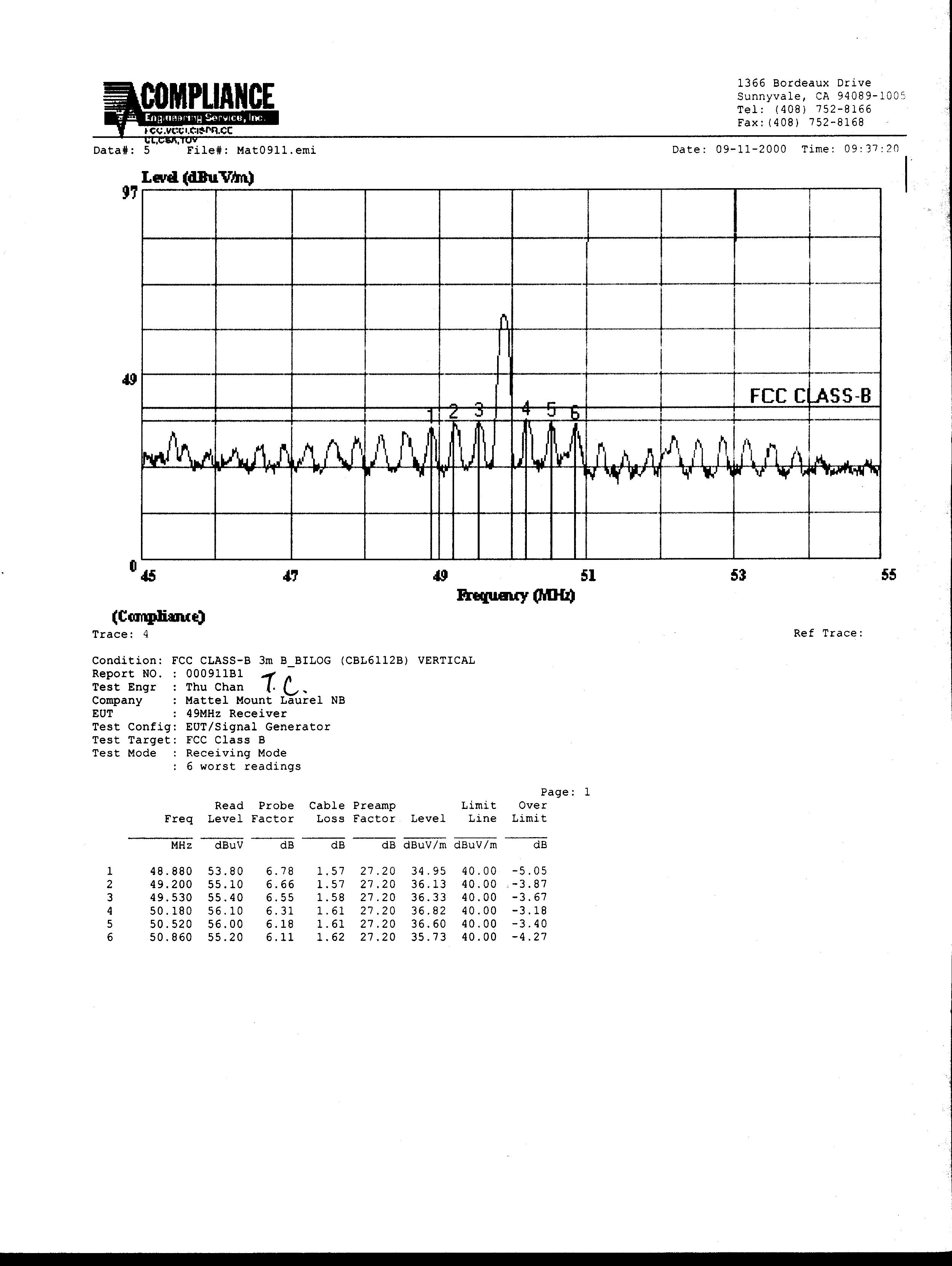

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49 MHz RC BOAT AND RECEIVER MODEL: 92961 FCC ID NO: APB92961-00A4R REPORT NO: 00U0425-1 DATE: SEPTEMBER 18, 2000 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ................................................................................................ 1 2.PRODUCT DESCRIPTION ..................................................................................................................... 2 3.TEST FACILITY .......................................................................................................................................... 2 4.MEASUREMENT EQUIPMENT USED ............................................................................................ 2 5.TEST CONFIGURATION ....................................................................................................................... 3 6.TESTS CONDUCTED ................................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE ............................................................................... 3 8.COHERENT TESTS ................................................................................................................................... 3 9.EQUIPMENT MODIFICATIONS ........................................................................................................ 4 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST) .............................. 5 • TEST DATA o Cohered Emission Plot o Radiated Emission Data • .PROPOSED FCC ID LABEL FORMAT • .AUTHORIZAT ION LETTER • .SCHEMATIC DIAGRAM • .USER MANUAL • .EUT PHOTOGRAPHS REPORT NO:00U0425-1 FCC ID: APB92961-00A4R DATE: SEPTEMBER 18, 2000 EUT: 49 MHz RC BOAT AND RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1 1.VERIFICATION OF COMPLIANCE COMPANY NAME:MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON:NATHAN BLOCH, SENIOR PROJECT ENGINEER TELEPHONE NO.:(856) 840-1262 EUT DESCRIPTION:49MHz RC BOAT AND RECEIVER MODEL NAME/NUMBER:92961 BRAND NAME:SEA ARROW SERIAL NUMBER:N/A FCC ID:APB92961-00A4R DATE TESTED :SEPTEMBER 18, 2000 REPORT NUMBER:00U0425-1 TYPE OF EQUIPMENTSECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Wa rning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. T. N. COKENIAS / ENGINEERING DIRECTOR C OMPLIANC E C ERT IFIC AT ION SERVIC ES, INC . REPORT NO:00U0425-1 FCC ID: APB92961-00A4R DATE: SEPTEMBER 18, 2000 EUT: 49 MHz RC BOAT AND RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2 2.PRODUCT DESCRIPTION MATTEL MT. LAUREL., Model SEA ARROW is the receiving portion of a multi-purpose security device. The associated Transmitter is manufactured by MATTEL MT. LAUREL, Model No 92961:, FCC ID APB92961-00A4T:. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4.MEASUREMENT EQUIPMENT USED Manufacturer Model Number DescriptionCal Due Date H.P.8640BSignal Generator (0.5 - 1024 MHz) 08/00 H.P.8568BSpectrum Analyzer (100Hz - 1.5GHz) 11/18/00 SCHAFFNER- CHASE CBL6112BAntenna (30-2000 MHz) 11/23/00 BATTERYN/A6 VOLT RECHARGABLE NICAD OR 4 AA ALKALINE BATTERY N/A REPORT NO:00U0425-1 FCC ID: APB92961-00A4R DATE: SEPTEMBER 18, 2000 EUT: 49 MHz RC BOAT AND RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3 5.TEST CONFIGURATION Set signal generator to transmit at 49 MHz. The receiver receives the signal. All the wires are placed on the turn table …

Text truncated - open the document above for the full version.

REPORT NO:00U0425-1 FCC ID: APB92961-00A4R DATE: SEPTEMBER 18, 2000 EUT: 49 MHz RC BOAT AND RECEIVER PAGE NO: COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 5 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test)
