APB95086-00A4TRadio Control Toy Transmitter

CONTENTS Vehicle Transmitter Power Clip (if supplied) 6.0V Jet Turbo ® Battery Pack (if supplied) 6.0V Jet Turbo ® Charger (if supplied) CHASSIS Your vehicle’s chassis will look like 1 or 2 below, depending on the vehicle’s design. Refer to label on transmitter and vehicle for frequency. Do not race vehicles with the same frequency. 00007-1703 6.0V R/C 6.0V R/C CAUTION:Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. FORWARDREVERSELEFT RIGHT VEHICLE OPERATION ON/OFF switch ON/OFF switch steering adjuster steering adjuster battery latch battery latch CHASSIS 1CHASSIS 2 Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle. POWER SYSTEMS TRANSMITTER BATTERY INSTALLATION NOTE: Your transmitter is equipped with a special automatic ON battery-saving feature. Just turn your vehicle ON. Then push either transmitter stick and you will be able to run and control your vehicle. Some transmitters include a sound feature. The sound feature can be deactivated by turning the sound switch to the OFF position. 1. To install transmitter battery, open battery door as shown. 2. Install one 9V battery with polarity (+/-) as shown inside battery compartment. 3. Swing battery door closed and snap shut. If your vehicle was supplied with a battery pack and charger, please follow the specific instructions on the next page for detailed information regarding NiCd vehicle battery charging and safety. If your vehicle was not supplied with a battery pack and charger, please follow the specific instructions that came with your battery pack and charger. VEHICLE BATTERY INSTALLATION 1. Rotate battery latch to open position. 2. Insert battery pack into battery compartment and slide it away from latch. 3. Make sure battery pack snaps securely in place and rotate latch to locked position. 4. To remove battery pack: turn latch, slide battery pack toward latch and lift out. battery compartment battery door vehicle controls power indicator light sound switch (if equipped) IMPORTANT: Please read before operating your vehicle. SAFETY INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. BATTERY SAFETY INFORMATION Insure that battery polarity is correct. Use only batteries of the type recommended (or equivalent). Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period. Do not recharge non-rechargeable batteries. Do not short-circuit terminals. Remove rechargeable batteries before recharging (if the batteries are designed to be removable). Recharge batteries only under adult supervi- sion (if the batteries are designed to be removable). Dispose of batteries safely. Do not dispose of batteries (or products containing non-replace- able batteries) in fire, as batteries may explode or leak. Battery Performance Note: For best performance use alkaline batteries (where disposable batteries are called for). If your vehicle is supplied with standard (car- bon-zinc) batteries for initial use and/or demonstration purposes, we recommend replacing them with alkaline batteries when necessary. Battery life may vary depending on battery brand. QUICK TIPS ❶When your vehicle starts to lose power, it may lose functions or performance. It's time for fresh batteries (or a recharge). Your vehicle's running time may change depending on your driving style. ❷Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on the same frequency; electrical wires; large buildings; or CB radios. Try to stay away from these! ❸ Point your transmitter antenna up - not down toward your vehicle. If your vehicle gets too far away, it won't work properly. ❹Don’t drive your vehicle in sand or through water or snow. ❺Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. SYMPTOM Vehicle runs slowly or will not run. Power indicator light on transmitter does not light. Erratic operation or only short range possible. Vehicle doesn’t work after going through water or snow. • PROBABLE CAUSE • Loose battery connection or vehicle switch not ON. • Weak or uncharged rechargeable NiCd battery (if applicable). • Weak AA batteries (Power Clip) or transmitter battery. • Transmitter battery weak or not connected. • Radio interference likely. • Water in the electronics area. • CORRECTION • Check battery connector and vehicle switch. • Charge battery or replace. • Replace with fresh alkaline battery. • Check connections and replace battery if required. • Recharge vehicle battery. • Vehicle will take several hours to dry. Allow to dry thoroughly overnight before trying again. • Avoid driving in water or snow. TROUBLESHOOTING - PROBLEM? - SOLUTIONS CONSUMER INFORMATION: © 2000 Mattel, Inc., Mt. Laurel, NJ 08054 U.S.A. PRINTED IN CHINA.All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. Retain this address for future reference: Mattel U.K., Ltd., Vanwall Business Park, Maidenhead SL6 4UB. Mattel Australia Pty., Ltd., Richmond, Victoria 3121 - Consumer Advisory Service: 1800 800 812 (valid only in Australia). Mattel East Asia Limited, 930 Ocean Centre, Harbour City, HK, China. COMPLIANCE WITH FCC REGULATIONS THIS DEVICE COMPLIES WITH PART 15 …

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95086-00A4T FCC ID LABEL

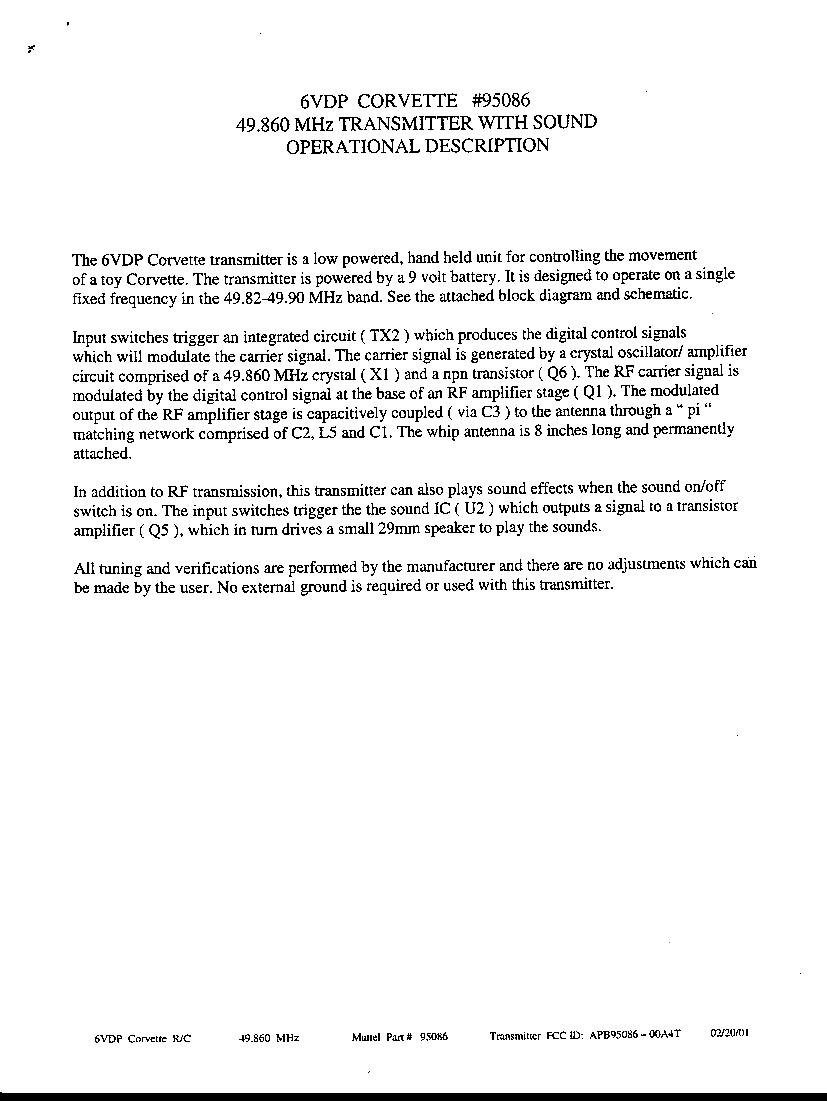

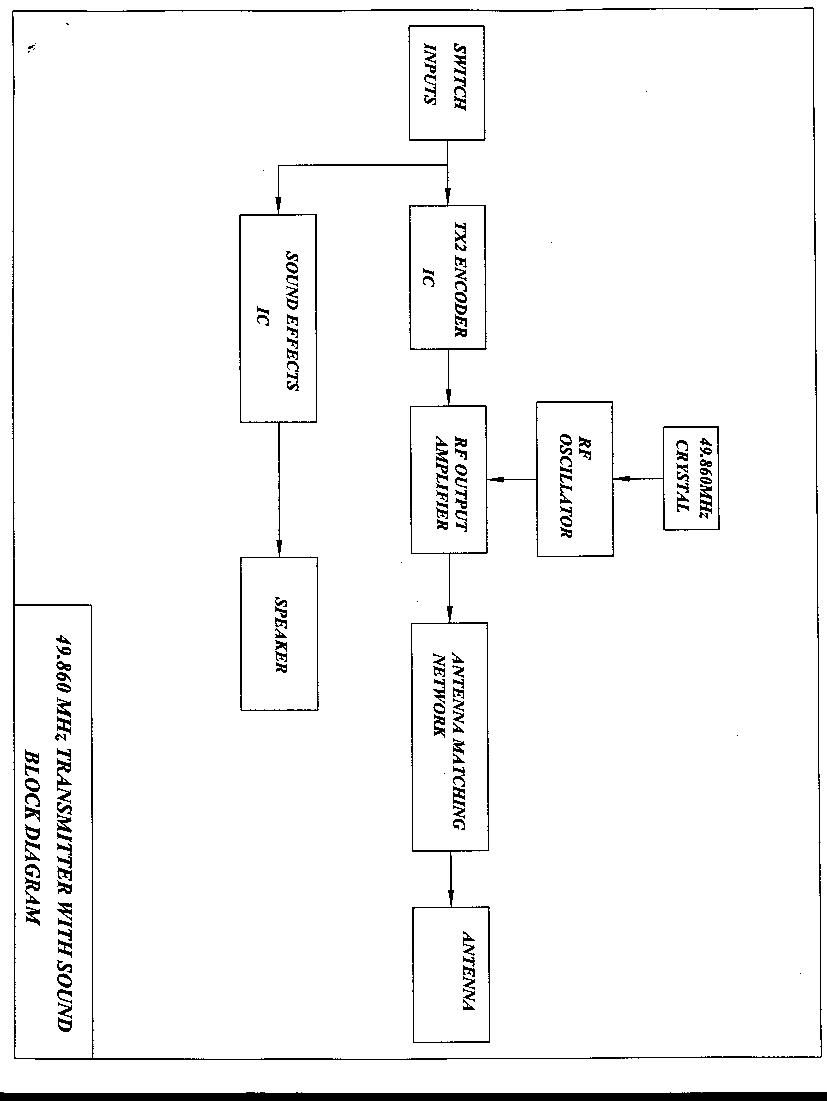

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49MHz RADIO CONTROL TRANSMITTER WITH SOUND MODEL NO: 95086-49T BRAND NAME: TYCO R/C-6V CORVETTE FCC ID NO: APB95086-00A4T REPORT NO: 01U0709-1 ISSUE DATE: MARCH 13, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:01U0709-1 FCC ID: APB95086-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER WITH SOUND PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................ 2 2. PRODUCT DESCRIPTION.......................................................................... 3 3. TEST FACILITY ........................................................................................ 3 4. MEASUREMENT STANDARDS ................................................................. 3 5. TEST METHODOLOGY ............................................................................. 3 6. MEASUREMENT EQUIPMENT USED ........................................................ 4 7. TEST PROCEDURES AND TEST RESULTS................................................. 4 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO.............................................. 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:01U0709-1 FCC ID: APB95086-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER WITH SOUND PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1259 EUT DESCRIPTION : 49MHz RADIO CONTROL TRANSMITTER WITH SOUND MODEL NAME/NUMBER : 95086-49T BRAND NAME : TYCO R/C-6V CORVETTE SERIAL NUMBER : N/A FCC ID : APB95086-00A4T DATE TESTED : MARCH 06, 2001 REPORT NUMBER : 01U0709-1 EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested and/or Reviewed By: Released For CCS By: MIKE ZHU THU CHAN SENIOR EMC ENGINEER SENIOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:01U0709-1 FCC ID: APB95086-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER WITH SOUND PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9VOLT BATTERY Transmitting Time CONTINUOUS Type of Antenna PERMANENTLY ATTACHED No. of Channel 1 NO. OF LAYER 1 Associated Receiver APB95086-00A4R 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:01U0709-1 FCC ID: APB95086-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER WITH SOUND PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8568B Spectrum Analyzer (100Hz - 1.5GHz) 07/14/01 EATON 94455-1 Antenna, Biconical 09/12/01 BATTERY N/A 6 Volt Nicad or 6V Alkaline (4 x AA) N/A 7. TEST PROCEDURES AND TEST RESULTS RADIATED EMISSION TEST: ( 15.235 (a)) Test Procedure 1. The EUT was placed on a wooden table on the outdoor ground plane. The search antenna was placed 3 meter from the EUT. The EUT was placed in X,Y, and Z position to simulate the actual usage. 2. The turntable was slowly rotated to locate the direction of maximum emission at each EUT position. Once the maximum direction and EUT position was determined, the search ant…

Text truncated - open the document above for the full version.

REPORT NO:01U0709-1 FCC ID: APB95086-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER WITH SOUND PAGE NO: 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED EMISSION TEST SETUP PHOTOS
