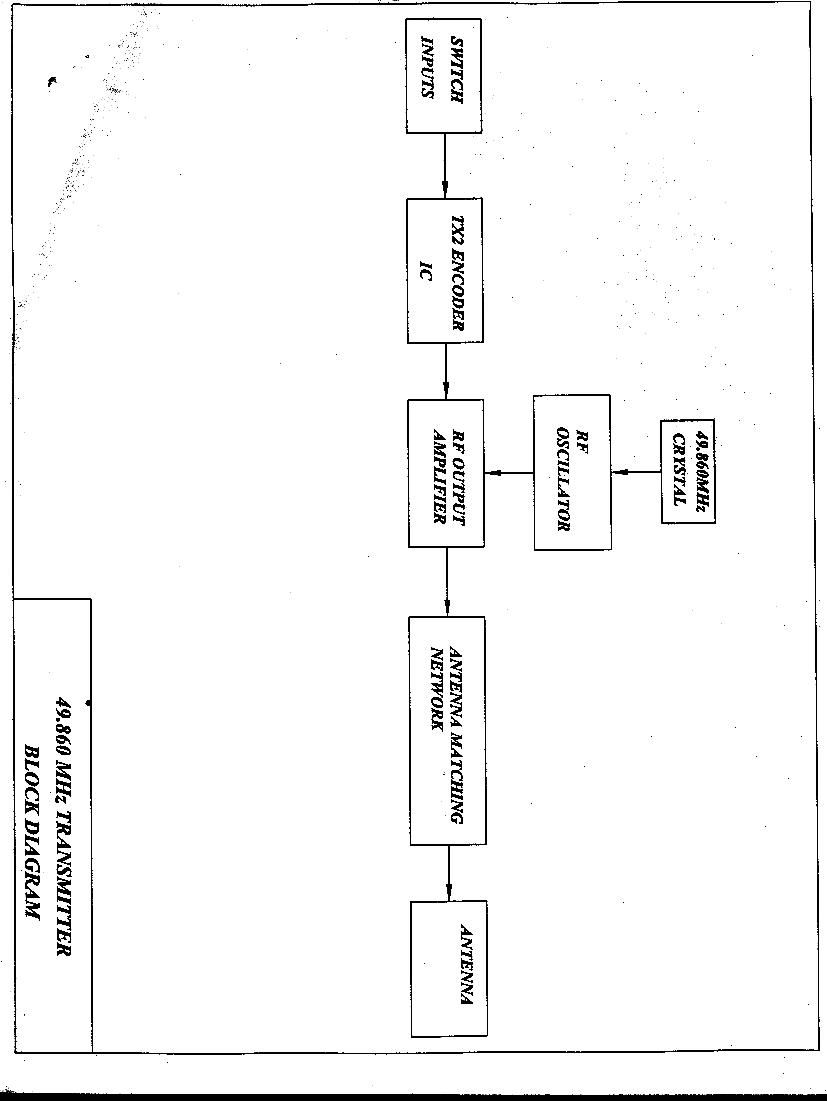

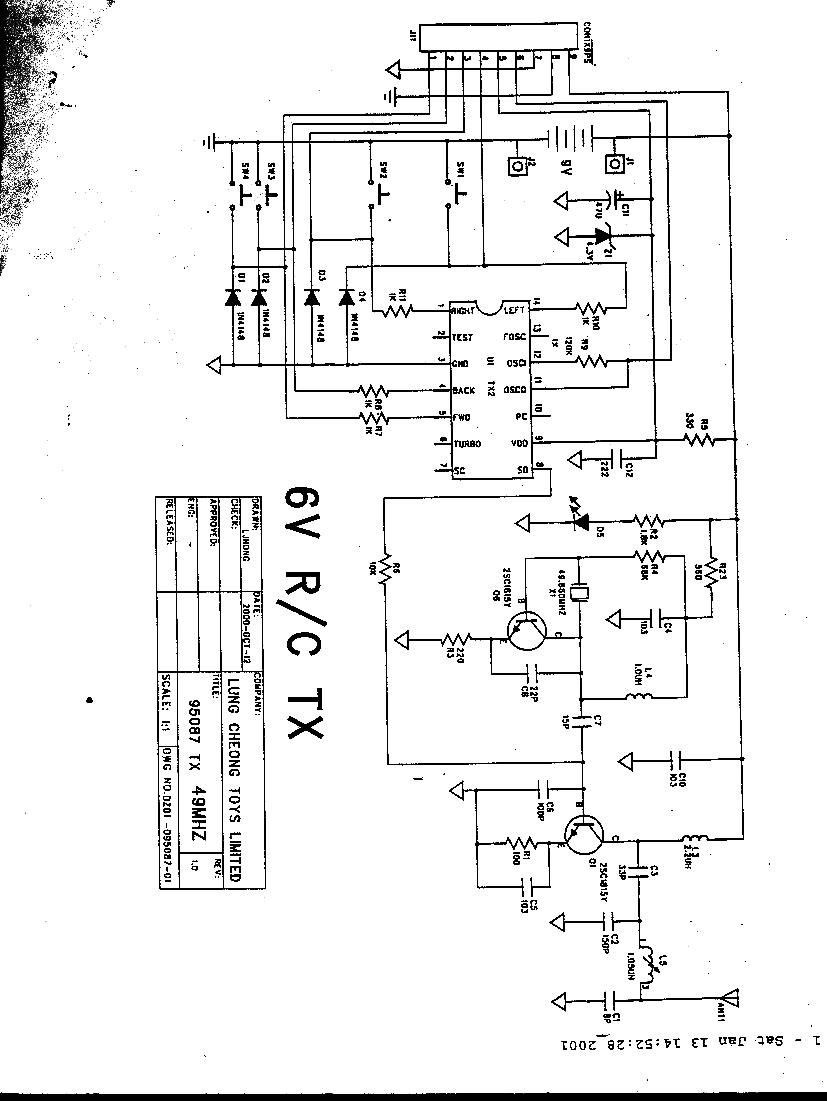

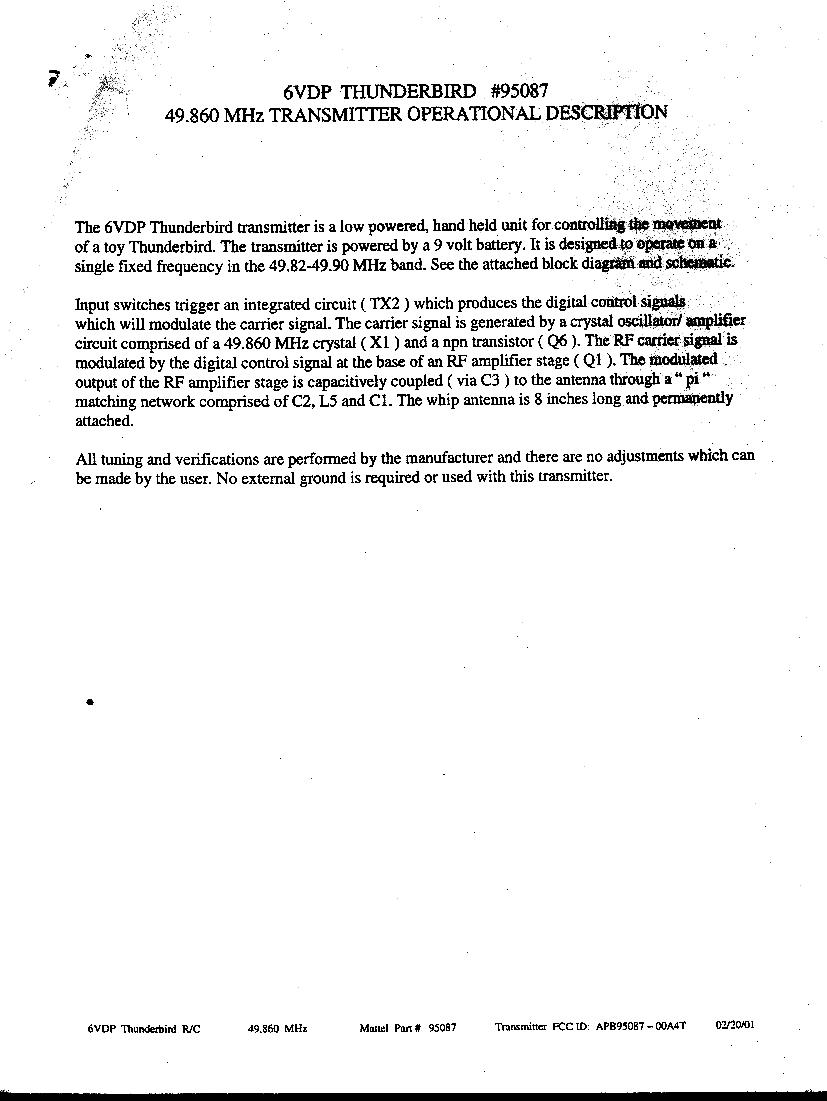

APB95087-00A4TRemote Control Toy Transmitter

CONTENTS Vehicle Transmitter Power Clip (if supplied) 6.0V Jet Turbo ® Battery Pack (if supplied) 6.0V Jet Turbo ® Charger (if supplied) CHASSIS Your vehicle’s chassis will look like 1 or 2 below, depending on the vehicle’s design. Refer to label on transmitter and vehicle for frequency. Do not race vehicles with the same frequency. Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” (last page) before operating your vehicle. 6.0V R/C 6.0V R/C CAUTION:Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. FORWARDREVERSELEFT RIGHT VEHICLE OPERATION ON/OFF switch ON/OFF switch steering adjuster steering adjuster battery latch battery latch NOT RECOMMENDED FOR CHILDREN UNDER 6 YEARS OF AGE. AS WITH ALL ELECTRIC PRODUCTS,PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. CAUTION-ELECTRIC TOY: MODEL 32990: INPUT: 120VAC, 60Hz, 0.05A. OUTPUT: 6.3VDC, 230mA. MODEL 95084-9609: INPUT: 120VAC, 60HZ, 0.04A. OUTPUT: 6.3VDC, 200mA, 1.3VA. CHASSIS 1CHASSIS 2 00007-1705 POWER SYSTEMS TRANSMITTER BATTERY INSTALLATION NOTE: Your transmitter is equipped with a special automatic ON battery-saving feature. Just turn your vehicle ON. Then push either transmitter stick and you will be able to run and control your vehicle. Some transmitters include a sound feature. The sound feature can be deactivated by turning the sound switch to the OFF position. 1. To install transmitter battery, open battery door as shown. 2. Install one 9V battery with polarity (+/-) as shown inside battery compartment. 3. Swing battery door closed and snap shut. If your vehicle was supplied with a battery pack and charger, please follow the specific instructions on the next page for detailed information regarding NiCd vehicle battery charging and safety. If your vehicle was not supplied with a battery pack and charger, please follow the specific instructions that came with your battery pack and charger. VEHICLE BATTERY INSTALLATION 1. Rotate battery latch to open position. 2. Insert battery pack into battery compartment and slide it away from latch. 3. Make sure battery pack snaps securely in place and rotate latch to locked position. 4. To remove battery pack: turn latch, slide battery pack toward latch and lift out. battery compartment battery door vehicle controls power indicator light sound switch (if equipped) Please follow these instructions regarding NiCd vehicle battery charging and safety. BATTERY CHARGING/CARE – 6.0V JET TURBO ® BATTERY 1. Plug wall pack charger into standard wall outlet. 2. Click the battery pack into the charger. Make certain the battery pack is secure in charger. 3. To disconnect, push the red button on the side of charger and simultaneously slide battery pack out. 4. After charging, the battery will feel warm. This condition is normal for fully charged batteries. 5. New battery packs must be charged for 10 hours the first two times charged. Subsequent charges will require 6 hours. Charging the battery pack for more than 6 hours will not give you a longer running time. 6 hours is all that is required for a fully charged bat- tery pack. 6. Unlike alkaline batteries, where the power loss is gradual, a NiCd (Nickel- Cadmium) battery will run for its normal running time and then lose most of its power at once. It is time to recharge the battery pack. 7. After use, the battery pack will be hot! Wait at least 20 minutes until the bat- tery pack cools before recharging. Recharging a warm or hot battery pack will greatly reduce the number of times your battery pack can be recharged. RECHARGEABLE BATTERY INFORMATION:  DO NOT RECHARGE BATTERY PACK IF IT’S HOT. ALLOW IT TO COOL BEFORE RECHARGING.  DO NOT RECHARGE A BATTERY PACK THAT SHOWS LEAKAGE OR CORRO- SION.  DO NOT DISASSEMBLE THE BAT- TERY PACK. THE BATTERY PACK IS A SEALED RECHARGEABLE NICKEL- CADMIUM BATTERY.  DO NOT DISPOSE OF THE BATTERY PACK IN FIRE.  EXERCISE CAUTION IN HANDLING A HOT BATTERY PACK.  IF BATTERY PACK AND/OR CHARGER ARE WET, THOROUGHLY DRY BEFORE CHARGING.  DO NOT RECHARGE NON- RECHARGEABLE BATTERIES.  DO NOT USE THE POWER CLIP WITH THE 6.0V JET TURBO CHARGER. Note to Adults: • Remove rechargeable batteries before recharging. Recharge batteries only under adult supervision. • Regularly examine for damage to the plug, enclosure and other parts. In the event of any damage, the toy must not be used with the transformer until the damage has been repaired. • This toy is not intended for children under 6 years old. The transformer is not a toy. Additional 6.0V Jet Turbo ® NiCd Battery Pack Tyco ® R/C 6.0V Jet Turbo ® NiCd Battery Pack and Charger ALSO AVAILABLE NiCd BATTERY INFORMATION THIS PRODUCT USES A NICKEL-CADMIUM RECHARGEABLE BATTERY PACK. BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. FOR FURTHER INFORMATION REGARDING BATTERIES OR THEIR DISPOSAL PLEASE CALL 1-888-557-TYCO. IMPORTANT: Please read before operating your vehicle. SAFETY INFORMATION Note to Adults: To ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. • Keep fingers, hair and loose clothing away from the tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. BATTERY SAFETY INFORMATION Insure that battery polarity is correct. Use only batteries of the type recommended (or equivalent). Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period. Do not recharge non-rechargeable batteries. Do not short-circui…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95087-00A4T FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 49MHz RADIO CONTROL TRANSMITTER MODEL NO: 95087-49T BRAND NAME: TYCO R/C-6V THUNDERBIRD FCC ID NO: APB95087-00A4T REPORT NO: 01U0711-1 ISSUE DATE: MARCH 13, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 1 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................ 2 2. PRODUCT DESCRIPTION.......................................................................... 3 3. TEST FACILITY ........................................................................................ 3 4. MEASUREMENT STANDARDS ................................................................. 3 5. TEST METHODOLOGY ............................................................................. 3 6. MEASUREMENT EQUIPMENT USED ........................................................ 4 7. TEST PROCEDURES AND TEST RESULTS................................................. 5 Radiated Emission Test Result( 15.235 (a)) Radiated Emission Test Result( 15.235 (b)) 8. RADIATED EMISSION TEST SETUP PHOTO.............................................. 6 EXHIBITS 1. Proposed FCC ID Label Format 2. Authorization Letter 3. EUT Photographs 4. Schematic Diagram 5. User Manual REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 2 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER, SENIOR PROJECT ENGINEER TELEPHONE NO. : (856) 840-1259 EUT DESCRIPTION : 49MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 95087-49T BRAND NAME : TYCO R/C-6V THUNDERBIRD SERIAL NUMBER : N/A FCC ID : APB95087-00A4T DATE TESTED : MARCH 19, 2001 REPORT NUMBER : 01U0711-1 EQUIPMENT TYPE 49.86 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.235 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested and/or Reviewed By: Released For CCS By: MIKE ZHU STEVE CHENG SENIOR EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 3 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 49.86 MHz Power Source 9VOLT BATTERY Transmitting Time CONTINUOUS Type of Antenna PERMANENTLY ATTACHED No. of Channel 1 NO. OF LAYER 1 Associated Receiver APB95086-00A4R 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27, 1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 4 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8568B Spectrum Analyzer (100Hz - 1.5GHz) 07/14/01 SCHAFFNER- CHASE CBL6112B Antenna, Bilog (30-2000MHz) 12/11/01 H.P. 85650A Quasi-Peak Detector (9 K-1 GHz) 01/18/02 H.P. 8447D Pre-Amplifier (0.1-1300 MHz) 09/19/01 H.P. 85662A Spectrum Display 01/18/02 BATTERY Energizer 9Volt Nicad or 9V Alkaline (4 x AA) 6LR61-6AM6 N/A REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 5 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written …

Text truncated - open the document above for the full version.

REPORT NO:01U0711-1 FCC ID: APB95087-00A4T DATE: MARCH 13, 2001 EUT: 49 MHz RADIO CONTROL TRANSMITTER PAGE NO: 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4026B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED EMISSION TEST SETUP PHOTOS
