APB95189-00A4RRemote Control Toy Receiver

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95189-00A4R FCC ID LABEL

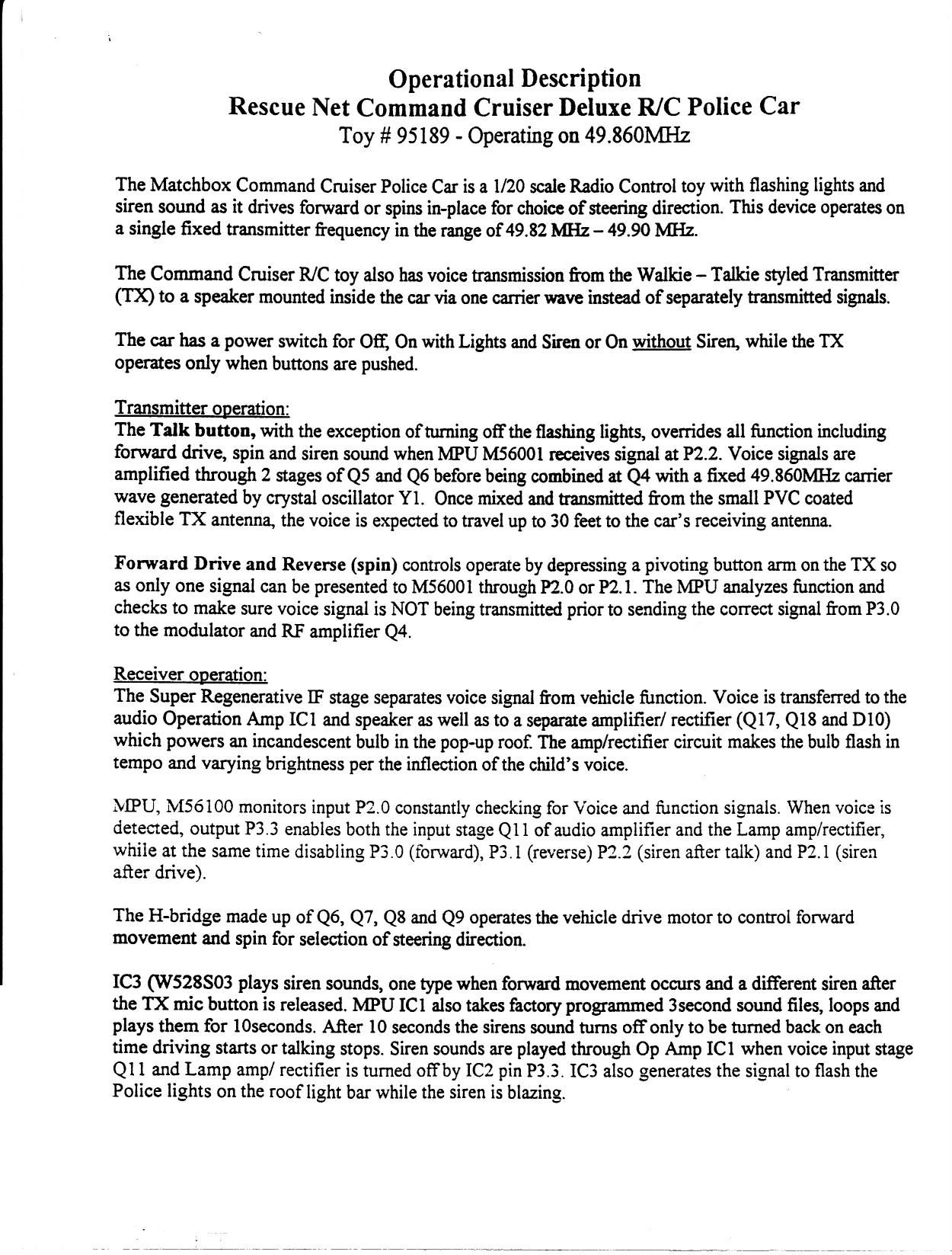

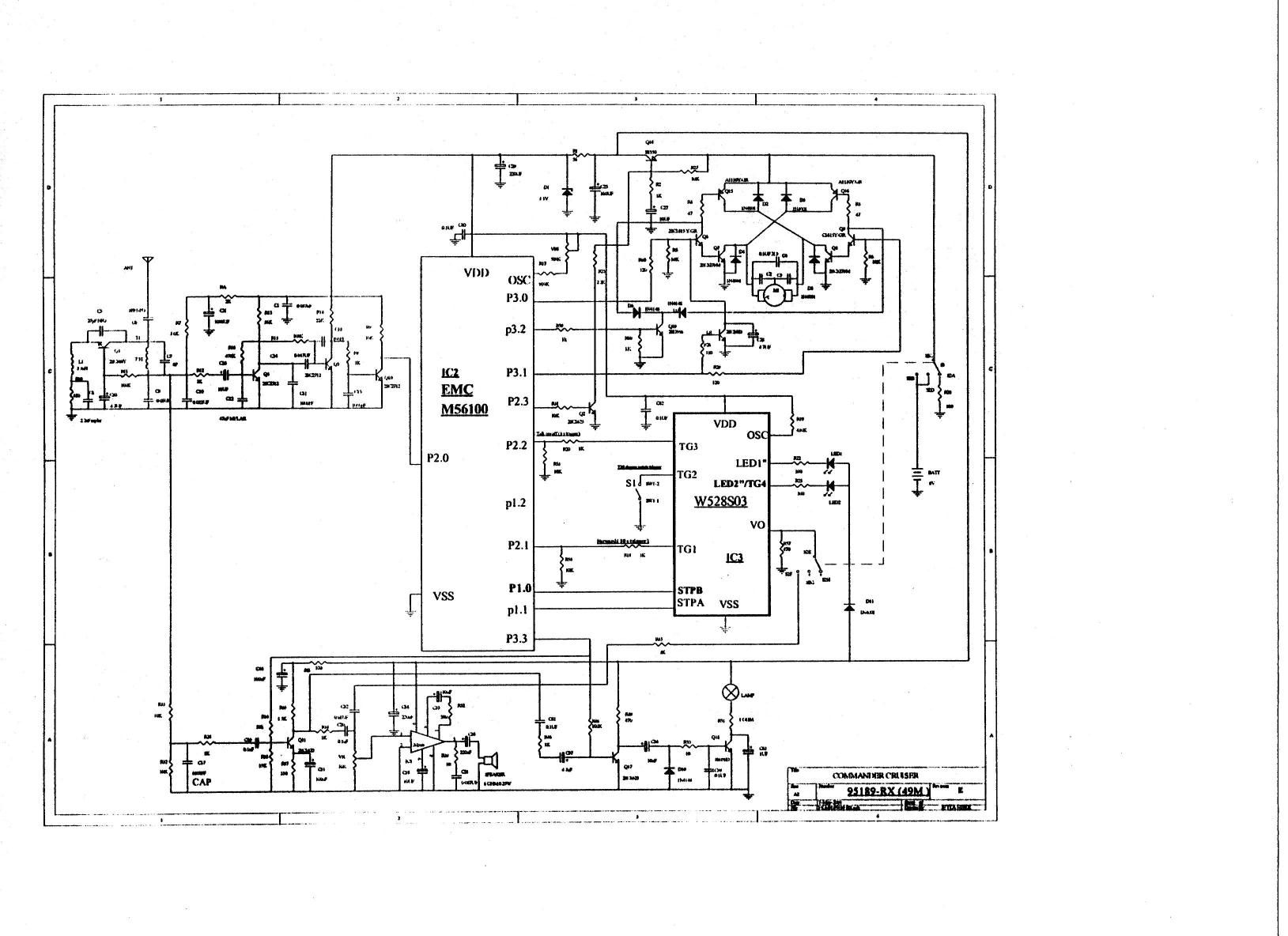

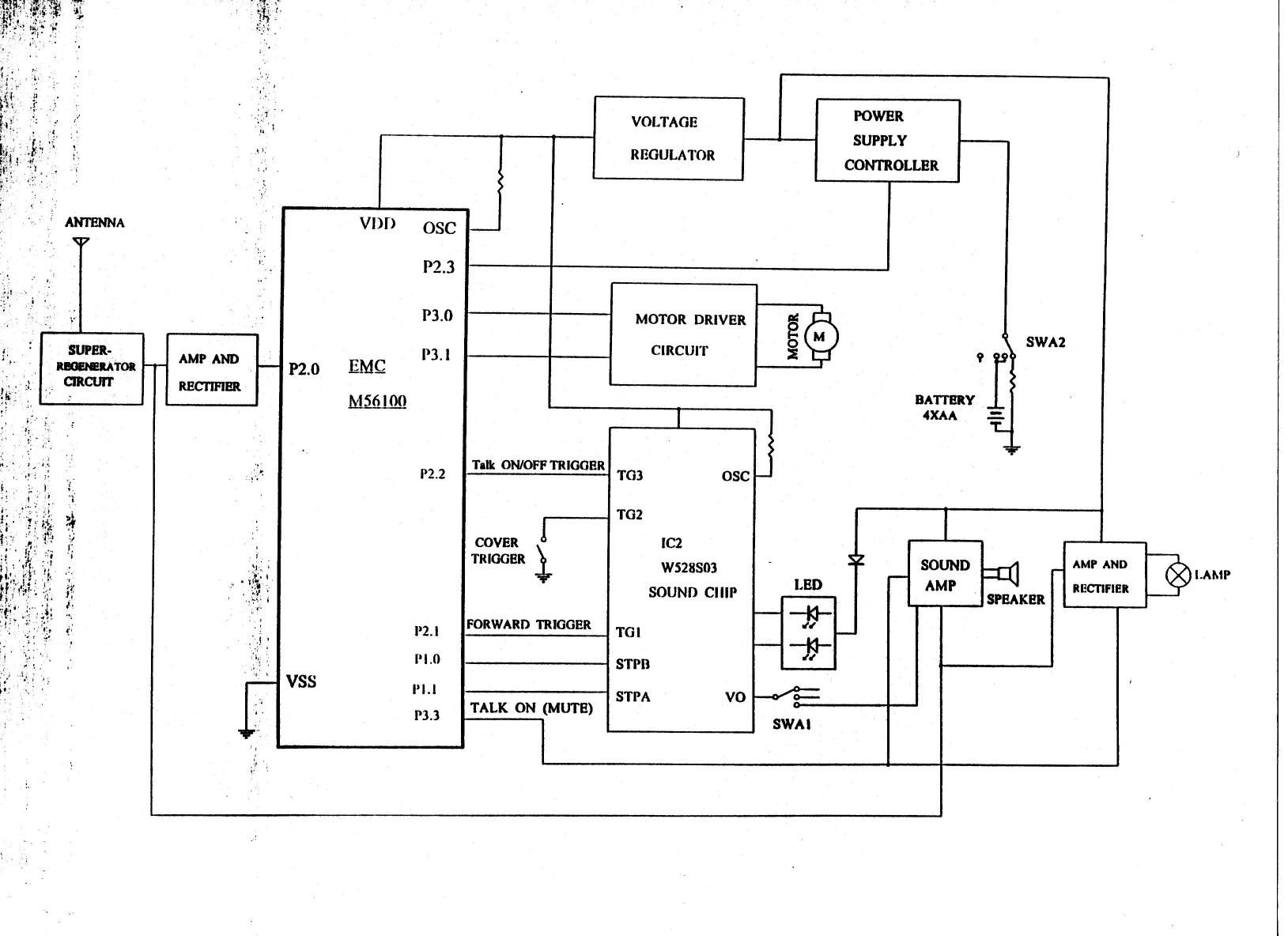

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 49 MHz R/C POLICE CAR VEHICLE WITH TALK FUNCTION (RECEIVER) MODEL NO: 95189 BRAND NAME: MATCHBOX R/C- RESCUE NET COMMAND CRUISER FCC ID NO: APB95189-00A4R REPORT NO: 01U0823-2 DATE: JULY 3, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE...........................................................................................................3 2. PRODUCT DESCRIPTION.................................................................................................................................4 3. TEST FACILITY.........................................................................................................................................................4 4. MEASUREMENT EQUIPMENT USED......................................................................................................5 5. TEST CONFIGURATION....................................................................................................................................5 6. TESTS CONDUCTED..............................................................................................................................................5 7. RADIATED EMISSION TEST PROCEDURE.......................................................................................6 8. COHERENT TESTS..................................................................................................................................................6 9. EQUIPMENT MODIFICATIONS...................................................................................................................7 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST).................................8 • TEST DATA o Cohered Emission Plot o Quasi Peak Cohered Emission Plot o Radiated Emission Data • PROPOSED FCC ID LABEL FORMAT • AUTHORIZATION LETTER • SCHEMATIC DIAGRAM • USER MANUAL • EUT PHOTOGRAPHS REPORT NO: 01U0823-2 FCC ID: APB95189-00A4R DATE: JULY 3, 2001 EUT: 49 MHz R/C POLICE CAR VEHICLE WITH TALK FUNCTION (RECEIVER) Page 3 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY RD., MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : BOB SPALINSKI, SENIOR MANAGER R/C DEVELOPMENT TELEPHONE NO. : (856) 840-1388 EUT DESCRIPTION : 49MHz R/C POLICE CAR VEHICLE WITH TALK FUNCTION (RECEIVER) MODEL NAME/NUMBER : 95189 BRAND NAME : MATCHBOX R/C- RESCUE NET COMMAND CRUISER SERIAL NUMBER : N/A FCC ID : APB95189-00A4R DATE TESTED : JUNE 07, 2001 REPORT NUMBER : 01U0823-2 TYPE OF EQUIPMENT RADIO CONTROL RECEIVER (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 49 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested and/or Reviewed By: Approved & Released For CCS By: PETE KREBILL STEVE CHENG ASSOCIATE EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0823-2 FCC ID: APB95189-00A4R DATE: JULY 3, 2001 EUT: 49 MHz R/C POLICE CAR VEHICLE WITH TALK FUNCTION (RECEIVER) Page 4 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY RD., MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION MATTEL MT. LAUREL, Model R/C POLICE CAR VEHICLE AND TRANSMITTER WITH TALK FUNCTION is the receiving portion of a remote control toy. The associated Transmitter is manufactured by MATTEL MT. LAUREL, Model No 95189: FCC ID APB95189-00A4T. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. REPORT NO: 01U0823-2 FCC ID: APB95189-00A4R DATE: JULY 3, 2001 EUT: 49 MHz R/C POLICE CAR VEHICLE WITH TALK FUNCTION (RECEIVER) Page 5 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY RD., MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. Th…

Text truncated - open the document above for the full version.

REPORT NO: 01U0823-2 FCC ID: APB95189-00A4R DATE: JULY 3, 2001 EUT: 49 MHz R/C POLICE CAR VEHICLE AND TRANSMITTER WITH TALK FUNCTION (RECEIVER) Page 8 of 11 COMPLIANCE CERTIFICATION SERVICES CCS DOCUMENT NO: CCSUP4021B 561 F MONTEREY RD., MORGAN HILL CA 95037 TEL:(408)463-0885 FAX:(408)463-0885 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10. TEST CONFIGURATION PHOTOS (Radiated Emission Test)
