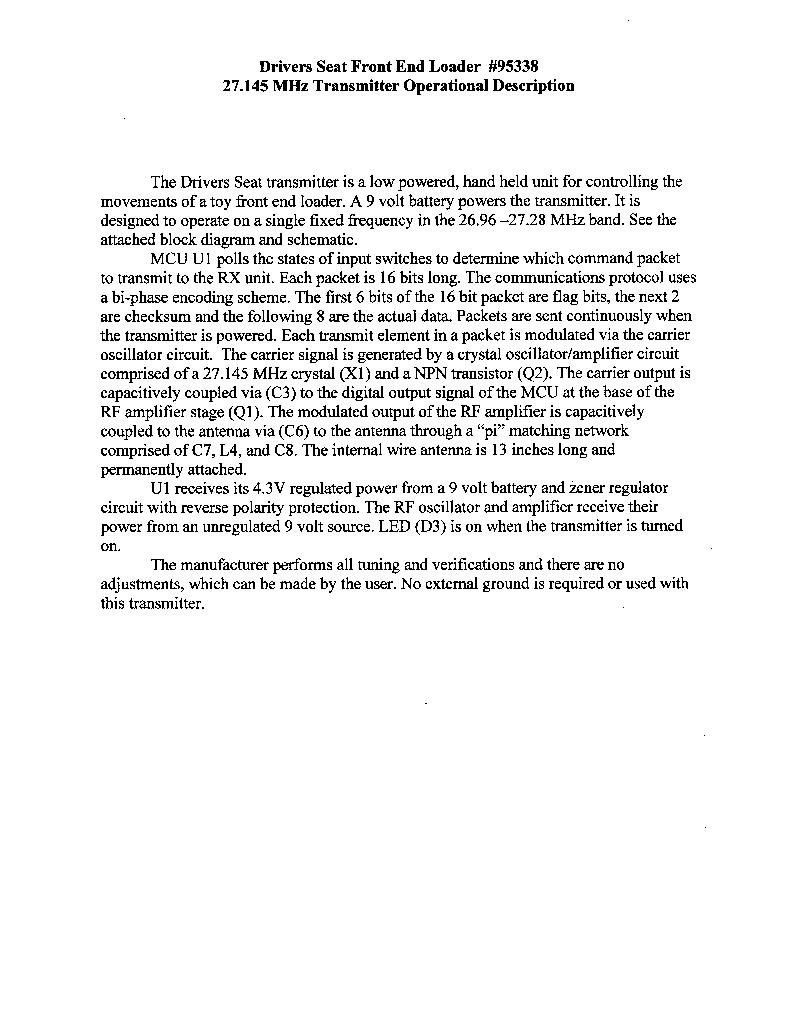

APB95338-00A2TRadio Control Transmitter

PROPOSED FCC ID LABEL AND LOCATION MATTEL MT. LAUREL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: APB95338-00A2T FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for INTENTIONAL RADIATOR 27 MHz RADIO CONTROLTRANSMITTER MODEL NO: 95338-27T BRAND NAME: TYCO R/C-DRIVER'S SEAT FRONT END LOADER FCC ID NO: APB95338-00A2T REPORT NO: 01U0762-4 ISSUE DATE: MAY 14, 2001 Prepared for MATTEL MT. LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 01U0762-4 FCC ID: APB95338-00A2T DATE: MAY 14, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE................................................................... 1 2. PRODUCT DESCRIPTION................................................................................. 2 3. TEST FACILITY .............................................................................................. 2 4. MEASUREMENT STANDARDS ....................................................................... 2 5. TEST METHODOLOGY .................................................................................... 2 6. MEASUREMENT EQUIPMENT USED .............................................................. 3 7. PPOWERLINE RFI LIMITS .............................................................................. 4 8. RADIATED EMISSION LIMITS ....................................................................... 4 9. TEST SETUP AND CONFIGURATION ............................................................. 5 10. EQUIPMENT MODIFICATIONS ....................................................................... 6 11. SUMMARY......................................................................................... 6 12. TEST PROCEDURE AND RESULT .................................................................. 6 EXHIBIT 1. Proposed FCC ID Label Format 2. Agent Authorization Letter Attachment • EUT Photographs • Schematic Diagram REPORT NO: 01U0762-1 FCC ID: APB95455-00A2T DATE: MAY 14, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER Page 1 of 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. VERIFICATION OF COMPLIANCE COMPANY NAME : MATTEL MOUNT LAUREL 6000 MIDATLANTIC DRIVE MOUNT LAUREL, NJ 08054 USA CONTACT PERSON : FRANK WINKLER/ SENIOR PROJECT ENGINEER TELEPHONE NO. : 856-840-1259 EUT DESCRIPTION : 27 MHz RADIO CONTROL TRANSMITTER MODEL NAME/NUMBER : 95338-27T BRAND NAME : TYCO R/C-DRIVER'S SEAT FRONT END LOADER SERIAL NUMBER : 01443 FCC ID : APB95338-00A2T DATE TESTED : APRIL 25, 2001 REPORT NUMBER : 01U0762-4 TYPE OF EQUIPMENT RADIO CONTROL EQUIPMENT TYPE 27 MHz TRANSMITTER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 EQUIPMENT AUTHORIZATION TYPE CERTIFICATION FCC RULE CFR 47, PART 15.227 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. Tested By: Approved & Released For CCS By: KERWIN CORPUZ STEVE CHENG ASSOCIATE EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U0762-1 FCC ID: APB95455-00A2T DATE: MAY 14, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER Page 2 of 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. PRODUCT DESCRIPTION CHASSIS TYPE PLASTIC Fundamental Frequency 27.145 MHz Power Source ONE 9 VOLT BATTERY CHIPSET BRAND AND PART NO MATTEL 95338-27T/TX Transmitting Time CONTINUOUS Type of antenna PERMANENTLY ATTACHED NO. OF LAYER 1 Local Osc. 27.145MHz 3. TEST FACILITY The 3/10/30 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facility was submitted to the Commission on May 27,1994. 4. MEASUREMENT STANDARDS The site is constructed and calibrated in conformance with the requirements of ANSI C63.4/1992. 5. TEST METHODOLOGY For an intentional radiator, the spectrum shall be investigated from the lowest radio frequency signal generated in the device, without going below 9 KHz, up to at least the tenth harmonic of the highest fundamental frequency or to 40 GHz, whichever is lower. (CFR 47 Section 15.33) REPORT NO: 01U0762-1 FCC ID: APB95455-00A2T DATE: MAY 14, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER Page 3 of 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This r…

Text truncated - open the document above for the full version.

REPORT NO: 01U0762-1 FCC ID: APB95455-00A2T DATE: MAY 14, 2001 EUT: 27 MHz RADIO CONTROL TRANSMITTER Page 5 of 6 COMPLIANCE ENGINEERING SERVICES, INC. CCS DOCUMENT NO:CCSUP4022B 561 F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL:(408)463-0885 FAX:(408)463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. SYSTEM TEST CONFIGURATION The EUT was configured for testing in a typical fashion (as a customer would normally use it). The manufacturer activated the Eut to transmit continuous. It just need to insert the battery and turn the Eut on. Please refer to the following photograph for actual setup. Radiated Open Site Test Set-up
